BETE Hydropulse PHP Automatic Spray Nozzles– Pneumatically Actuated, Direct Pressure Spray Nozzles With Air Actuated Shut-off


Design Features of the BETE HydroPulse PHP Spray Nozzle:

  • Provides a controlled intermittent liquid spray using only liquid pressure as the force for atomization. Offers DRIP FREE performance.
  • Interchangeable flat fan, full cone, or hollow cone spray tips
  • Pneumatically actuated for crisp on/off spray
  • Straight through porting for fluid recirculation
  • Hygienic mounting brackets available


Spray Characteristics of the HydroPulse Spray Nozzle:

  • Relatively coarse atomization
  • Uniform distribution with tapered edges for use in overlapping sprays

Available Spray Patterns

Fan

Straight Jet

Hydropulse Pnuematic Spray Pattrern - FanHydropulse Pnuematic Spray Pattern - Jet

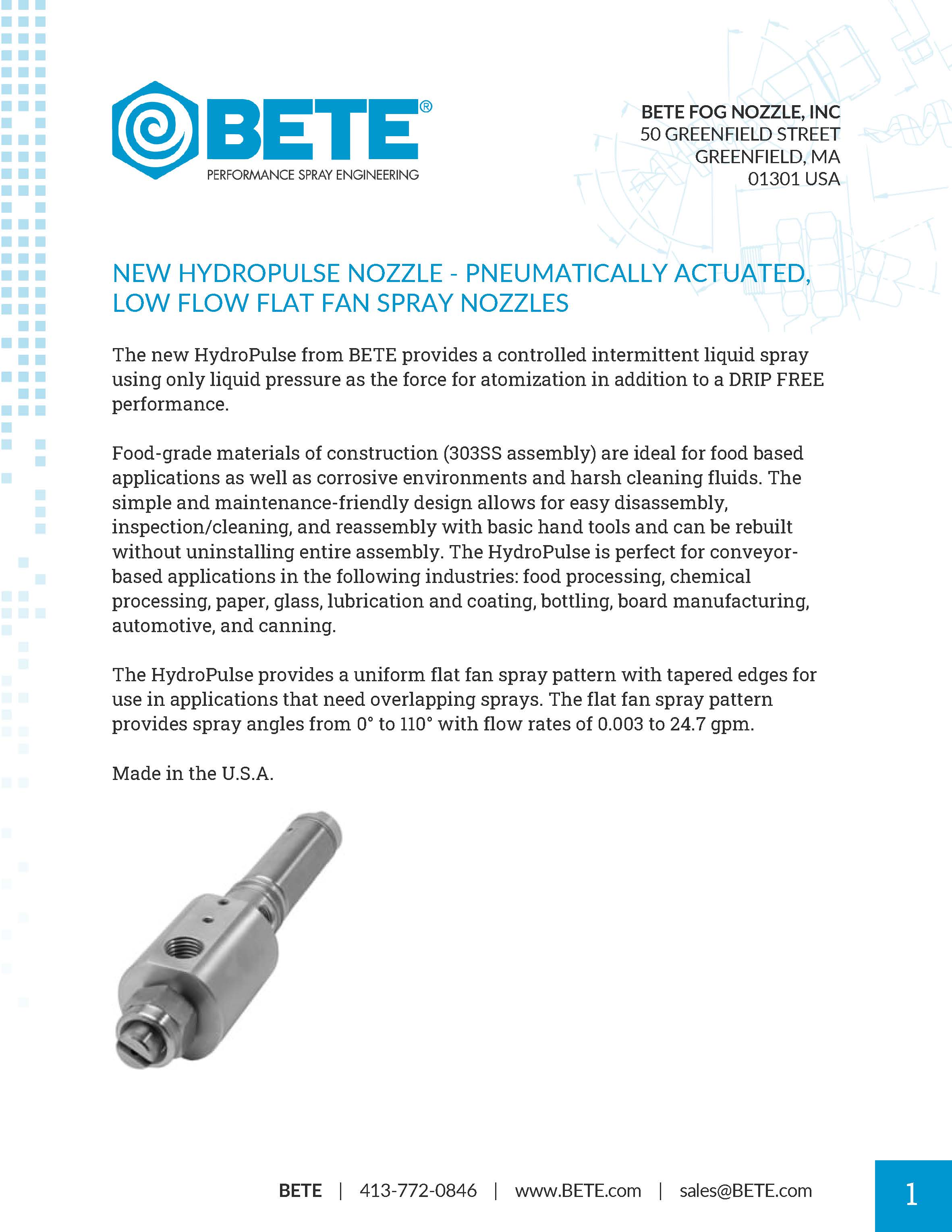

The new HydroPulse (PHP) is a direct pressure spray nozzle with an air actuated shut-off designed to replace current installations where a pneumatic intermittent spray is desired. It is a more compact, lower cost, and easier to maintain solution than competitor models.

  HydroPulse – Pneumatic – PHP – Intermittent Nozzles

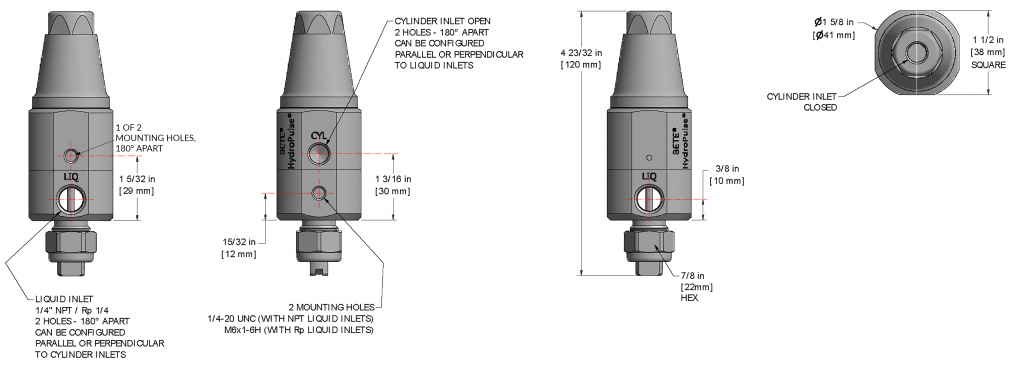

  Inlet connection  ¼” NPT or BSPP, liquid; ⅛” NPT or BSPP,
cylinder air; ½” or DN10 tri-clamp
  Maximum flow rate     12.6 GPM / 57.7 LPM
  Maximum rated pressure  600 PSI / 42 bar
  Operating temperature range  -15°F to 400°F / -26°C to 204°C
  Air cylinder pressure  30 PSI to 250 PSI
  Air cylinder operation  Single acting (spring return) or double acting
  Maximum cycle frequency  3 cycles/sec
  Nozzle construction                                         Stainless steel wetted components,
Viton® (FKM) seals.
  Interchangeable BJ, BJH, CW and ST nozzle tip options.
BETE-HydroPulse-Pneumatically-Actuated-Low-Flow-Automatic-Spray-Nozzles

Join our Mailing List

Resources

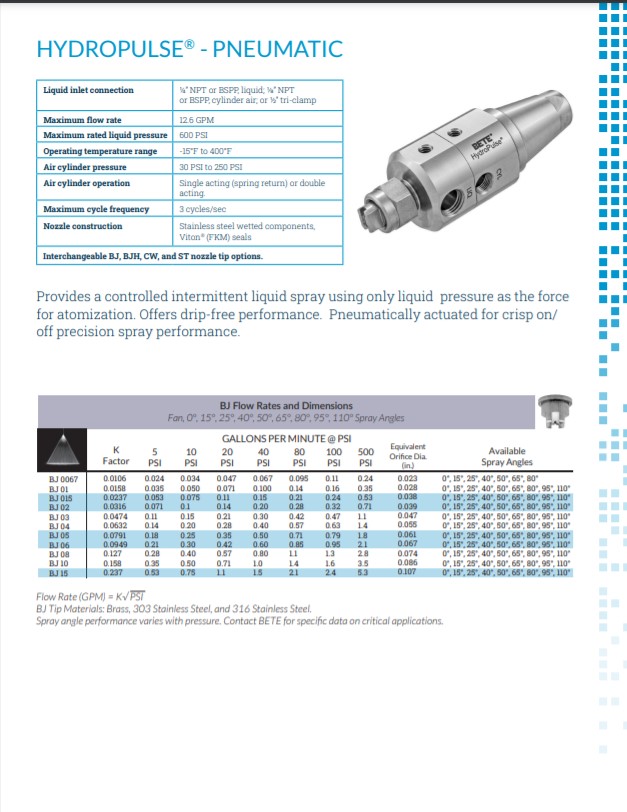

BETE Hydropulse PHP Datasheet

Download
Size: 2 MB

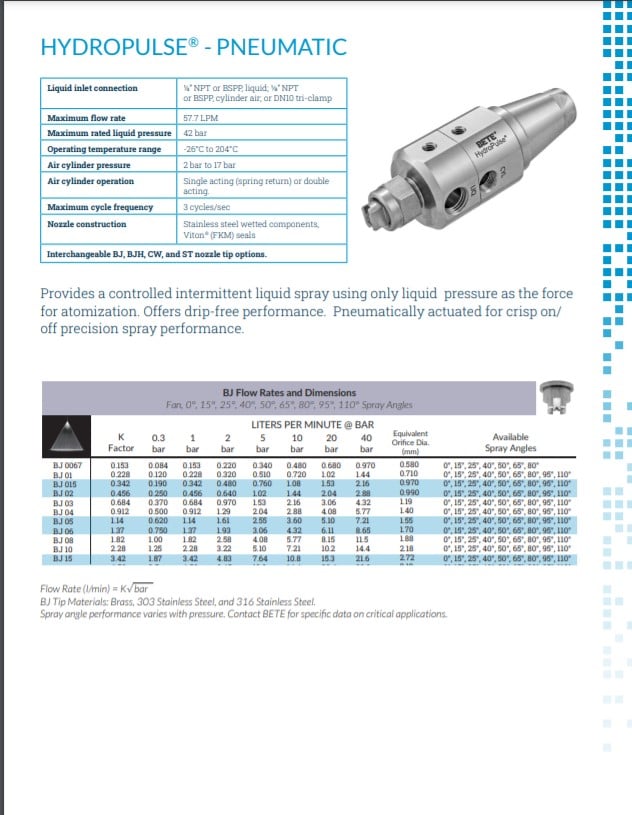

BETE Hydropulse PHP Datasheet Metric
