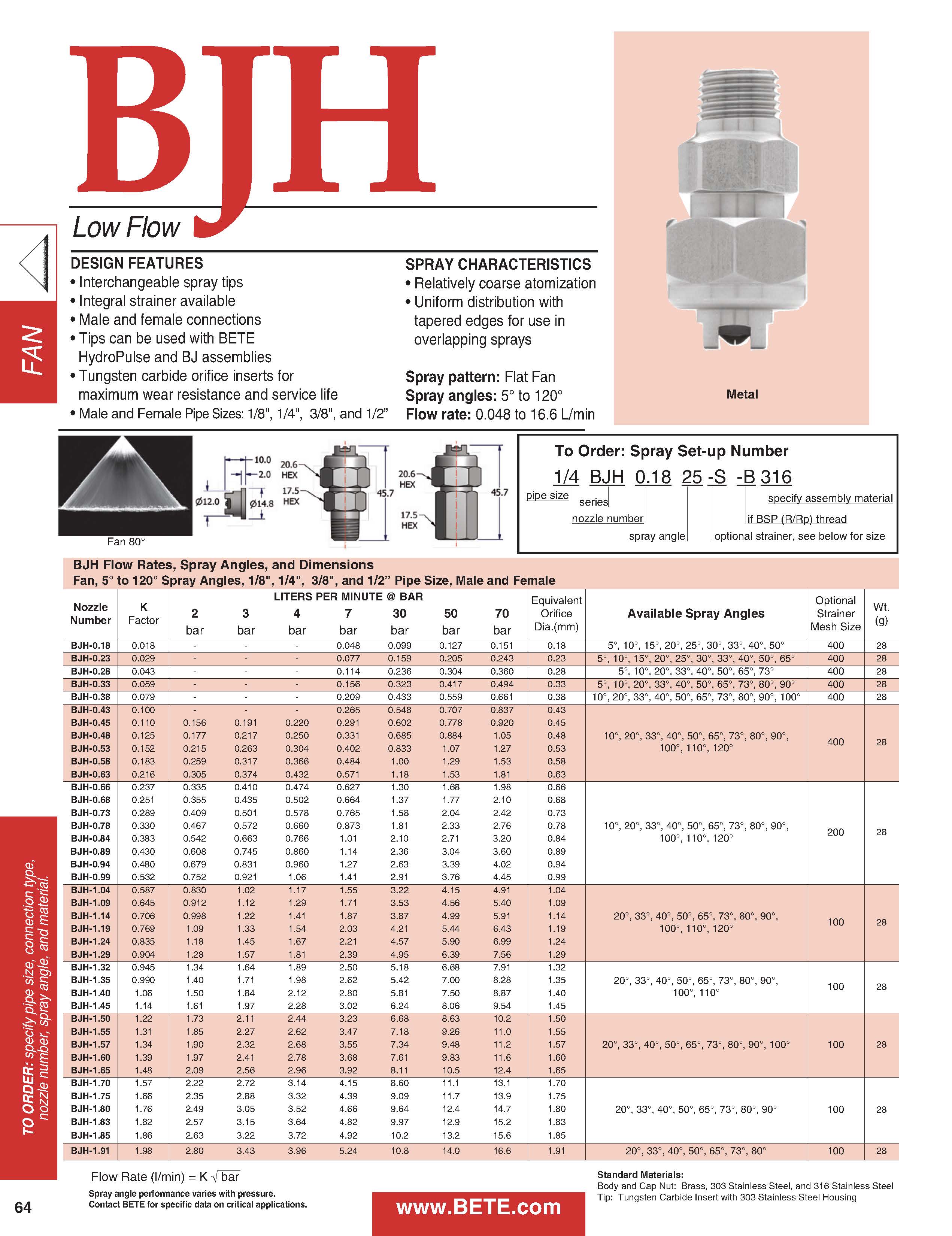

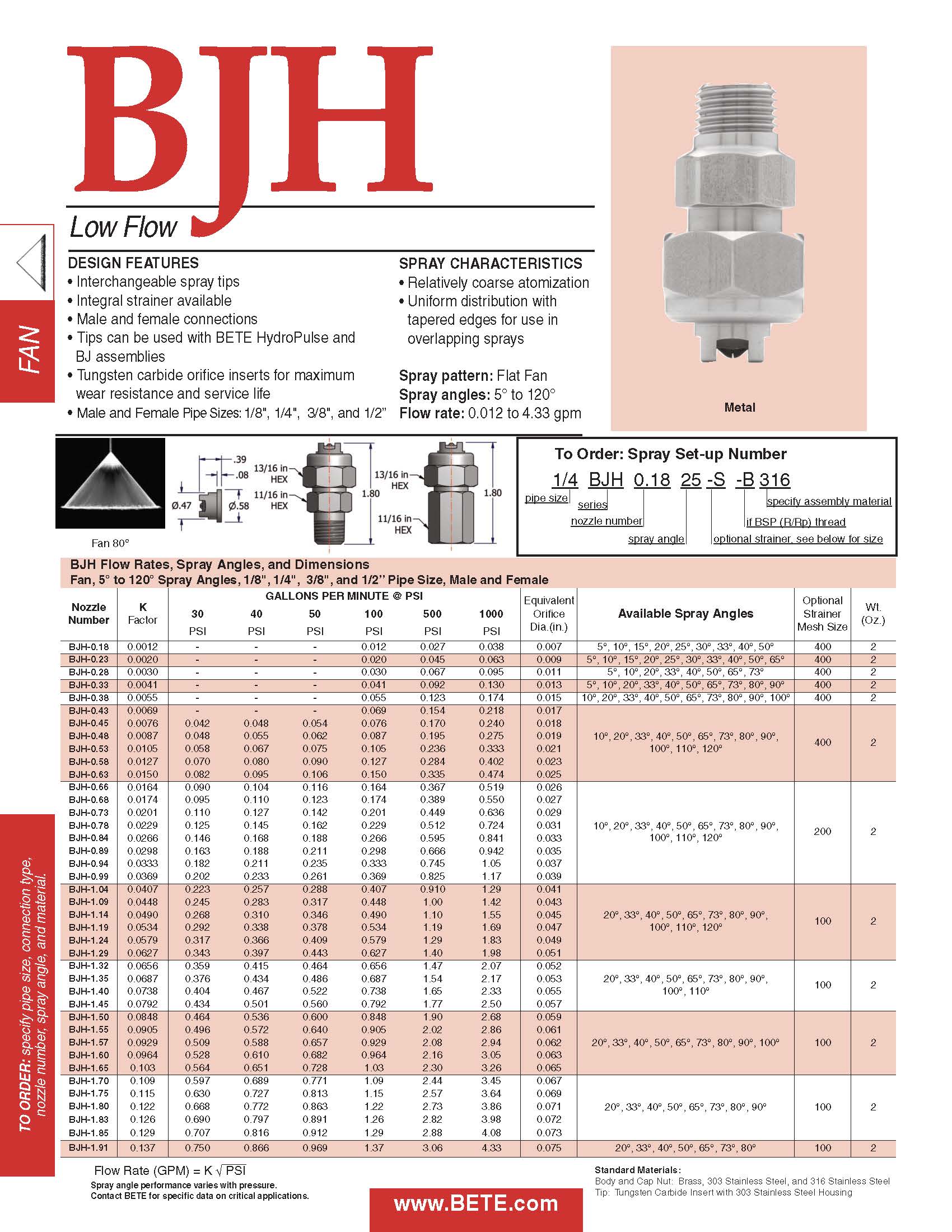

Flat Fan Spray Nozzle Interchangeable Tips With Integral Strainer
BETE Flat Fan Nozzle Design Features
- Interchangeable spray tips
- Integral strainer available
- Can use tips with BETE HydroPulse and BJ assemblies
- Tungsten carbide orifice inserts for maximum wear resistance and service life
How Spray Pattern is Achieved
- A thin flat sheet of liquid is produced when the fluid exits the orifice, and the spray begins to widen and gradually moves outward from the nozzle
| Available Spray Angles | Flow Rate Range |
| 5 - 120° | 0.012 to 4.33 gpm |
| Available Connection Types | Materials |
|
303 / Tungsten Carbide, 303 / Tungsten Carbide / 316, 303 / Tungsten Carbide / Brass |
