BETE SAM Automatic Variable Air Atomizing Spray Nozzles

External Mix/Flat Fan or Narrow Round, Air Atomizing Spray Nozzles

Design Features of the BETE SAM Spray Nozzles

  • Exact atomized intermittent spraying and metering of the liquid flow rate
  • Suitable for all liquids, including viscous fluids above 200 cP
  • Various atomizing and fan airlines provide different coverage and fine control drops size without interfering with liquid flow rates. For example, the higher the atomizing air pressure, the finer the drop size. Alternatively, the higher the fan air pressure, the broader the patterns
  • Pneumatically controlled shut-off and built-in clean-out
  • Liquid flow rates are independent of air

Spray Patterns

  • Air Atomizing Spray Nozzles
  • Automatic Spray Nozzles for Intermittent Spray Applications
Available Spray Angle Material Available Connection Types





  • Pipe: 1/8
  • Connection Methods: Thread (NPT, BSP, Female)

Applications for the BETE SAM Spray Nozzles

  • Additives
  • Air Atomizing
  • Coating

Note: Spray set-ups consist of fluid and air caps. Set-ups are interchangeable but each uses a different needle size. Replacement air caps include replacement Blue-gard® gaskets.

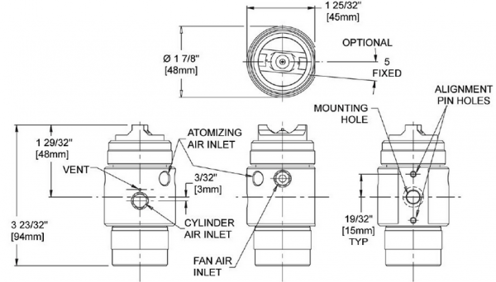

BETE SAM Drawings

drawing-1-600x342 drawing-2-212x300


BETE Automatic Variable Air Atomizing Spray Nozzle Videos

Automatic Nozzles & Systems for Precision Spray Applications

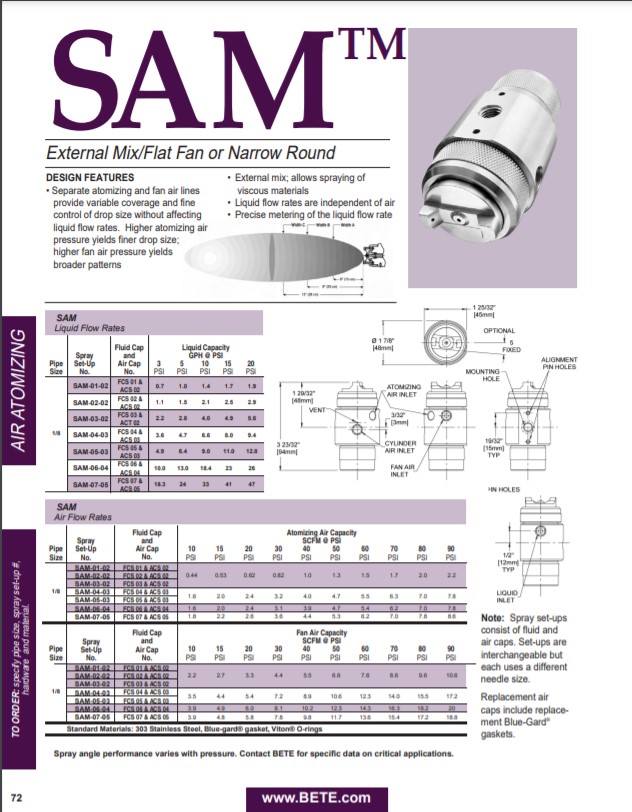

BETE SAM - Datasheet

BETE SAM - Datasheet

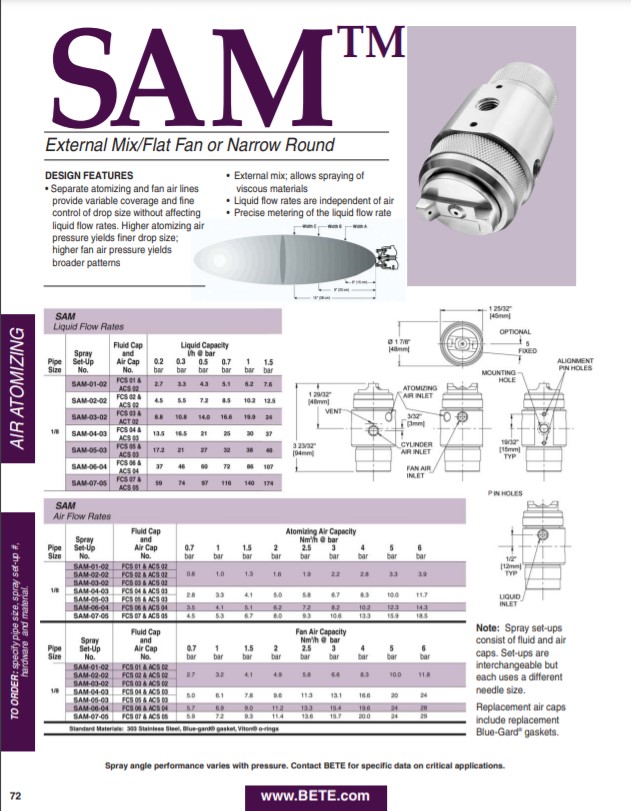

BETE SAM Datasheet - Metric

BETE SAM Datasheet - Metric

BETE FlexFlow Precision Spray Control System - Brochure

BETE FlexFlow Precision Spray Control System - Brochure
