BETE EZTF Quick Connect Full Cone or Hollow Cone Spiral Nozzles

Interchangeable Nozzle Tips With Base and Gasket

BETE EXTF Quick Connect Full Cone or Hollow Cone Spiral Nozzles Design Features

  • Nozzles can be changed in seconds without tools
  • Three part nozzle, base, gasket and interchangeable tip
  • Exclusive ramped engagement for efficient, automatic alignment
  • Threaded adaptors will accommodate other standard BETE nozzles
  • Shut-off plugs are also available
  • Sanitary EZs are available with weld connection and no knurling

How Spray Pattern is Achieved

  • The spray pattern of the spiral nozzle is formed by the fluid shearing along with the turns of the spiral, which produce multiple concentric cones. These cones form 2 to 3 bands of relatively coarse droplets surrounded by wider bands of relatively fine droplets.
  • Produces the finest droplet size of any direct pressure nozzle for very fine atomization

Spray Patterns

BETE EZTF Quick Connect Spray Characteristics

Available Spray Angles Flow Rate Range
60 - 180° 0.494 to 58.4 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4, 3/8, 1/2
  • Connection Methods: Thread (NPT, BSP, Male, Female), Weld
Brass, 316

BETE EZTF Spray Angles Visuals

BETE-EZTF-Quick-Connect-Spray-angles-diagram

Resources

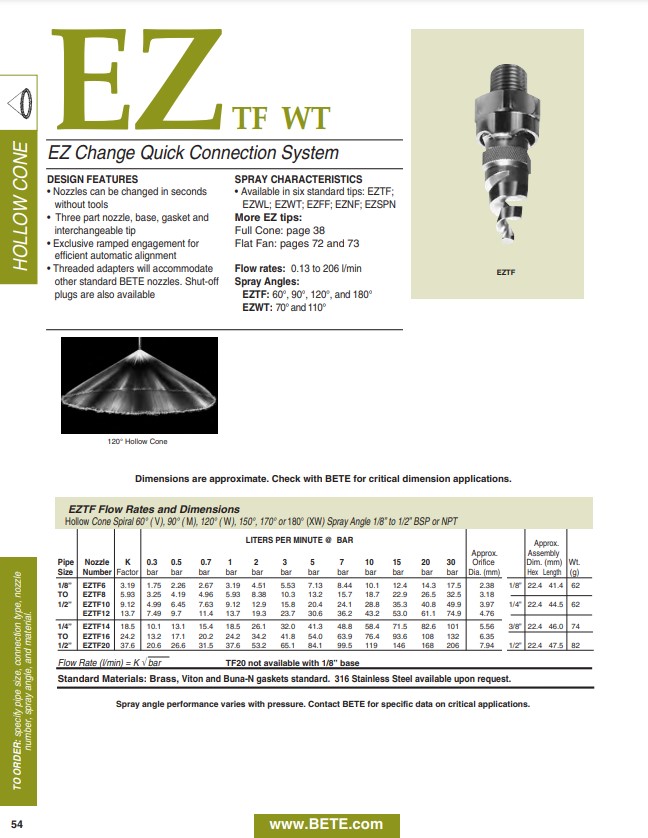

BETE EZ Hollow Cone Datasheet - Metric

BETE EZ Hollow Cone Datasheet - Metric

Download

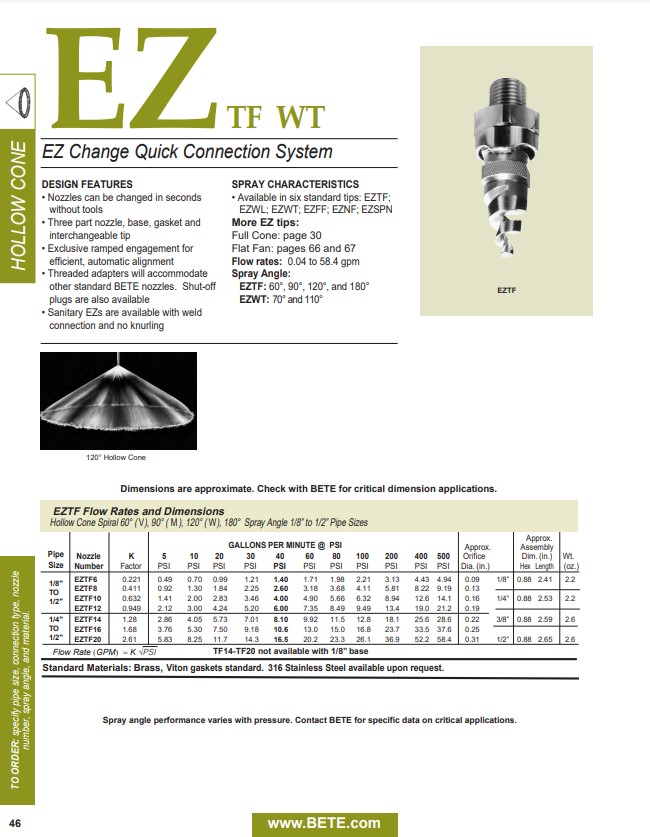

BETE EZ Hollow Cone - Datasheet

BETE EZ Hollow Cone - Datasheet

Download

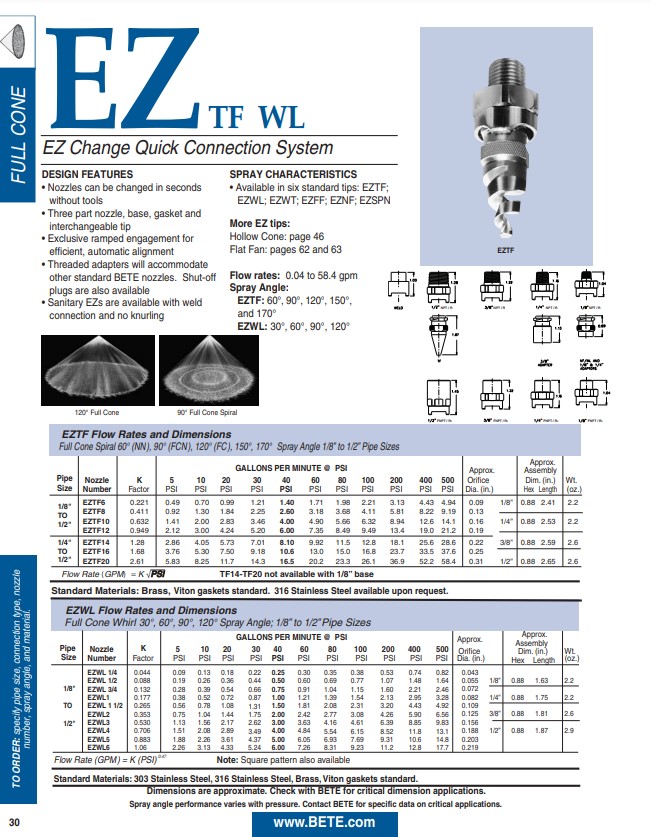

BETE EZ Quick Connect Full Cone Nozzles - Datasheet

BETE EZ Quick Connect Full Cone Nozzles - Datasheet

Download

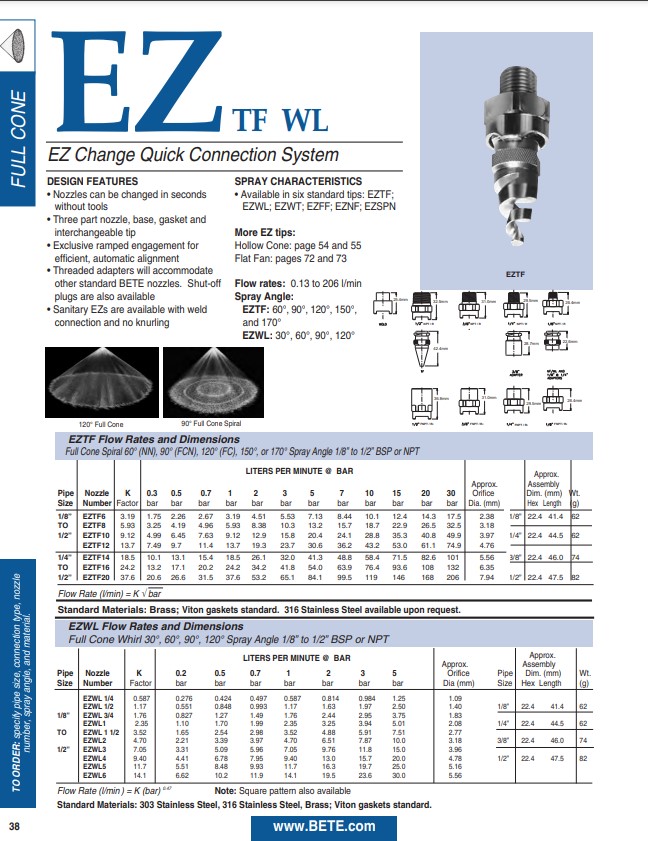

BETE EZ Quick Connect Full Cone Nozzles Datasheet - Metric

BETE EZ Quick Connect Full Cone Nozzles Datasheet - Metric

Download
