BETE EZNF Quick Connect Straight Jet or Flat Fan Spray Nozzles

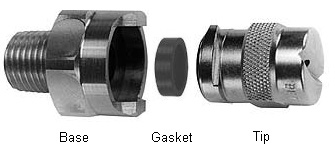

BETE Interchangeable Nozzle Tips With Base and Gasket

Design Features of BETE EZNF Spray Nozzles

  • Changing nozzles can be done in seconds without tools
  • Three-part nozzle, base, gasket and interchangeable tip
  • Exclusive ramped engagement for efficient, automatic alignment
  • Threaded adaptors will accommodate other standard BETE nozzles. Shut-off plugs are also available
  • Sanitary EZs are available with weld connection and no knurling



BETE EZNF Spray Nozzle Spray Characteristics

Available in six standard tips: EZFF, EZNF, EZSPN, EZTF, EZWL and EZWT

Spray Angles:
EZFF: 105° and 145°
EZNF: 0°, 15°, 30°, 50°, 65°, 80°, 90°, 110° and 120°
EZSPN: 15°, 25°, 35°, 40° and 50°

Available Spray Angles Flow Rate Range
0 - 120° 0.0353 to 31.8 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4, 3/8, 1/2
  • Connection Methods: Thread (NPT, BSP, Male, Female), Weld
Brass, 303, 316



BETE EZNF - Datasheet

BETE EZNF - Datasheet

BETE EZNF Datasheet - Metric

BETE EZNF Datasheet - Metric
