Bete EZSPN Quick Connection Spray Nozzles

Design Features of the Bete EZSPN Spray Nozzle:

  • Nozzles can be changed in seconds without tools
  • Three part nozzle, base, gasket and interchangeable tip
  • Exclusive ramped engagement for efficient, automatic alignment
  • Threaded adaptors will accommodate other standard BETE nozzles. Shut-off plugs are also available
  • Sanitary EZs are available with weld connection and no knurling

Spray Characteristics of the Bete EZSPN Spray Nozzle:

  • Available in six standard tips: EZFF, EZNF, EZSPN, EZTF, EZWL and EZWT

Spray Angles:
EZFF: 105° and 145°
EZNF: 0°, 15°, 30°, 50°, 65°, 80°, 90°, 110° and 120°
EZSPN: 15°, 25°, 35°, 40° and 50°

Flow rates: 0.02 to 42.5 gpm (0.051 to 125 L/min)

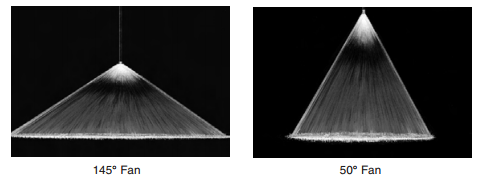

Spray Angle Visuals:




BETE EZNF - Datasheet

BETE EZNF - Datasheet

BETE EZNF Datasheet - Metric

BETE EZNF Datasheet - Metric
