BETE EZWT Quick Change Hollow Cone Spray Nozzles

Interchangeable Nozzle Tips With Base and Gasket

Design Features of the Bete EZWT Quick Connection Spray Nozzle:

  • Nozzles can be changed in seconds without tools
  • Three part nozzle, base, gasket and interchangeable tip
  • Exclusive ramped engagement for efficient, automatic alignment
  • Threaded adaptors willl accommodate other standard BETE nozzles. Shut-off plugs are also available
  • Sanitary EZs are available with weld connection and no knurling

Spray Characteristics Bete EZWT Quick Connection Spray Nozzle:

Available in six standard tips: EZFF, EZNF, EZSPN, EZTF, EZWL and EZWT

Available Spray Angles Flow Rate Range
70 - 110° 0.0353 to 6.32 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4, 3/8, 1/2
  • Connection Methods: Thread (NPT, BSP, Male, Female), Weld
Brass, 303, 316



How Spray Pattern is Achieved

  • Tangential hollow cone nozzles utilize a supply of liquid perpendicular to the direction of spray Flow enters a swirl chamber without the use of internal components - allowing for maximum clog resistance



BETE EZ TF WL WT - Datasheet

BETE EZ TF WL WT - Datasheet

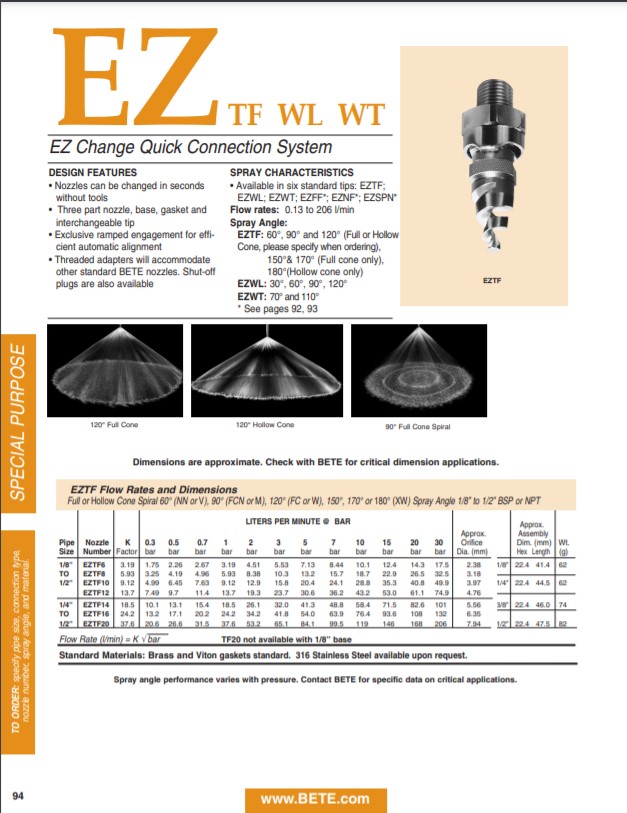

BETE EZ TFWL WT Datasheet - Metric

BETE EZ TFWL WT Datasheet - Metric
