BETE WT Angle Hollow Cone Spray Nozzles

Clog-Resistant Tangential Whirl Spray Nozzles

In BETE tangential whirl nozzles the liquid is introduced from the side of the chamber which causes the liquid to whirl and produce a hollow cone pattern without the need for an internal vane. BETE WT spray nozzles has large emitting angles and range of flow rates to maximize coverage and minimize water use.

Design Features of BETE WT Angle Hollow Cone Spray Nozzles

  • Conventional design using tangential whirl method of atomization
  • Right angle
  • Durable
  • Use where a circular pattern is required or in large area multiple installations where there is considerable overlapping of sprays
  • Male and female connections
  • Large free passage
Available Spray Angles Flow Rate Range
70 - 125° 0.0353 to 37.9 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4, 3/8, 1/2, 3/4
  • Connection Methods: Thread (NPT, BSP, Male, Female)
Brass, 303, 316, Duplex 2205, Nickel Alloy C-276, Nickel Alloy C-22, Nickel Alloy 625, Nickel Alloy 825

Spray Patterns: Hollow Cone

Standard Materials: Brass, 303 Stainless Steel and 316 Stainless Steel.

How Spray Pattern is Achieved

  • Tangential hollow cone nozzles utilize a supply of liquid perpendicular to the direction of spray. Flow enters a swirl chamber without the use of internal components —allowing for maximum clog resistance.

Applications for BETE WT Angle Hollow Cone Spray Nozzles

  • Scrubbing: Dry

Hollow Cone 80°


Hollow Cone 120°


BETE WT Angle Hollow Cone Spray Nozzle Videos

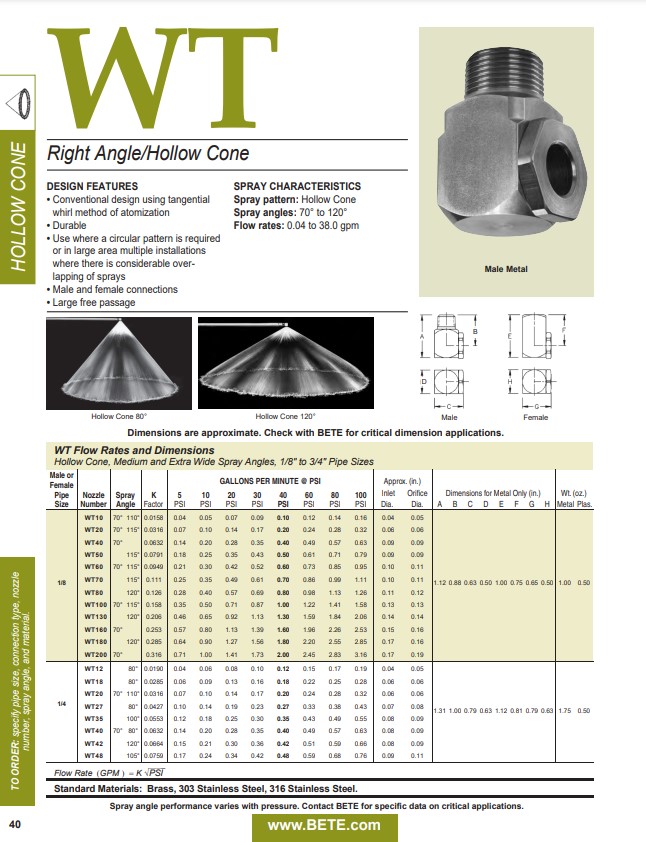

BETE WT - Datasheet

BETE WT - Datasheet

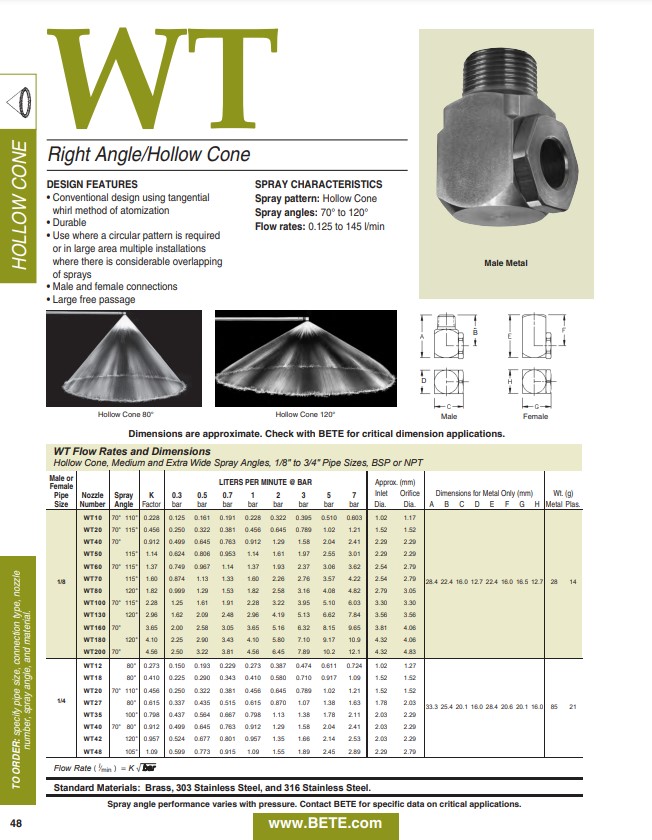

BETE WT Datasheet - Metric

BETE WT Datasheet - Metric
