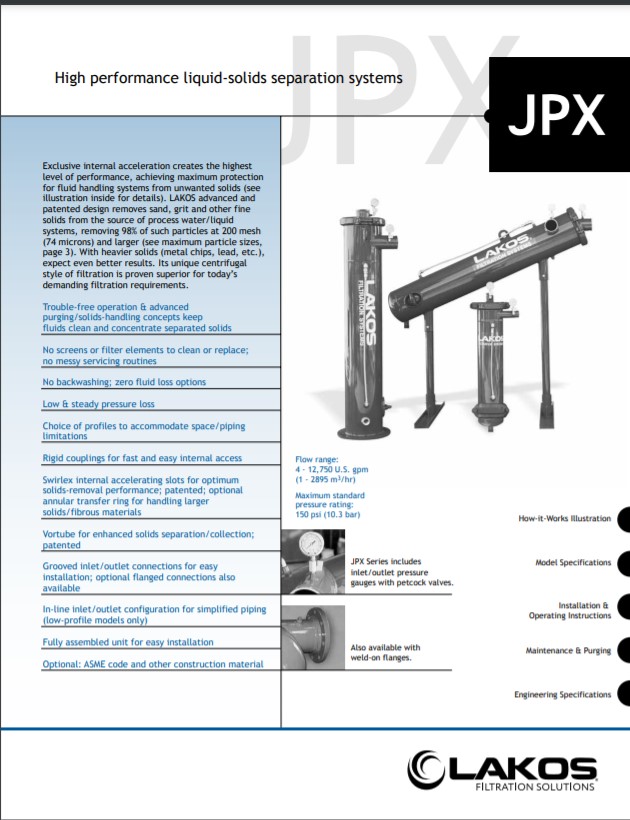

JPX-JPL Standard Efficiency Separators

LAKOS JPX – JPL Standard Efficiency Separators

STANDARD EFFICIENCY LIQUID-SOLID SEPARATORS

These separators are ideal for industrial commercial applications. The LAKOS JPX and JPL models are great for spray nozzle or small orifice protection, heat exchangers, pits, sumps, basin, pre-filtration, and waste minimization.

Flow Range: 4 – 12,750 U.S. GPM (1 – 2,895 m³/hr)
Maximum Pressure: 150 psi (10.3 bar)

  • No screens or filter elements to clean or replace
  • No backwashing; zero fluid loss options
  • Low and steady pressure loss


Read More JPX

Read More JPL

eJPX-High Efficiency Separator

LAKOS eJPX High Efficiency Liquid-Solid Separators

HIGH EFFICIENCY LIQUID-SOLID SEPARATORS

The eJPX is a higher efficiency version of the JPX Separator, able to remove up to 98% of 44 microns (325 mesh) and larger solids in a single pass (with 2.6 specific gravity). Ideal for industrial/commercial applications. Pre-plumbed for quick installation of the SmartPurge System which can detect solids level in Separator and automatically activate purge valve.

Flow Range:
55 – 1,030 U.S. GPM (12.5 – 233 m³/hr)

  • Filter performance rated to remove 98% of all solids 44 microns (325 mesh), 2.6 specific gravity, and larger in a single pass.
  • No moving parts to wear out; no barriers or media to replace.
  • Low and steady pressure loss; as low as 3 psi.


Read More eJPX

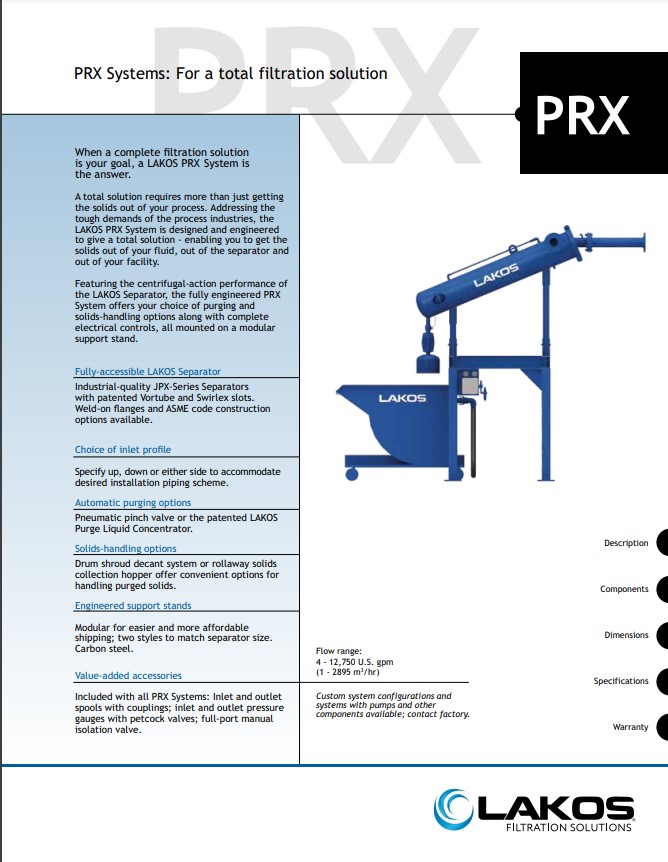

PRX-Systems

LAKOS PRX Systems

ELEVATED SEPARATOR FOR ENHANCED SOLIDS HANDLING

This turnkey product is a complete separation and purging solution, combining a JPX separator with several purging and electrical control options. The PRX addresses the tough demands of the process industries, allowing for heavy solids loading with low-maintenance automatic purging options.

Flow Range: 4 – 12,750 U.S. GPM (1 – 2,895 m³/hr)
Maximum Pressure: 150 psi (10.3 bar)

  • Fully-accessible LAKOS Separator
  • Choice of inlet profile
  • Automatic purging options


Read More PRX

FrySafe-Cooking Oil Systems

LAKOS FrySafe – Cooking Oil Systems

COMPLETE COOKING OIL FILTRATION SYSTEM

Remove crumbs and fines to extend oil life and sustain high product quality. The FrySafe System offers a full flow, non-oxygenated, low maintenance, turnkey solution for cooking oil. The LAKOS FrySafe includes a LAKOS CSX Separator, two collection vessels, and all the necessary valves and gauges for a complete cooking oil filtration solution.

Flow Range: 50 – 6,125 U.S. GPM (11 – 1,390 m³/hr)
Maximum Pressure: 100 psi (6.8 bar)

  • Full flow filtration of the entire cooking oil reservoir
  • Operates in a pressurized, non-oxygenated environment
  • Longer operating cycles between downtime/maintenance


Read More – FrySafe Systems

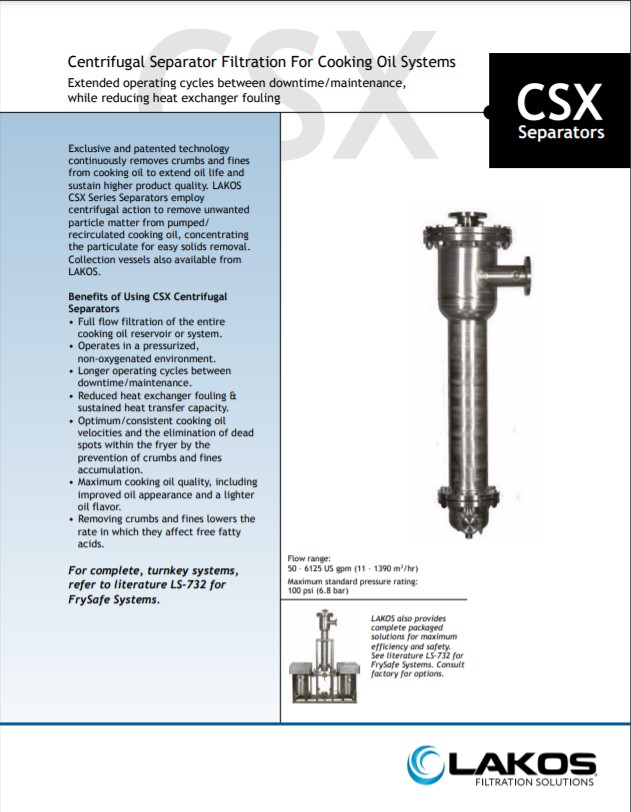

CSX-Cooking Oil Separator

LAKOS CSX – Cooking Oil Separators

HOT OIL CRUMB & FINE REMOVAL SEPARATORS

Remove crumbs and fines to extend oil life and sustain high product quality. The CSX Separator offers a full flow, non-oxygenated, low maintenance filtration solution.

Flow Range: 50 – 3,125 U.S. GPM (11 – 1,390 m³/hr)
Maximum Pressure: 100 psi (6.8 bar)

  • Full flow filtration of the entire cooking oil reservoir or system
  • Operates in a pressurized, non-oxygenated environment
  • Longer operating cycles between downtime/maintenance


Read More CSX

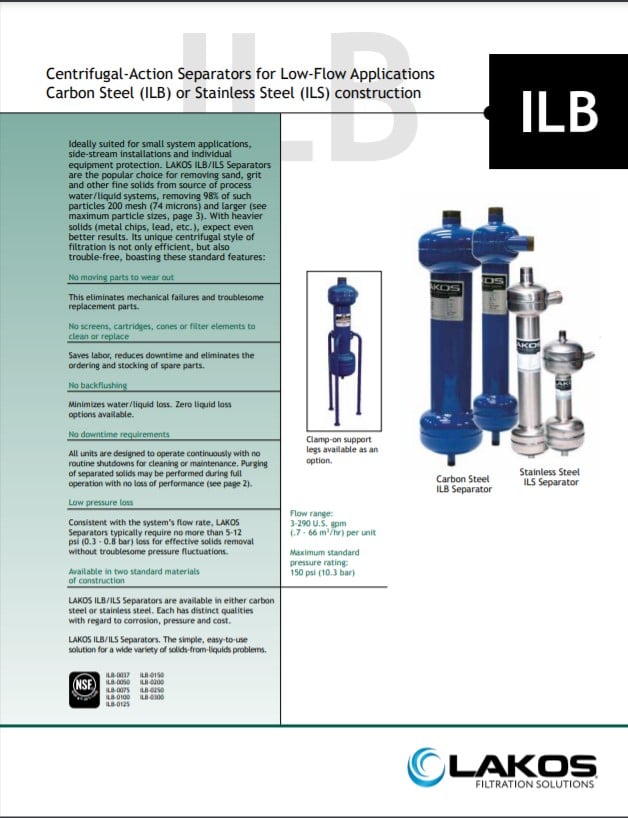

LAKOS ILB-ILS Separators

LAKOS ILB – ILS Separators

EASILY REMOVE SETTLEABLE SOLIDS FROM WATER
The LAKOS ILB/ILS Separators are the versatile low flow rate filtration solution, ideal for low solids handling applications. These separators are designed to remove sand, silt, grit, and scale. They are available in both carbon and stainless steel.

ILB Separators = Carbon Steel | ILS Separators = 316L Stainless Steel

Flow Range: 3 – 290 U.S. GPM (.7 – 66 m³/hr)
Maximum Pressure: 150 psi (10.3 bar)

  • No moving parts to wear out
  • No screens, cartridges, cones or filter elements to clean or replace
  • No backflushing


Read More ILB-ILS

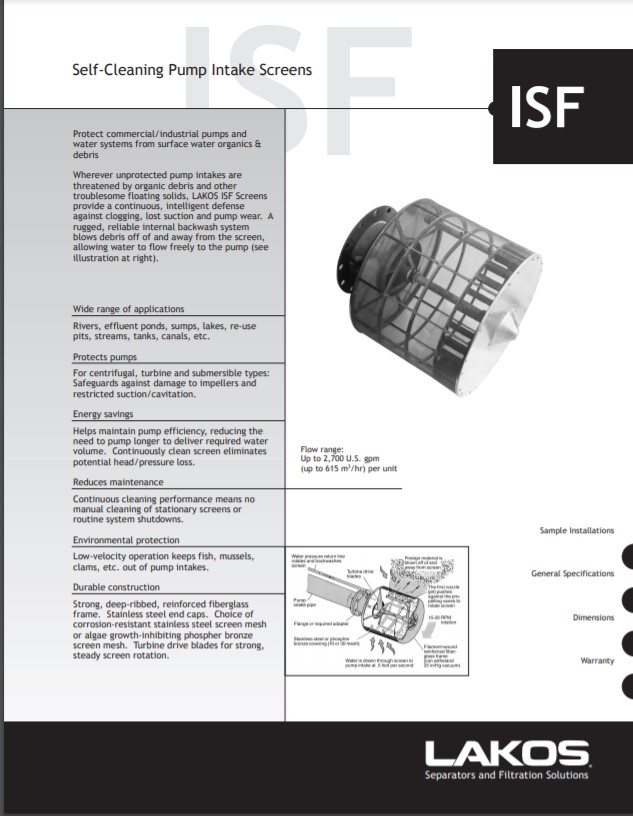

LAKOS ISF-Self Cleaning Pump Intake Screen

LAKOS ISF Self-Cleaning Pump Intake Screen

SELF-CLEANING INDUSTRIAL PUMP INTAKE SCREEN
This open-source water intake screen is a unique solution for protecting commercial/industrial pumps and water systems. The self-cleaning screen rotates so that debris is blown away, unlike other screen filters that stay in place, wasting time and energy due to clogging. The ISF is ideal for rivers, canals, lakes, or other source water locations. It protects pumps and other water system components from leaves, algae, moss, sticks, and other troublesome debris.

Flow Range: up to 2,700 U.S. GPM (615 m³/hr)

  • Protects pumps
  • Energy savings
  • Reduces maintenance


Read More ISF

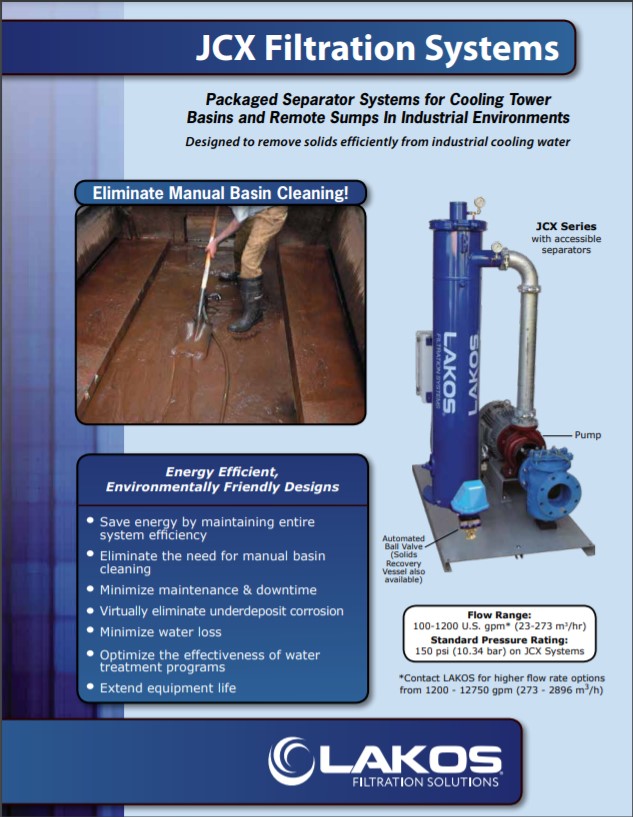

LAKOS JCX JBX Systems

LAKOS JCX – JBX Systems

PROCESS COOLING TOWER BASIN CLEANING AND SIDE STREAM FILTRATION

These full-stream, packaged separator systems are ideal for industrial cooling tower basins and remote sumps. They reduce blow-down, biofouling, and chemical use. The energy-efficient, environmentally friendly design maintains system efficiency and eliminates the need for manual basin cleaning. Eliminate under deposit corrosion, water loss, and downtime with this complete filtration solution.

Flow Range: 100 – 1,200 U.S. GPM (23 – 273 m³/hr)
Maximum Pressure: 150 psi (10.3 bar)

  • Save energy by maintaining entire system efficiency
  • Eliminate the need for manual basin cleaning
  • Minimize maintenance & downtime


Read More JCX – JBX

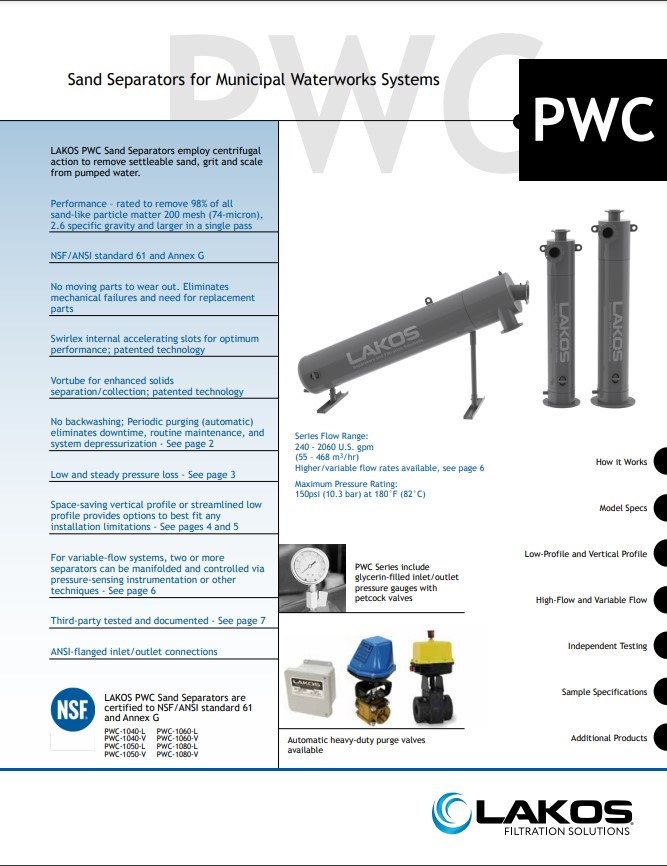

LAKOS PWC-Municipal Separators

LAKOS PWC Municipal Separators

HIGH PERFORMANCE PUBLIC WORKS CERTIFIED FILTRATION

This third-party-tested product line meets the needs of a demanding municipal industry. Boasting low-lead and NSF certifications, the PWC Separator is the ideal solution for public waterworks applications. The PWC can remove 98% of all sand-like particles that are 200 mesh or larger in just a single pass, all with minimal water loss or maintenance.

Flow Range: 225 – 2,050 U.S. GPM (51 – 465 m³/hr)
Maximum Pressure: 150 psi (10.3 bar)


Read More PWC

LAKOS Self Cleaning Screen Filters

LAKOS Self Cleaning Screen Filters

LOW MAINTENANCE – HIGH EFFICIENCY – HIGH-FLOW SCREEN FILTRATION IN A COMPACT FOOTPRINT

  • Dual Heavy Duty
  • Dual Standard Duty
  • Single Standard Duty
  • Coarse Strainer Heavy Duty

Flow Range:15 – 7,350 U.S. GPM
Maximum Pressure:150 psi (10.3 bar)


Read More

LAKOS Separators from John Brooks Company


Resources

LAKOS 2019 Overview

Download
Size: 4 MB

JPX JPL Standard Efficiency Separators

Download
Size: 2 MB

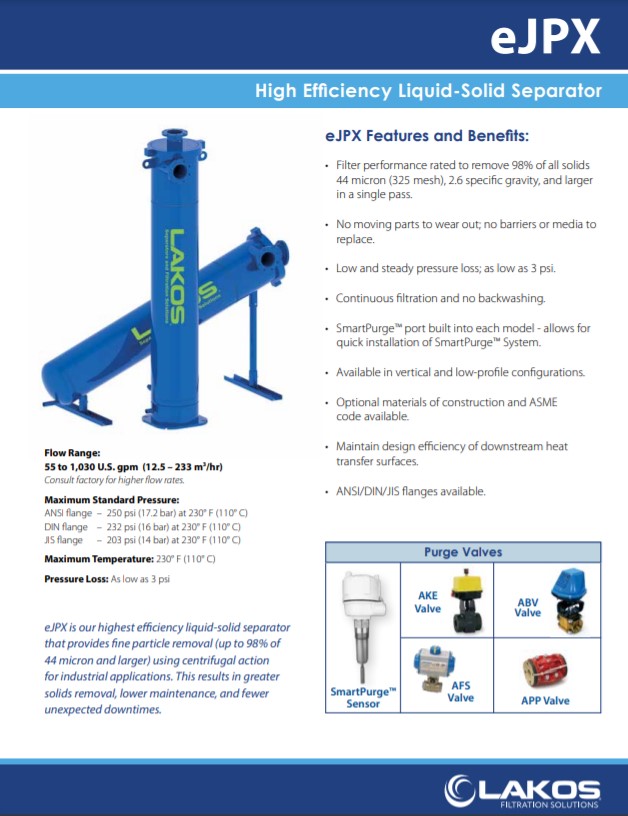

eJPX Overview

Download
Size: 2 MB

PRX Overview

Download
Size: 177 KB

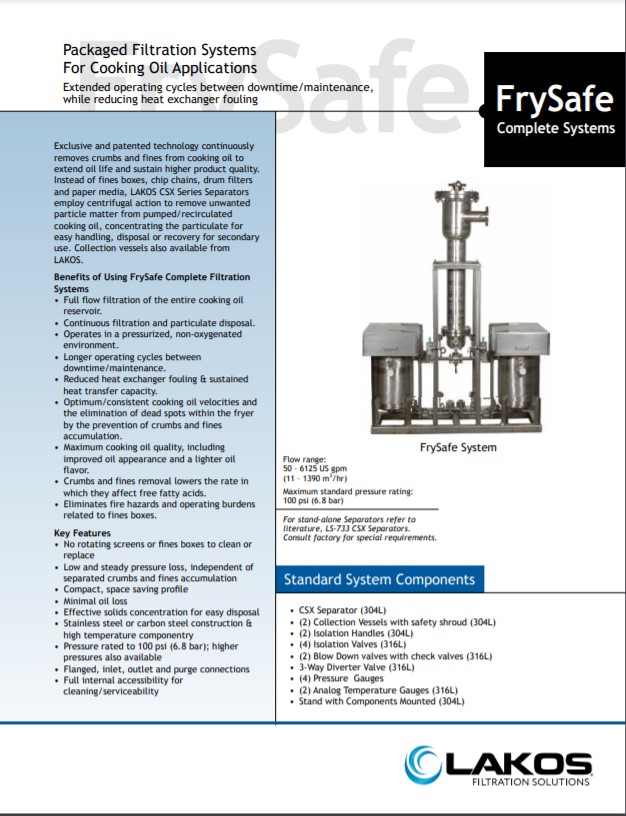

FrySafe Systems Overview

Download
Size: 3 MB

CSX Overview

Download
Size: 4 MB

ILB-ILS Overview

Download
Size: 2 MB

ISF Overview

Download
Size: 2 MB

JCX JBX Systems Overview

Download
Size: 760 KB

PWC Municipal Separators Overview

Download
Size: 4 MB

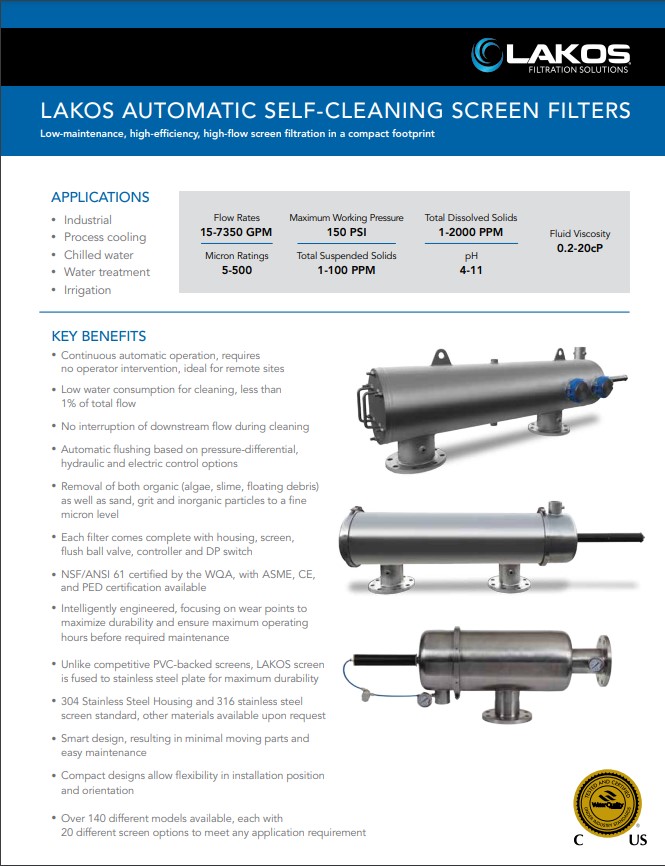

Self-Cleaning Screen Filters Overview

Download
Size: 416 KB
