Finish Thompson Mag Drive Drum Pumps - PF Series
Sealless, High Performance Drum Pump
The Finish Thompson PF Series offers a unique double suction impeller, delivering both high flow and high head capabilities. Designed for container-to-container transfer of acids, corrosives, and chemicals, it comes equipped with various material options and connection choices to suit your specific needs.
Finish Thompson Mag Drive PF Series Drum Pump Features
- Polypropylene, PVDF, or 316SS tubes
- Interchangeable with motors
- Greater flow control with variable orifice discharge (PFM/PFP/PFV only)
- Up to 2000 cP
- FDA-compliant option
- Built-in hose and cord clips (PFM/PFP/PFV only)
- High performance sealless pump
- Unique double suction impeller provides high flow rates and high discharge pressure
- Viscosity up to 2,000 cP
- Acids, bases, plating solutions, water treatment chemicals, cleaners
Finish Thompson Mag Drive PF Series Applications
- Bases
- Acids
- Solvents
- Water treatment chemicals
- Cleaners
- Plating solutions
- Kidney dialysis solutions
- DEF/AdBlue (diesel exhaust fluid)
Finish Thompson Mag Drive PF Series: PFM
| Electric Motor | Air Motor | |
| Maximum Flow: | 40 gpm (151 lpm) | 22 gpm (83 lpm) |
| Maximum Head: | 80 ft (24 m) | 38 ft (11.6 m) |
| Maximum Specific Gravity: | 1.8 | 1.8 |
| Maximum Viscosity: | 2000 cP | 330 cP |
| Maximum Temperature: | 160º F (71º C) | |
| Minimum Temperature: | 35º F (1.7º C) | |
Finish Thompson Mag Drive PF Series: PFP
| Electric Motor | Air Motor | |
| Maximum Flow: | 40 gpm (151 lpm) | 22 gpm (83 lpm) |
| Maximum Head: | 80 ft (24 m) | 38 ft (11.6 m) |
| Maximum Specific Gravity: | 1.8 | 1.8 |
| Maximum Viscosity: | 2000 cP | 330 cP |
| Maximum Temperature: | 160º F (71º C) | |
| Minimum Temperature: | 35º F (1.7º C) | |
Finish Thompson Mag Drive PF Series: PFV
| Electric Motor | Air Motor | |
| Maximum Flow: | 40 gpm (151 lpm) | 22 gpm (83 lpm) |
| Maximum Head: | 80 ft (24 m) | 38 ft (11.6 m) |
| Maximum Specific Gravity: | 1.8 | 1.8 |
| Maximum Viscosity: | 2000 cP | 330 cP |
| Maximum Temperature*: | 120º F (49º C) | |
| Minimum Temperature: | 35º F (1.7º C) | |
| *PFV-72 maximum temperature is 115º F (46º C) | ||
Finish Thompson Mag Drive PF Series: PFS
| Electric Motor | Air Motor | |
| Maximum Flow: | 40 gpm (151 lpm) | 22 gpm (83 lpm) |
| Maximum Head: | 80 ft (24 m) | 38 ft (11.6 m) |
| Maximum Specific Gravity: | 1.8 | 1.8 |
| Maximum Viscosity: | 2000 cP | 330 cP |
| Maximum Temperature*: | 220º F (100º C) | |
| Minimum Temperature: | -20º F (-29º C) | |
|
*Perlast o-rings limit temperature to 5º F (-15º C)
|
||

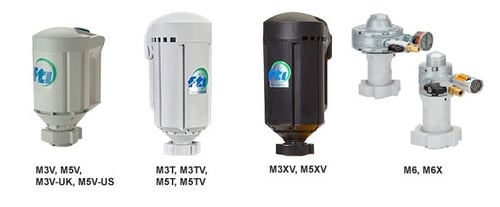

Finish Thompson Mag Drive PF Series: Motors
ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors
| Certification |
Input/Output |
RPM | Maximum Viscosity | ||
| QPS | 650/400 | 3,500-10,000 | 500 cP | ||
| CE | 650/400 | 3,500-10,000 | 500 cP | ||
| CE | 650/400 | 3,500-10,000 | 500 cP | ||
| CE | 650/400 | 3,500-10,000 | 500 cP |
*Suitable for 230V, 60 Hz. Includes NEMA 6-15 plug
TEFC (Totally Enclosed Fan Cooled) IP55 Motors
| Certification |
Input/Output |
RPM | Maximum Viscosity | ||
| QPS | 1000/680 | 12,000 | 1,000 cP | ||
| CE | 1000/680 | 12,000 | 1,000 cP | ||
| QPS | 1000/680 | 0-12,000** | 2,000 cP | ||
| CE | 1000/680 | 0-12,000** | 2,000 cP |
**Variable speed
Explosion Proof Motors
| Certification |
Input/Output |
RPM | Maximum Viscosity | ||
| QPS | 1000/680 | 0-12,000** | 2,000 cP | ||
| CE | 1000/680 | 0-12,000** | 2,000 cP |
**Variable speed
†ATEX certified option available. Contact factory for more information.

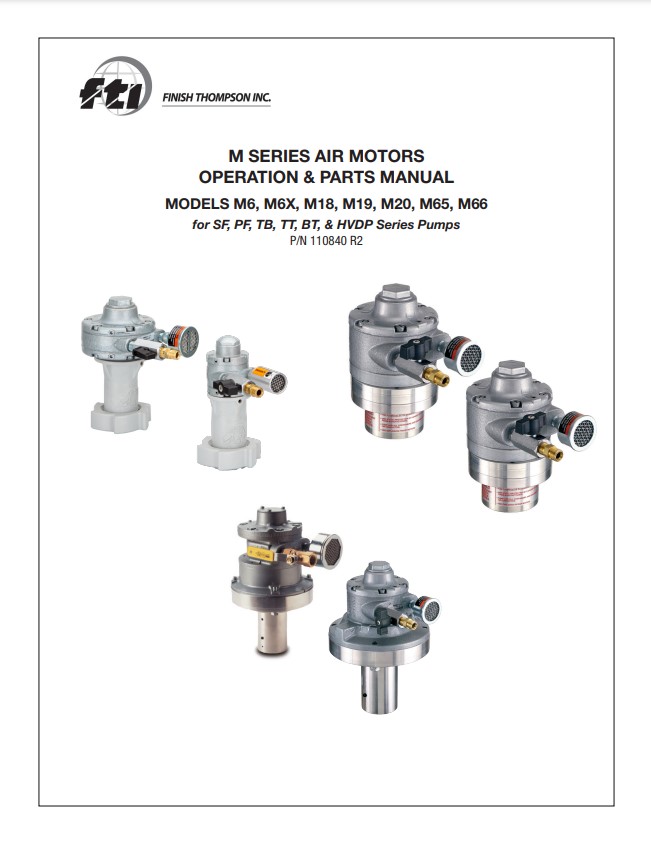

Air Motors*
| Certification |
Input/Output |
RPM | Maximum Viscosity | ||
| CE | 400 | 300-9,000 | 330 cP | ||
| CE | 600 | 300-6,000 | 330 cP |
*An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
†ATEX certified option available. Contact factory for more information
Sealless Magnetic Drive Pumps: Ideal for Mining Operations
Mining operations demand pumps of exceptional quality and reliability to facilitate extraction. Moreover, the hazardous byproducts often associated with mining necessitate careful handling. In pursuit of safe and efficient mining practices, the use of sealless magnetic drive pumps is paramount. Crafted specifically for rugged chemical applications, Finish Thompson's mag-drive pumps stand as the leading solution across a broad spectrum of mining tasks.
