SEEPEX N – Standard Pumps

SEEPEX N – Standard Pumps

SEEPEX N pumps are the basis for SEEPEX progressive cavity pumps. They are used in almost all industrial sectors and convey low to highly viscous media with or without solids. Those benefits along with others ensure the pump’s economical operation.


SEEPEX N – FEATURES AND BENEFITS

  • Various rotor/stator geometries
(conventional, 6L and Tricam geometry)
  • Low pulsation, uniform flow
  • High self-priming capabilities even with a mixture of liquid and air or gas up to a 9 meter water column
  • Numerous installation options
  • Large spherical entrance port
  • Reversible rotation and flow

SEEPEX BN RANGE

SEEPEX BN – FEATURES AND BENEFITS

  • For low to highly viscous media with or without solids
  • Conveying capacity: 30 l/h – 500 m³/h (0.132 USGPM – 2,200 USGPM)
  • Pressure: up to 48 bar (720 PSI)
  • Short, compact design with directly flange-mounted drive (block type)
  • Enhanced combination options: block design available in all sizes and pressure stages
  • Low-cost due to the removed bearing frame, flexible coupling and common base plate
  • Easy maintenance due to the plug-in connection between the rotating unit and drive
  • Separate pump bearing omitted


SEEPEX NS RANGE

SEEPEX NS – FEATURES AND BENEFITS

  • For low to highly viscous media with or without solids
  • Conveying capacity: 30 l/h – 500 m³/h (0.132 USGPM – 2,200 USGPM)
  • Pressure: up to 48 bar (720 PSI)
  • Universal drive configuration through a flexible coupling or V-belt
  • Drive casing and free bare shaft included
  • Drive shaft mounted in tapered roller bearings that can be relubricated
  • Easy maintenance due to the plug-in connection
  • Easy to replace worn parts without dismantling the bearing unit


  • For low to highly viscous media with or without solids
  • Conveying capacity: 30 l/h – 500 m³/h (0.132 USGPM – 2,200 USGPM)
  • Pressure: up to 48 bar (720 PSI)
  • Short, compact design with directly flange-mounted drive (block type)
Seepex N - Standard Pumps

Join our Mailing List

Resources

SEEPEX N Pumps

Download
Size: 4 MB

SEEPEX BNA - API 676

Download
Size: 833 KB

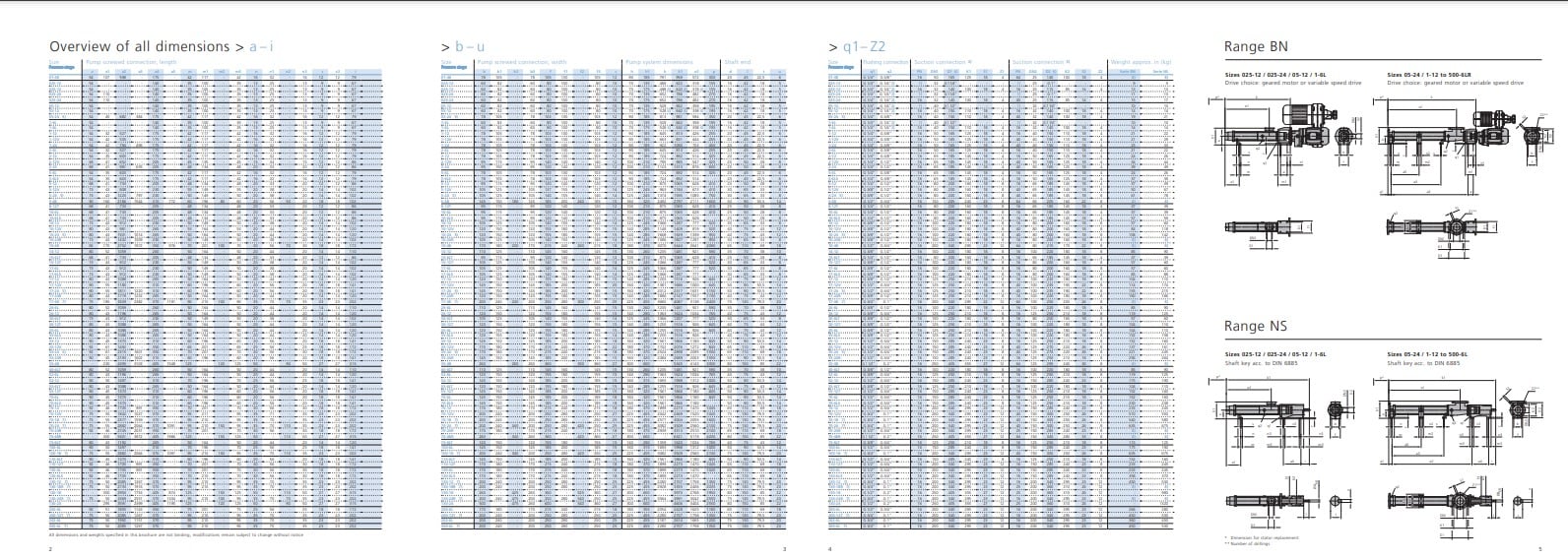

SEEPEX N - Dimensions

Download
Size: 1 MB
