Model PA Diagram
Specifications for All Purpose Panel Mount Pressure Gauge:
| Case | Steel plated black complete with U-clamp |
|---|---|
| Dial | White aluminum with psi graduations in black and kPa in blue |
| Ring | 304 stainless steel crimped |
| Lens | Plastic |
| Pointer | Steel painted black |
| Connection | ⅛ in or ¼ in nptm center back |
| Wetted Parts | Brass |
| Bourdon tube | Phosphor bronze |
| Maximum process and ambient temperature | -40 à 150°F / -40 à 65°C |
| Operation pressure | Maximum 75 % of full scale value |
| Overpressure limit | 25 % over full scale value |
| Accuracy | ASME B40.100(B40.1), Grade B ± 2 % |

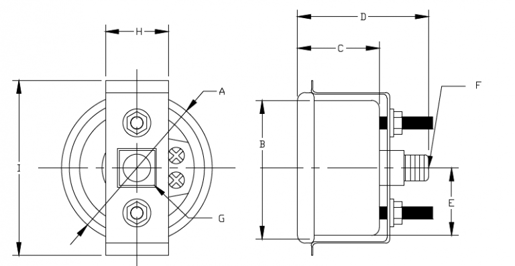

Dimensions As Per Diagram:
| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| PA151UC | 1.84 in (46.74 mm) | 1.62 in (41.15 mm) | 1.12 in (28.58 mm) | 1.75 in (44.20 mm) | 0.98 in (25 mm) | ⅛ npt | 0.42 in (10.67 mm) | 0.78 in (19.81 mm) | 2.20 in (55.88 mm) |
| PA201UC-125 | 2.30 in (58.42 mm) | 2.06 in (52.37 mm) | 1.25 in (31.75 mm) | 2.0 in (50.80 mm) | 1.38 in (34.93 mm) | ⅛ npt | 0.54 in (13.72 mm) | 0.96 in (24.38 mm) | 2.68 in (67.95 mm) |
| PA201UC-250 | 2.30 in (58.42 mm) | 2.06 in (52.37 mm) | 1.25 in (31.75 mm) | 2.0 in (50.80 mm) | 1.38 in (34.93 mm) | ¼ npt | 0.54 in (13.72 mm) | 0.96 in (24.38 mm) | 2.68 in (67.95 mm) |
| PA251UC | 2.63 in (66.68 mm) | 2.45 in (62.33 mm) | 1.2 in (30.48 mm) | 1.96 in (49.78 mm) | 1.38 in (34.93 mm) | ¼ npt | 0.54 in (13.72 mm) | 0.96 in (24.38 mm) | 2.93 in (74.42 mm) |
