    Finish Thompson Drum Pumps - SF Series

    Finish Thompson Mag Drive Drum Pumps - SF Series

    Sealless, High Performance Drum Pump

    Offering a choice between high flow and high head capabilities through dual impeller options and equipped with a compact 40mm tube diameter, the Finish Thompson SF Series is tailor-made for smaller bung openings. This versatile series is crafted to facilitate the secure transfer of acids, corrosives, and chemicals between containers, boasting a range of material options and connection types.

    Finish Thompson Drum Pump SF Series Features

    • Sealless high-performance design for maximum uptime
    • Dual impeller options provide either high flow or high head
    • 40 mm (1.6”) tube diameter to accommodate smaller bung openings
    • Five distinct models to suit a full range of applications
    • Polypropylene (PP), Pure PVDF, Pure PP/PVDF, or 316SS tube
    • Interchangeable with motors
    • Integral strainer on high-flow versions
    • Up to 1200 cP
    • Built-in hose and cord clips

    Applications of Finish Thompson Drum Pump SF Series

    • Acids
    • Bases
    • Water treatment chemicals
    • Cleaners
    • Plating solutions
    • Kidney dialysis solutions
    • DEF/AdBlue (diesel exhaust fluid)

    Finish Thompson Drum Pump SF Series: SFM

     Available Lengths:
     27, 40, 48, 54, 60, 72 in (69, 102, 122, 137, 152, 183 cm)
     Tube Diameter:
     1.6 in (4.0 cm)
     Discharge Size:
     1 in (2.54 cm)
     Discharge Type:
     Hose barb
     Hose Size:
     1 in (2.54 cm)



    High Flow Impeller  Electric Motor  Air Motor
     Maximum Flow:  37 gpm (140 lpm)  31 gpm (117 lpm)
     Maximum Head:  50 ft (15 m)  32 ft (10 m)
     Maximum Specific Gravity:  1.84  2.0
     Maximum Viscosity:  1000 cP  1200 cP
    High Head Impeller  Electric Motor  Air Motor
     Maximum Flow:  24 gpm (91 lpm)  20 gpm (76 lpm)
     Maximum Head:  83 ft (25 m)  62 ft (19 m)
     Maximum Specific Gravity:  2.0  2.0
     Maximum Viscosity:  1200 cP  1200 cP



     Tube Material:
     PP
     Shaft Material:
     316 Stainless Steel
     O-ring Material:
     FKM
     Impeller Material:
     PTFE



     Maximum Temperature:  175º F (79º C)
     Minimum Temperature:  35º F (1.7º C)



    Finish Thompson Drum Pump SF Series: SFM-DEF

     Available Lengths:
     27, 40, 48, 54, 60, 72 in (69, 102, 122, 137, 152, 183 cm)
     Tube Diameter:
     1.6 in (4.0 cm)
     Discharge Size:
     3/4 in (19 mm)
     Discharge Type:
     Hose barb
     Hose Size:
     3/4 in (19 mm)



    High Flow Impeller  Electric Motor  Air Motor
     Maximum Flow:  37 gpm (140 lpm)  31 gpm (117 lpm)
     Maximum Head:  50 ft (15 m)  32 ft (10 m)
     Maximum Specific Gravity:  1.84  2.0
     Maximum Viscosity:  1000 cP  1200 cP
    High Head Impeller  Electric Motor  Air Motor
     Maximum Flow:  24 gpm (91 lpm)  20 gpm (76 lpm)
     Maximum Head:  83 ft (25 m)  62 ft (19 m)
     Maximum Specific Gravity:  2.0  2.0
     Maximum Viscosity:  1200 cP  1200 cP



     Tube Material:
     PP
     Shaft Material:
     316 Stainless Steel
     O-ring Material:
     EPDM
     Impeller Material:
     PTFE



     Maximum Temperature:  175º F (79º C)
     Minimum Temperature:  35º F (1.7º C)



    Finish Thompson Drum Pump SF Series: SFP

     Available Lengths:
     27, 40, 48, 54, 60, 72 in (69, 102, 122, 137 152, 183 cm)
     Tube Diameter:
     1.6 in (4.0 cm)
     Discharge Size:
     1 in (2.54 cm)
     Discharge Type:
     Hose barb
     Hose Size:
     1 in (2.54 cm)



    High Flow Impeller  Electric Motor  Air Motor
     Maximum Flow:  37 gpm (140 lpm)  31 gpm (117 lpm)
     Maximum Head:  50 ft (15 m)  32 ft (10 m)
     Maximum Specific Gravity:  1.84  2.0
     Maximum Viscosity:  1000 cP  1200 cP
    High Head Impeller  Electric Motor  Air Motor
     Maximum Flow:  24 gpm (91 lpm)  20 gpm (76 lpm)
     Maximum Head:  83 ft (25 m)  62 ft (19 m)
     Maximum Specific Gravity:  2.0  2.0
     Maximum Viscosity:  1200 cP  1200 cP



     Tube Material:
     Polypropylene
     Shaft Material:
     Alloy 625
     O-ring Material:
     FKM
     Impeller Material:
     PTFE



     Maximum Temperature:  175º F (79º C)
     Minimum Temperature:  35º F (1.7º C)



    Finish Thompson Drum Pump SF Series: SFV

    Available Lengths:
     27, 40, 48, 54, 60, 72 in (69, 102, 122, 137 152, 183 cm)
     Tube Diameter:
     1.6 in (4.0 cm)
     Discharge Size:
     1 in (2.54 cm)
     Discharge Type:
     Hose barb
     Hose Size:
     1 in (2.54 cm)



    High Flow Impeller  Electric Motor  Air Motor
     Maximum Flow:  37 gpm (140 lpm)  31 gpm (117 lpm)
     Maximum Head:  50 ft (15 m)  32 ft (10 m)
     Maximum Specific Gravity:  1.84  2.0
     Maximum Viscosity:  1000 cP  1200 cP
    High Head Impeller  Electric Motor  Air Motor
     Maximum Flow:  24 gpm (91 lpm)  20 gpm (76 lpm)
     Maximum Head:  83 ft (25 m)  62 ft (19 m)
     Maximum Specific Gravity:  2.0  2.0
     Maximum Viscosity:  1200 cP  1200 cP



     Tube Material:
     Pure Polypropylene, PVDF
     Shaft Material:
     Alloy 625
     O-ring Material:
     FKM
     Impeller Material:
     ETFE, PTFE



     Maximum Temperature*:  175º F (79º C)
     Minimum Temperature:  35º F (1.7º C)
     *SFV54(-H), SFV60(-H), SFV72(-H) 140º F (60ºC) Maximum Temperature

    Finish Thompson Drum Pump SF Series: SFVV

     Available Lengths:
     27, 40, 48, 54, 60, 72 in (69, 102, 122, 137 152, 183 cm)
     Tube Diameter:
     1.6 in (4.0 cm)
     Discharge Size:
     1 in (2.54 cm)
     Discharge Type:
     Hose barb
     Hose Size:
     1 in (2.54 cm)



    High Flow Impeller  Electric Motor  Air Motor
     Maximum Flow:  37 gpm (140 lpm)  31 gpm (117 lpm)
     Maximum Head:  50 ft (15 m)  32 ft (10 m)
     Maximum Specific Gravity:  1.84  2.0
     Maximum Viscosity:  1000 cP  1200 cP
    High Head Impeller  Electric Motor  Air Motor
     Maximum Flow:  24 gpm (91 lpm)  20 gpm (76 lpm)
     Maximum Head:  83 ft (25 m)  62 ft (19 m)
     Maximum Specific Gravity:  2.0  2.0
     Maximum Viscosity:  1200 cP  1200 cP



     Tube Material:
     Pure PVDF
     Shaft Material:
     Alloy 625
     O-ring Material:
     FKM
     Impeller Material:
     PTFE



     Maximum Temperature*:  140º F (60º C)
     Minimum Temperature:  35º F (1.7º C)
     *SFVV54(-H), SFVV60(-H), SFVV72(-H): 115º F (46º C) Maximum Temperature

    Finish Thompson Drum Pump SF Series: SFS

     Available Lengths:
     27, 40, 48, 54, 60, 72 in (69, 102, 122, 137 152, 183 cm)
     Tube Diameter:
     1.6 in (4.0 cm)
     Discharge Size:
     1 in (2.54 cm)
     Discharge Type:
     Hose barb, MNPT, MBSP, or Tri-Clamp
     Hose Size:
     1 in (2.54 cm)



    High Flow Impeller  Electric Motor  Air Motor
     Maximum Flow:  37 gpm (140 lpm)  31 gpm (117 lpm)
     Maximum Head:  50 ft (15 m)  32 ft (10 m)
     Maximum Specific Gravity:  1.84  2.0
     Maximum Viscosity:  1000 cP  1200 cP
    High Head Impeller  Electric Motor  Air Motor
     Maximum Flow:  24 gpm (91 lpm)  20 gpm (76 lpm)
     Maximum Head:  83 ft (25 m)  62 ft (19 m)
     Maximum Specific Gravity:  2.0  2.0
     Maximum Viscosity:  1200 cP  1200 cP



     Tube Material:
     316 Stainless Steel
     Shaft Material:
     316 Stainless Steel
     O-ring Material:
    		 FKM, Buna, or FFKM
     Impeller Material:
     CFF ETFE or Pure ETFE



     Maximum Temperature: 212º F (100º C)
     Minimum Temperature:  5º F (-15º C)

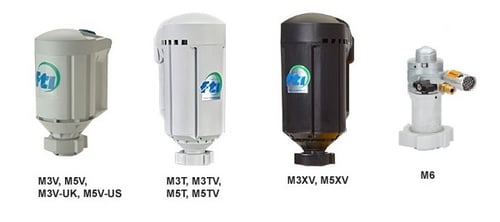

    Finish Thompson Drum Pump SF Series: Motors

    sf-image



    ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors

     Model
    		 Certification
     Requirements

    Input/Output
    (W)

    		 RPM

    High Flow/High Head Maximum Viscosity
     M3V
    		 QPS
     115V/50-60Hz
    		 650/400 3,500-10,000 1000 cP/ 1200 cP
     M5V
    		 CE
     230V/50-60Hz
    		 650/400 3,500-10,000 1000 cP/ 1200 cP
     M5V-US*
    		 CE
     230V/50-60Hz
    		 650/400 3,500-10,000 1000 cP/ 1200 cP
     M3V-UK
    		 CE
     115V/50-60Hz
    		 650/400 3,500-10,000 1000 cP/ 1200 cP

    *Suitable for 230V, 60 Hz. Includes NEMA 6-15 plug

    TEFC (Totally Enclosed Fan Cooled) IP55 Motors

     Model
    		 Certification
     Requirements

    Input/Output
    (W)

    		 RPM High Flow/High Head Maximum Viscosity
    M3T
    		 QPS
    115V/60Hz
    		 1000/680 12,000 800 cP/ 1200 cP
    M5T
    		 CE
    230V/50-60Hz
    		 1000/680 12,000 1000 cP/ 1200 cP
    M3TV
    		 QPS
    115V/60Hz
    		 1000/680 0-12,000 800 cP/ 1200 cP
    M5TV
    		 CE
    230V/50-60Hz

    		 1000/680 0-12,000 1000 cP/ 1200 cP



    Explosion Proof Motors

     Model
    		 Certification
     Requirements

    Input/Output
    (W)

    		 RPM High Flow/High Head Maximum Viscosity
    M3XV
    		 QPS
    115V/60Hz
    		 1000/680 0-12,000 1000 cP/ 1200 cP
    M5XV
    		 CE
    230V/50-60Hz
    		 1000/680 0-12,000 1000 cP/ 1200 cP
    M5XV-HT CE 230V/50-60Hz 1000/680 0-12,000 1000 cP/ 1200 cP



    Air Motors*

     Model
    		 Certification
     Requirements

    Input/Output
    (W)

    		 RPM Maximum Viscosity
    M6†
    		 CE
    80-100psi@15-32cfm
    		 400 300-9,000 1200 cP

    *An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.

    Sealless Magnetic Drive Pumps: Ideal for Mining Operations

    Mining operations demand pumps of exceptional quality and reliability to facilitate extraction. Moreover, the hazardous byproducts often associated with mining necessitate careful handling. In pursuit of safe and efficient mining practices, the use of sealless magnetic drive pumps is paramount. Crafted specifically for rugged chemical applications, Finish Thompson's mag-drive pumps stand as the leading solution across a broad spectrum of mining tasks.

    Have a Fluid Handling Problem? We can help you find a Pumping Solution.

    John Brooks Company caters to diverse industries, offering suitable pump solutions for nearly all fluid handling needs - including yours! Our success hinges on fostering a collaborative partnership with you, where we help you find a tailored solution to enhance your systems, boost productivity, and minimize operational expenses

    Consult with a John Brooks Company Pump expert today to help you determine the most suitable pump type for your application needs.

    Resources

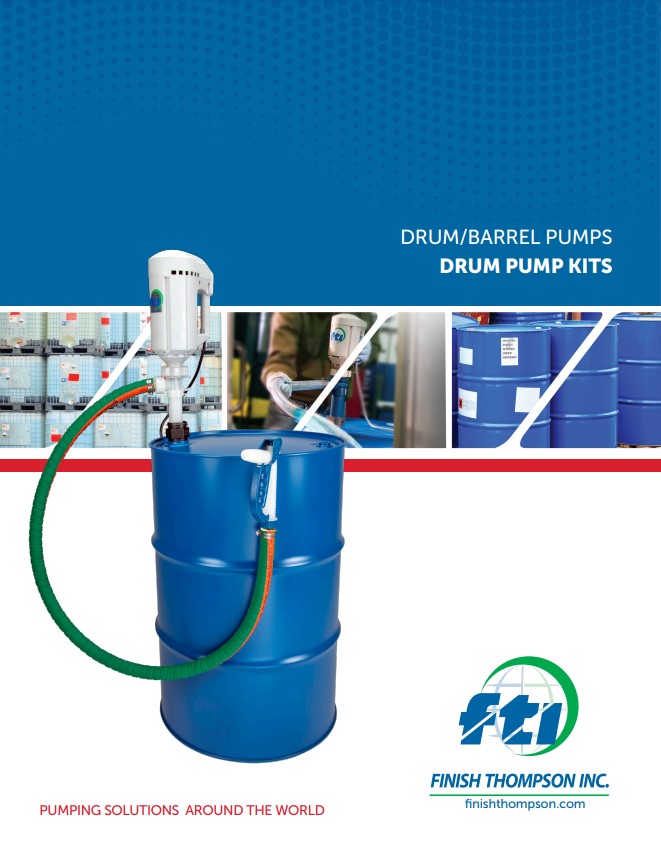

    Finish Thompson Drum Pump Kit Brochure

    Finish Thompson Drum Pump Kit Brochure

    Download

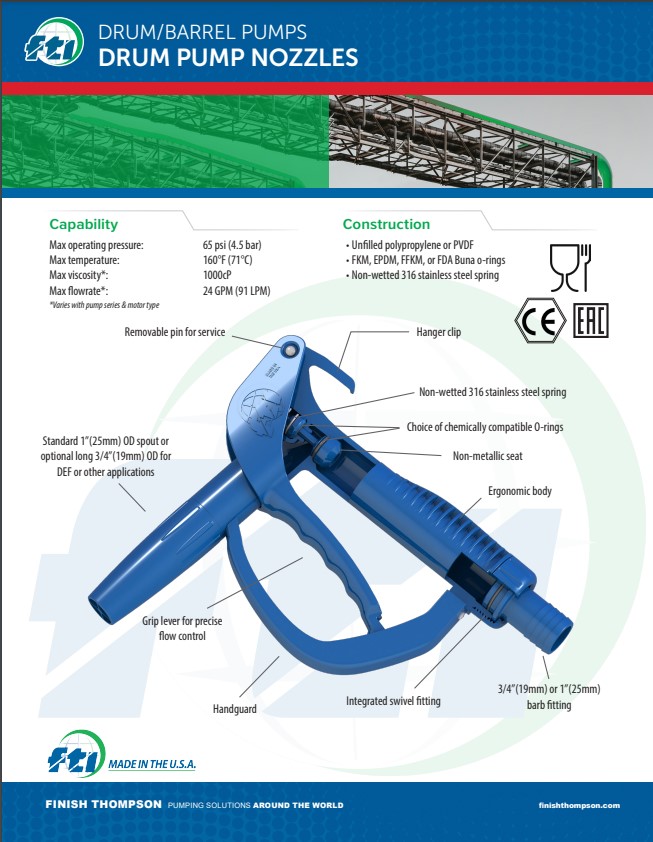

    Finish Thompson Nozzle Tech Flyer

    Finish Thompson Nozzle Tech Flyer

    Download

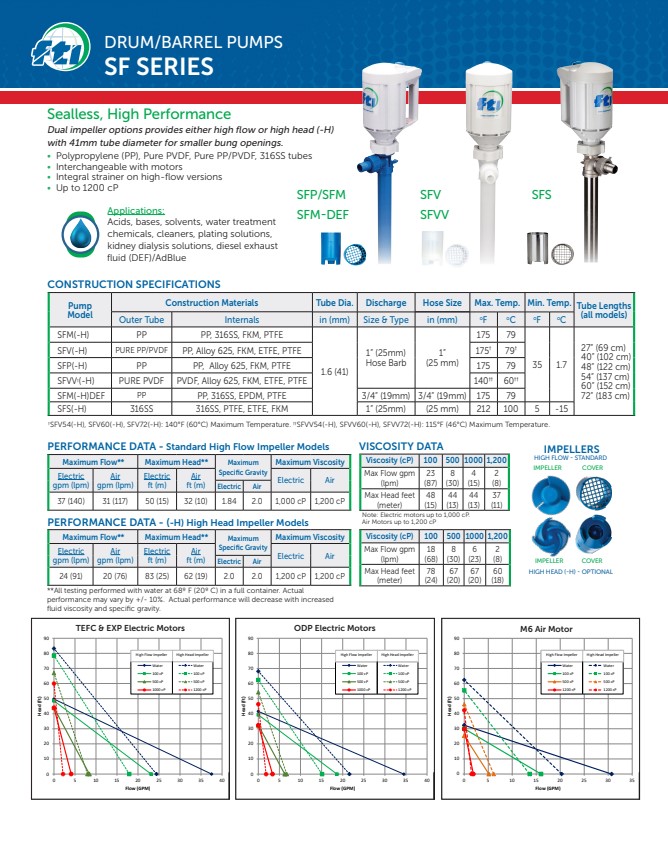

    Finish Thompson SF Series Tech Flyer

    Finish Thompson SF Series Tech Flyer

    Download

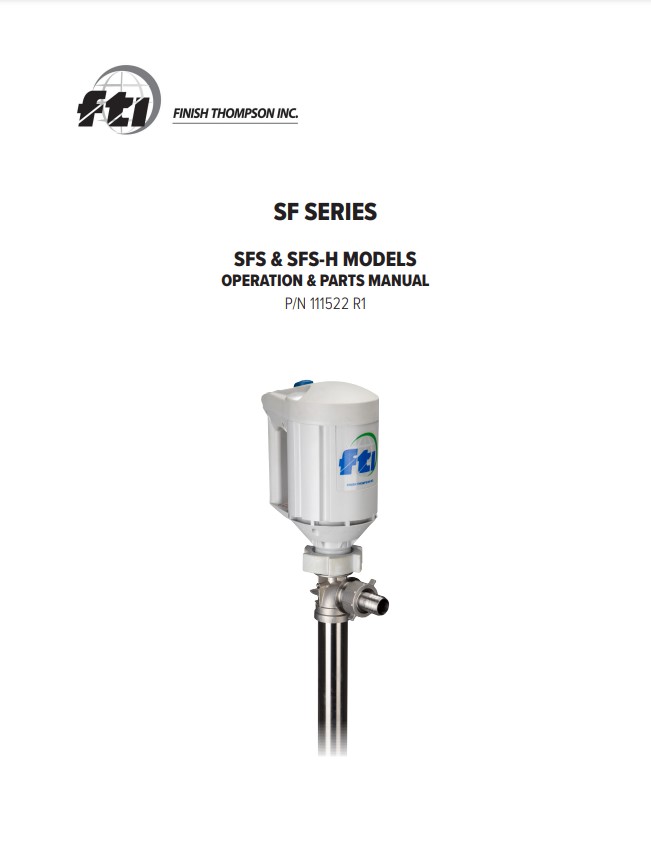

    Finish Thompson SFS Manual

    Finish Thompson SFS Manual

    Download

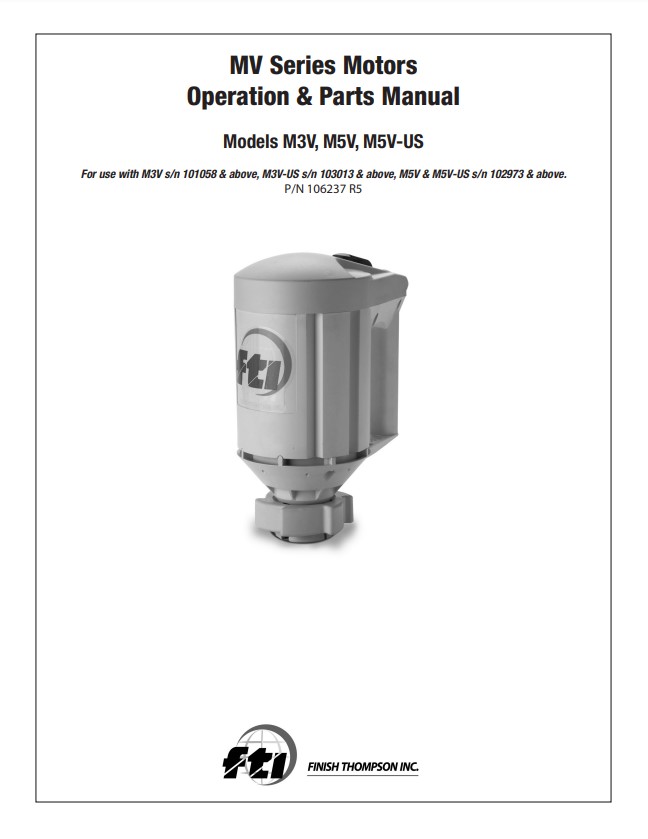

    Finish Thompson MV Motor Manual

    Finish Thompson MV Motor Manual

    Download

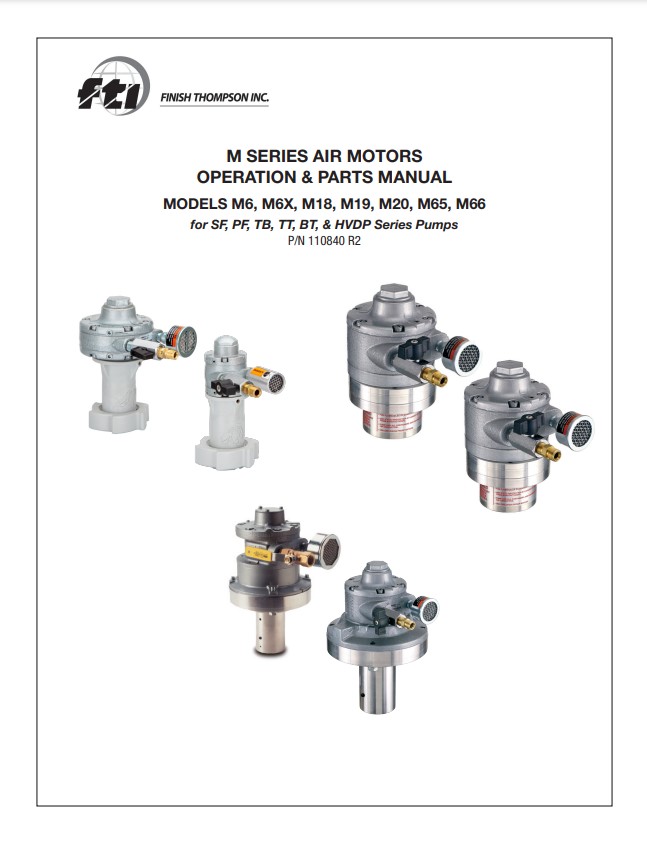

    Finish Thompson M Series Air Motor Manual

    Finish Thompson M Series Air Motor Manual

    Download

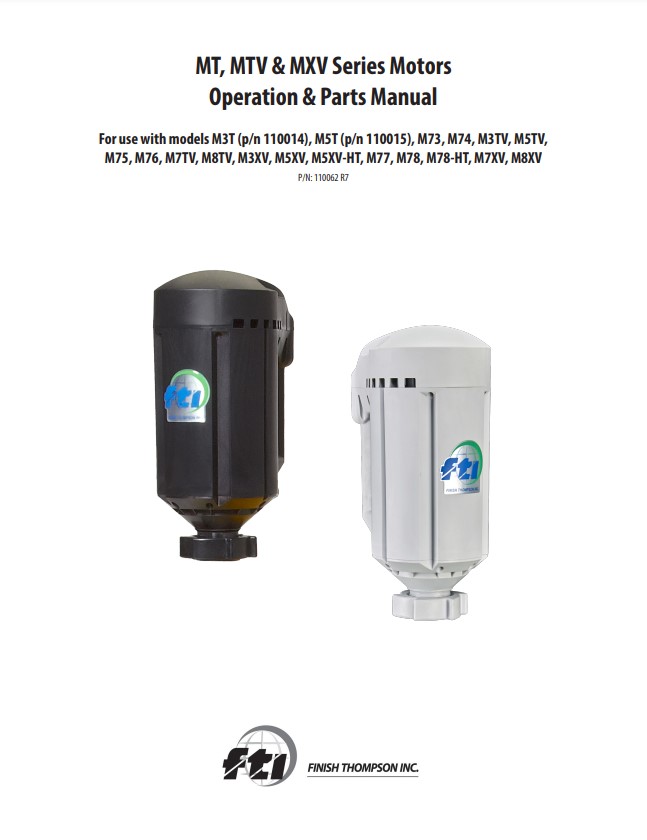

    Finish Thompson MT- MV- MTXV Motor Manual

    Finish Thompson MT- MV- MTXV Motor Manual

    Download

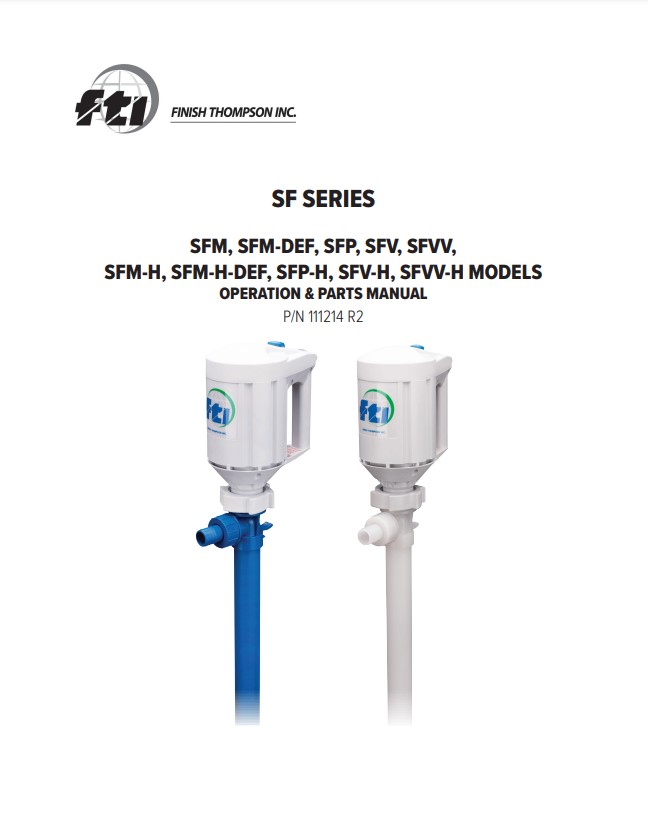

    Finish Thompson SF Plastic Manual
