BETE Spray Headers, Spragers, & Spools

Optimize Nozzle Performance With Precise Nozzle Arrangement

BETE is not limited to manufacturing nozzles. Our engineering and fabrication services provide complete nozzle assemblies for your spray process.

Precise nozzle arrangement on spray headers, spargers, and spools is as critical as selecting the right nozzle for your application. BETE can fabricate the piping section for nozzle installation. The nozzles can be trial fit into the spool piece as part of the manufacturing process before leaving the factory. Our expertise ensures no last-minute surprises, meeting your performance and delivery expectations.

Spray Headers

Spray headers consist of multiple nozzle arrangements fabricated into a pipe section. These are commonly used in spray towers and applications where the spray must be distributed over a designated area. BETE can design and fabricate straight, branched, or ring-style spray headers.

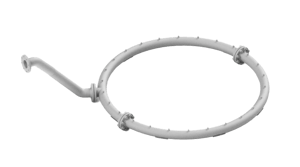

Ring Header

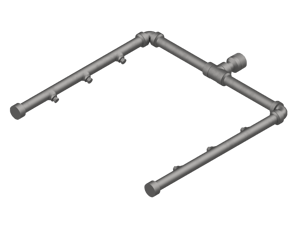

Branch Header

Spargers & Spool Sections

BETE can place nozzles inside a sparger or spool for an entire spray injection assembly. Installations are either bolt-in or weld-in.

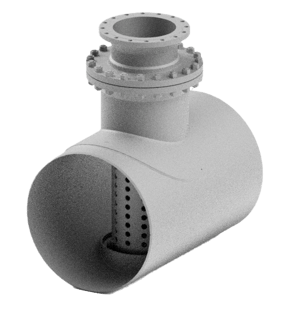

Sparger Spool

Mixing Spool

Common Design Requirements

• ASME B31.3 -Process Piping
• ASME B31.1 -Power Piping
  Boiler External Piping (PP Authorization)
  Nonboiler External Piping
• ASME Boiler and Pressure Vessel Code Section VIII, Division 1 (U Authorization)
• Welding qualification to ASME B&PVC, Section IX
• Canadian Registration (CRN)
• NACE compliance

Manufacturing Code Compliance

BETE provides drop-in solutions, including custom spray lances, quills, injection lances, and chemical injectors. Fabrication is BETE’s specialty, from complex ASME Code compliance to simple flush pipe and flange assemblies. Our highly qualified welders have extensive experience welding dissimilar metals and exotic alloys, including nickel and cobalt alloys.

Testing & Validation

Mechanical Inspection
