BETE Automated Spray Systems

BETE Spray Technology that's Engineered for Every Industry

Increase Productivity, Safety, and Performance with BETE Automated Spray Solutions

BETE's automated spraying systems can operate as stand-alone units or integrate with central plant control systems for remote monitoring and control input. BETE supplies systems for industrial and hygienic applications that meet food-grade requirements.

When providing high-quality spray performance, selecting an appropriate spray nozzle is the first step in successful implementation. All aspects of the flow control system must be sized appropriately based on the target spray parameters. BETE prioritizes engineering upstream flow control equipment, including pump and flow control skids, to ensure that nozzles have the proper fluid conditions to function as intended.

BETE's deep understanding of spray nozzle and fluid system performance allows them to tailor and design a system to meet your specific operational needs and requirements. If you want to enhance an existing spray system, BETE can evaluate your system and recommend changes to improve its performance and reliability. BETE considers pressure losses caused by pipe friction, elevation, and valve or instrument flow coefficients. They can adjust pump and nozzle performance curves accordingly to ensure your system will operate precisely how you need it.

BETE Automatic Custom Spray Solutions Video

BETE Automated Engineered Spray Solutions Include

BETE can customize spray system designs to match your operation requirements and needs. From process engineering and nozzle selection assistance to implementing automated spray systems.

  • Nozzles / lances
  • Piping / tubing / fittings
  • Valves
  • Pressure regulators
  • Strainers / filters
  • Solenoids
  • Automatic control valves
  • Pumps / motors
  • Pressure / Temperature / Flow sensors
  • Variable Frequency Drives (VFD)
  • Custom-designed control panels
  • Switches, relays, and other electrical hardware
  • Structural skid frames

BETE Design, Fabrication and Testing Process

To deliver a fully compliant fabrication, BETE engineers start by incorporating all your project specifications to ensure they meet your design requirements, including any referenced industry codes.

Computational Fluid Dynamics (CFDmodelling software simulates the spray process to determine the best solutions for complex conditions. BETE also offers Advanced Spray Engineering Services to solve more challenging and critical problems. BETE’s in-house foundry is stocked with various alloys, and they are one of the first foundries in the world to cast Nickel Alloy C-22. Their engineers can help you select the material for maximum effectiveness and operating life in your application.

BETE Manufacturing Code Compliance

BETE provides drop-in solutions, including custom spray lances, quills, injection lances, and chemical injectors. Fabrication is BETE’s specialty, from complex ASME Code compliance to simple flush pipe and flange assemblies. Our highly qualified welders have extensive experience welding dissimilar metals and exotic alloys, including nickel and cobalt alloys.

Common Design Requirements

  • ASME B31.3 -Process Piping
  • ASME B31.1 -Power Piping
    • Boiler External Piping (PP Authorization)
    • Nonboiler External Piping
  • ASME Boiler and Pressure Vessel Code Section VIII, Division 1 (U Authorization)
  • Welding qualification to ASME B&PVC, Section IX
  • Canadian Registration (CRN)
  • NACE compliance

Common Materials

  • Carbon Steel
  • Alloy Steels
  • Stainless Steel310, 316, 321, 347
  • Duplex 2205
  • Nickel AlloysC-276, C-22, 625, 825

Testing and Validation

BETE’s integrated engineering, quality, and manufacturing departments combine to meet virtually any code, testing, or inspection requirement.

Mechanical Inspections Performance Inspections
  • RT –Radiographic
  • UT –Ultrasonic
  • PT –Visible Dye Penetrant
  • Hydrostatic
  • Hardness
  • PMI –Positive Material Identification
  • Flow
  • Spray Angle
  • Cone Shape
  • Droplet Size
  • Special Customer Requirements

Nearly all design, manufacturing, fabrication, and testing happen in the same facility. Close coordination through all process phases ensures optimization of mechanical, performance, and inspection requirements.

Resources

BETE Automated Spray Systems - Brochure

BETE Automated Spray Systems - Brochure

Download
BETE Custom Engineered Spray Systems & Fabrication Solutions Line Card

BETE Custom Engineered Spray Systems & Fabrication Solutions Line Card

Download

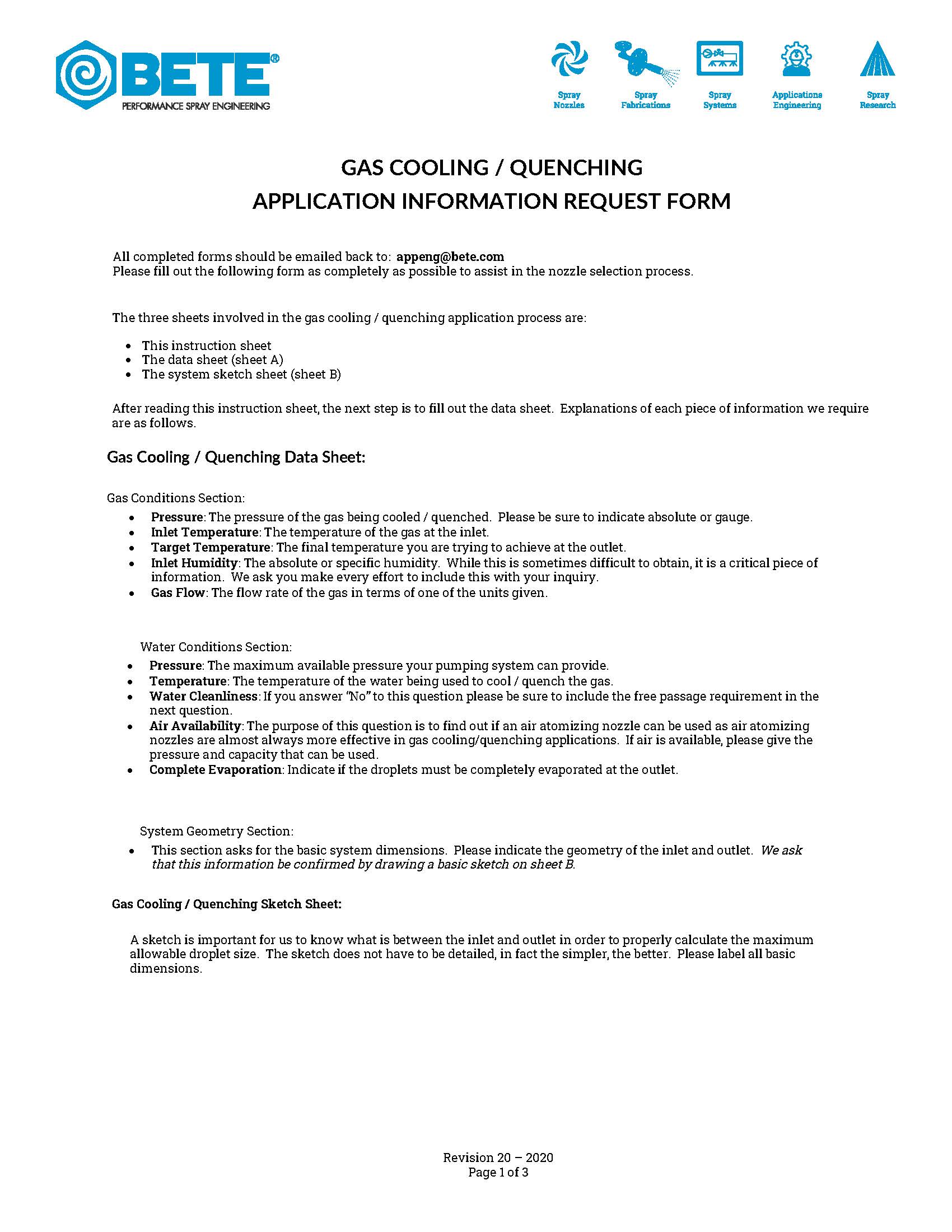

BETE Gas Cooling Information Request Form

BETE Gas Cooling Information Request Form

Download

Talk to one of our Experts

Reach out to our team of Spraying, Pumping, Filtering, Valve, and Systems Specialists today. We know we can help you with any municipal or industrial application challenges.
