BETE Reactionary Force Tank Cleaning Devices for Small Tanks
BETE designs and manufactures a wide range of tank cleaning nozzles to precisely clean and sanitize tanks, drums, totes, and other vessels of all sizes in the food, beverage, pharmaceutical, and chemical processing industries. BETE's design rotational spray devices to optimize your cleaning process. They clean faster and consume less water and solvents than standard spray balls while reducing effluent discharge to save energy and resources.
Design Features of BETE HydroWhirl Mini (HWM) PVDF Tank Cleaning Nozzles
- Clean small tanks and equipment up to 3.5 ft diameter
- Compact design for hygienic equipment cleaning, drum, barrel, and tote washing
- Made from FDA-compliant, PVDF material
- Corrosion-resistant
- Fluid-driven, self-flushing
- Requires no maintenance
- Hydrostatic wear free slide bearing

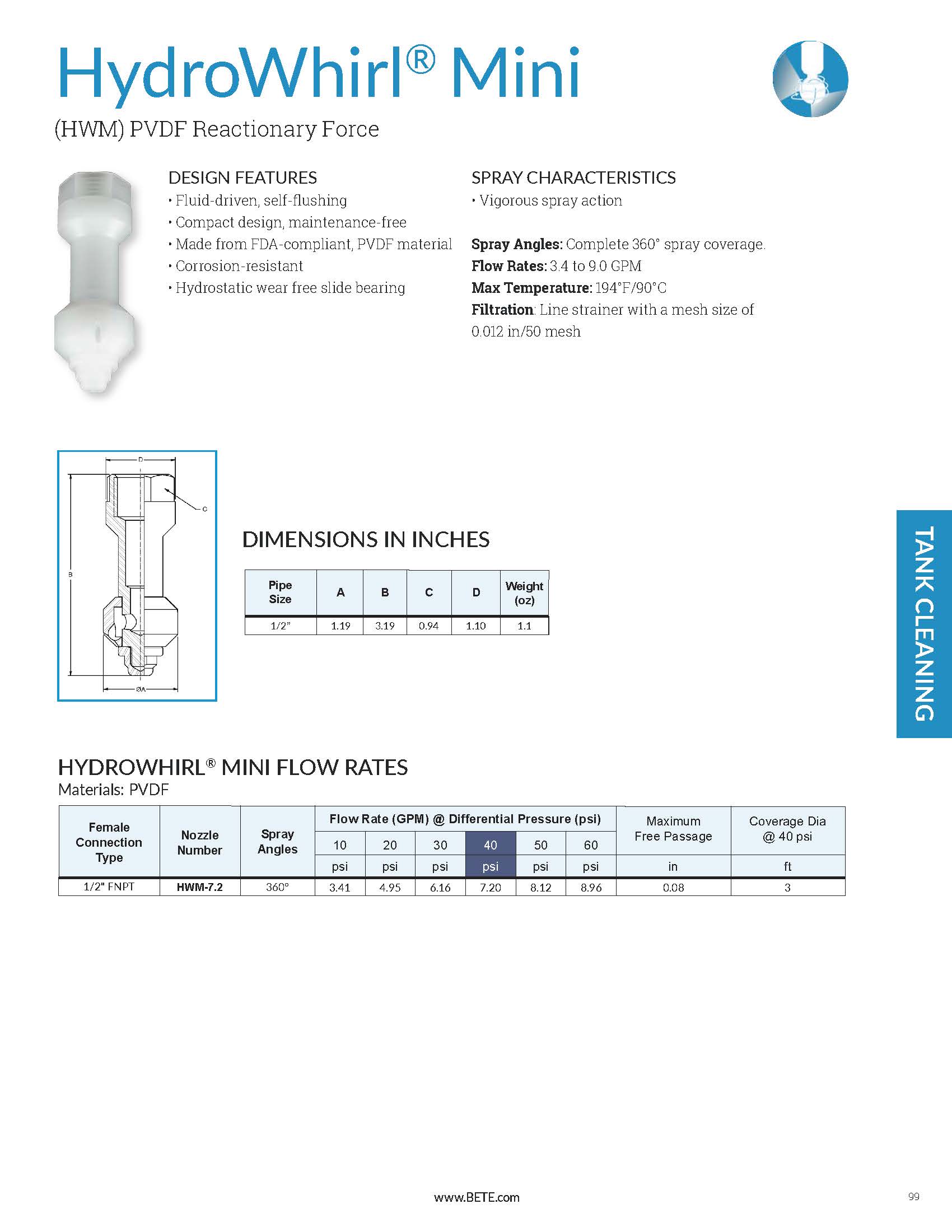

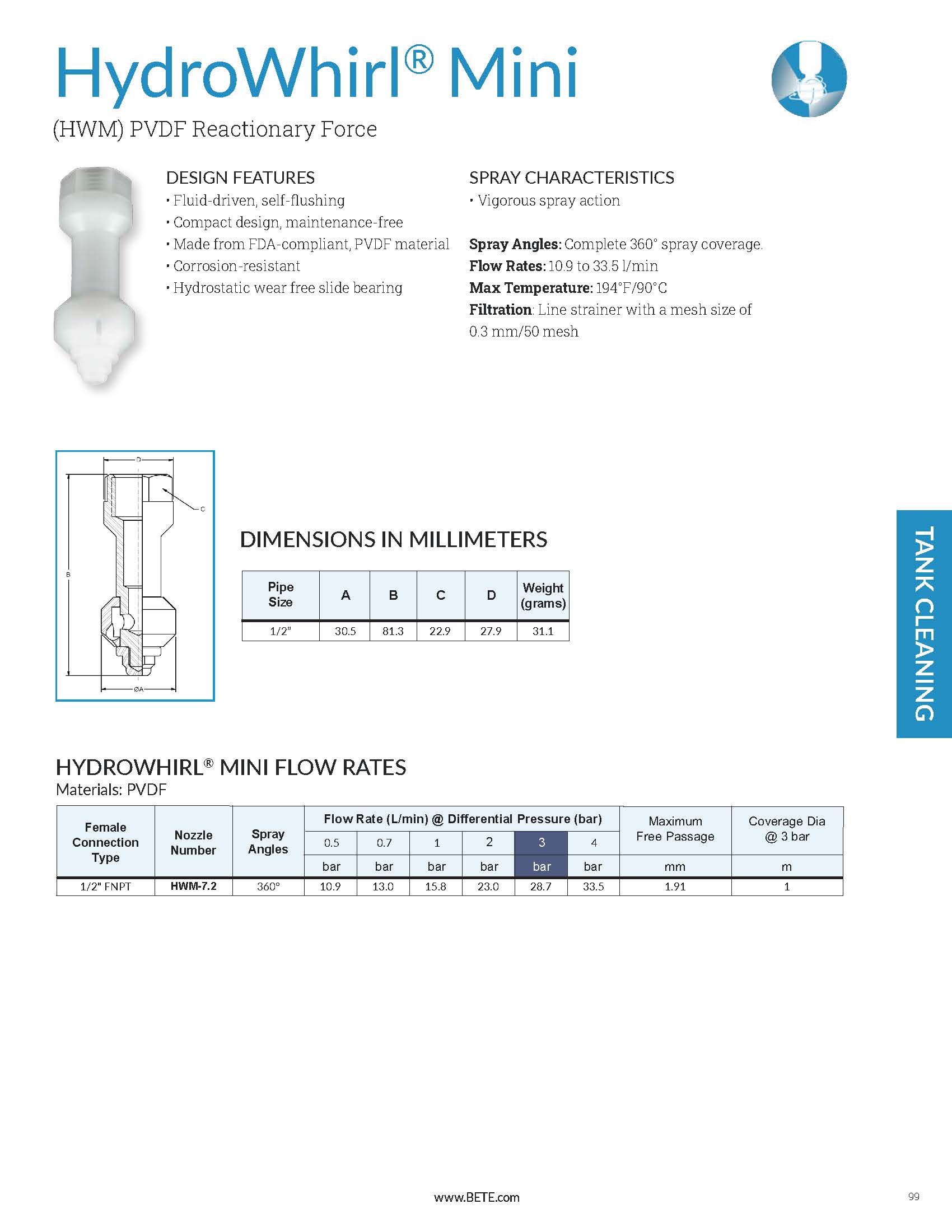

BETE HydroWhirl Mini PVDF Spray Characteristics
| Available Spray Angle |
Flow Rate Range |
| 360° |
3.41 to 8.96 gpm |
| Available Connection Types |
Material |
- Pipe: 1/2
- Connection Methods: Thread (NPT, Female)
|
PVDF |
How Spray Pattern of BETE HydroWhirl Mini PVDF Nozzles is Achieved
- The HydroWhirl® Mini tank cleaning nozzle directs the cleaning water through a rotating head at the tip of the spray assembly and produces a vigorous moving spray action against all areas of the walls of a tank.
- The spray pattern from the HydroWhirl Mini head uses impact and repetition to wash the tank quickly
BETE HydroWhirl Mini PDVF Video
BETE Rotating Tank Cleaning Nozzles: BETE HydroWhirl Mini PVDF
