    Hydra-Cell T Series Overview & Selection

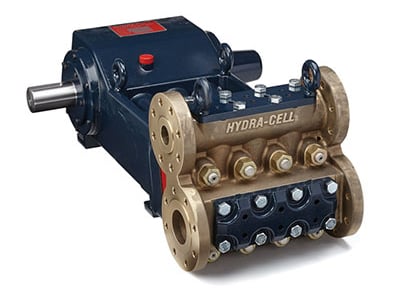

    T100-Series-Low-Pressure

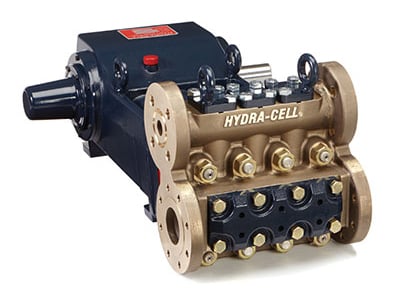

    		 T100-Series-Medium-Pressure

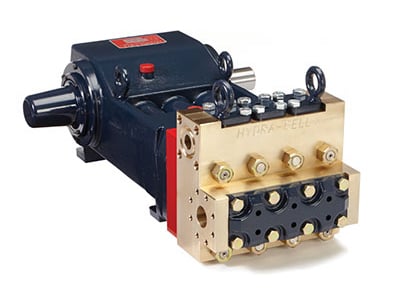

    		 T100-Series-High-Pressure


    T100 Series Low Pressure  T100 Series Medium Pressure  T100 Series High Pressure
    Max Flow: 96 gpm (366.1 l/min) 3292 BPD
    Max Pressure: 2100 psi (145 bar)    		 Max Flow: 45 gpm (170.4 l/min)
    Max Pressure: 3500 psi (241 bar)    		 Max Flow: 26 gpm (98.4 l/min)
    Max Pressure: 5000 psi (345 bar)



    T200-Series-Medium-Pressure

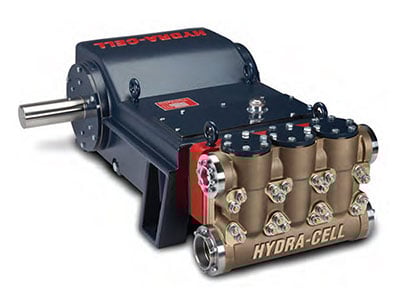

    		 T200-Series-High-Pressure


    T200 Series Medium Pressure  T200 Series High Pressure
    Max Flow: 93 gpm (352 l/min) 3189 BPD
    Max Pressure: 3500 psi (241 bar)    		 Max Flow: 72 gpm (272 l/min) 2469 BPD
    Max Pressure: 4500 psi (310 bar)

    Hydra-Cell T Series Pumps Design Advantages





















    Exclusive Seal-less Diaphragm Design

    • Seal-less design separates the power end from the process fluid end, eliminating leaks, hazards, and the expense associated with seals and packing
    • Low NPSH requirements allow for operation with a vacuum condition on the suction - positive inlet pressure is not necessary
    • Can operate with a closed or blocked suction line and run dry indefinitely without damage, eliminating downtime and repair costs
    • Unique diaphragm design handles more abrasives with less wear than gear, screw or plunger pumps
    • Hydraulically balanced diaphragms to handle high pressures with low stress
    • Provides low-pulse, linear flow due to its multiple diaphragm design
      Maximum Capacity Maximum Discharge Pressure Maximum Inlet Pressure Maximum Operating Temperature
    Model (gpm) (l/min) (psi) (bar) (psi) (bar) (F)* (C)*
    T100E  96 366.1 1500 103 500 34 180 ̊ 82.2 ̊
    T100F  76.5 289.6 1850 128 500 34 180 ̊ 82.2 ̊
    T100H  68 257.8 2100 145 500 34 180 ̊ 82.2 ̊
    T100K  45 170.4 3000 207 500 34 180 ̊ 82.2 ̊
    T100M  38 143.8 3500 241 500 34 180 ̊ 82.2 ̊
    T100S  26 98.4 5000 345 500 34 180 ̊ 82.2 ̊
    T200K  93 352 3000 207 500 34 180 ̊ 82.2 ̊
    T200M  83 314 3500 241 500 34 180 ̊ 82.2 ̊
    T200P  72 272 4000 276 500 34 180 ̊ 82.2 ̊
    T200Q  63 238 4500 310 500 34 180 ̊ 82.2 ̊

    * Consult factory for correct component selection for temperatures above 180 ̊F (82.2 ̊C) or below 40 ̊F (4.4 ̊C).

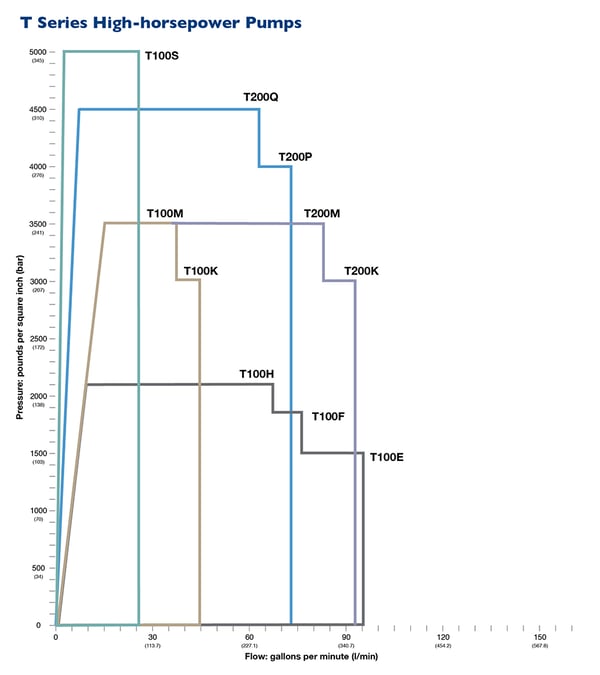

    T-Series-selection-chart-horsepower

    ________________________________________________________________________________________________________________________

    Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression

    Applications by Mining Market

    • Borehole Stabilization (Injecting bentonite and other substances)
    • Liquid Explosives (Charging liquid explosives into blast holes and rigs)
    • Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
    • Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
    • Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
    • Gland Seal Flushing (Protecting large slurry pumps from seal damage)
    • Gas Extraction (Powering a Venturi jet pump to lift drillhole water and release gas to the surface)
