Hydra-Cell T200 Series pumps feature the Hydra-Cell seal-less design, eliminating clean-up costs from leaking seals or packing and protecting operators from dangerous fluids such as those containing hydrogen sulfide.

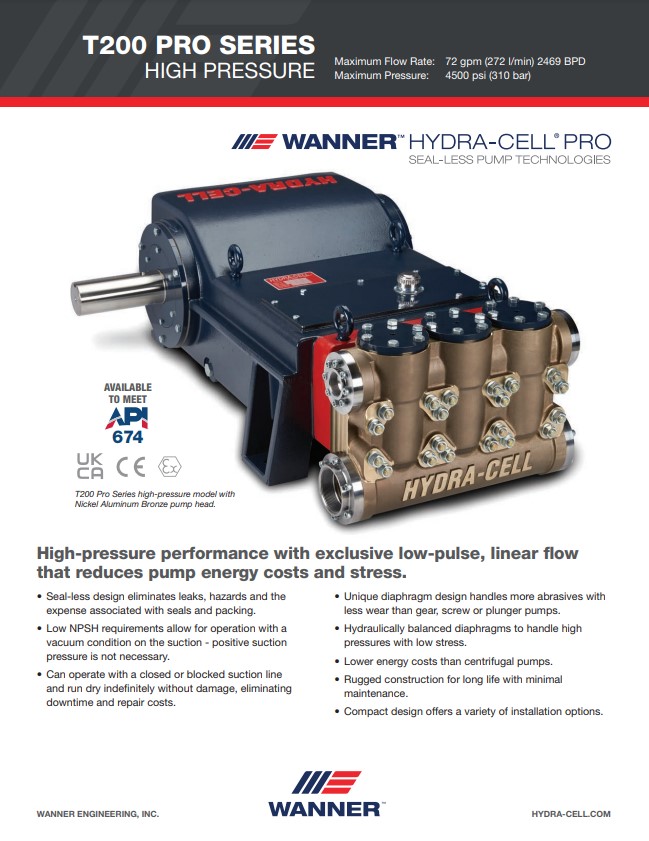

Hydra-Cell T200 Series High Pressure Diaphragm Pump Features
High Pressure Models T200P & T200Q
- Seal-less design eliminates leaks, hazards and the expense associated with seals and packing.
- Low NPSH requirements allow for operation with a vacuum condition on the suction - positive suction pressure is not necessary.
- Can operate with a closed or blocked suction line and run dry indefinitely without damage, eliminating downtime and repair costs.
- Unique diaphragm design handles more abrasives with less wear than gear, screw or plunger pumps.
- Hydraulically balanced diaphragms to handle high pressures with low stress.
- Lower energy costs than centrifugal pumps.
- Rugged construction for long life with minimal maintenance.
- Compact design offers a variety of installation options.
| Maximum Flow: | 72 gpm (272 l/min) 2469 BPD |
| Maximum Pressure: | 4500 psi (310 bar) |
| Model | Flow Capacities @ Pressure psi (bar) | rpm | gpm | l/min | BPD |
|---|---|---|---|---|---|
| T200P | 4000 (276) | 400 | 72 | 272 | 2469 |
| T200Q | 4500 (310) | 400 | 63 | 238 | 2160 |
| Model | Delivery @ Pressure psi (bar) | gal/rev | liters/rev |
|---|---|---|---|
| T200P | 500 (34) | 0.198 | 0.749 |
| 2000 (138) | 0.193 | 0.731 | |
| 4000 (276) | 0.180 | 0.681 | |
| T200Q | 500 (34) | 0.173 | 0.655 |
| 2250 (155) | 0.168 | 0.636 | |
| 4500 (310) | 0.158 | 0.596 |
| rpm | |
|---|---|
| Maximum: | 400 |
| Maximum API 674: | 310 |
| Minimum: | 40 |
| (Consult factory for speeds less than 40 rpm) |
| Maximum Discharge Pressure | |
| Metallic Heads: T200P | 4000 psi (276 bar) |
| Metallic Heads: T200Q | 4500 psi (310 bar) |
| Maximum Inlet Pressure | 500 psi (34 bar) |
| Operating Temperature | |
| Maximum: | 180 ̊F (82.2 ̊C) |
| Minimum: | 40 ̊F (4.4 ̊C) |
| Consult factory for temperatures outside this range | |
| Maximum Solids Size | 800 microns |
| Input Shaft | Right Side |
| Inlet Ports | Weld-On: 4” / SCH. 40 |
| 4” NPT, 4” Class 300 RF ANSI Flange | |
| Discharge Ports | Weld-On: 2” / SCH. 160 |
| 2” NPT, 2” Class 2500 RTJ ANSI Flange | |
| Plunger Stroke Length | 5 inch (127 mm) |
| Shaft Diameter | 4 inch (101.6 mm) |
| Shaft Rotation | Uni-directional (See rotation arrow.) |
| Oil Capacity | 80 US quarts (75.7 liters) - blank back cover |
| Weight | |
| Metallic Heads: | 3000 lbs. (1361 kg) |
| Fluid End Materials | |
| Manifold: | Nickel Aluminum Bronze (NAB) |
| Duplex Alloy 2205 Stainless Steel | |
| CF3M (316L) Stainless Steel | |
| Hastelloy CX2M | |
| Diaphragm/Elastomers: | FKM |
| Buna-N | |
| Diaphragm Follower Screw: | 316 Stainless Steel |
| Duplex Alloy 2205 Stainless Steel | |
| Hastelloy C | |
| Valve Spring Retainer: | Hastelloy C / PVDF |
| Check Valve Spring: | Elgiloy |
| Hastelloy C | |
| Valve Disc/Seat : | 17-4 Stainless Steel |
| Nitronic 50 | |
| Hastelloy C | |
| Inlet/Outlet Valve Retainer: | 316 Stainless Steel |
| Duplex Alloy 2205 Stainless Steel | |
| Hastelloy C | |
| Power End Materials | |
| Crankshaft: | Ductile Iron |
| Connecting Rods: | Ductile Iron |
| Crossheads: | Ductile Iron |
| Crankcase: | Ductile Iron |
| Bearings: | Spherical Roller (main) |
| Steel-backed Tri-metal (crankpin) | |
| Bronze (wristpin) |
