Hydra-Cell T200 Series pumps feature the Hydra-Cell seal-less design, eliminating clean-up costs from leaking seals or packing and protecting operators from dangerous fluids such as those containing hydrogen sulfide.
Hydra-Cell T200 Series Medium Pressure Diaphragm Pump Features
Medium Pressure Models T200K & T200M
- Seal-less design eliminates leaks, hazards and the expense associated with seals and packing.
- Low NPSH requirements allow for operation with a vacuum condition on the suction - positive suction pressure is not necessary.
- Can operate with a closed or blocked suction line and run dry indefinitely without damage, eliminating downtime and repair costs.
- Unique diaphragm design handles more abrasives with less wear than gear, screw or plunger pumps.
- Hydraulically balanced diaphragms to handle high pressures with low stress.
- Lower energy costs than centrifugal pumps.
- Rugged construction for long life with minimal maintenance.
- Compact design offers a variety of installation options.
| Maximum Flow: | 93 gpm (352 l/min) 3189 BPD |
| Maximum Pressure: | 3500 psi (241 bar) |

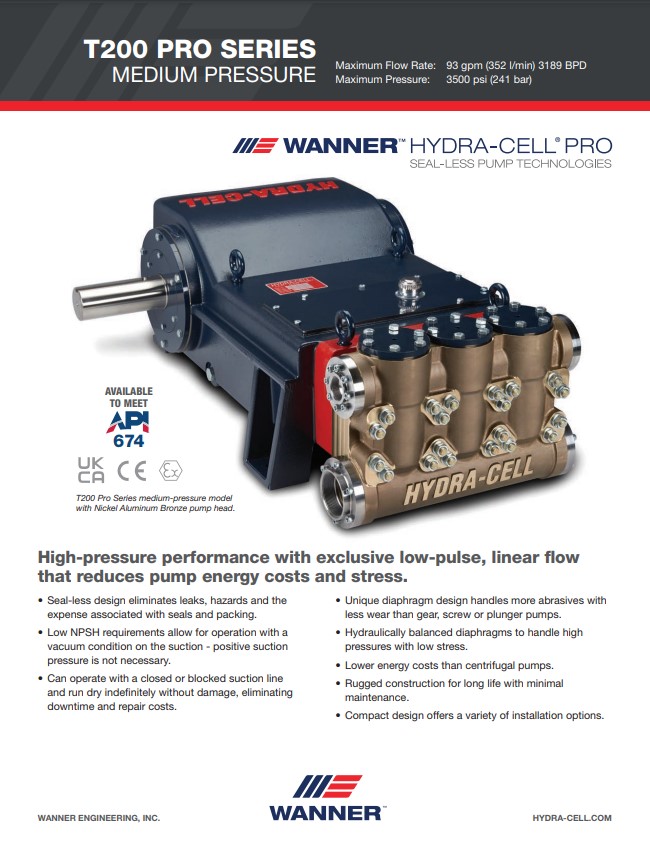

Hydra-Cell T200 Series Medium Pressure Pump Specifications
T200 Series Medium Pressure
________________________________________________________________________________________________________________________
| Model | Flow Capacities @ Pressure psi (bar) | rpm | gpm | l/min | BPD |
|---|---|---|---|---|---|
| T200K | 3000 (207) | 400 | 93 | 352 | 3189 |
| T200M | 3500 (241) | 400 | 83 | 314 | 2846 |
| Model | Delivery @ Pressure psi (bar) | gal/rev | liters/rev |
|---|---|---|---|
| T200K | 500 (34) | 0.251 | 0.950 |
| 1500 (103) | 0.246 | 0.931 | |
| 3000 (207) | 0.233 | 0.880 | |
| T200M | 500 (34) | 0.225 | 0.851 |
| 1750 (121) | 0.218 | 0.825 | |
| 3500 (241) | 0.208 | 0.785 |
| rpm | |
|---|---|
| Maximum: | 400 |
| Maximum API 674: | 310 |
| Minimum: | 40 |
| (Consult factory for speeds less than 40 rpm) |
| Maximum Discharge Pressure | |
| Metallic Heads: T200K | 3000 psi (207 bar) |
| Metallic Heads: T200M | 3500 psi (241 bar) |
| Maximum Inlet Pressure | 500 psi (34 bar) |
| Operating Temperature | |
| Maximum: | 180 ̊F (82.2 ̊C) |
| Minimum: | 40 ̊F (4.4 ̊C) |
| Consult factory for temperatures outside this range | |
| Maximum Solids Size | 800 microns |
| Input Shaft | Right Side |
| Inlet Ports | Weld-On: 4” / SCH. 40 |
| 4” NPT, 4” Class 300 RF ANSI Flange | |
| Discharge Ports | Weld-On: 2” / SCH. 160 |
| 2” NPT, 2” Class 2500 RTJ ANSI Flange | |
| Plunger Stroke Length | 5 inch (127 mm) |
| Shaft Diameter | 4 inch (101.6 mm) |
| Shaft Rotation | Uni-directional (See rotation arrow.) |
| Oil Capacity | 80 US quarts (75.7 liters) - blank back cover |
| Weight | |
| Metallic Heads: | 3000 lbs. (1361 kg) |
| Fluid End Materials | |
| Manifold: | Nickel Aluminum Bronze (NAB) |
| Duplex Alloy 2205 Stainless Steel | |
| CF3M (316L) Stainless Steel | |
| Hastelloy CX2M | |
| Diaphragm/Elastomers: | FKM |
| Buna-N | |
| Diaphragm Follower Screw: | 316 Stainless Steel |
| Duplex Alloy 2205 Stainless Steel | |
| Hastelloy C | |
| Valve Spring Retainer: | Hastelloy C / PVDF |
| Check Valve Spring: | Elgiloy |
| Hastelloy C | |
| Valve Disc/Seat : | 17-4 Stainless Steel |
| Nitronic 50 | |
| Hastelloy C | |
| Inlet/Outlet Valve Retainer: | 316 Stainless Steel |
| Duplex Alloy 2205 Stainless Steel | |
| Hastelloy C | |
| Power End Materials | |
| Crankshaft: | Ductile Iron |
| Connecting Rods: | Ductile Iron |
| Crossheads: | Ductile Iron |
| Crankcase: | Ductile Iron |
| Bearings: | Spherical Roller (main) |
| Steel-backed Tri-metal (crankpin) | |
| Bronze (wristpin) |
________________________________________________________________________________________________________________________
Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression
Applications by Mining Market
- Borehole Stabilization (Injecting bentonite and other substances)
- Liquid Explosives (Charging liquid explosives into blast holes and rigs)
- Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
- Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
- Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
- Gland Seal Flushing (Protecting large slurry pumps from seal damage)
- Gas Extraction (Powering a Venturi jet pump to lift drillhole water and release gas to the surface)
