Gorman-Rupp SF Series Infinity Submersible Pumps

Gorman-Rupp SF Series Infinity Submersible Pumps are solids-handling pumps – designed to provide you with the ultimate in pumping performance. All SF Series pumps use NEMA Premium Efficiency motors and pass a minimum 3″ spherical solid. Vortex pumps use the patent-pending Staggerwing® impeller technology.

SF Series Infinity Submersible Solids-Handling Pumps are available in slide rail and construction / trash versions for use in most liquid removal applications.

The SF Series comes with 3″, 4″, 6″, and 8″ flanged discharge and power ranging from 3 – 75 HP (1.5 to 56 kW). These combinations will provide flows up to 3,100 gpm (195.6 lps) and heads to 190 feet (57.9 meters).

Built to the same exacting standards you’ve come to expect from our industry-leading self-priming pumps, SF Series pumps are designed for easy maintenance and constructed for long life.

Gorman-Rupp SF Series Infinity Submersible Pumps Features:

  • Press-fit motor with our patent-pending finned motor housing provides superior motor cooling resulting in increased motor life
  • Moisture detection in both the seal and motor chambers standard
  • All pumps pass a minimum 3″ spherical solid
  • NEMA Premium Efficiency motors with Class H insulation standard on all models
  • Externally adjustable face clearances, on channel impeller pumps, to improve pumping efficiency without time-consuming wear ring replacement
  • Terminal housing and cable connections designed for easy in-the-field cable replacements

Gorman-Rupp SF Series Infinity Submersible Pumps Specifications :

Size 3″ (80 mm), 4″ (100 mm), 6″ (150 mm), 8″ (200 mm)
Max Capacity 3400 GPM (215 lps)
Max Head 170′ (52 m)
Max Solids 3″ (76 mm)
Max Temperature 104 F(40 C)
Materials of Construction Cast Iron, Ductile Iron
Motor – Voltage 230 V 1P, 230 V 3P, 460 V 3P, 575 V 3P
Motor – Cycles 60 Hz
Horsepower 3 – 75 HP

Resources

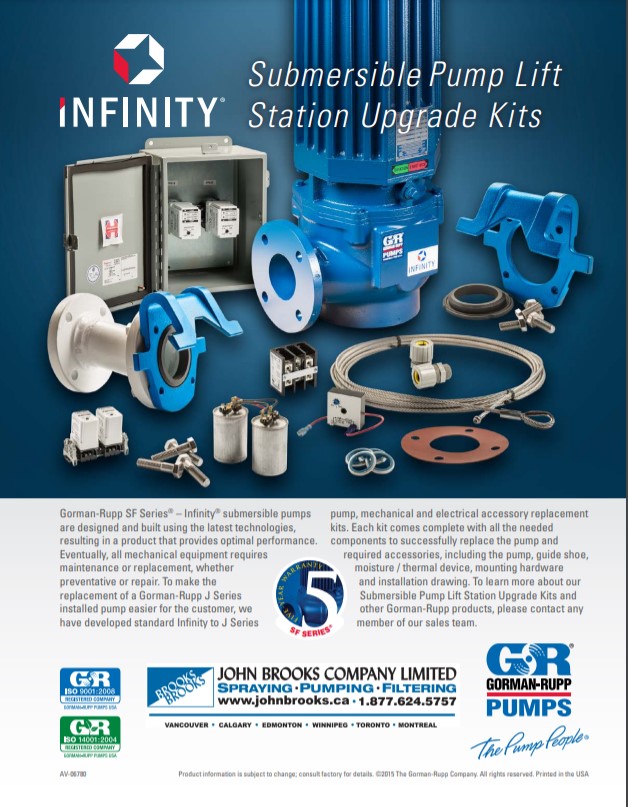

Gorman-Rupp SF Series Infinity Submersible Pumps Upgrade Kit

Gorman-Rupp SF Series Infinity Submersible Pumps Upgrade Kit

Download

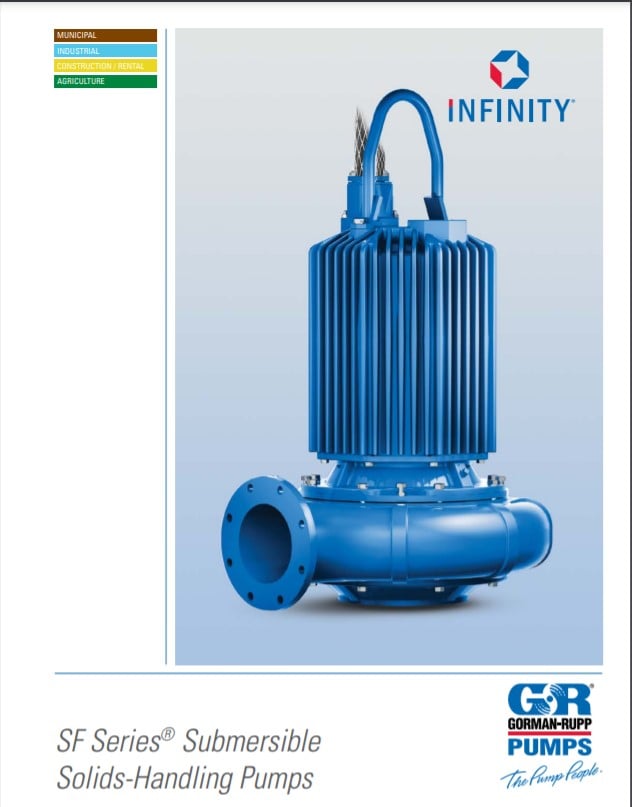

Gorman-Rupp SF Series Infinity Submersible Pumps Brochure

Gorman-Rupp SF Series Infinity Submersible Pumps Brochure

Download

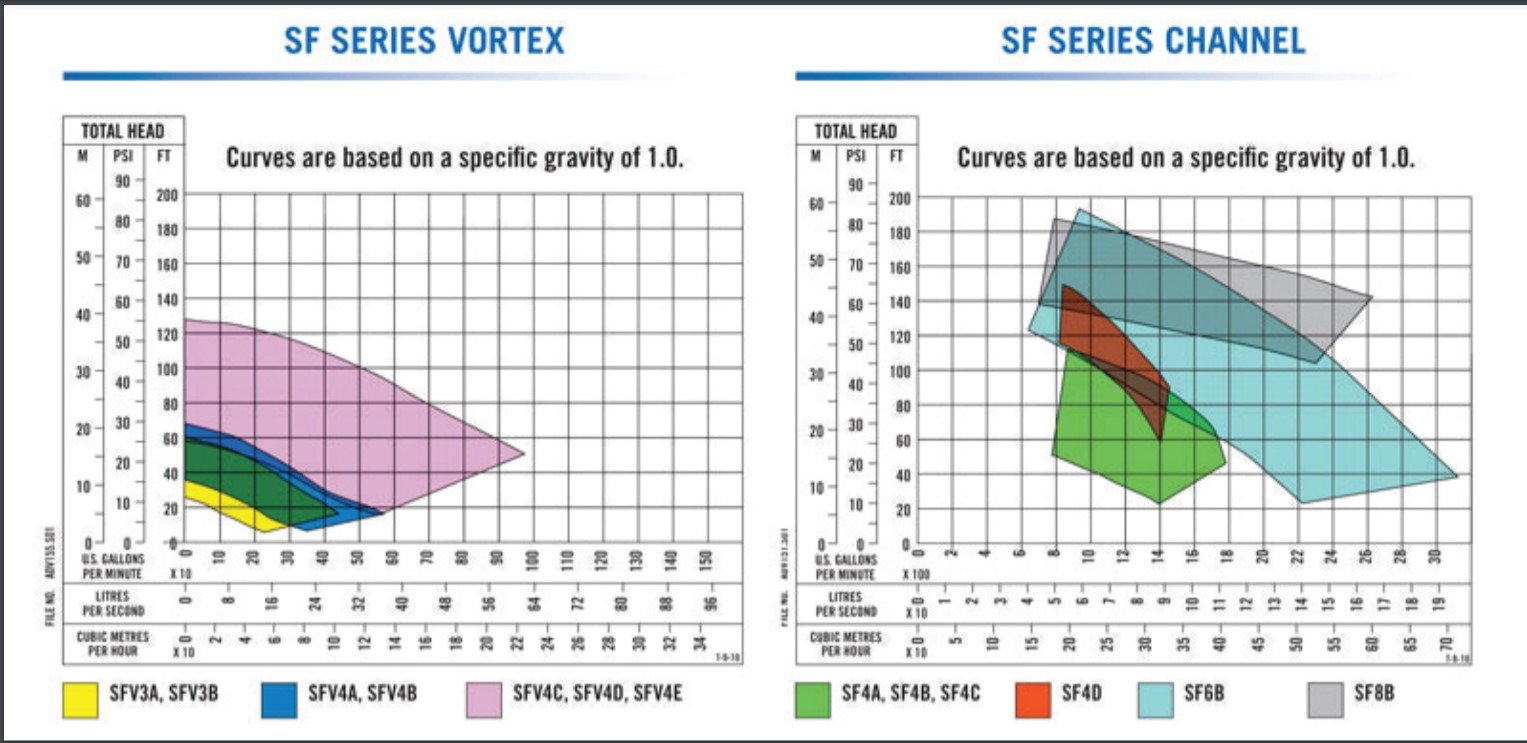

Gorman-Rupp SF Series Infinity Submersible Pumps Performance Curves

Gorman-Rupp SF Series Infinity Submersible Pumps Performance Curves

Download
