Finish Thompson UC1516L Sealless Pump

Finish Thompson UC1516L Sealless Pumps

Fabricated from robust ductile iron and fortified with a DuPont Tefzel (EFTE) lining, the Finish Thompson ULTRAChem UC Series ANSI dimensional magnetic drive pumps offer unmatched corrosion resistance. These pumps are meticulously engineered to excel in the most challenging of applications.

Applications

  • Agricultural chemicals
  • Metal manufacturing
  • Biodiesel
  • Mining

Finish Thompson UC1516L Sealless Pump Specifications

________________________________________________________________________________________________________________________

Suction Port Size:
 1.5 in
 Discharge Port Size:
 1 in
 Connection Types:
 ANSI 150# Flange, ISO/DIN/PN20 Flange
 Maximum Specific Gravity:
 over 1.8
 Maximum Working Pressure:
 175 psi (12 bar)



   @3450 RPM  @2900 RPM
 Flow Range*:  1 to 41 gpm  0.3 to 9.3 m3/h
 Maximum Head:  180 ft  55 m
 Power Range**:  1.8 to 4.6 hp  0.74 to 2.13 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.



 Type:
 Heavy Duty Sealless Mag Drive
 Configuration:
 Horizontal ANSI dimensional AA
 Construction Materials:
 ETFE-lined ductile iron
 O-ring Materials:
 FKM, EPDM, Simriz®, Kalrez®, or Aflas®
 Bushing Materials:
 Carbon, SiC, or Dri-Coat SiC
 Shaft Materials:  SiC or Dri-Coat SiC



 Maximum Temperature:  250º F (121º C)

Kalrez® is a registered trademark of DuPont Performance Elastomers
Simriz® Perfluoroelastomer is a registered trademark of the Simrit® division of Freudenberg-NOK

Aflas® is a trademark of the Asahi Glass Co., Ltd.

Finish Thompson UC1516L Sealless Pump Performance

________________________________________________________________________________________________________________________

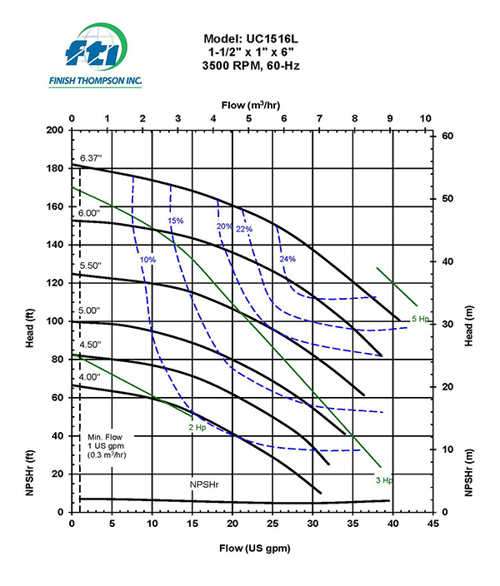

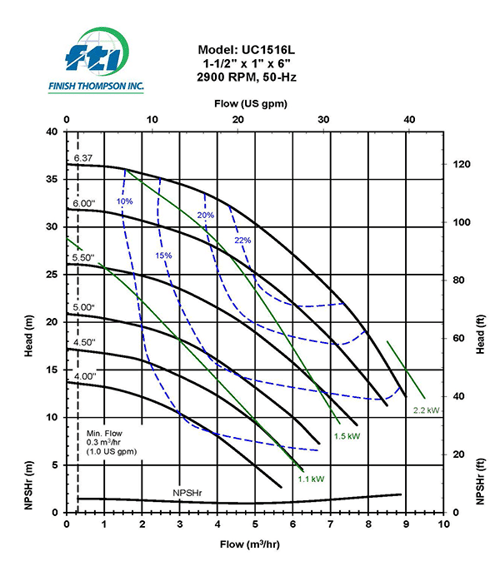

UC1516L-3500UC1516L-2900

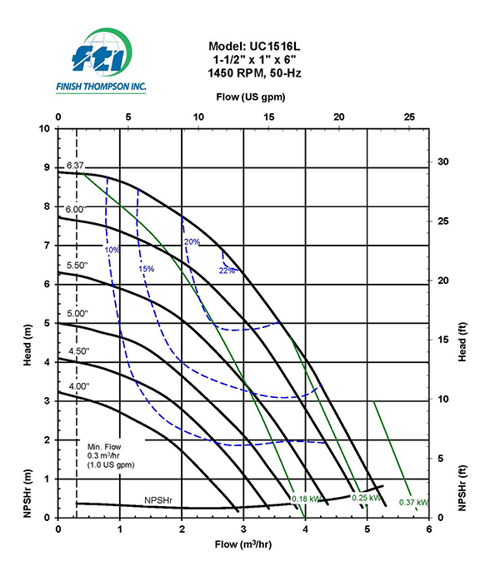

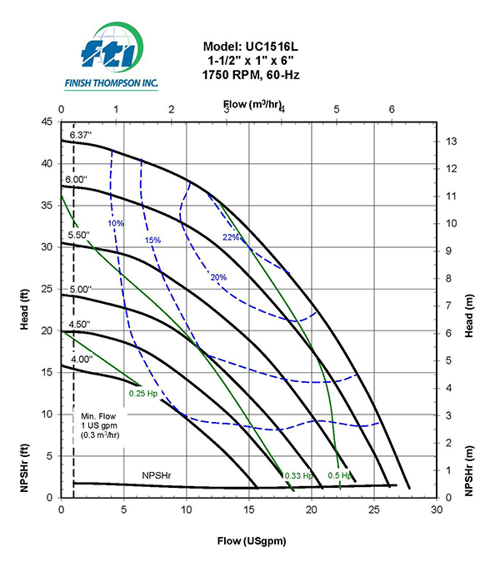

UC1516L-1750UC1516L-1450
