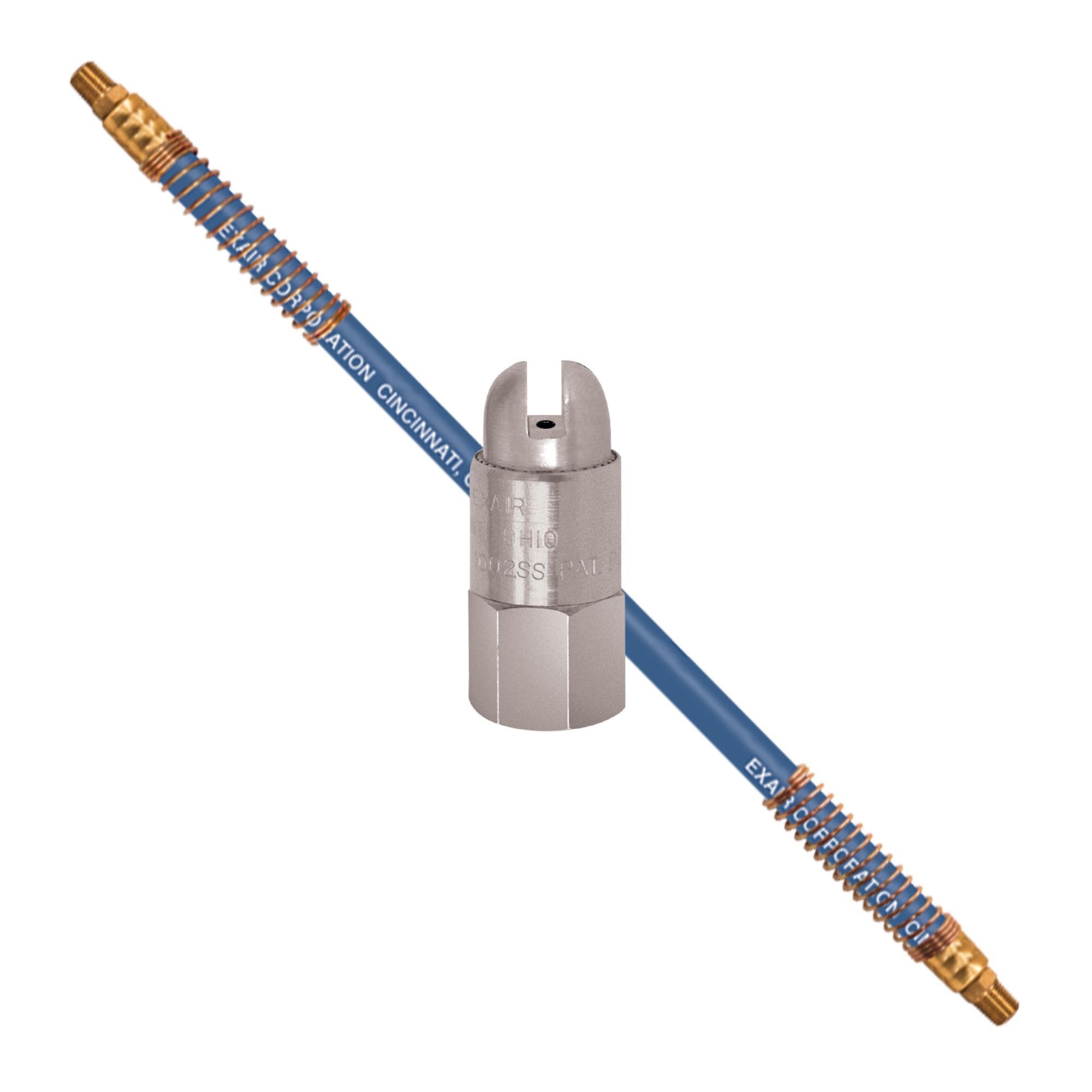

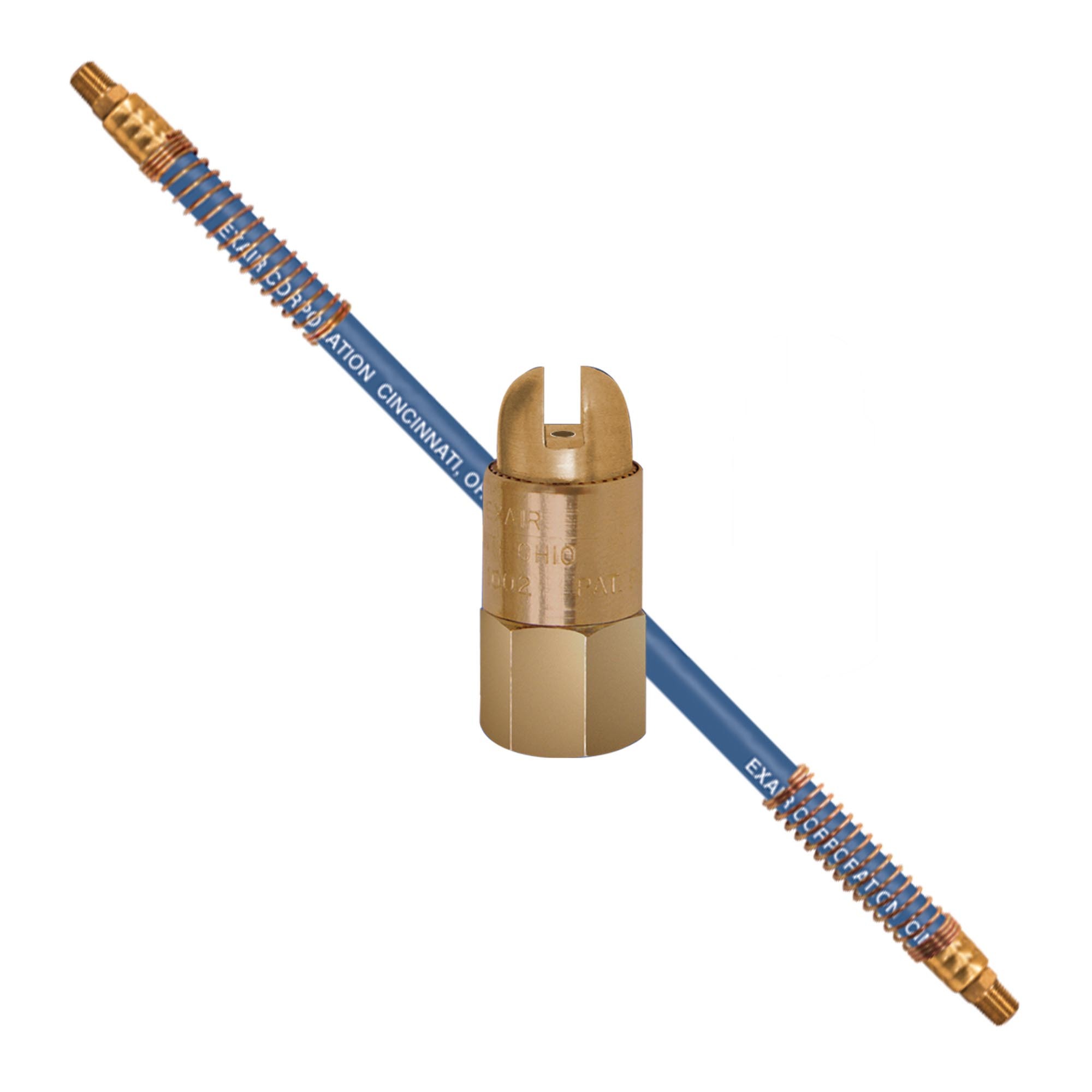

EXAIR Safety Air Nozzle with Stay Set Hose

EXAIR Safety Air Nozzles eject a small amount of compressed air 360° around the outer ring that combines with the air ejected from the center hole to produce a high volume, high velocity blast of air. The slotted end allows air to vent safely should the nozzle end be blocked. Thread sizes are 1/8, 1/4 or 3/8 FNPT in brass or 303SS. The Stay Set Hose provides precise positioning or repositioning necessary for different applications.

Product Material Flow Air Inlet Stay Set Hose Length Number of Mag Base Outlets
exair-safety-air-nozzle-1002-9206 Brass 17 SCFM 1/4 MNPT 6" (152mm) Not Applicable
exair-safety-air-nozzle-1002ss-9206 Type 303 Stainless Steel 17 SCFM 1/4 MNPT 6" (152mm) Not Applicable
exair-safety-air-nozzle-1002-9212 Brass 17 SCFM 1/4 MNPT 12" (305mm) Not Applicable
exair-safety-air-nozzle-1002ss-9212 Type 303 Stainless Steel 17 SCFM 1/4 MNPT 12" (305mm) Not Applicable
exair-safety-air-nozzle-1002-9218 Brass 17 SCFM 1/4 MNPT 18" (457mm) Not Applicable
exair-safety-air-nozzle-1002ss-9218 Type 303 Stainless Steel 17 SCFM 1/4 MNPT 18" (457mm) Not Applicable
exair-safety-air-nozzle-1002-9224 Brass 17 SCFM 1/4 MNPT  24" (610mm) Not Applicable
exair-safety-air-nozzle-1002ss-9224 Type 303 Stainless Steel 17 SCFM 1/4 MNPT 24" (610mm) Not Applicable
exair-safety-air-nozzle-1002-9230 Brass 17 SCFM 1/4 MNPT 30" (762mm) Not Applicable
exair-safety-air-nozzle-1002ss-9230 Type 303 Stainless Steel 17 SCFM 1/4 MNPT 30" (762mm) Not Applicable
exair-safety-air-nozzle-1002-9236 Brass 17 SCFM 1/4 MNPT 36" (914mm) Not Applicable
exair-safety-air-nozzle-1002ss-9236 Type 303 Stainless Steel 17 SCFM 1/4 MNPT 36" (914mm) Not Applicable

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Material conveying
  • Part ejection
  • Fiber conveying
  • Air assist

Advantages:

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • High velocity airstream
  • Compact
  • Installs with a socket wrench
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Models available in brass and stainless steel

Materials

  • Brass - general purpose applications. Maximum temperature 400°F (204°C).
  • Type 303 Stainless Steel - high temperatures, corrosive environments. Maximum temperature 800°F (426°C).

Accessories:

swivelfam

Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.



magfam

Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.




Safety Air Nozzle Performance

Air Consumption Force* Sound Level
Model SCFM SLPM Ozs Grams dBA
1001 10 283 9 255 78
1002 17 481 16 454 80
1002SS 17 481 16 454 80
1003 18 509 18 510 83

*Force measured at 12" (305mm) from target

Sound level measured at 3' (914mm)

All measurements taken at 80 PSIG (5.5 BAR)

How EXAIR Air Nozzles Work

anworksaEXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

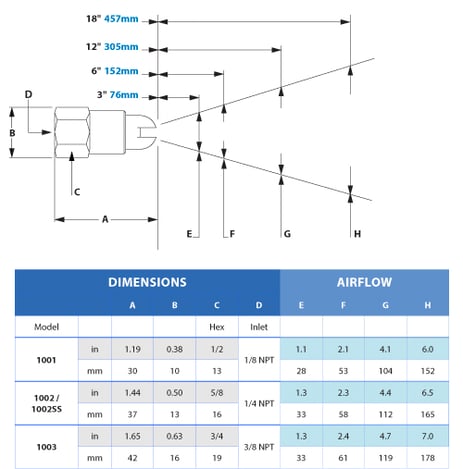

Safety Air Nozzle Dimensions and Airflow
