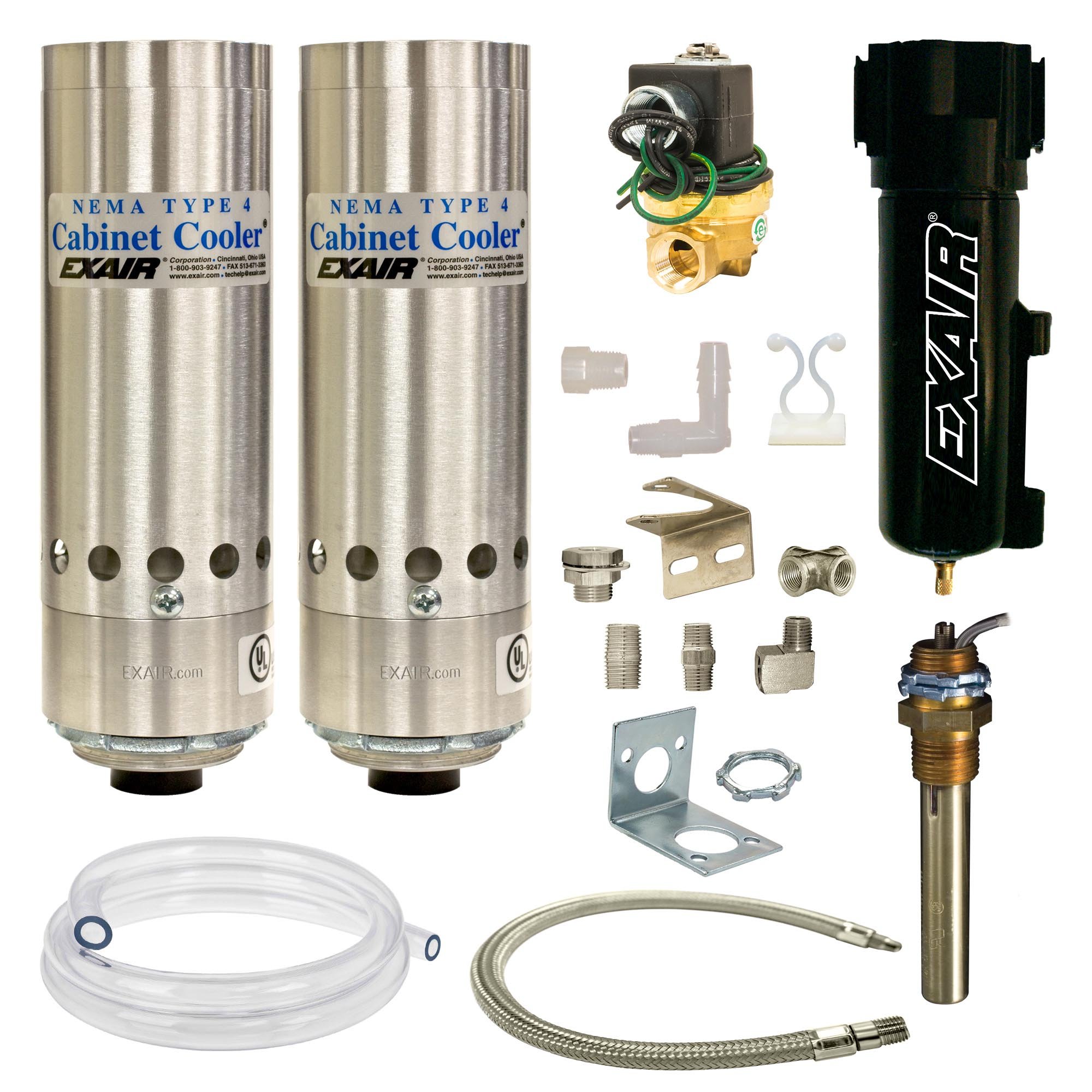

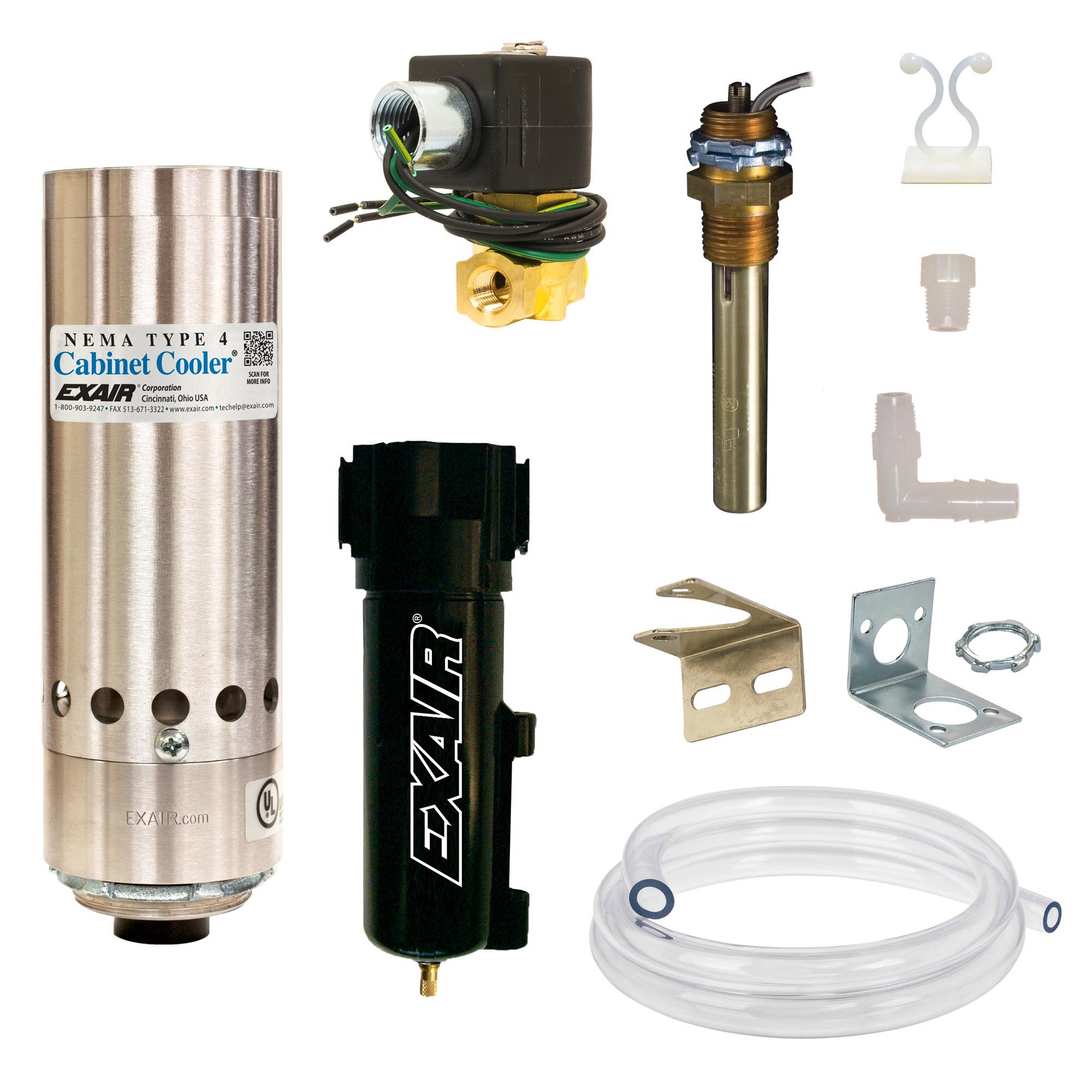

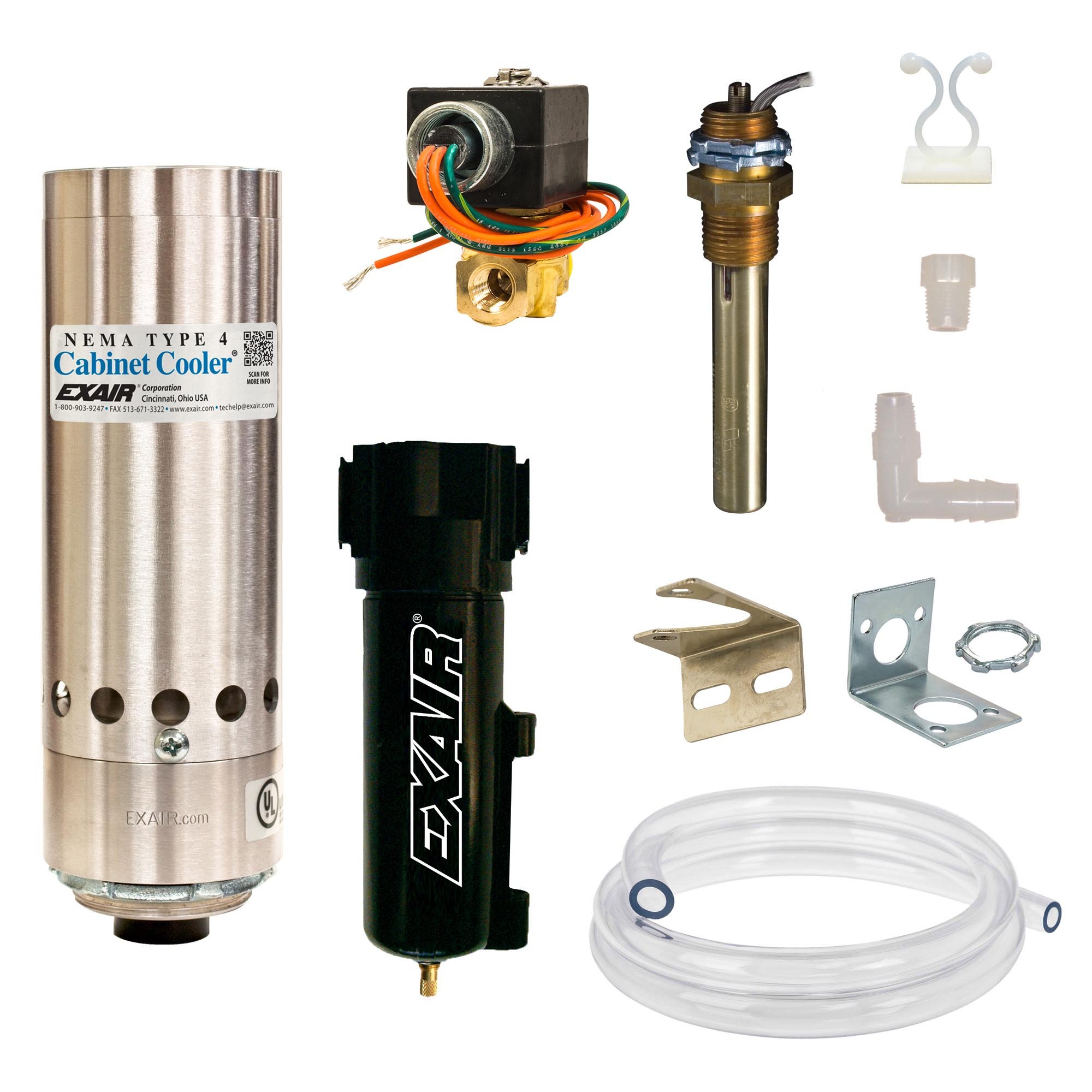

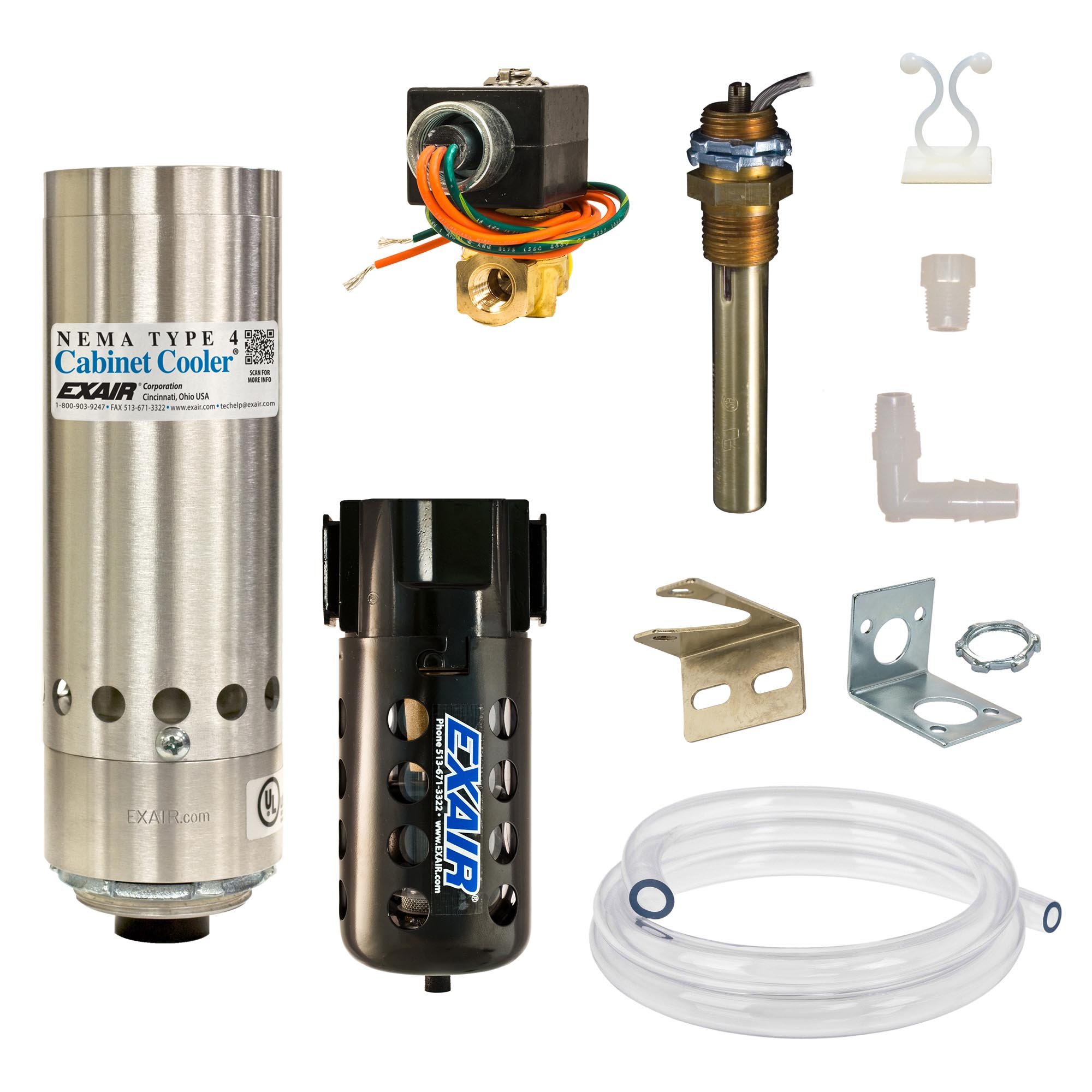

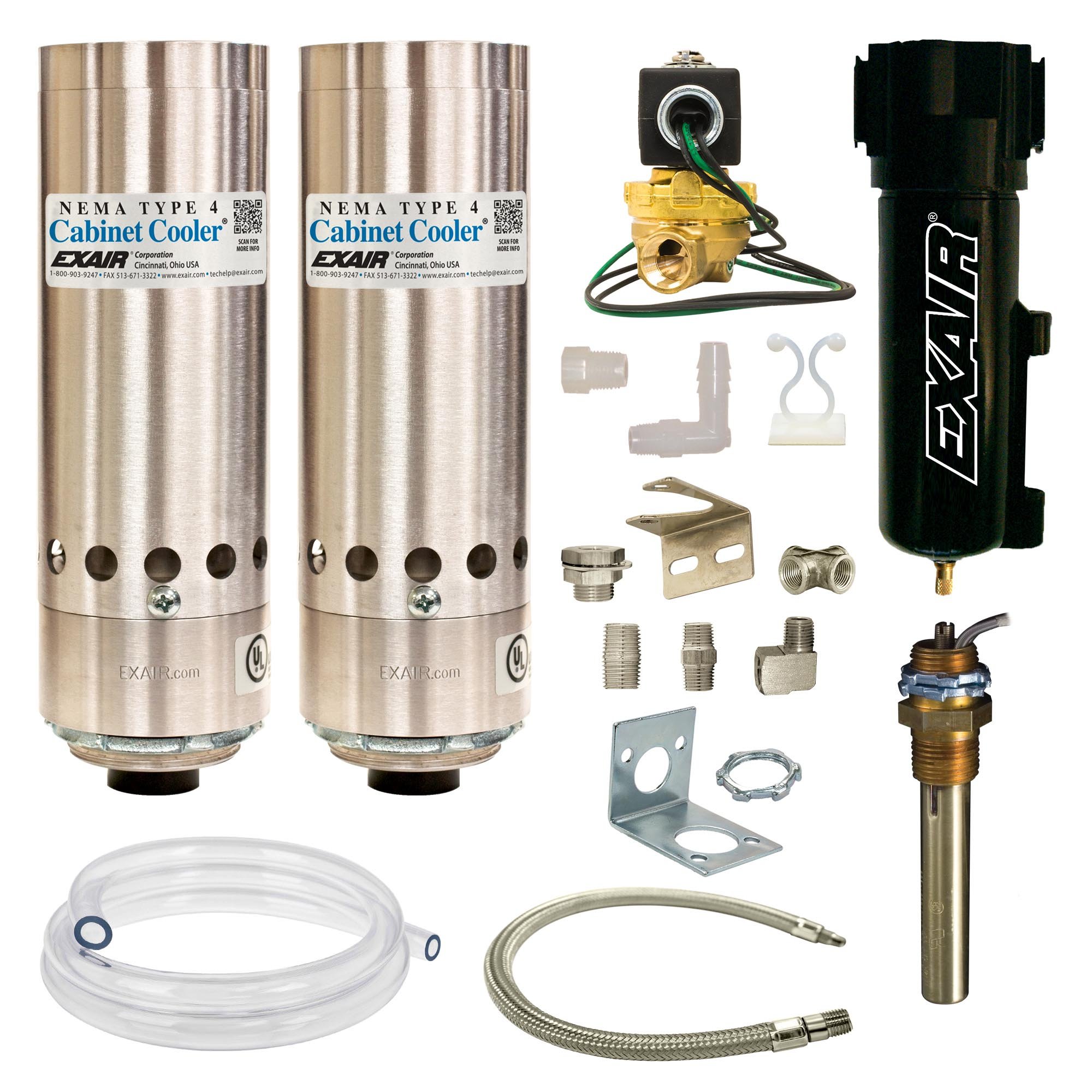

EXAIR NEMA 4 HT Cabinet Cooler® Systems w Therm

EXAIR High Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F (52°C to 93°C) are available in many cooling capacities for large and small control panels. The standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). NEMA 4 (IP66) Cabinet Cooler® Systems (dust-tight, oil-tight, splash resistant, indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. The standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). All Cabinet Coolers are UL Listed and CE compliant. They are a low cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout.

Product BTU/Hr Solenoid Valve (Standard) Or ETC (Updgrade Voltage Material Type High Temp Or NHP Vortex Capacity Air Inlet Filter
exair-ht4815-cabinet-cooler 1,000 N/A 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-ht4815-240-cabinet-cooler 1,000 N/A 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-ht4815-24vdc-cabinet-cooler 1,000 N/A 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-ht4825 1,700 N/A 120V  Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-ht4825-240 1,700 N/A 240V  Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-ht4825-24vdc 1,700 N/A 240VDC  Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-ht4830 2,000 N/A 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-ht4830-240 2,000 N/A 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-ht4830-24vdc 2,000 N/A 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-ht4840 2,800 N/A 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-ht4840-240 2,800 N/A 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-ht4840-24vdc 2,800 N/A 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-ht4850 3,400 N/A 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-ht4850-240 3,400 N/A 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-ht4850-24vdc 3,400 N/A 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-ht4860 4,000  N/A 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-ht4860-240 4,000  N/A 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-ht4860-24vdc 4,000 N/A 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-ht4870 4,800 N/A 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler  High Temperature 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-ht4870-240 4,800 N/A 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-ht4870-24vdc 4,800 N/A 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-ht4880 5,600 N/A 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 80 SCFM (2,265 SLPM) 1/4 FNPT N/A
exair-ht4880-240 5,600 N/A 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 80 SCFM (2,265 SLPM) 1/4 FNPT N/A
exair-ht4880-24vdc 5,600 N/A 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler High Temperature 80 SCFM (2,265 SLPM) 1/4 FNPT N/A

Applications:

  • Programmable controllers
  • Line control cabinets
  • Motor control centers
  • Relay panels
  • NC/CNC systems
  • Modular control centers
  • CCTV cameras
  • Computer cabinets
  • Cool laser housings
  • Electronic scales

NEMA 4 Cabinet Cooler Advantages:

  • Low cost
  • Compact
  • Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
  • Quiet
  • Install in minutes
  • Maintain NEMA 4 integrity (IP66)
  • Stabilize enclosure temperature and humidity
  • No CFC's
  • No moving parts - maintenance free
  • Mount in standard electrical knockout
  • Stop nuisance tripping
  • Stop heat damage
  • Eliminate fans and filters
  • Eliminate lost production
  • Stop circuit drift
  • Stop dirt contamination
  • Provide washdown protection


Models:

NEMA 4 (IP66) High Temperature Cabinet Cooler Systems, Thermostat Control

Model
Btu/hr. (Watts)
HT4815
1,000 (293)
HT4825
1,700 (498)
HT4830
2,000 (586)
HT4840
2,800 (821)
HT4850
3,400 (997)
HT4860
4,000 (1,171)
HT4870
4,800 (1,406)
HT4880
5,600 (1,641)

NEMA 4 (IP66) High Temperature Cabinet Cooler Systems, Thermostat Control (240V)

Model
Btu/hr. (Watts)
HT4815-240
1,000 (293)
HT4825-240
1,700 (498)
HT4830-240
2,000 (586)
HT4840-240
2,800 (821)
HT4850-240
3,400 (997)
HT4860-240
4,000 (1,171)
HT4870-240
4,800 (1,406)
HT4880-240
5,600 (1,641)

NEMA 4 (IP66) High Temperature Cabinet Cooler Systems, Thermostat Control (24VDC)

Model
Btu/hr. (Watts)
HT4815-24VDC
1,000 (293)
HT4825-24VDC
1,700 (498)
HT4830-24VDC
2,000 (586)
HT4840-24VDC
2,800 (821)
HT4850-24VDC
3,400 (997)
HT4860-24VDC
4,000 (1,171)
HT4870-24VDC
4,800 (1,406)
HT4880-24VDC
5,600 (1,641)

Performance:

NEMA 4 (IP66) High Temperature Cabinet Cooler with Thermostat - Performance

Model Capacity Sound Level dBA
Btu/hr. Watts
HT4815, HT4815-240, HT4815-24VDC 1,000 293 73
HT4825, HT4825-240, HT4825-24VDC 1,700 498 80
HT4830, HT4830-240, HT4830-24VDC 2,000 586 80
HT4840, HT4840-240, HT4840-24VDC 2,800 821 82
HT4850, HT4850-240, HT4850-24VDC 3,400 997 84
HT4860, HT4860-240, HT4860-24VDC 4,000 1,171 84
HT4870, HT4870-240, HT4870-24VDC 4,800 1,406 84
HT4880, HT4880-240, HT4880-24VDC 5,600 1,641 85

Dimensions:

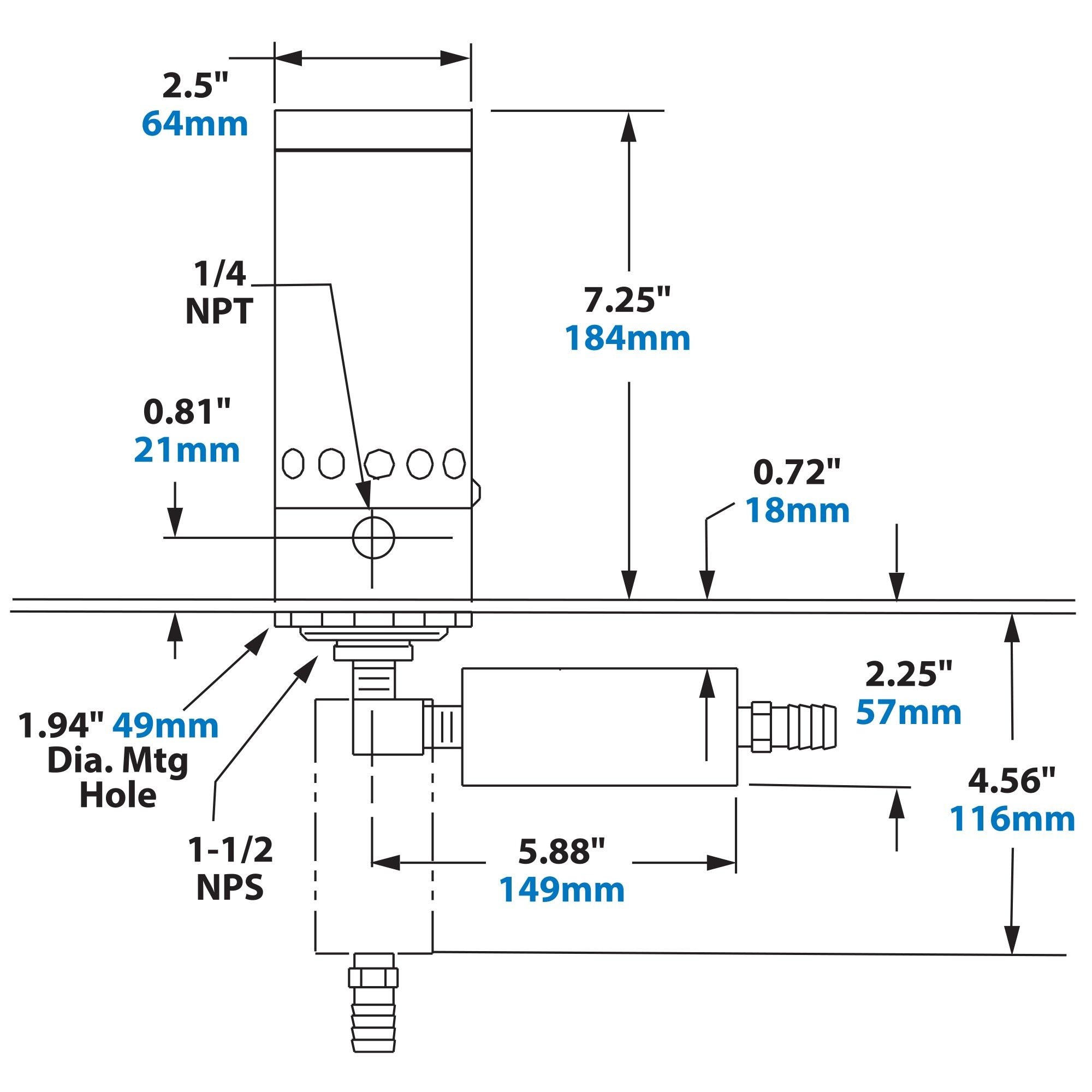

Dimensions - NEMA 4 Cabinet Coolers

exair-dim4lg

Models

HT4815, HT4825, HT4830, HT4840

How It Works:

exair-cabinet-coolers-how-it-works

Compressed air enters the vortex tube powered Cabinet Cooler and is converted into two streams, one hot and one cold. Hot air from the vortex tube is muffled and exhausted through the vortex tube exhaust. The cold air is discharged into the control cabinet through the cold air distribution kit. The displaced hot air in the cabinet rises and exhausts to atmosphere through the cabinet air exhaust at a slight positive pressure. Thus, the control cabinet is both cooled and purged with cool, clean air. Outside air is never allowed to enter the control panel.
