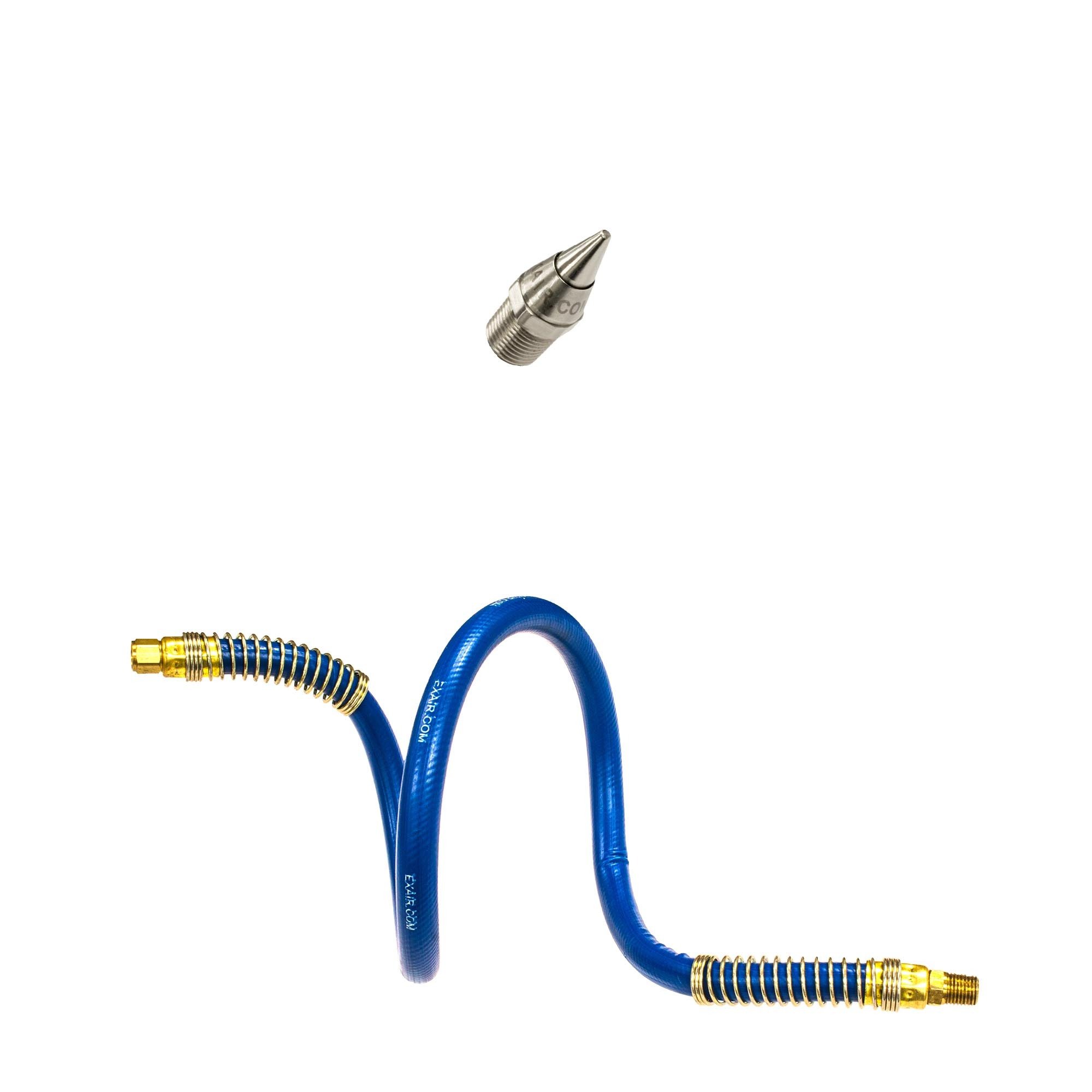

The EXAIR Micro Air Nozzle with Stay Set Hose includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required. The Stay Set Hose has memory and will not creep or bend. EXAIR's Micro Air Nozzle optimizes entrainment for a directed, high volume, high velocity airflow. The compact size permits mounting where space is limited. Sound level and air consumption are low.
| Product | Material | Flow | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 6" (152mm) | Not Applicable |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 12" (305mm) | Not Applicable |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 18" (457mm) | Not Applicable |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 24" (610mm) | Not Applicable |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 30" (762mm) | Not Applicable |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 36" (914mm) | Not Applicable |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
Materials:
- Type 303 Stainless Steel - high temperatures, corrosive environments. Max temp 800°F (426°C).
Accessories:
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel
Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.
Micro Air Nozzle Performance |
||||
| Air Consumption | Force | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA |
| 13 | 368 | 12 | 340 | 80 |
How EXAIR Air Nozzles Work
EXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked
Micro Air Nozzle Dimensions and Airflow |
 |
Micro Air Nozzle Standards and Certifications
EXAIR Micro Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
