EXAIR's Large Super Air Nozzles are available from 3/8 NPT to 1-1/4 NPT in zinc/aluminum alloy. Type 316 stainless steel versions are also available through 1 NPT and PEEK plastic nozzles are available in 3/8 and 1/2 NPT. The Large Super Air Nozzle line produces from 1.9 lbs (850 grams) up to 23 lbs (10.43 kg) of strong blowing force, exceeding the blowoff force of standard Super Air Nozzles. Large Super Air Nozzles are designed with protective aerodynamic slots which guide the airflow to a single point of convergence for hard-hitting force and dramatic noise reduction over typical blowoffs.
| Product | Material | Flow | Force | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
PEEK-Plastic | 35 SCFM | 1.9 lbs (862g) | 3/8 FNPT | Not Applicable | Not Applicable |
 |
PEEK-Plastic | 60 SCFM | 3.3 lbs (1.5 kg) | 1/2 FNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 35 SCFM | 1.9 lbs (862g) | 3/8 FNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 35 SCFM | 1.9 lbs (862g) | 3/8 MNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 60 SCFM | 3.3 lbs (1.5 kg) | 1/2 FNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 60 SCFM | 3.3 lbs (1.5 kg) | 1/2 MNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 91 SCFM | 4.5 lbs (2.04 kg) | 3/4 FNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 91 SCFM | 4.5 lbs (2.04 kg) | 3/4 MNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 135 SCFM | 6.6 lbs (2.99 kg) | 1 FNPT | Not Applicable | Not Applicable |
 |
Type 316 Stainless Steel | 135 SCFM | 6.6 lbs (2.99 kg) | 1 MNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 35 SCFM | 1.9 lbs (862g) | 3/8 FNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 35 SCFM | 1.9 lbs (862g) | 3/8 MNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 60 SCFM | 3.3 lbs (1.5 kg) | 1/2 FNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 60 SCFM | 3.3 lbs (1.5 kg) | 1/2 MNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 91 SCFM | 4.5 lbs (2.04 kg) | 3/4 FNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 91 SCFM | 4.5 lbs (2.04 kg) | 3/4 MNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 135 SCFM | 6.6 lbs (2.99 kg) | 1 FNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 135 SCFM | 6.6 lbs (2.99 kg) | 1 MNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 188 SCFM | 9.4 lbs (4.26kg) | 1-1/4 FNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 188 SCFM | 9.4 lbs (4.26kg) | 1-1/4 MNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 300 SCFM | 15 lbs (6.8kg) | 1-1/4 FNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 300 SCFM | 15 lbs (6.8kg) | 1-1/4 MNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 460 SCFM | 23 lbs (10.43 kg) | 1-1/4 FNPT | Not Applicable | Not Applicable |
 |
Zinc-Aluminum | 460 SCFM | 23 lbs (10.43 kg) | 1-1/4 MNPT | Not Applicable | Not Applicable |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
Large Super Air Nozzle Materials:
- Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
- Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).
- PEEK Plastic - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C).
Accessories:
Stay Set Hose - For applications where frequent repositioning of standard force Air Nozzles or Jet is required, the Flexible Stay Set Hoses are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. Since the hose has "memory", it will not creep or bend. It always keeps the aim until physically moved to the next position.
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel
Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.
Large Super Air Nozzle Performance |
|||||
| Air Consumption | Force | Sound Level | |||
| Model | SCFM | SLPM | Lbs | Kg | dBA |
| 1104 / 1105 | 35 | 991 | 1.9 | 0.86 | 82 |
| 1106 / 1107 | 60 | 1,699 | 3.3 | 1.5 | 87 |
| 1112 / 1113 | 91 | 2,577 | 4.5 | 2.04 | 96 |
| 1114 / 1115 | 135 | 3,823 | 6.6 | 2.99 | 99 |
| 1116 / 1117 | 188 | 5,324 | 9.4 | 4.26 | 102 |
| 1118 / 1119 | 300 | 8,495 | 15 | 6.80 | 106 |
| 1120 / 1121 | 460 | 13,026 | 23 | 10.43 | 109 |
|
Force measured at 12" (305mm) from target Sound level measured at 3' (914mm) All measurements taken at 80 PSIG (5.5 BAR) |
|||||
How EXAIR Air Nozzles Work
EXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
Large Super Air Nozzle Dimensions & Airflow |

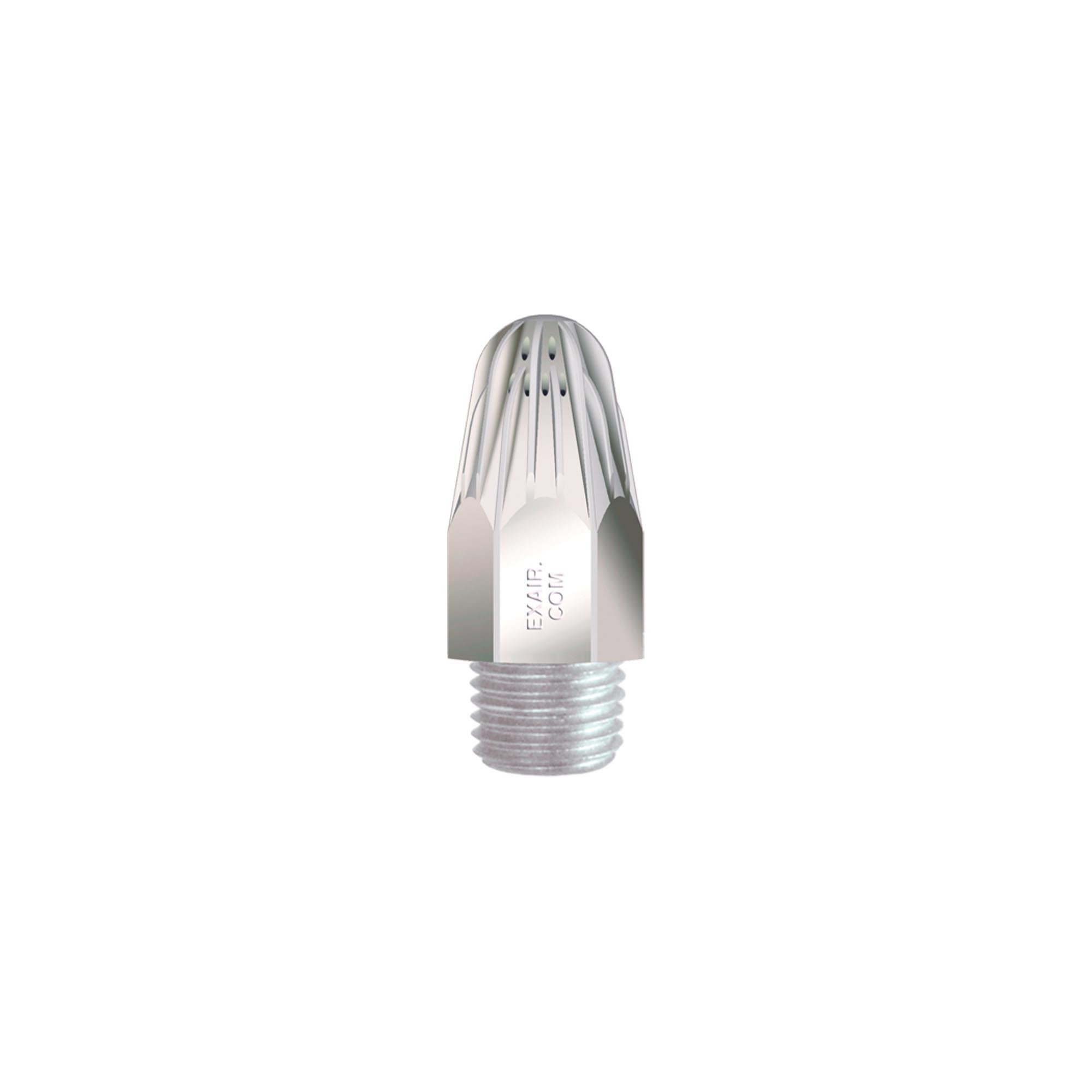

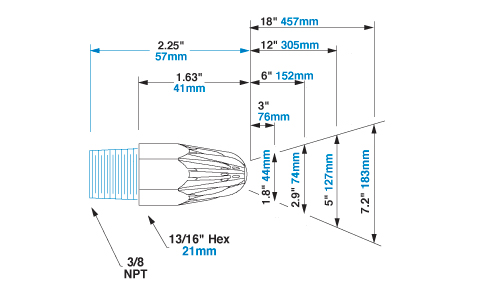

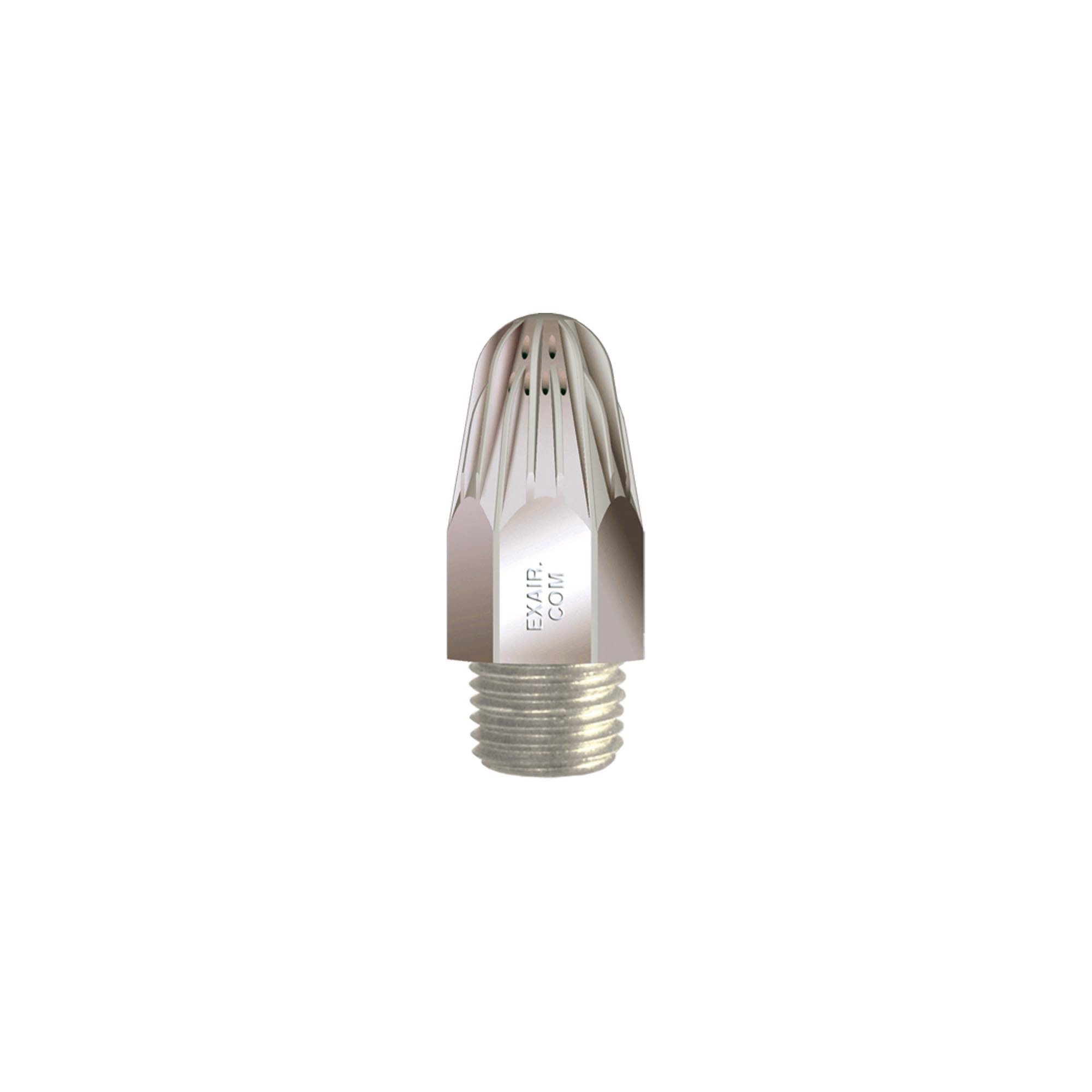

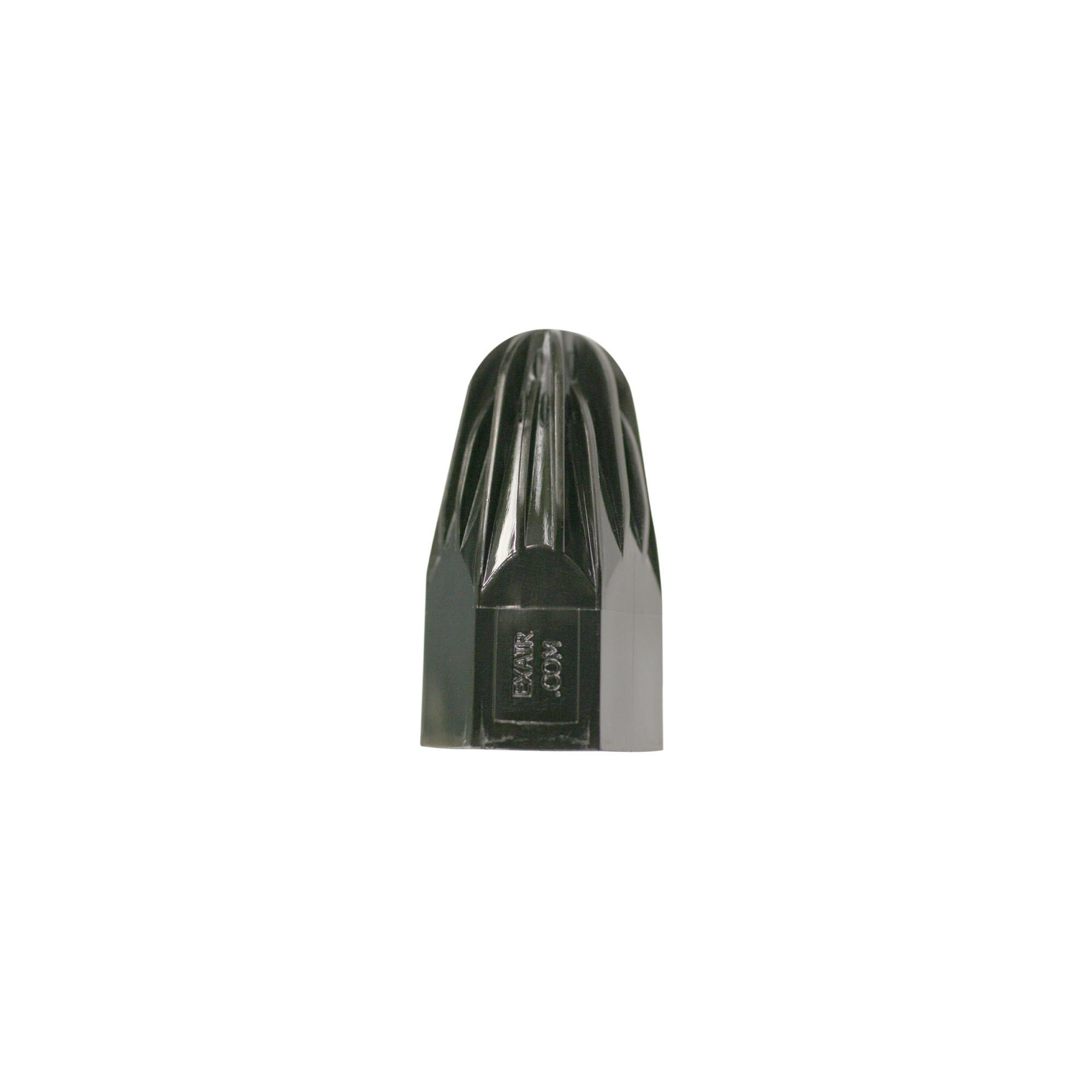

 Model 1104 and 1105 Large Super Air Nozzle

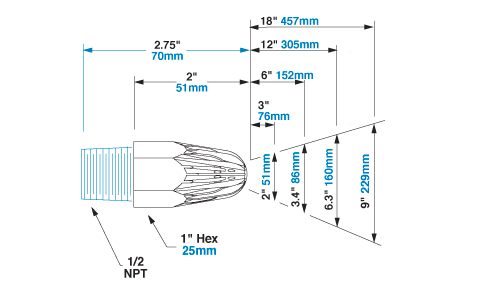

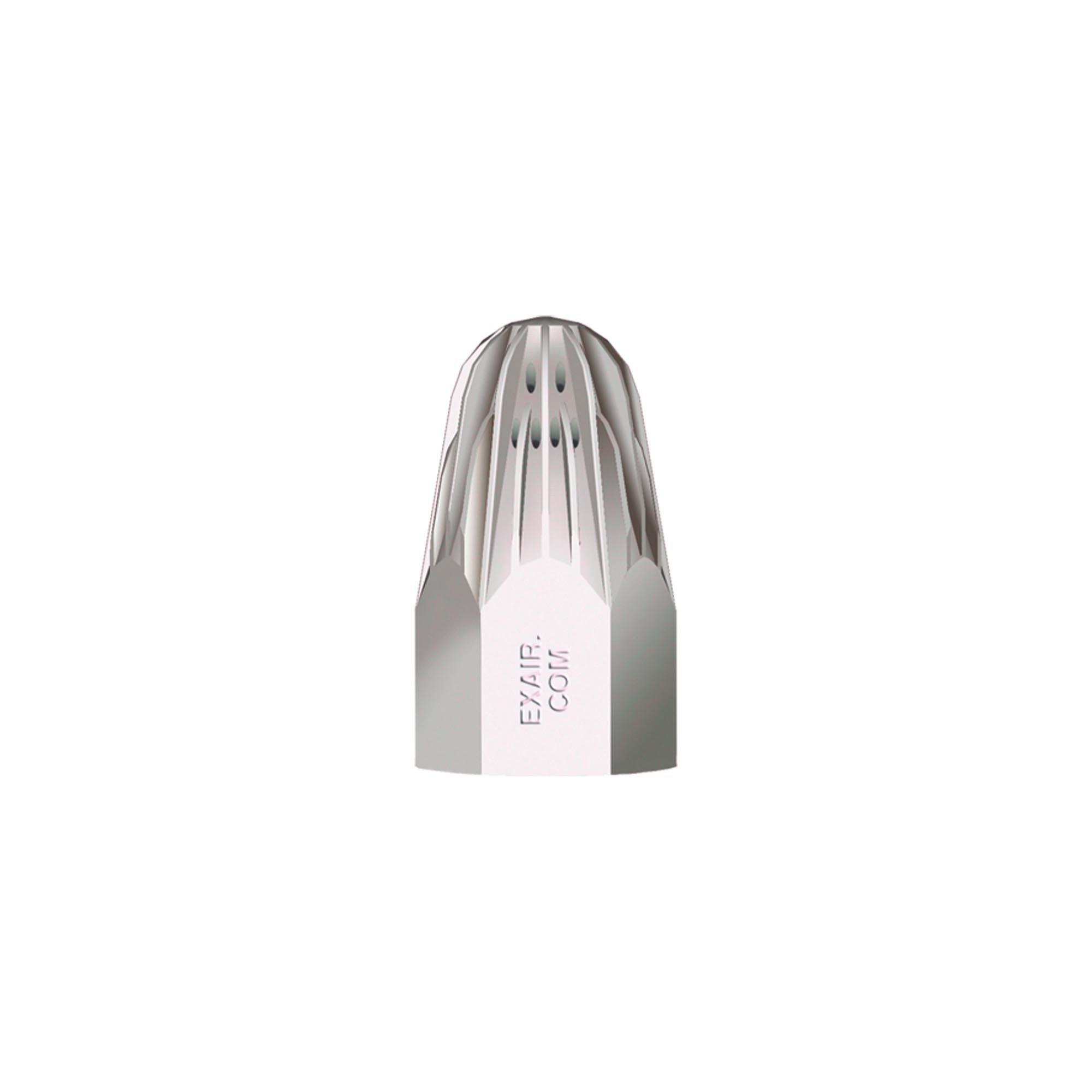

 Model 1106 and 1107 Large Super Air Nozzle

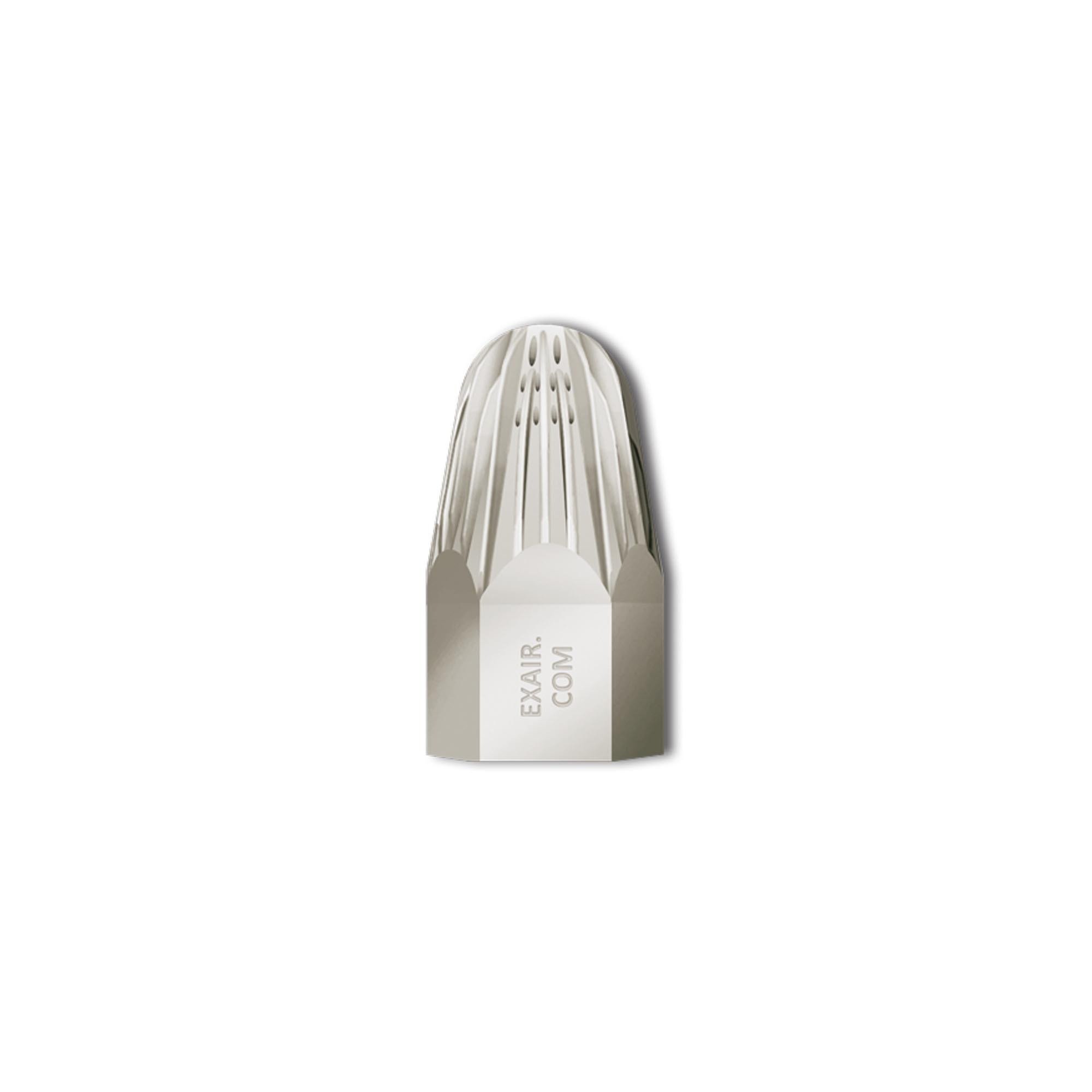

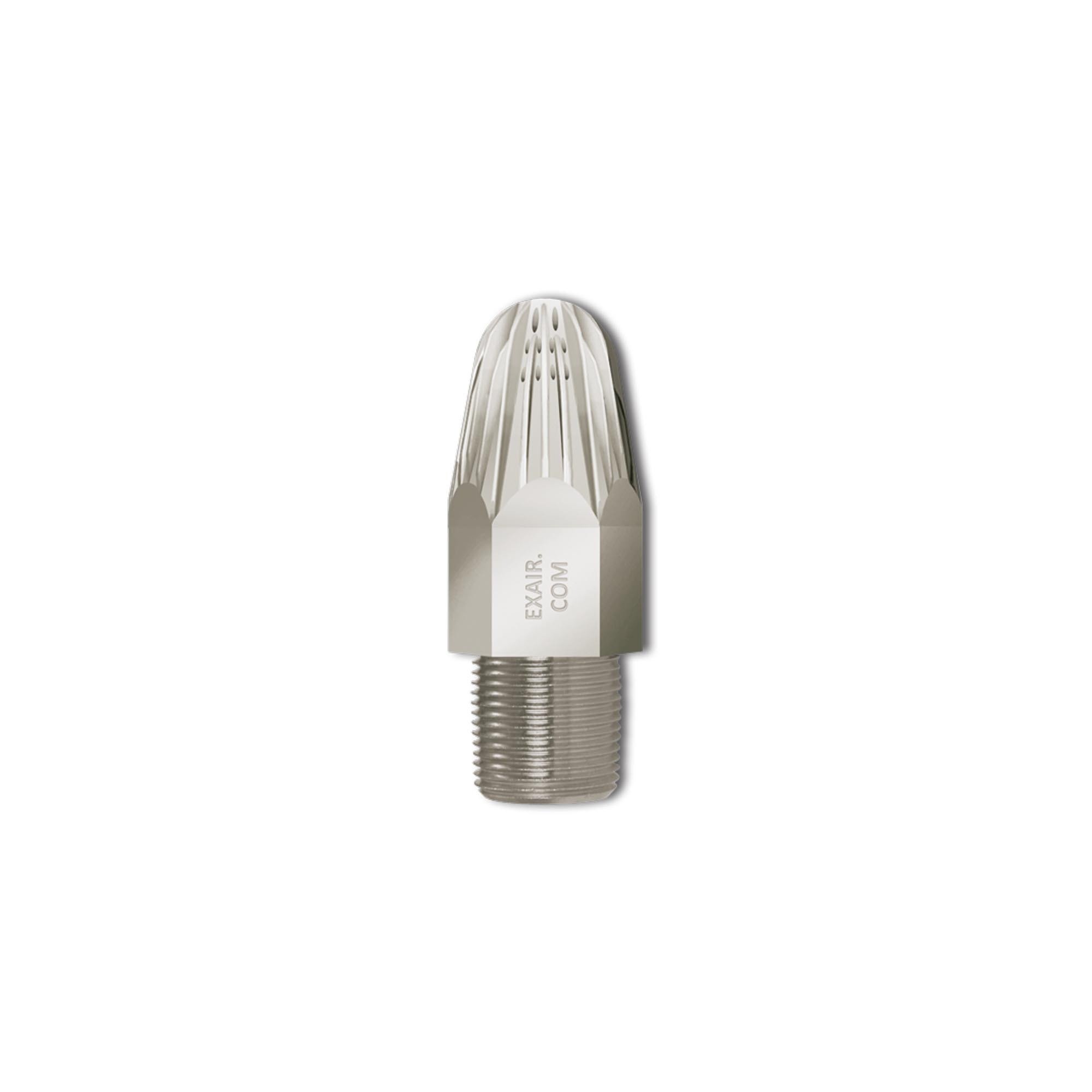

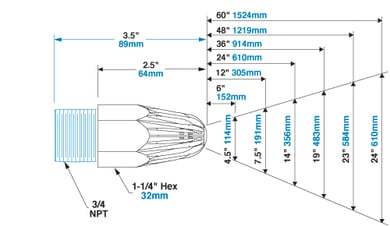

Model 1112 and 1113 Large Super Air Nozzle

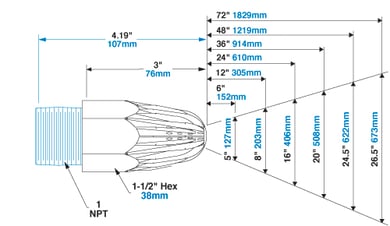

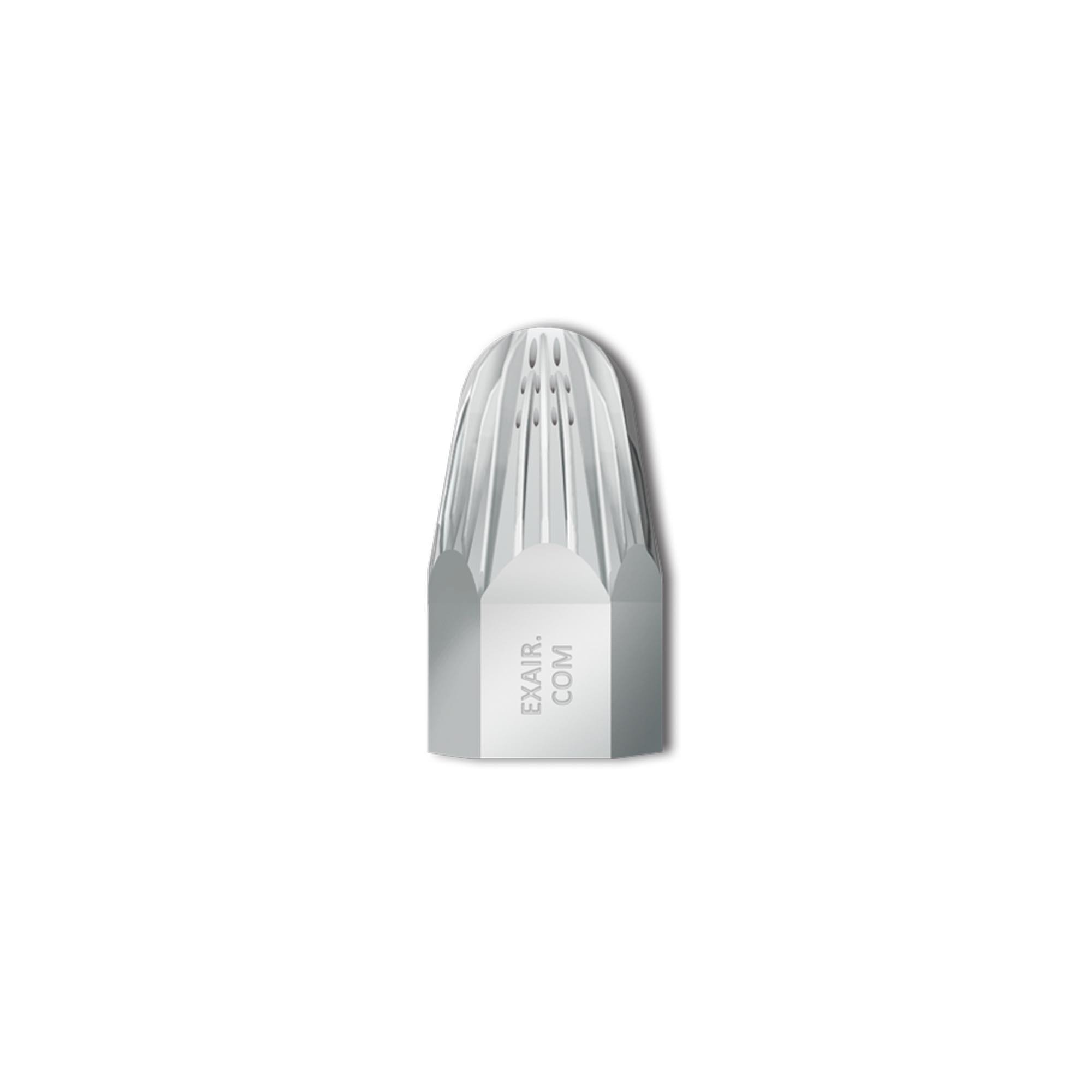

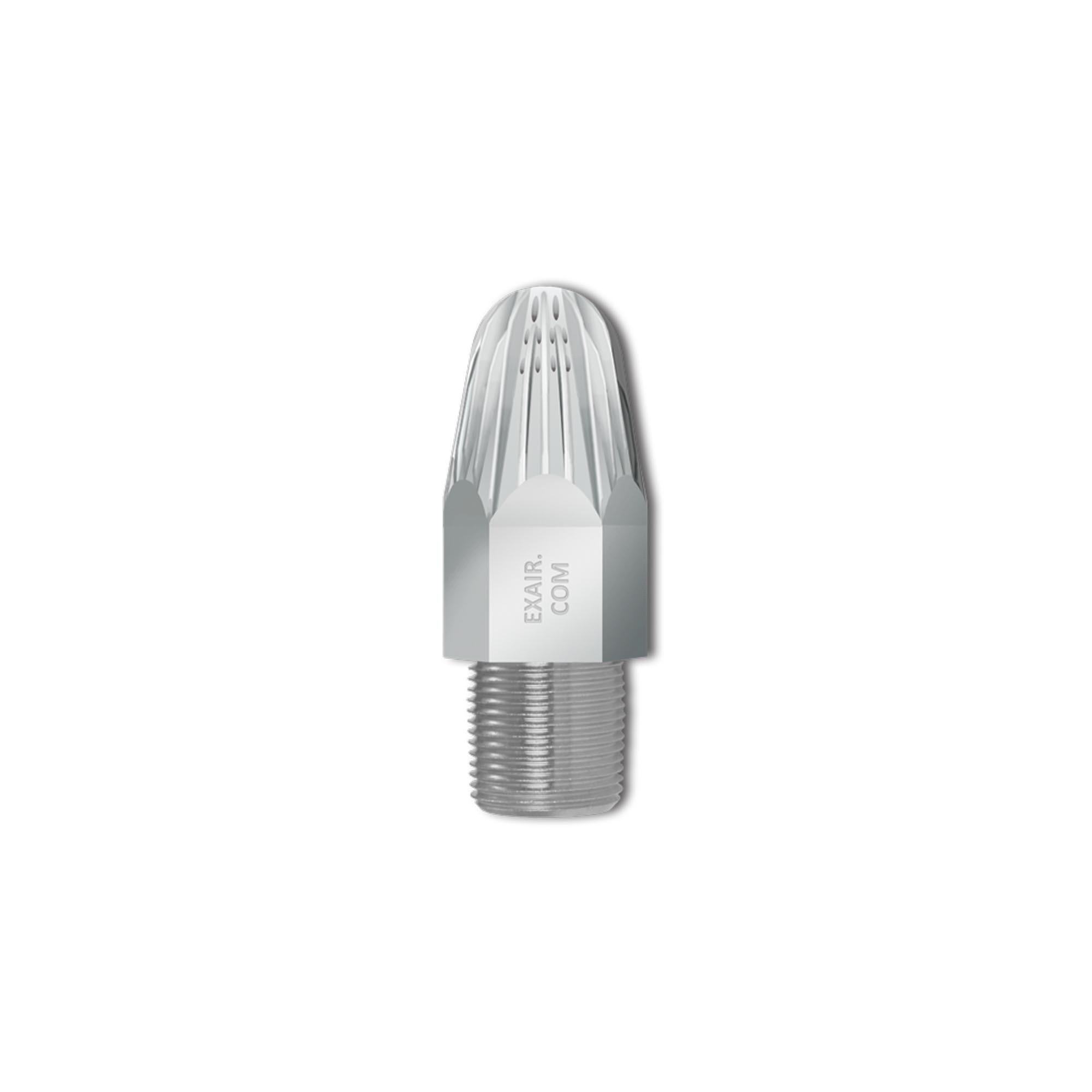

Model 1114 and 1115 Large Super Air Nozzle

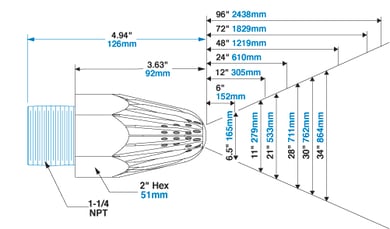

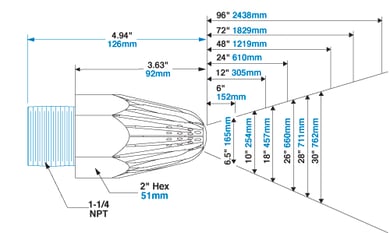

Model 1116 and 1117 Large Super Air Nozzle

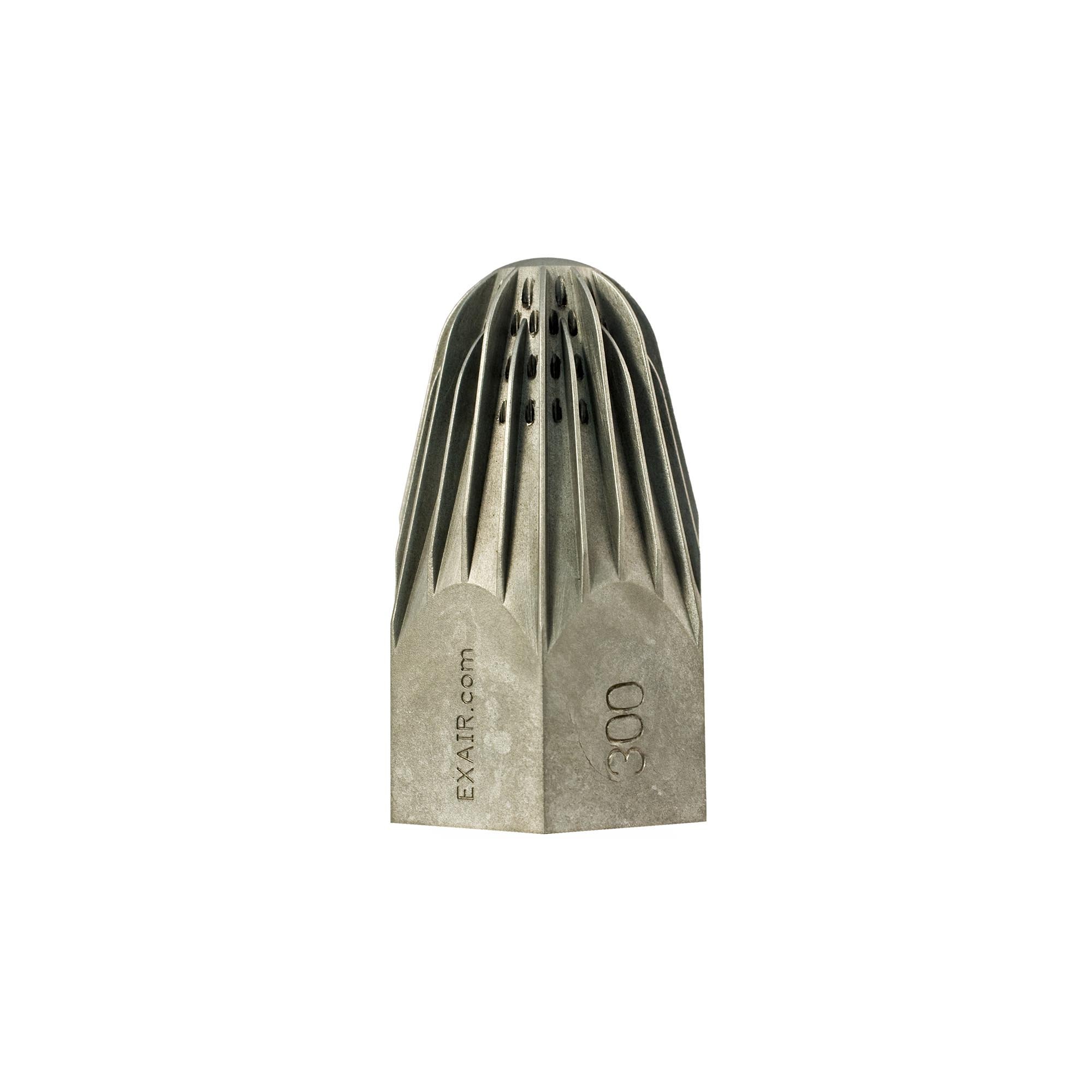

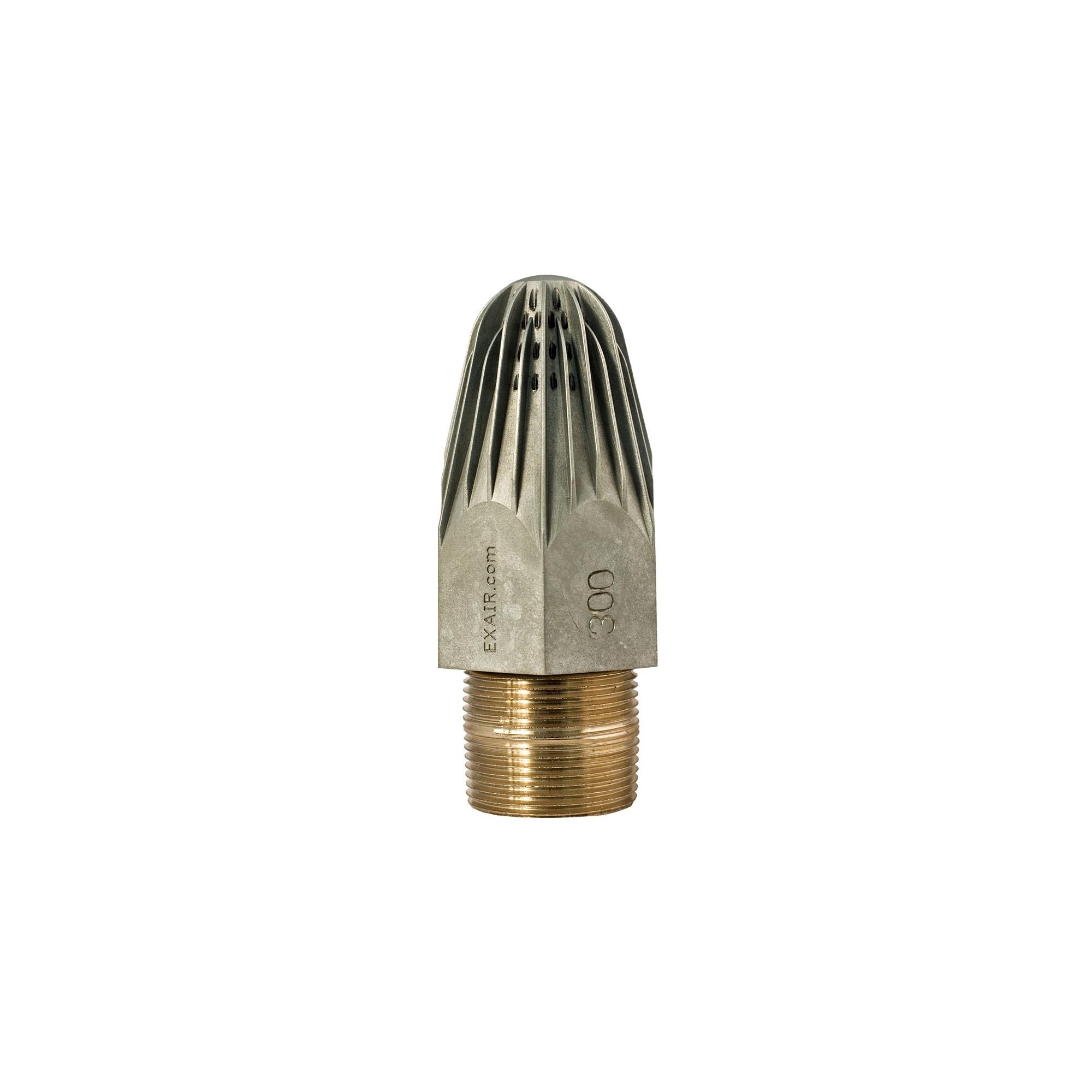

Model 1118 and 1119 Large Super Air Nozzle

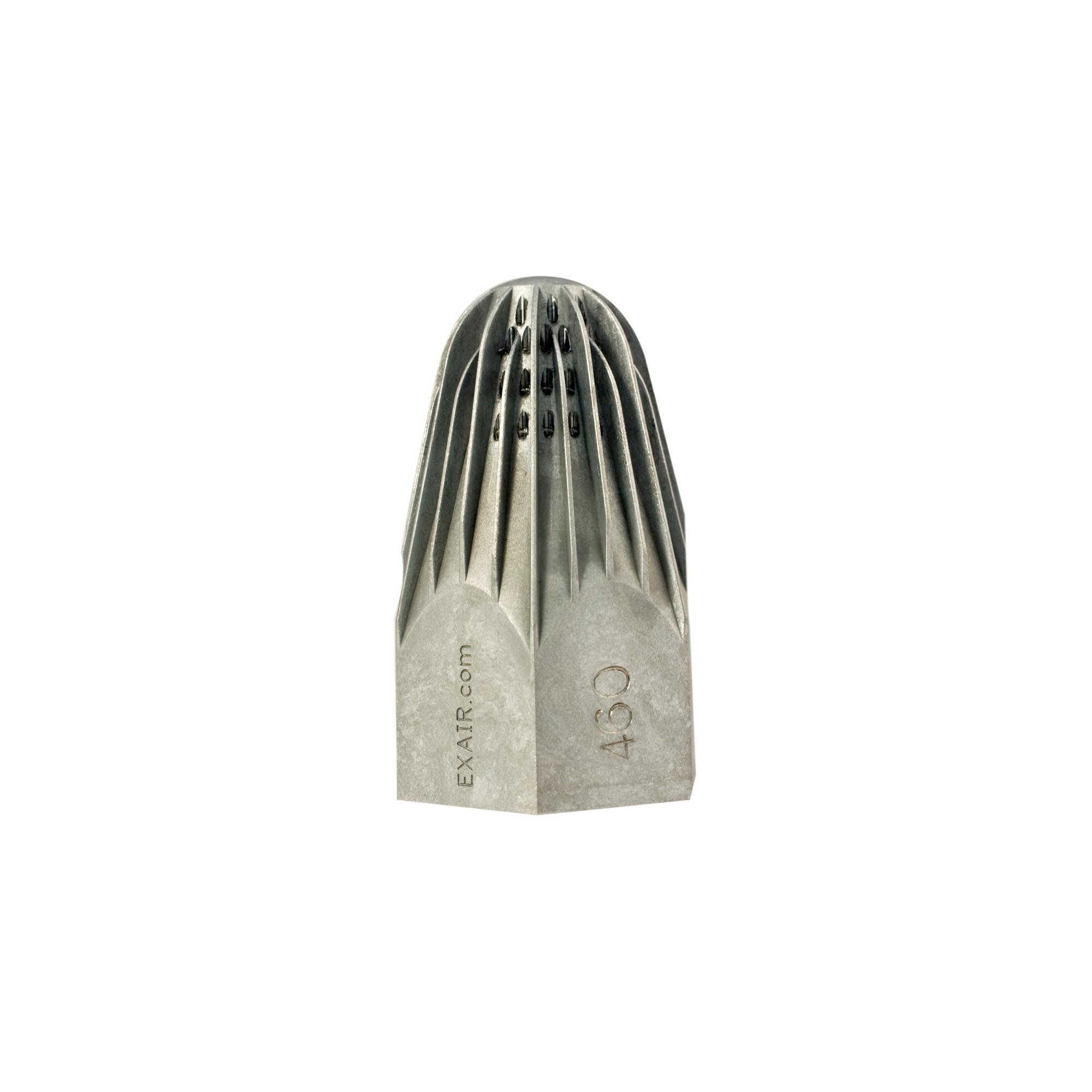

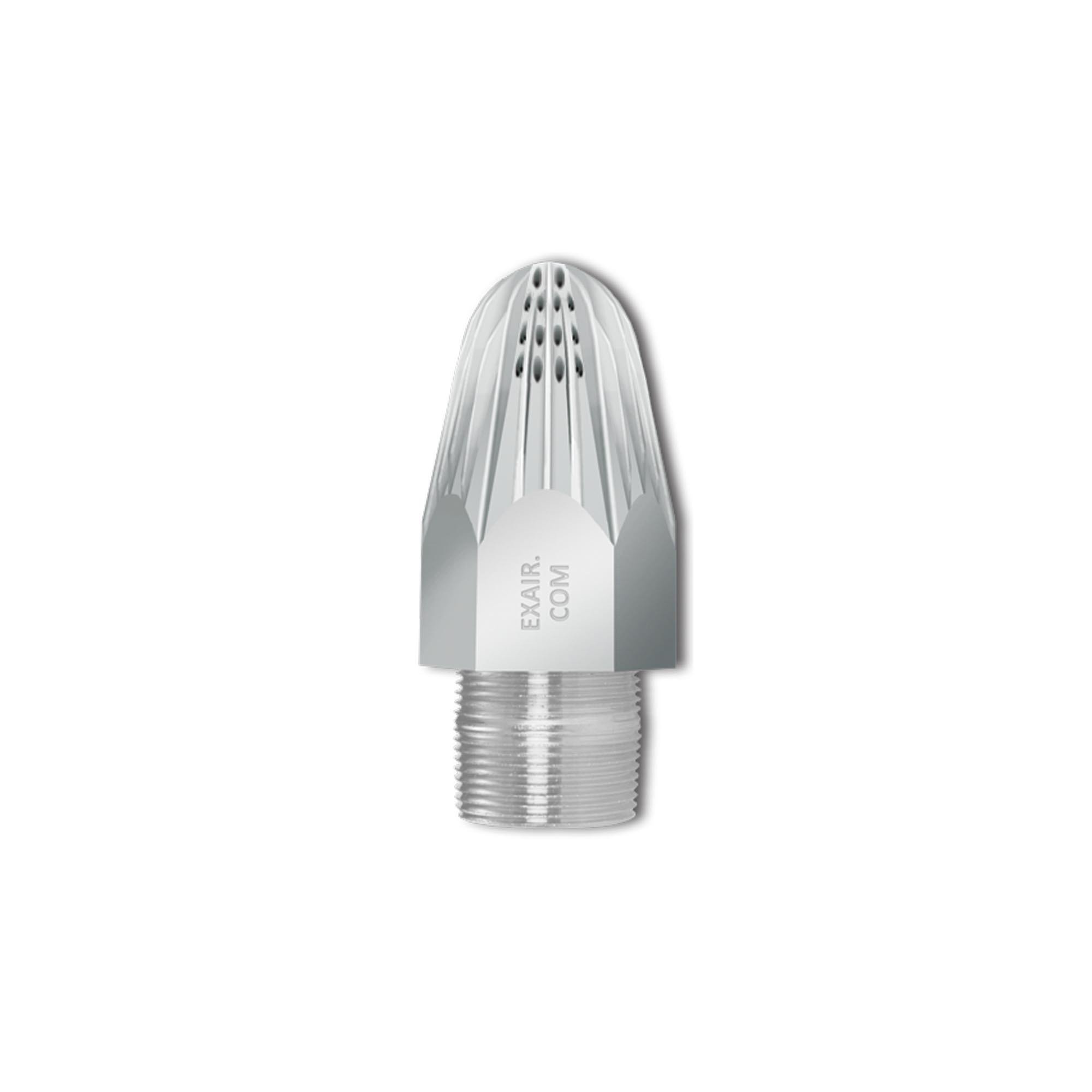

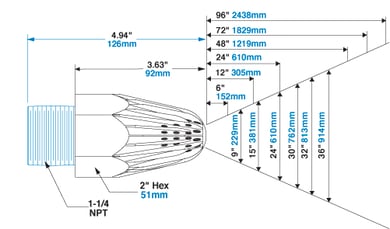

Model 1120 and 1121 Large Super Air Nozzle
|
Large Super Air Nozzle Standards and Certifications
EXAIR Large Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
