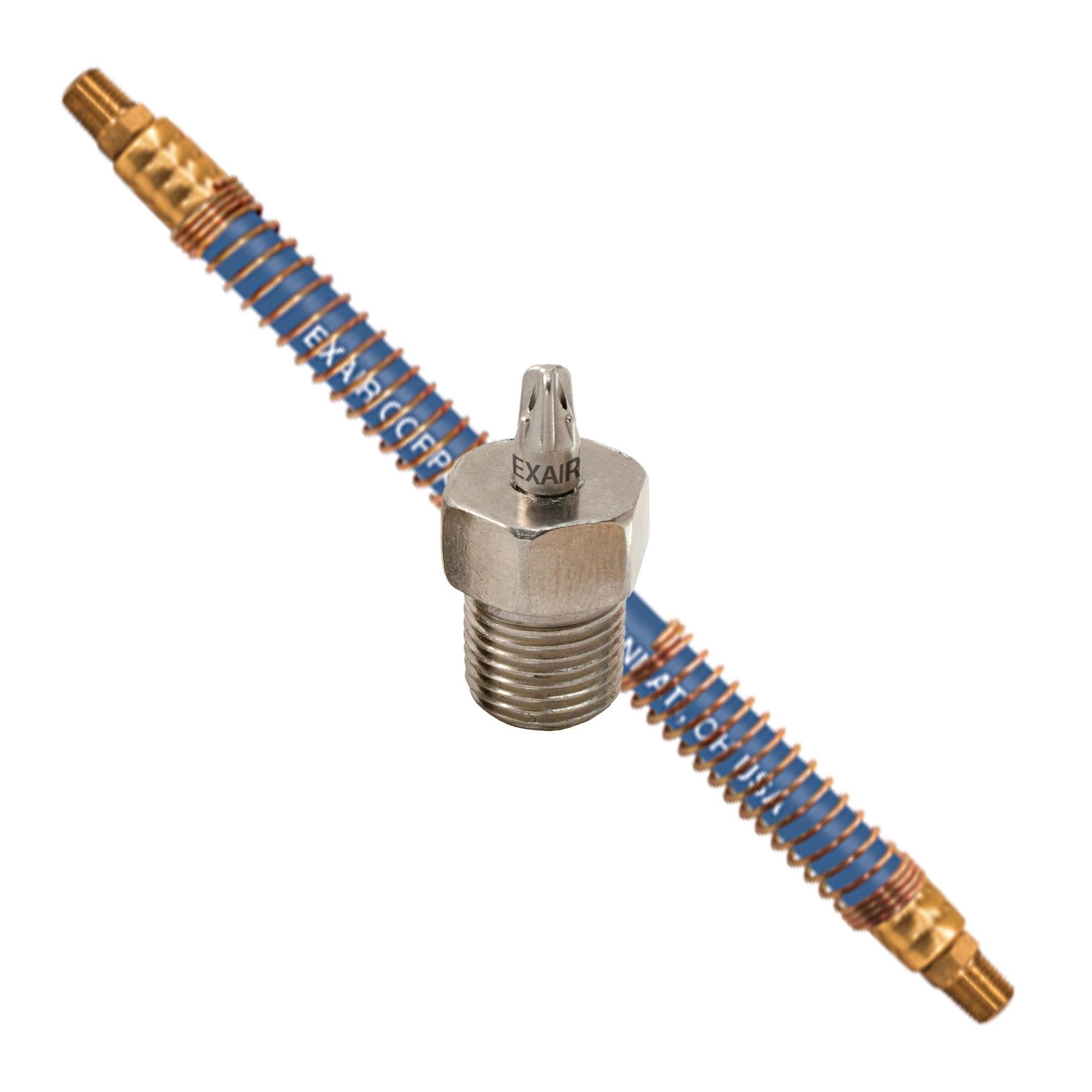

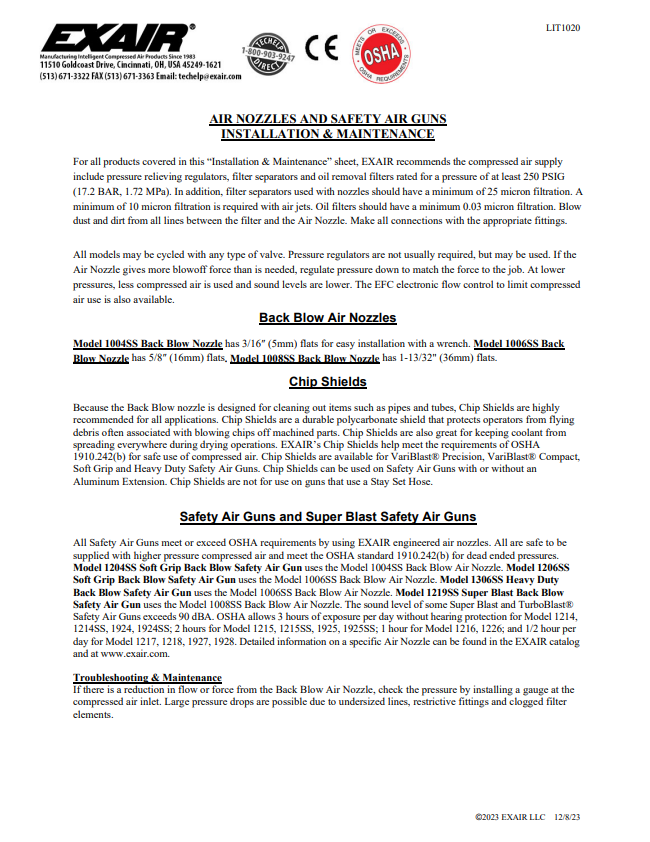

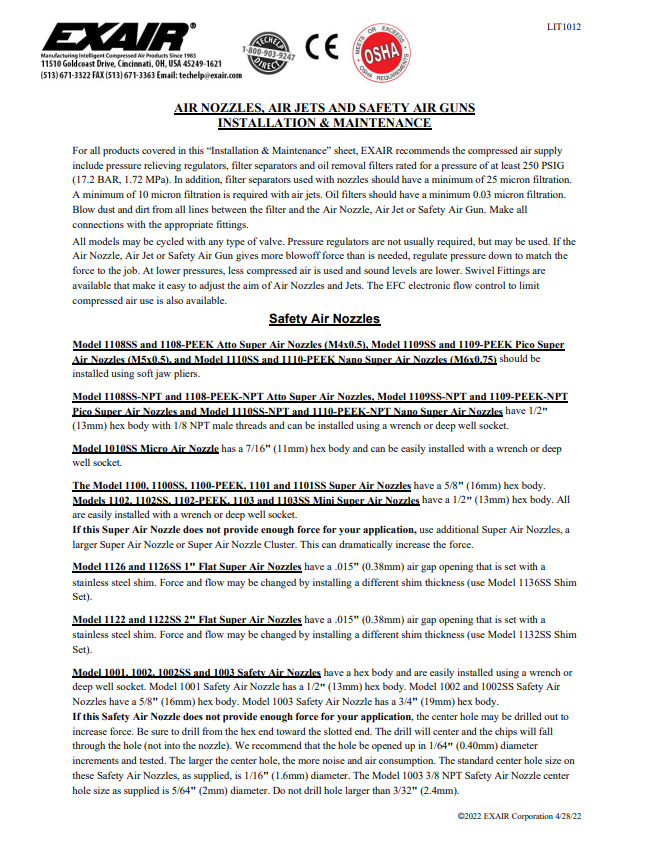

EXAIR's Atto Super Air Nozzle delivers the smallest, most precise blowoff. The air pattern for this tiny nozzle is forceful, measuring 1.0 Inch in diameter when positioned 6 Inch away from the surface. The 58 dBA noise level is a fraction of ordinary air nozzles. Thread size is M4x0.5 and it is available in 316 stainless steel or PEEK thermoplastic. The Stay Set Hose provides precise positioning or repositioning necessary for different applications.
| Product | Material | Flow | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
PEEK Plastic | 2.5 SCFM | 1/4 MNPT | 6" (152mm) | Not Applicable |
 |
Type 316 Stainless Steel | 2.5 SCFM | 1/4 MNPT | 6" (152mm) | Not Applicable |
 |
PEEK Plastic | 2.5 SCFM | 1/4 MNPT | 12" (305mm) | Not Applicable |
 |
Type 316 Stainless Steel | 2.5 SCFM | 1/4 MNPT | 12" (305mm) | Not Applicable |
 |
PEEK Plastic | 2.5 SCFM | 1/4 MNPT | 18" (457mm) | Not Applicable |
 |
Type 316 Stainless Steel | 2.5 SCFM | 1/4 MNPT | 18" (457mm) | Not Applicable |
 |
PEEK Plastic | 2.5 SCFM | 1/4 MNPT | 24" (610mm) | Not Applicable |
 |
Type 316 Stainless Steel | 2.5 SCFM | 1/4 MNPT | 24" (610mm) | Not Applicable |
 |
PEEK Plastic | 2.5 SCFM | 1/4 MNPT | 30" (762mm) | Not Applicable |
 |
Type 316 Stainless Steel | 2.5 SCFM | 1/4 MNPT | 30" (762mm) | Not Applicable |
 |
PEEK Plastic | 2.5 SCFM | 1/4 MNPT | 36" (914mm) | Not Applicable |
 |
Type 316 Stainless Steel | 2.5 SCFM | 1/4 MNPT | 36" (914mm) | Not Applicable |
Applications
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
Materials:
- Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).

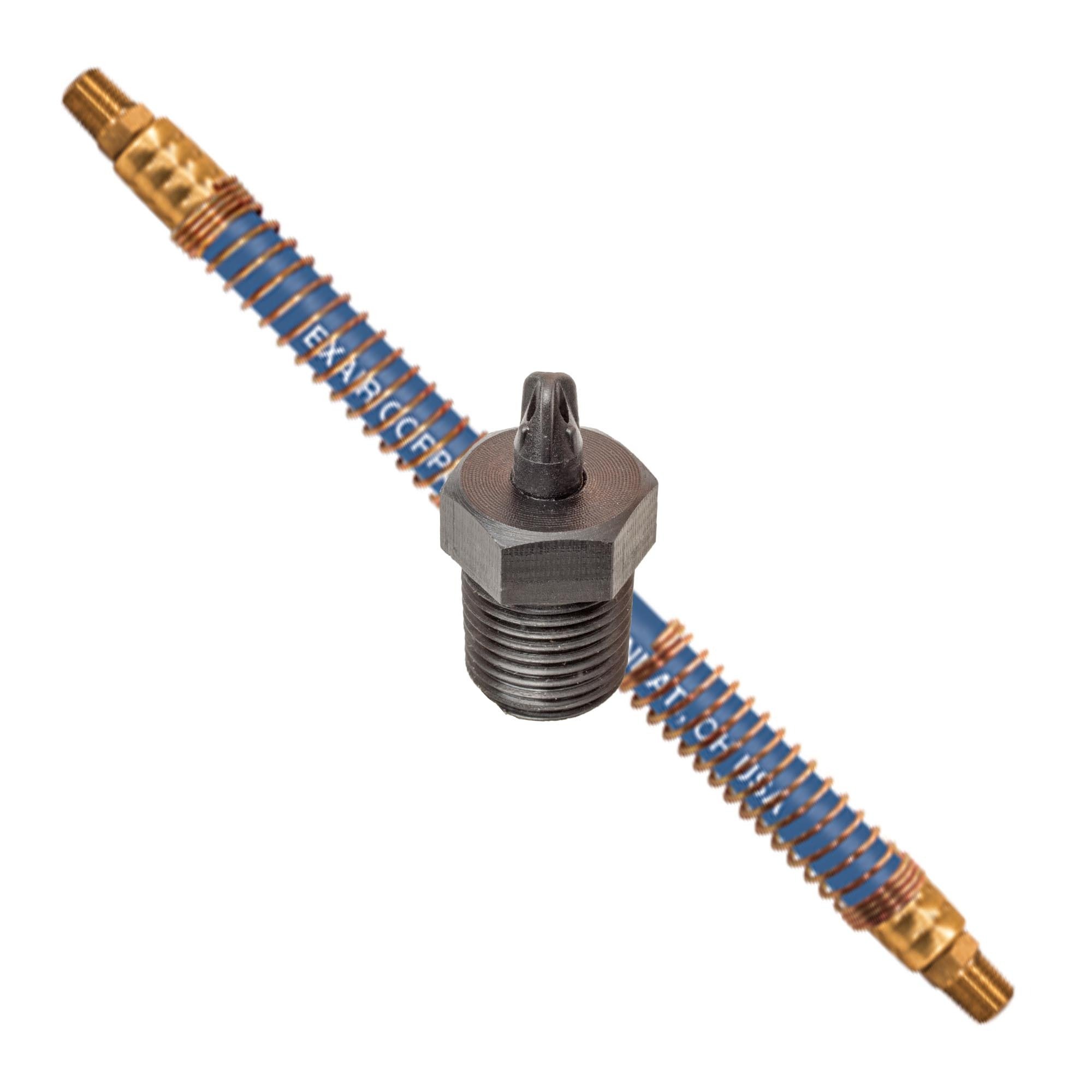

- PEEK Plastic - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C).
Accessories:
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.
Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.
Atto Super Air Nozzle Performance |
||||
| Air Consumption | Force | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA |
| 2.5 | 71 | 2.0 | 57 | 58 |
How EXAIR Air Nozzles Work

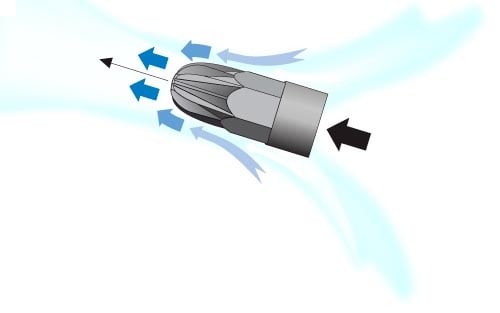

EXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

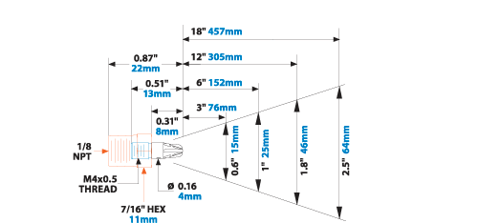

Atto Super Air Nozzle Dimensions and Airflow |
 |
Super Air Nozzle Standards and Certifications
EXAIR Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
