Custom Spray Nozzle Solutions – Plating Company Parts Washing
Application #071666
Industry: Plating
Application: Parts Washing
Product Description: 1/4″ Bete NF10-90
Situation: A plating company was having trouble with cross-over contamination in their rinsing bath since they use the same rinsing/washing bath for several different plating processes. The current rinsing bath is a large rectangular tub with standing fluid that the parts are lowered into.
Solution: Bete Application Engineers recommended the standing fluid be replaced with two headers with NF fan nozzles mounted on them. The headers created a horizontal water wall much like the surface of the standing fluid. As the parts were lowered through this water wall they would be rinsed. The cross-contamination from different processes is eliminated because there is no longer any standing fluid.

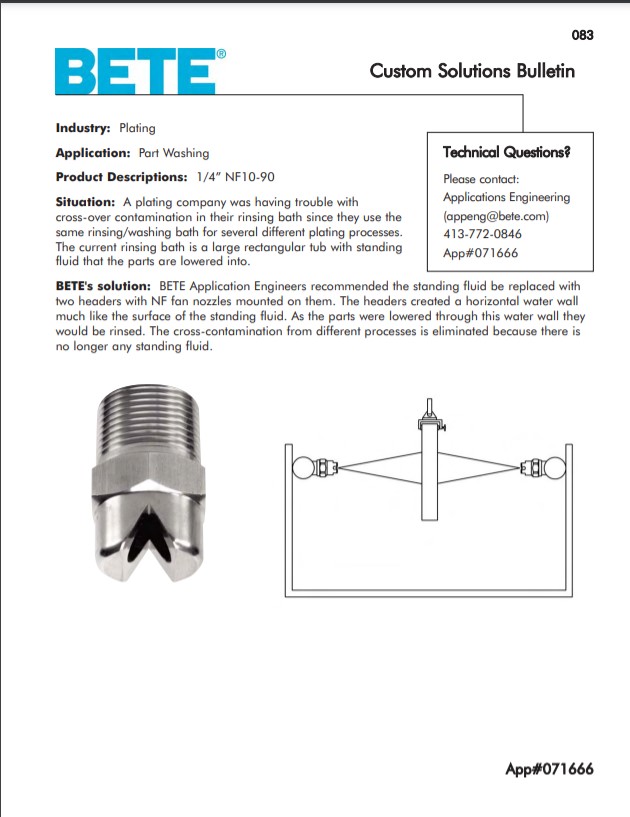

Custom Spray Nozzle Solutions – Plating Company Parts Washing Drawings and Sketches:
