BETE One-Piece Construction Fan Spray Nozzles for Coating and Lubricating

In fan nozzles, the liquid is forced through a relatively small, elliptical orifice to provide a thin, flat sheet of spray which covers a narrow area. They are particularly effective in applications such as washing or descaling where the nozzles are fixed and the item to be sprayed passes by. The BETE NF spray nozzle is a standard fan nozzle featuring high impact fan or straight-jet spray. It is constructed from one piece with no internals to clog.

BETE NF Flat Fan Nozzles Design Features

  • One-piece construction
  • No internal parts
  • Sizes for all applications
  • Male connection

Spray Characteristics of BETE NF Flat Fan and Standard Fan Nozzles

  • High impact
  • Uniform distribution with tapered edges for overlapping sprays
  • Extra-wide angles available
  • Spray pattern: Fan and Straight Jet
Available Spray Patterns Flow Rate Range
0 - 120° 0.0353 to 796 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2
  • Connection Methods: Thread (NPT, BSP, Male)
PVC, Brass, 303, 316, PTFE

How Spray Pattern is Achieved

  • A thin flat sheet of liquid is produced when the fluid exits the orifice, and the spray begins to widen and gradually moves outward from the nozzle

BETE NF Flat Fan Nozzle Applications

  • Additives: applying small volumes of a solution onto moving product or into mixture
  • Blow-off: remove water or dust from strips and conveyors.
  • Car Wash
  • Debarking: remove bark from logs prior to pulping
  • Drying
  • Fire Protection: Marine
  • Fire Protection: Special
  • Fire Protection: Water Wall
  • Pulp Bleaching
  • Roll Cooling
  • Street Flushing & Cleaning
  • Washing: Conveyor

BETE Fan Nozzle: BETE NF 4015

BETE Fan Nozzle: BETE NF 20065

BETE Fan Nozzle: BETE NF 40120

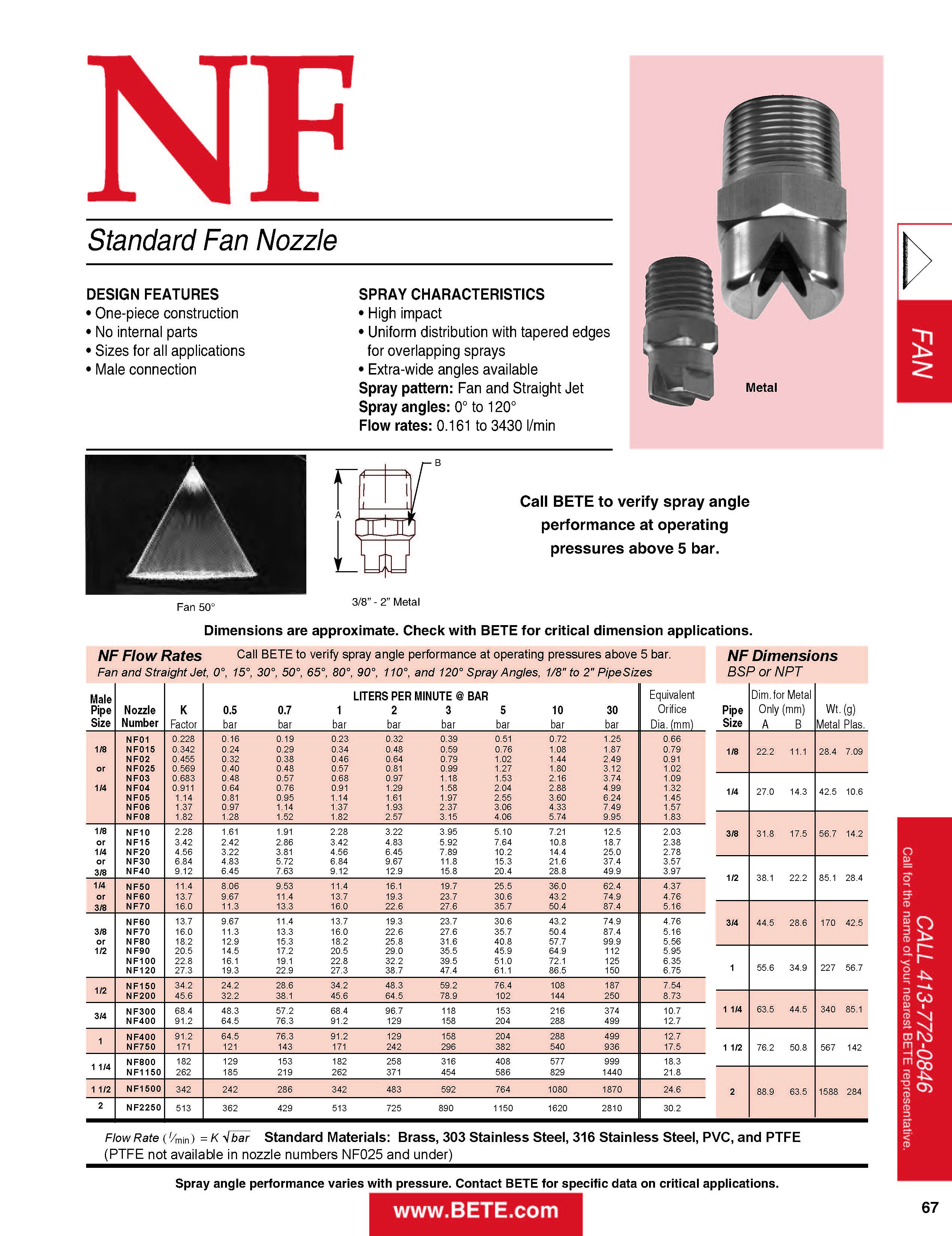

BETE NF Flat Fan Nozzle Datasheet - Metric

BETE NF Flat Fan Nozzle Datasheet - Metric

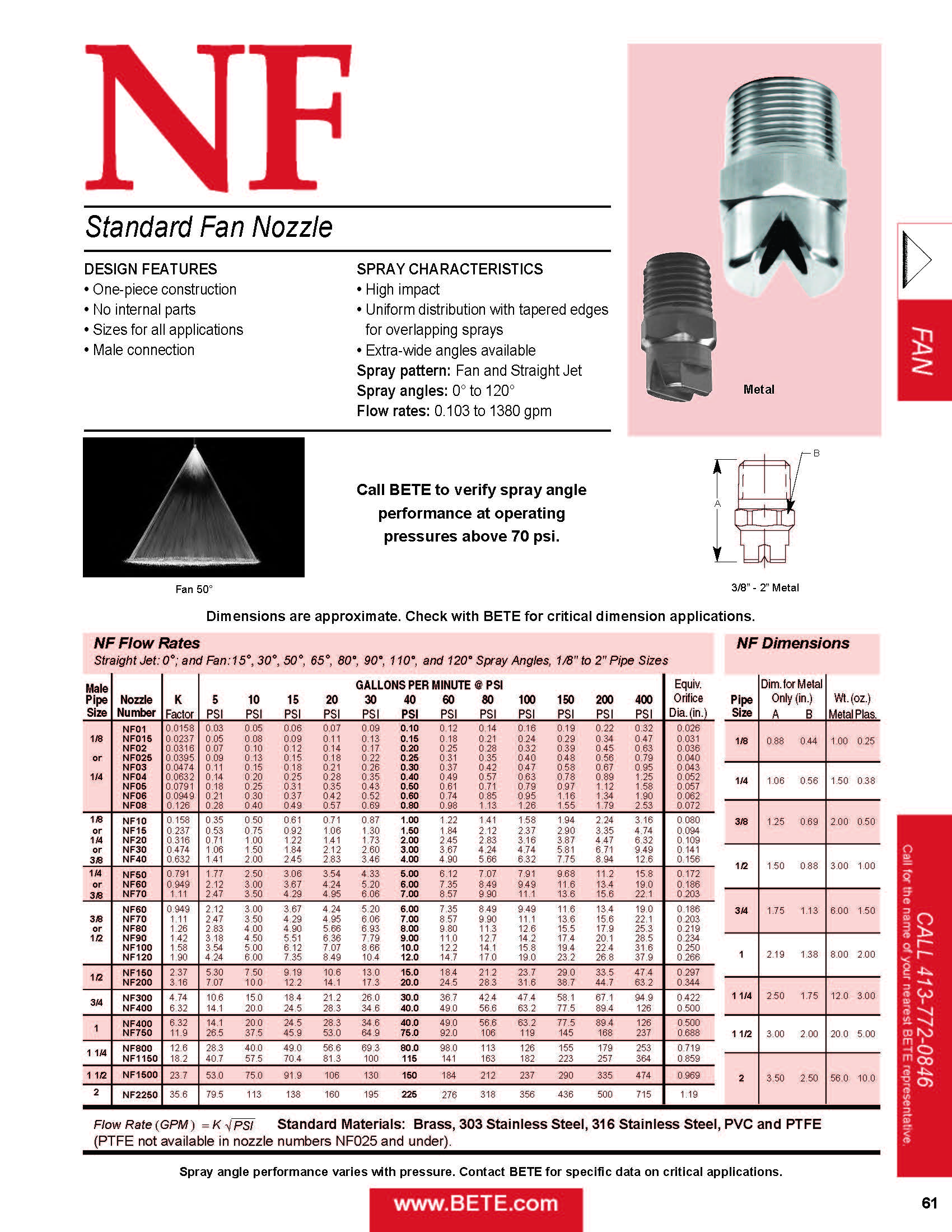

BETE NF Flat Fan Nozzle - Datasheet

BETE NF Flat Fan Nozzle - Datasheet
