John Brooks Chemical Additive Facility

Complete Packaged Chemical Additive Facility

  • 2 stacked 40’ sea containers with Chemical Storage area, metering & control skid, Control panels, Instrumentation, and eye wash station.
  • Metering Pumps are Pulsafeeder PulsaPro 680 (Class 1, Zone 2 environment) – API 675 | STROKE CONTROL

See the PulsaPro 680  IN ACTION…

This Custom Package consists of the following:

    • 2 x Customized & Insulated 20’ Stackable Units complete with all interconnecting components
    • Upper Unit features roll-up door for receiving and storage of chemical drums
    • Lower Unit has the chemical mixing and dispensing equipment including an eye-wash station with safety shower
    • 3 x Chemical Transfer/Addition “Shot” Feeders (one each for Trichloroethylene, Ethanol and Anti-Stat)
    • 2 x Blending and Storage tanks (1 for Trichlor/EtOH/HSR Blend and 1 for AntiStat/Distillate Blend)
    • 1 x Simplex Metering Pump System for Trichlor/EtOH/HSR Blend
    • 1 x Duplex Head Metering Pump System for AntiStat/Distillate Blend
    • 1 x Simplex Metering Pump System for Demulsifier
    • Drawings & Documentation
    • Commissioning, Start-Up and Training

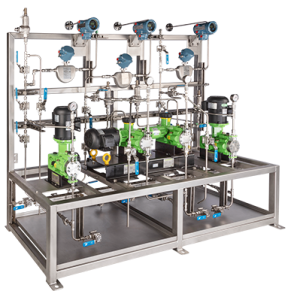

    John Brooks Metering Skid Right View

    John Brooks Metering Skid Left View

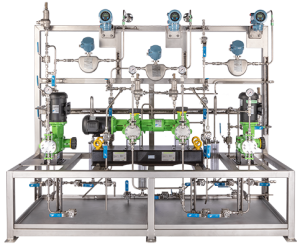

    John Brooks Metering Skid Front View

    John Brooks Metering Skid Back View

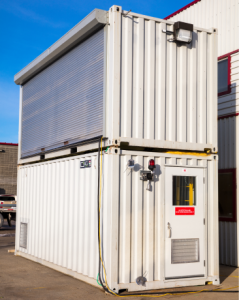

    Complete-Packaged-Chemical-Additive-Facility-Roll-Up-Door

    Roll-Up Door

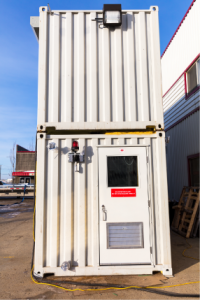

    Complete-Packaged-Chemical-Additive-Facility-Front-View

    Front-View

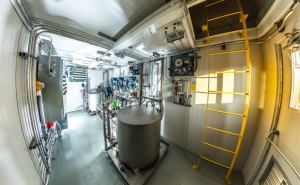

    Complete-Packaged-Chemical-Additive-Facility-1st-Floor-from-Front

    1st-Floor-from-Front

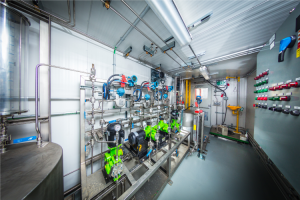

    Complete-Packaged-Chemical-Additive-Facility-Metering-Dosing-Skid

    Metering-Dosing-Skid

    Complete-Packaged-Chemical-Additive-Facility-eyewash station view

    Complete-Packaged-Chemical-Additive-Facility-eyewash station view

    Complete-Packaged-Chemical-Additive-Facility - Upper Unit - Ladder

    Upper Unit – Ladder

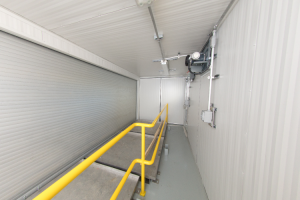

    Complete-Packaged-Chemical-Additive-Facility-Upper Unit - Chemical Storage Area

    Complete-Packaged-Chemical-Additive-Facility- Upper Unit – Chemical Storage Area

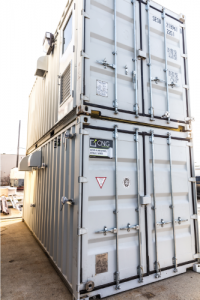

    Complete-Packaged-Chemical-Additive-Facility-Rear-View

    Complete-Packaged-Chemical-Additive-Facility-Rear-View


    Complete-Packaged-Chemical-Additive-Facility
