BETE XAPR Full Cone Air Atomizing Spray Nozzles

Internal Mix, Pressure-Fed Pneumatic Spray Nozzles

BETE XAPR spray nozzles are a part of the BETE XA Spray Nozzle system. It uses the energy in compressed air to produce highly atomized sprays at lower flow rates (1.0 to 280 liters per hour).

Design Features of BETE XAPR Spray Nozzles:

  • Internal mix
  • Very fine atomization
  • Narrow spray angle (12° to 22°)
  • Full cone pattern
  • Large forward projection – up to 28 feet (8.5 m)

Spray Patterns:

  • Air Atomizing Spray Nozzles
  • Full Cone Spray Nozzles

Achieving Spray Patterns:

  • In a pressure-fed system, the fluid is under pressure to either internal or external mix BETE XA Series nozzles. Air and liquid regulators control the liquid delivery pressure, while the air filter and liquid strainer provide fluids that are of high quality. Maintaining operational control is achieved by manual or solenoid valves used with various hardware assemblies.
  • Liquid and air streams combine inside the nozzle, are mixed, and exit through the same opening, creating a deflected fan spray pattern.
  • The streams are not independent; shifts in airflow will influence the liquid flow.
Available Spray Angles Materials Available Connection Types
17° Nickel-plated Brass, 303, 316, Nickel-plated Brass / 304, 303 / 304
  • Pipe: 1/8, 1/4, 1/2
  • Connection Methods: Thread (NPT, BSP, Female)

BETE XAPR Applications:

  • Air Atomizing
  • Air Conditioning
  • Coating
  • Concrete Curing
  • Cooling
  • Evaporative
  • Fogging
  • Humidification
  • Lubrication
  • Misting
  • Moistening
  • Odor Control
  • Scrubbing: Conditioning
  • Scrubbing: Dry

Resources

BETE XA Components Options

BETE XA Components Options

Download

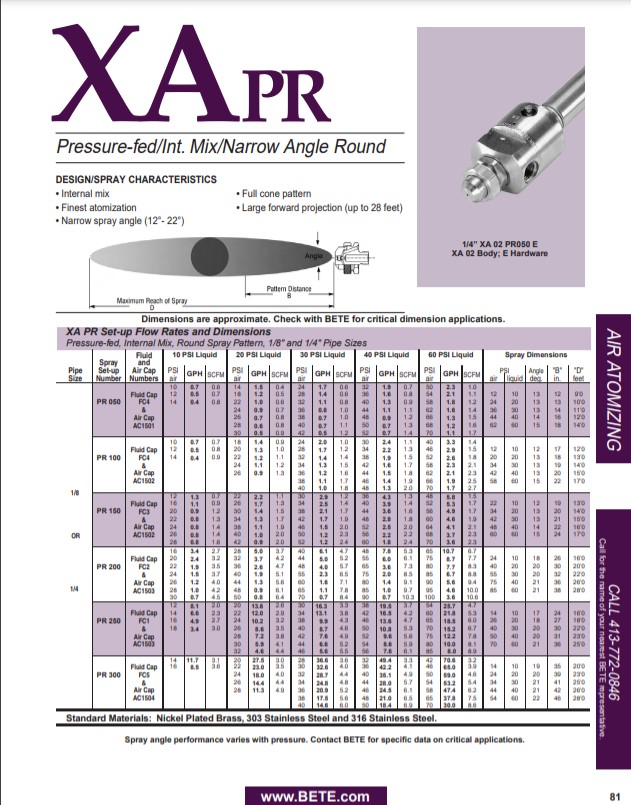

BETE XAPR - Datasheet

BETE XAPR - Datasheet

Download

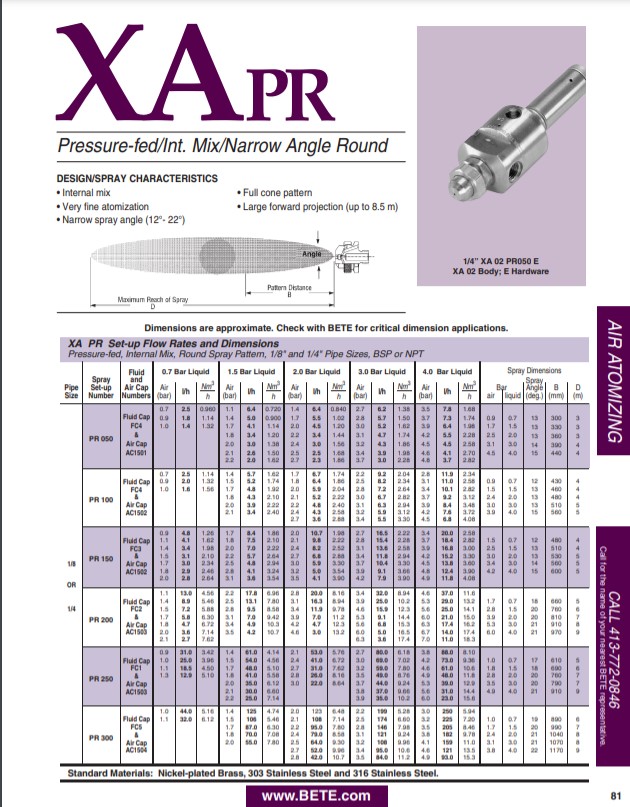

BETE XAPR Datasheet - Metric

BETE XAPR Datasheet - Metric

Download

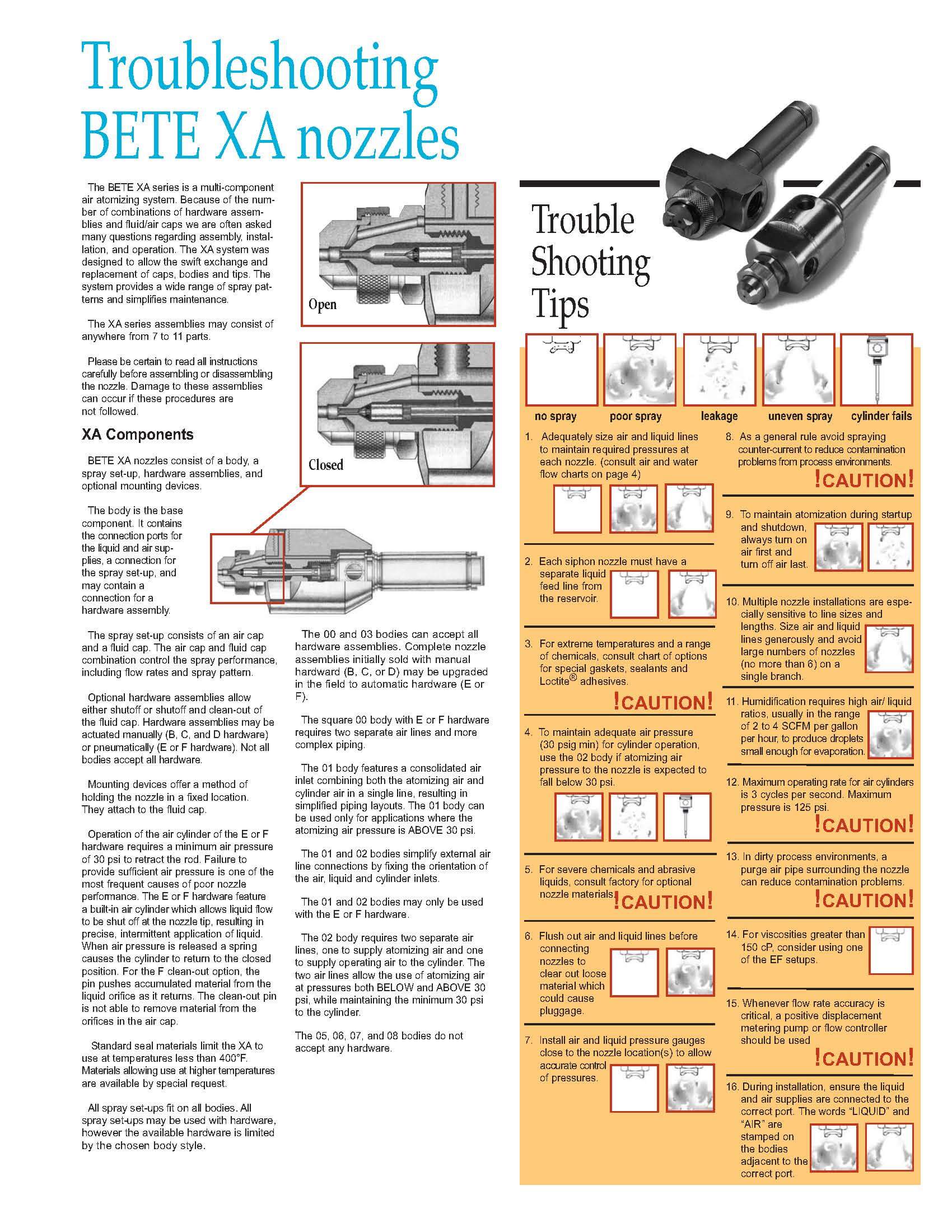

BETE XA Troubleshooting

BETE XA Troubleshooting

Download

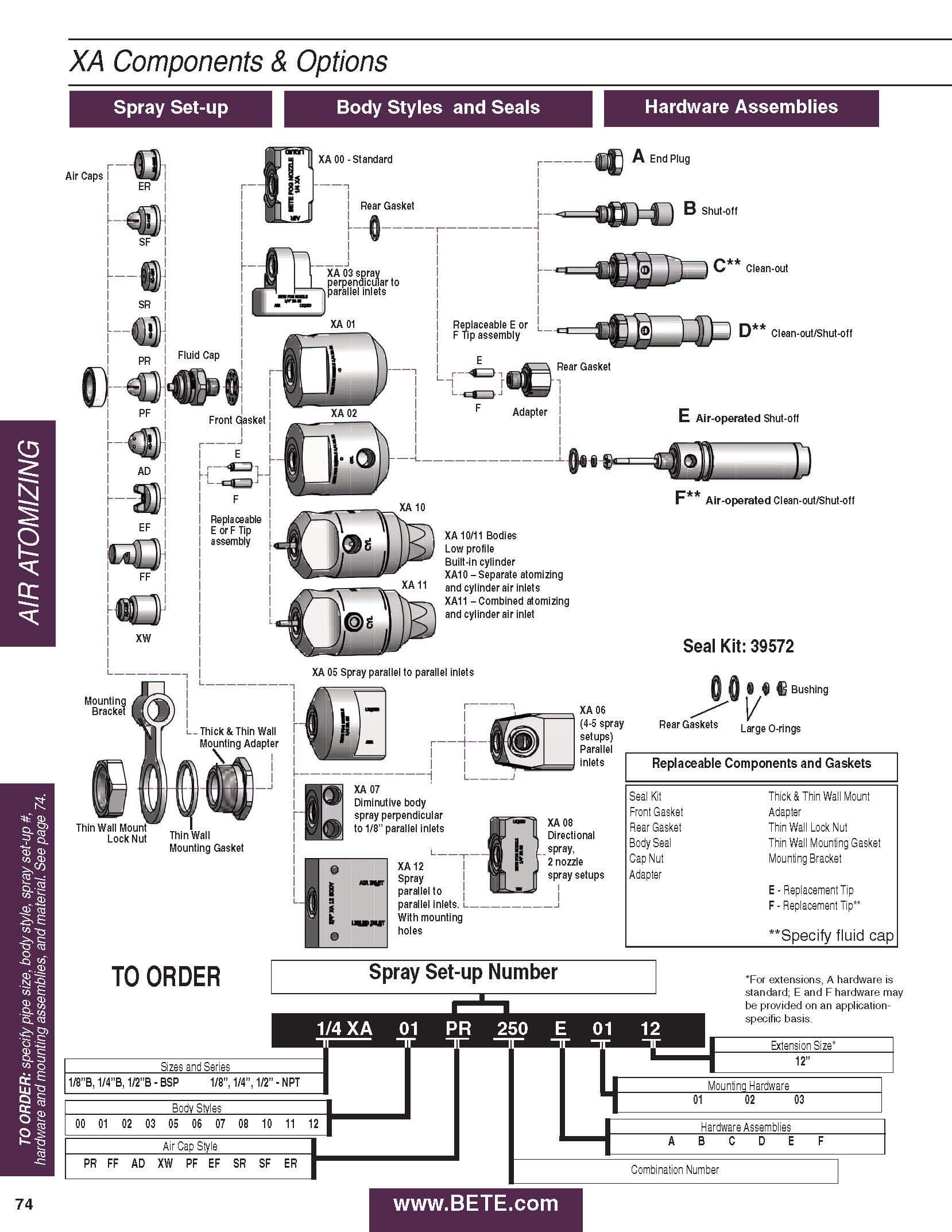

BETE XA Assembly Diagram

BETE XA Assembly Diagram

Download

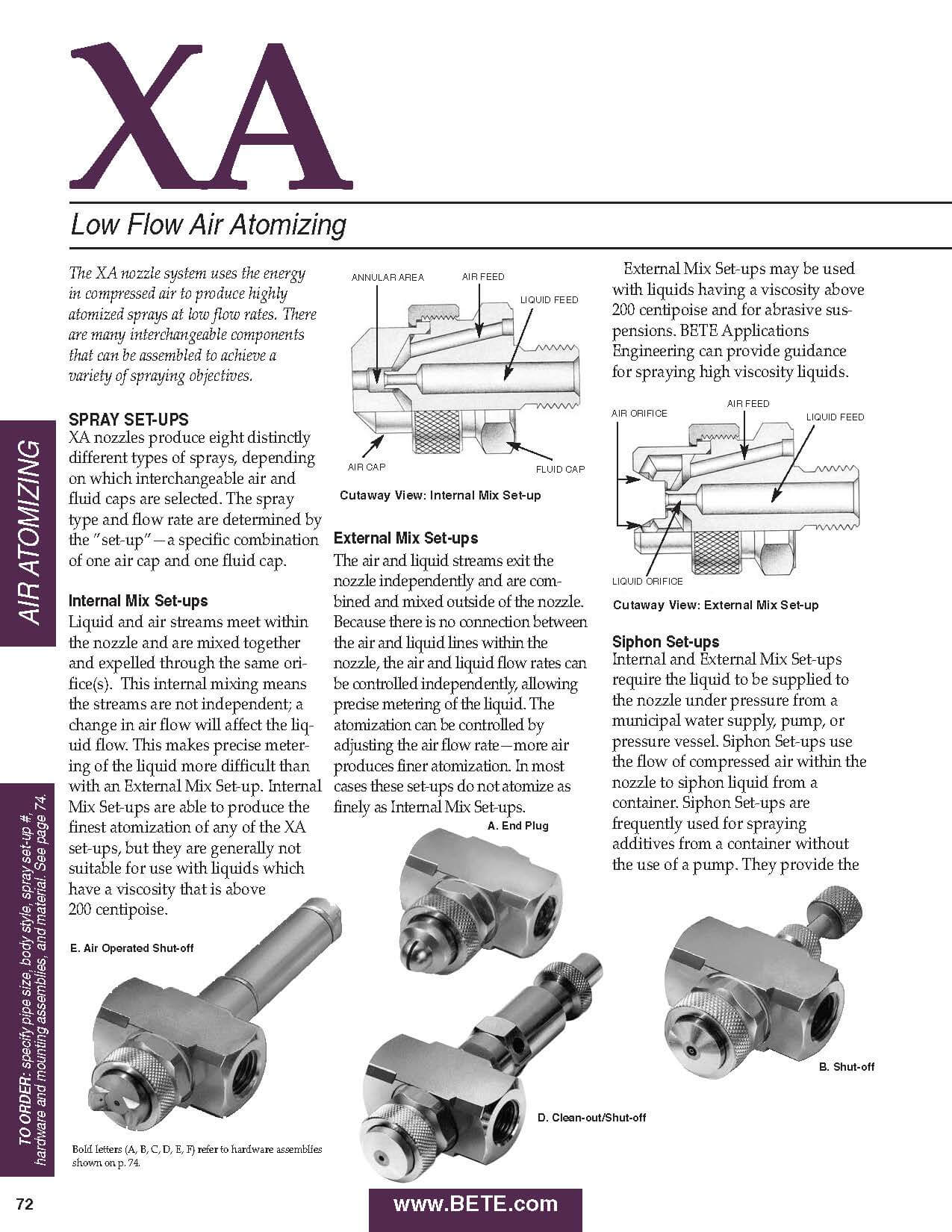

BETE XA - Datasheet

BETE XA - Datasheet

Download
BETE XA Datasheet - Metric

BETE XA Datasheet - Metric

Download

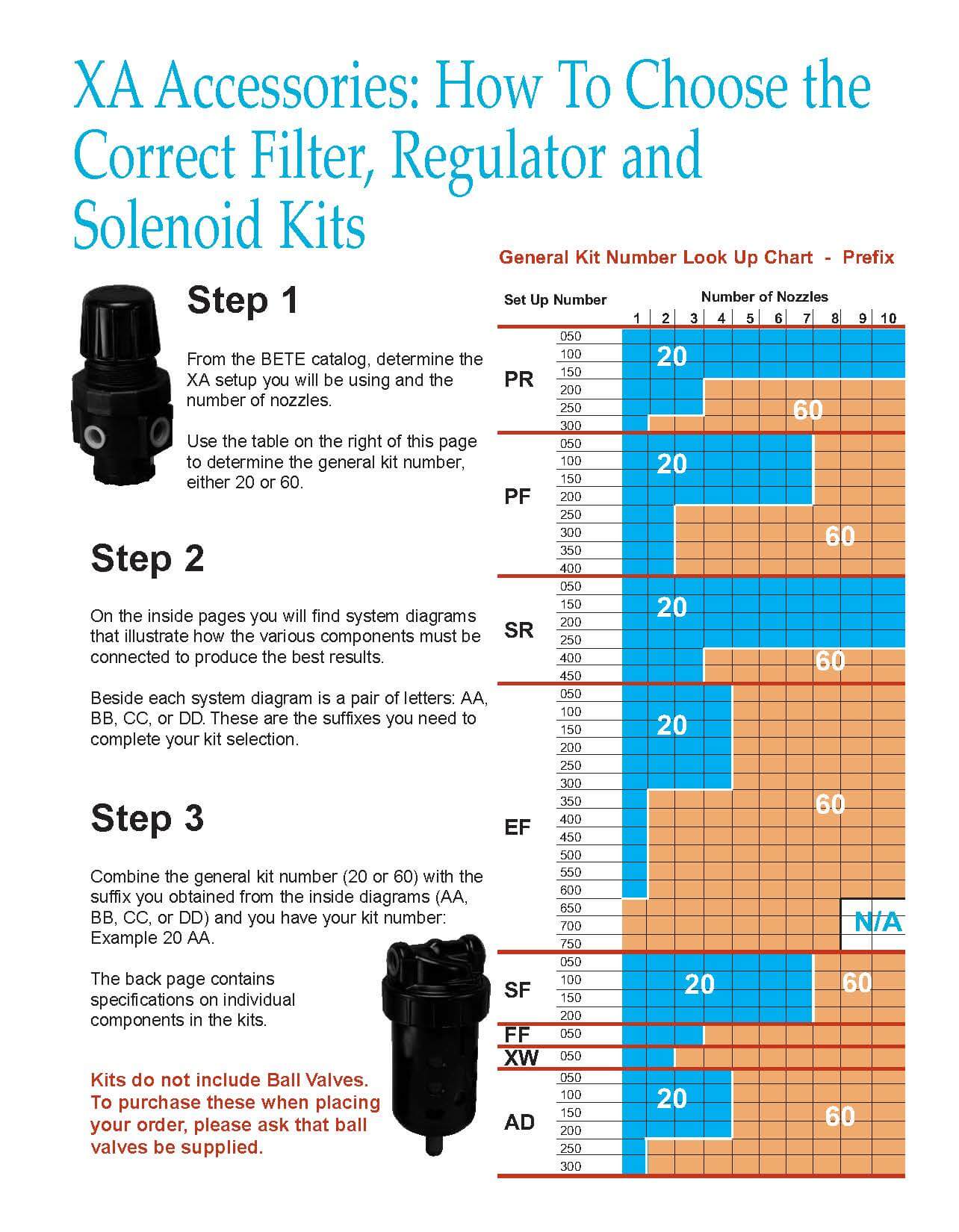

BETE XA - Accessories

BETE XA - Accessories

Download
BETE XA Components Options - Metric

BETE XA Components Options - Metric

Download

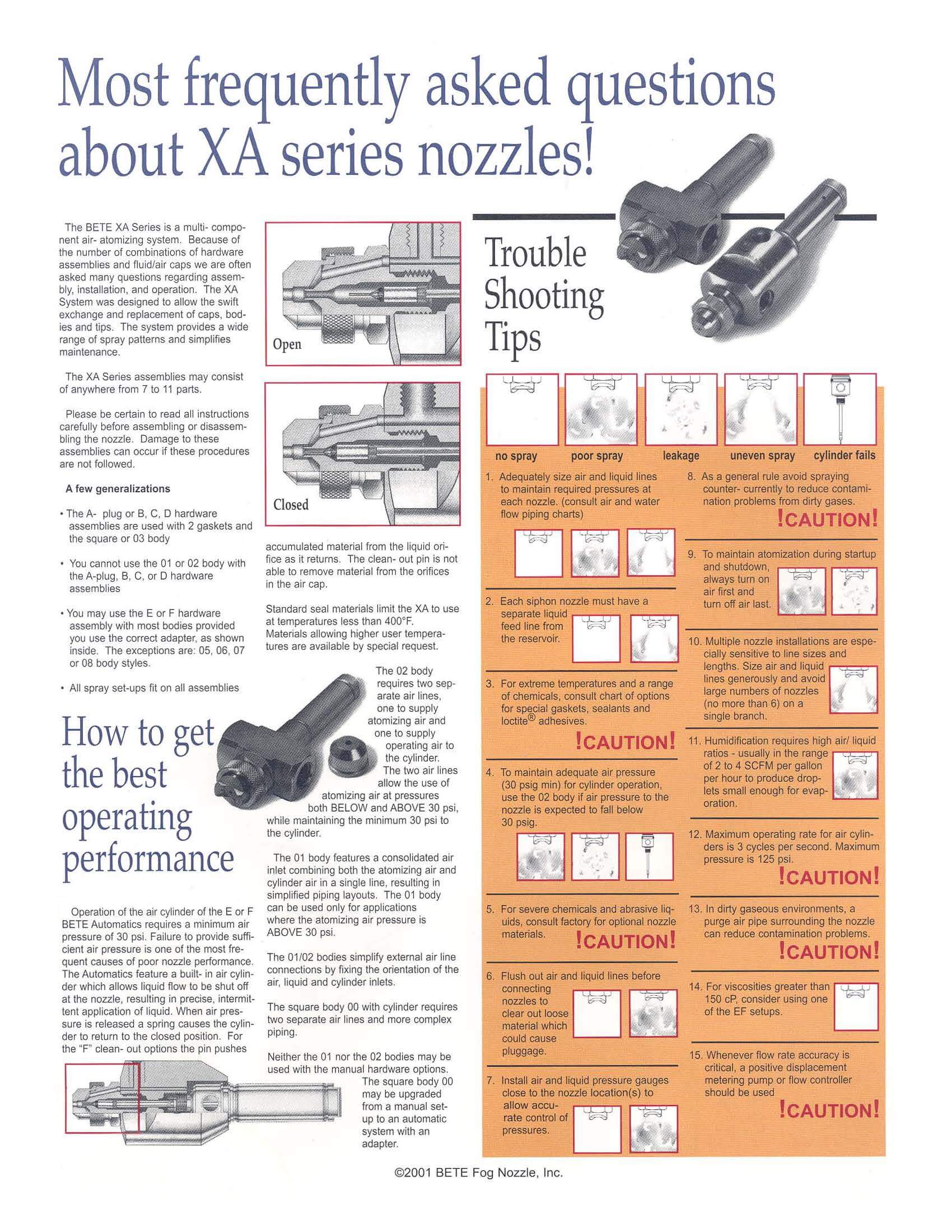

BETE XA - FAQ

BETE XA - FAQ

Download
