BETE TurboMix Eductor Tank Mixing Nozzles

Agitators Designed for Mixing Liquids in Tanks

Discover the BETE TurboMix Eductor Tank Mixing Nozzles, a cutting-edge solution designed for achieving efficient and clog-resistant agitation and mixing in both open and closed tanks. These agitators offer an economical choice with no moving parts and minimal maintenance requirements. BETE TurboMix Eductor Nozzles harness a unique fluid combination process, resulting in a 3-5 times greater volume of discharge liquid compared to the motive liquid pumped. Their spray pattern takes on a distinctive cone shape, optimizing the mixing process.

Key Features of BETE TurboMix Eductor Nozzles for Clog-resistant Agitation and Mixing

  • Effective, economical way to circulate liquids in closed or open tanks
  • No moving parts
  • Inherently clog resistant
  • Requires minimal maintenance
  • Available in both plastic and metal construction
  • Nozzle operation creates multiplying effect on fluid flow; the volume of discharge liquid will be 3-5 times greater than the motive liquid pumped

Spray Characteristics of BETE TurboMix Eductor Mixing Nozzles

  • Spray Pattern: Cone-shaped plume

Understanding the Spray Pattern

  • In BETE TurboMix Eductor nozzles, the initial fluid pumped into the system is combined with the tank contents within the nozzle before being sprayed back into the tank.
Available Spray Angle Flow Rate Range
6.96 to 3180 gpm
Available Connection Types Materials
  • Pipe: 3/8, 1/2, 3/4, 1, 1 1/2, 2, 3, 4, 6, 8
  • Connection Methods: Thread (NPT, BSP, Male, Female), Flange (150#)
Glass-filled Polypropylene, Brass, Carbon Steel, 316

Submerged Jet
Select a nozzle number below for performance graph, drawings, and to request a quote.
Flow rate (gpm/lpm) is calculated at differential pressure (psi/bar).

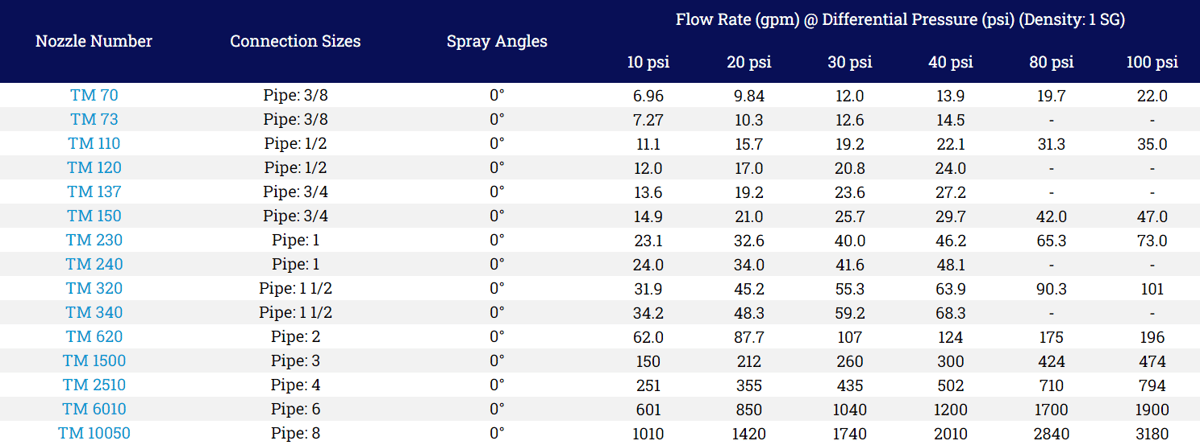

BETE-TurboMix-Table

BETE TurboMix Eductor Nozzle Applications

Fire protection water storage tanks. The water in these tanks is stagnant, often stays there for an extended period of time, and can form thermally stratified layers. Creating movement in the tank decreases bacterial growth. You can also use the nozzles for efficient adding and mixing of chlorine or other water additives. Mixing also reportedly decreases ice formation in winter by keeping the water moving

Clearing sediment. A customer is pumping water from a river into a pond and wants to keep the area under and around the pump clear of sediment. BETE TurboMix eductor nozzles are arranged to keep water flowing across these surfaces and hence keep silt from settling. A similar application in enclosed sump pits is frequent.

Clearing sludge. A customer has a tank in which sludge deposits on the bottom. The mechanical scraper system currently in use is prone to breakage and another removal system is desired. The customer is looking at banks of BETE TurboMix eductor nozzles to push the sludge along the bottom into a removal trough. Using a fluid driven system over a mechanical system minimized downtime as the fluid system has no moving parts in the tank.

General particle agitation. Many applications are for the usual role of the BETE TurboMix, which is to keep particles in suspension by essentially stirring the tank.

Material injection and mixing. A customer had the typical pump-around configuration to keep the liquid in the tank circulating. The situation also existed where they needed to inject a chemical into the tank to keep it within limits. They added an injection port into the pump-around line so that the sulfuric acid could be injected into the line and then mixed efficiently as it emitted through the BETE TurboMix.

Breaking up a grease layer. A bio-fuel customer had a tank in which a layer of grease would form at the surface and harden. They set up a system with a sump pump and BETE TurboMix eductor nozzles pointed at the surface to break up the grease layer and keep it from solidifying into a single mass.

Resources

BETE Food and Beverage Processing - Brochure

BETE Food and Beverage Processing - Brochure

Download

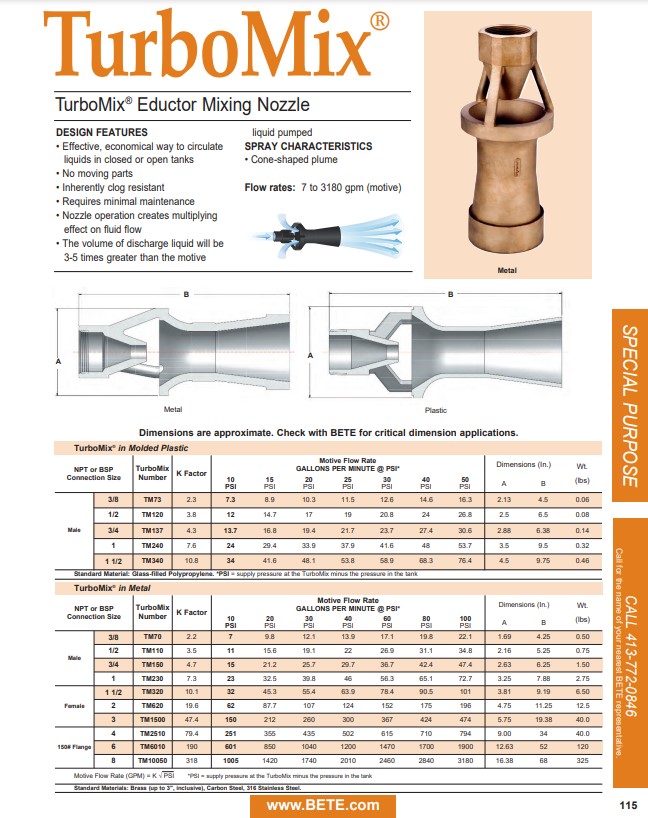

BETE TurboMix - Datasheet

BETE TurboMix - Datasheet

Download

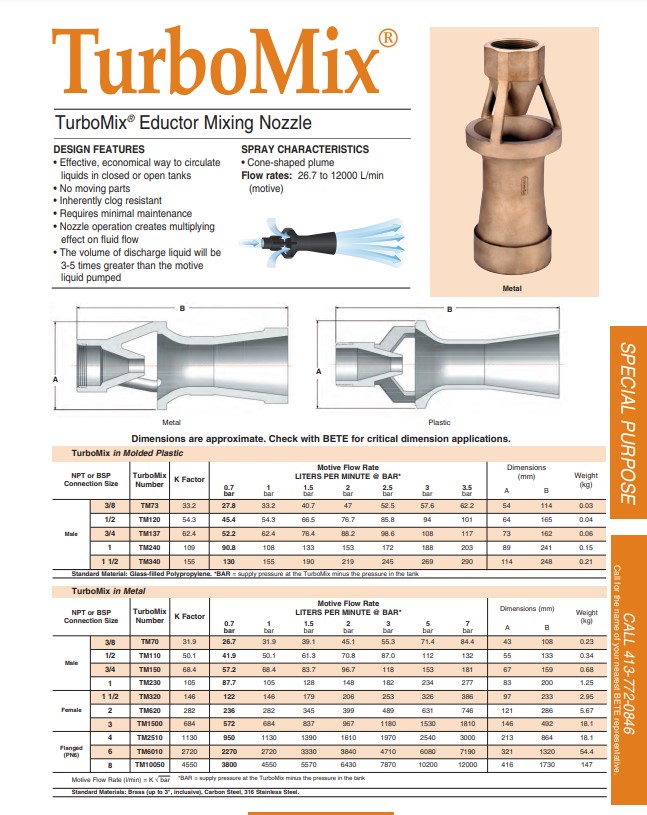

BETE TurboMix Datasheet - Metric
