BETE NCK Narrow Angle Full Cone Injector Nozzles

BETE High-Velocity Nozzles With Coarse Hard-Driving Spray

BETE Whirl Nozzles provide uniform distribution of relatively large droplets. Tangential or axial whirl nozzles feature an internal vane within the nozzle body which causes the liquid to “whirl”. BETE NCK Nozzles are a part of the BETE Axial Full Cone collection.

Design Features of BETE NCK Full Cone and Narrow Angle Injector Nozzles

  • Narrow spray angles
  • High velocity
  • Male and female connections
  • Flanged connections available

Spray Characteristics of the BETE NCK Full Cone Nozzles

  • Coarse and extremely hard-driving spray with even distribution
Available Spray Angles Flow Rate Range
15 - 30° 5.11 to 2600 gpm
Available Connection Types Materials
  • Pipe: 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 4, 6
  • Connection Methods: Thread (NPT, BSP, Male, Female)
PVC, Polypropylene, PTFE, Brass, 316

Spray pattern: Full Cone

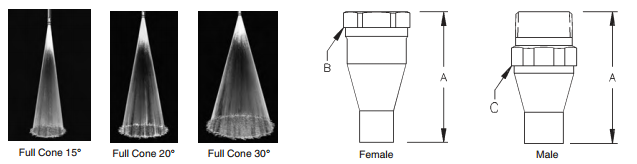

BETE-nck-full-cone-nozzle-spray-angle-and-drawings

How Spray Pattern is Achieved on BETE NCK Nozzles

  • Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice
  • Produces coarse and extremely hard-driving spray with even distribution

Resources

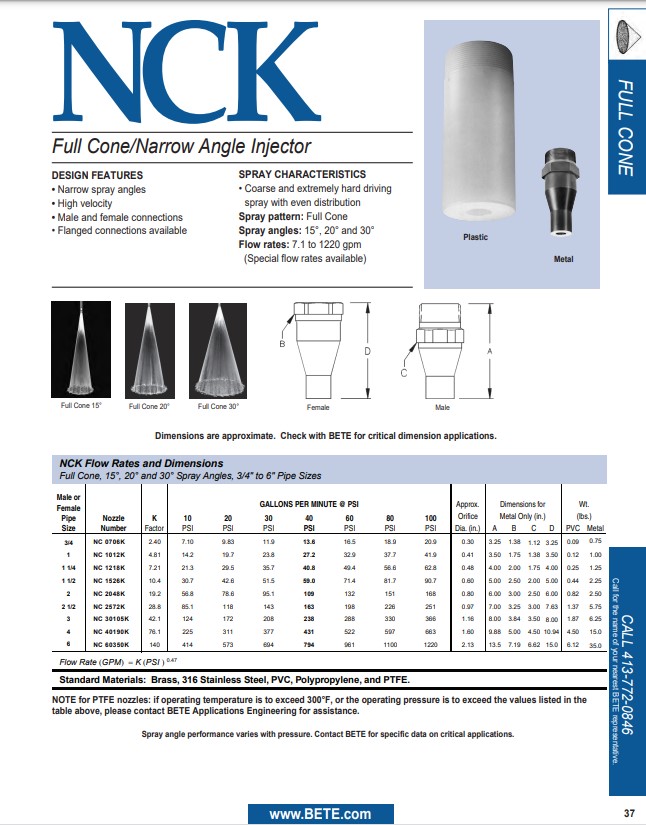

BETE NCK - Datasheet

BETE NCK - Datasheet

Download

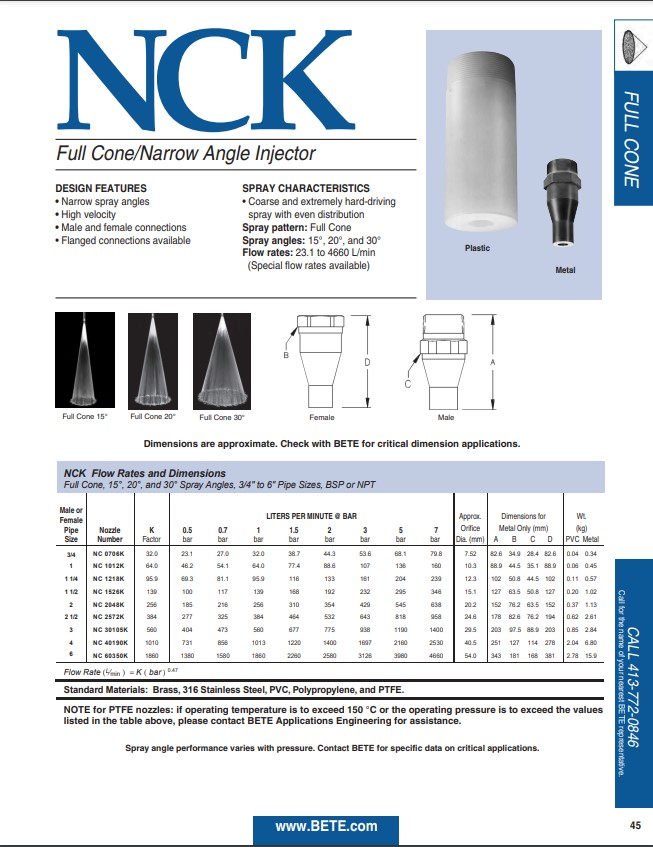

BETE NCK Datasheet - Metric
