BETE NCJ Narrow Angle Hollow Cone Injector Nozzles

High Velocity Axial Spray Nozzles With Coarse Droplets

Design Features of BETE NCJ Hollow Cone Narrow Angle Injector Spray Nozzles

  • Narrow spray angles
  • High velocity
  • Male and female connections
  • Flanged connections available
  • Available in plastic and metal alloys

How Spray Pattern is Achieved

  • Axial hollow cone nozzles supply axially to the spray. The inlet of the nozzle and the direction of the spray are inline. Flow enters the nozzle and is directed by channels or vanes to swirl along the axis of the nozzle. The emitting spray is atomized in a hollow cone pattern.
  • The spray is coarse and extremely hard-driving.

Spray Pattern

Available Spray Angles Flow rate Range
15 - 30° 5.11 to 2600 gm
Available Connection Types Materials
  • Pipe: 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 4, 6
  • Connection Methods: Thread (NPT, BSP, Male, Female)
PVC, Polypropylene, PTFE, Brass, 316

BETE NCJ Injector Nozzle - Narrow angle, medium flow

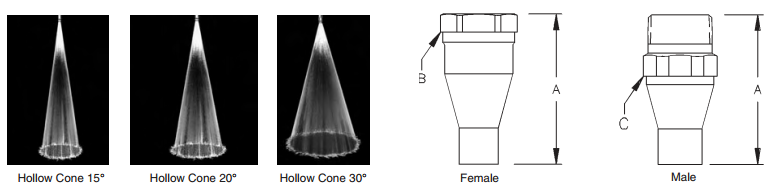

spray-angles-and-drawing

BETE NCJ Hollow Cone Narrow Angle Injector Videos
