BETE TSC FGD Spray Nozzles

Bete TSC – Flue Gas Desulphurization FGD Nozzle

The fluid gas desulphurization (FGD) process requires nozzles that are guaranteed to function over prolonged periods of time in the harsh conditions brought upon by factors such as pH and chloride concentrations. Bete has a broad line of standard nozzles and can meet specific needs to help optimize system performance.

The Bete TSC series is a tangential-inlet design, with specific features in the closed end of the whirl chamber that deflects some of the spray into the center of the pattern, creating a full cone effect. A full cone spray pattern, with even distribution in the spray area. Creates a spray of medium sized droplets that decreases spray drift and carryover. The tangential configuration makes larger nozzle-to-target heights possible while limiting the height of the piping over the target area.

Usually FGD nozzles are made according to customer’s specifications

Nozzle Type: Full cone tangential

Spray Pattern: Full cone

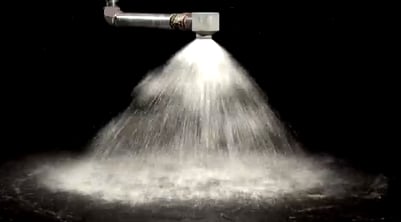

bete-tsc-sprany-angle

Specific Function in FGD System: Deliver atomized slurry into tower section

Materials of Construction: Silicon Nitride Bonded Silicon Carbide (SNBSC), Other materials available on request

Expected Service Life Under Design Range of Conditions: SNBSC: 80,000+ hours

Environmental Limitations: Free Passage:
– 1.5”-2.5”+ (36-64mm+)
– Temperature: 3000°F (1650°C)

Applications for the Bete TSC Spray Nozzle:

– FGD Absorber

Bete TSC Spray Nozzles- Medium angle, high flow
