BETE THW Wide Right Angle Hollow Cone Nozzles

BETE Clog-Resistant Tangential Nozzles Available in Silicon Carbide

Design Features of BETE THW Wide Right Angle Hollow Spray Nozzles

  • Large free passage
  • Clog-resistant; nozzles have no internal parts
  • Wide spray band
  • No internal parts
  • Exceptionally uniform spray density
  • Female connection
  • Flanged connection available
  • U.S. Patent 4,231,524
  • Inlet and outlet are in-line
  • Droplet size 20% - 50% smaller than competitive hollow cone nozzles
  • Silicon Carbide is available upon request - design review required before quote/order acceptance as restrictions may apply
  • Note: spray angles are for cast alloy nozzles only, not SNBSC

How Spray Pattern is Achieved

  • Tangential hollow cone nozzles utilize a supply of liquid perpendicular to the direction of spray. Flow enters a swirl chamber without the use of internal components - allowing for maximum clog resistance.
  • THW design produces a wide spray angle in comparison to traditional tangential hollow cone spray nozzles.

Spray Patterns

Spray Characteristics of BETE THW Wide Right Angle Hollow Spray Nozzles

Available Spray Angles Flow Rate Range
100 - 120° 4.1 to 892 gpm
Available Connection Types Materials
  • Pipe: 1, 1 1/4, 1 1/2, 2, 2 1/2, 3
  • Connection Methods: Thread (NPT, BSP, Female)
Brass, Carbon Steel, 316

Materials

  • Brass, Carbon Steel, and 316 Stainless Steel. Silicon Carbide available upon request.
  • *Spray angles are for cast alloy nozzles only, not SNBSC.

BETE-THW-Wide-Right-Angle-Hollow-Spray-Nozzles-80-degrees-diagram
Hollow Cone – Wide Angle



Resources

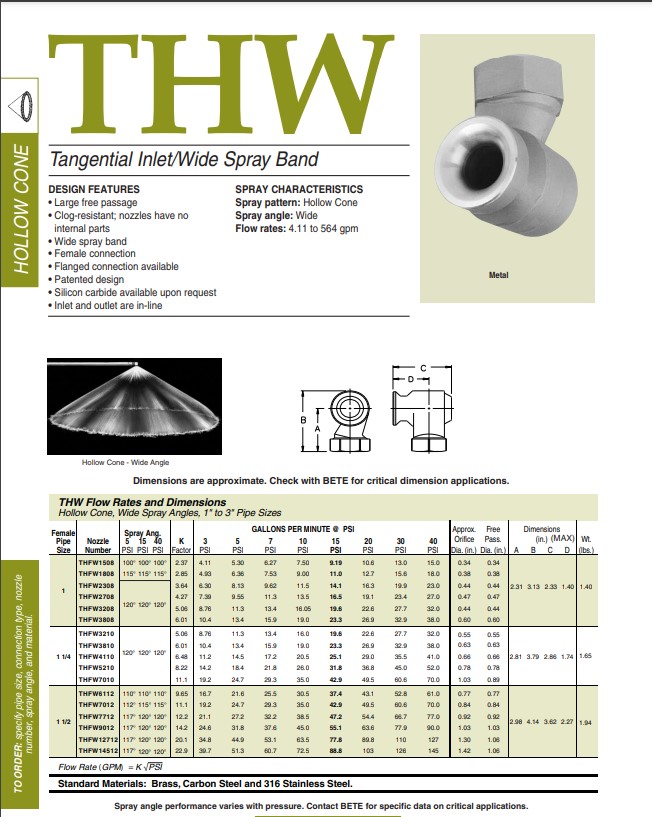

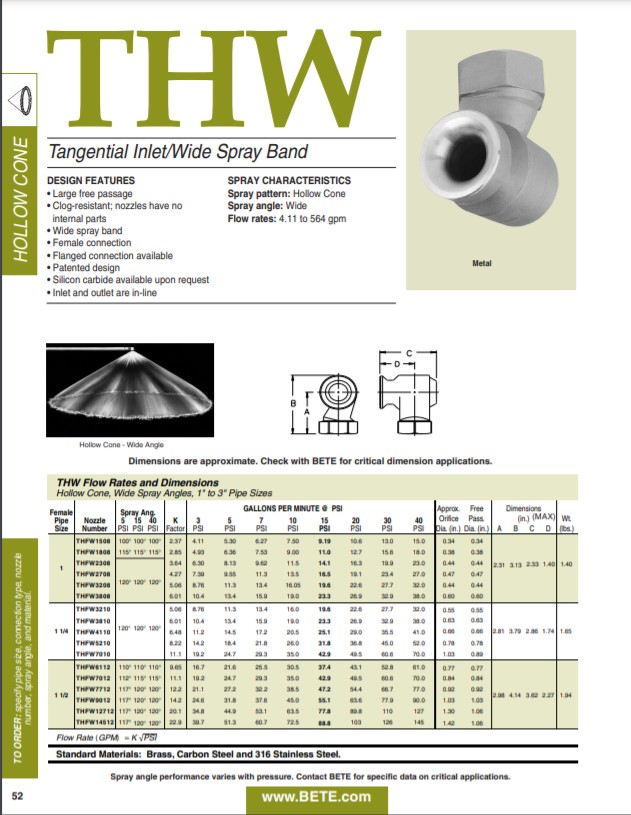

BETE THW - Datasheet

BETE THW - Datasheet

Download

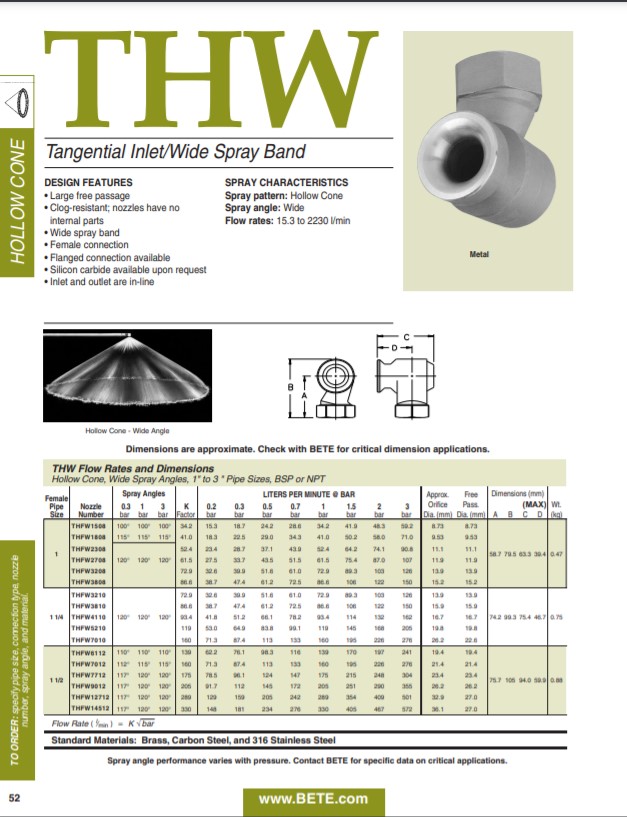

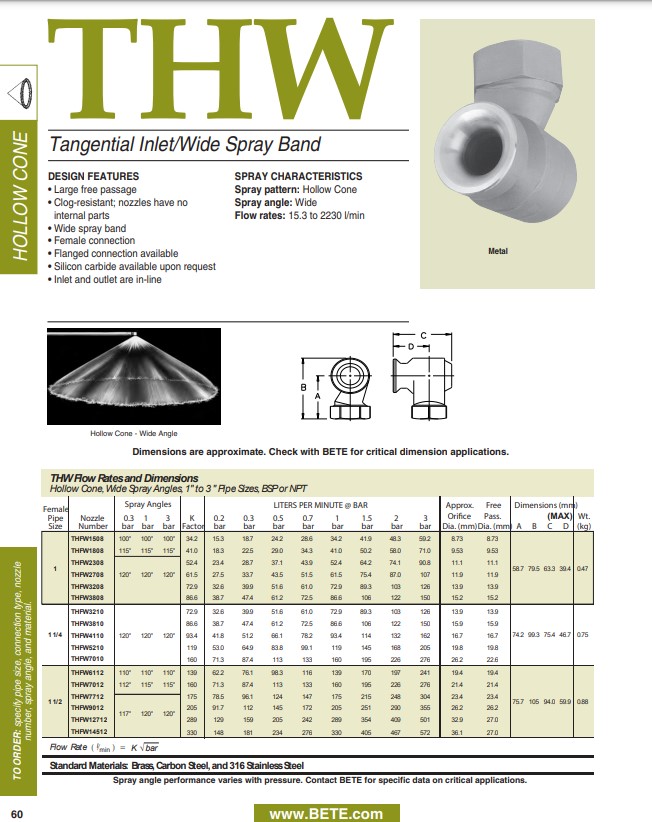

BETE THW Datasheet - Metric

BETE THW Datasheet - Metric

Download
BETE FGD - Brochure

BETE FGD - Brochure

Download
BETE FGD - Technical Manual

BETE FGD - Technical Manual

Download
