BETE High-Flow Axial Spray Nozzles for Deluge Cooling & Gas Scrubbing
The nozzle characteristics of greatest interest for distributing and mixing should be flow rate and a non-clogging design. Whirl Nozzles are most commonly used. BETE’s nozzles are designed to handle many types of mixing and distribution, including FCCU feed distribution nozzles, distributing liquids onto packed beds or mixing chemical compounds. Distribution nozzles usually feature wide spray angles, high through-put, medium-to-coarse atomization, and moderate operating pressures.

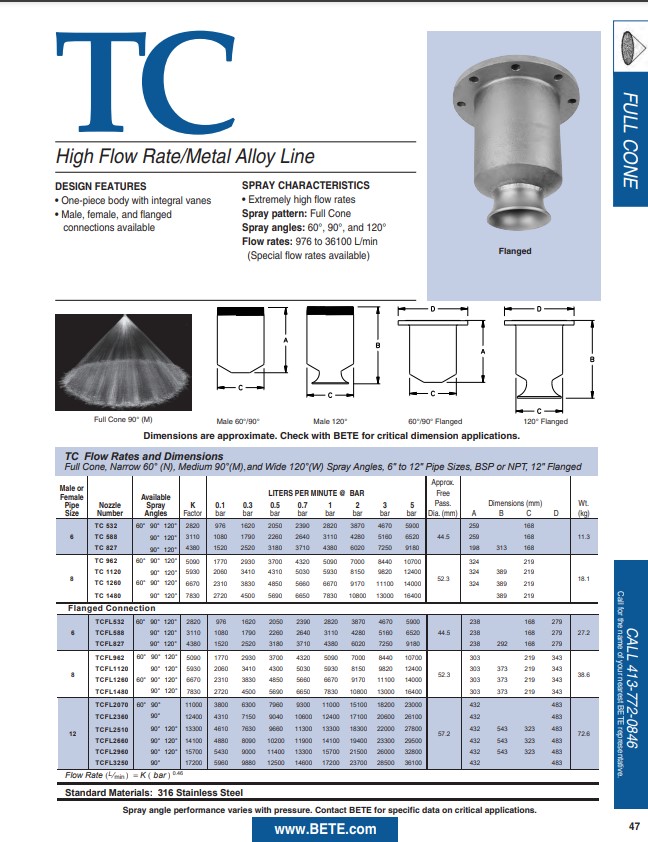

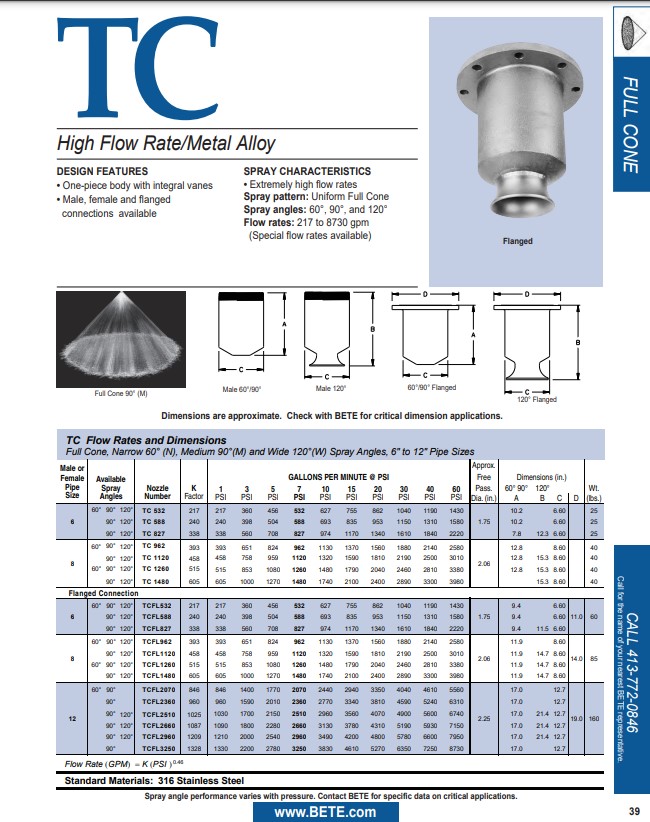

Design Features of BETE TC Alloy Full Cone Spray Nozzles
- One-piece body with integral vanes
- Male, female and flanged connections available
BETE TC Spray Nozzle Spray Characteristics
- Extremely high flow rates
- Spray pattern: Uniform Full Cone
| Available Spray Angles | Flow Rate Range |
| 60 - 120° | 217 to 11000 gpm |
| Available Connection Types | Material |
|
316 |
BETE TC Spray Nozzle Applications
- Distribution (Distribute fluids uniformly onto packing, foam control, waste water treatment, vacuum distillation, trickle bed media and horticultural beds; VOC stripping)
- Packing (Distribute scrubbing liquor in scrubbers or water in humidifiers)
- Gas cleaning
- Quench cooling
60° Spray Angle
90° Spray Angle
120° Spray Angle
