BETE Large Free Passages Axial Nozzles With High-Flow Rates for Quenching

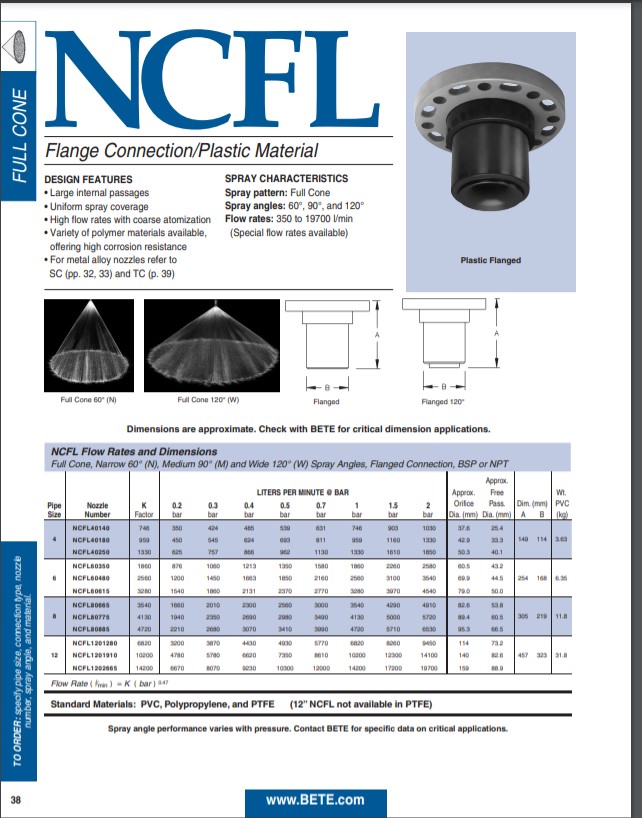

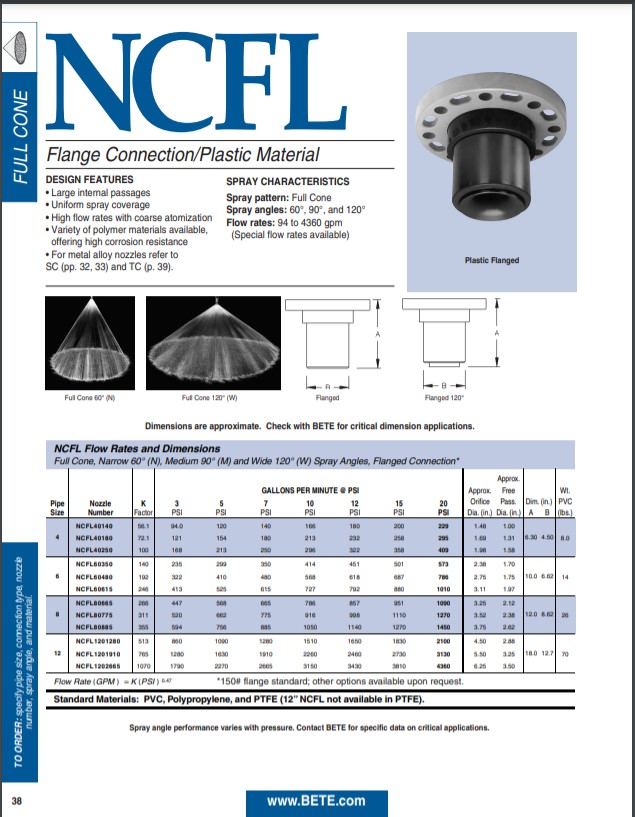

BETE NCFL Full Cone Nozzle Design Features
- Large internal passages
- Uniform spray coverage
- High flow rates with coarse atomization
- Variety of polymer materials available, offering a high corrosion resistance
Spray Characteristics of the BETE NCFL Full Cone Nozzle
| Available Spray Angles | Flow Rate Range |
| 60 - 120° | 94 to 9320 gpm |
| Available Connection Types | Materials |
|
PVC, Polypropylene, PTFE |
- Spray Pattern: Full Cone
- Spray angle performance varies with pressure
Full Cone 60° (N)
Full Cone 120° (W)
*Spray angle performance varies with pressure
How Spray Pattern for BETE NCFL Spray Nozzles is Achieved
- Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice
- High flow rates produce coarse atomization
