BETE SPN High-Impact Deflected Flat Fan Spray Nozzles

BETE Powerful Narrow Fan Spray With Least Atomization

In BETE Fan Nozzles, the liquid is forced through a relatively small, elliptical orifice to provide a thin, flat sheet of spray which covers a narrow area. They are particularly effective in applications such as washing or descaling, where the nozzles are fixed and the item to be sprayed passes by.

The BETE SPN Spray Nozzle is a deflection fan nozzle that produces a hard-driving, more focused spray. The deflection-type nozzle has a flat fan pattern that deflects the fluid stream against a curved impact surface after exiting from the nozzle orifice. The impact of the liquid on the deflection surface causes the desired atomization, and the geometry of the surface shapes the resulting spray into a flat fan pattern. This means that the nozzle orifice can remain circular rather than elliptical, as in the case of standard flat fan nozzles. A circular orifice is less prone to wear and clogging.

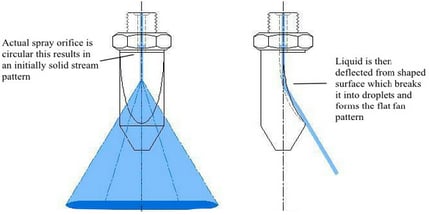

BETE-deflected-spray-diagram



BETE SPN Flat Fan Spray Nozzles Design Features

  • One-piece/heavy construction
  • Straight-through orifice minimizes clogging
  • Machined from bar stock to exacting standards
  • Male connection

Spray Characteristics of BETE SPN Spray Nozzles

  • Yields highest impact, narrow flat spray with least atomization
  • Spoon-shaped deflector surface efficiently forms a hard-driving spray
  • Spray pattern:  Fan
Available Spray Patterns Flow Rate Range
15 - 50° 0.199 to 70.7 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4, 3/8, 1/2, 3/4
  • Connection Methods: Thread (NPT, BSP, Male)
PVC, PTFE, Brass, 303, 316

BETE-SPN-spray-angle-and-diagram

How BETE SPN Spray Pattern is Achieved

  • The spray pattern is formed by deflecting off a spoon-shaped surface, creating a fan spray pattern
  • Yields highest impact, narrow flat spray with least atomization

Applications for BETE SPN Spray Nozzles

  • Air and Steam
  • Blow-Off
  • Car Wash
  • Clog- resistant
  • Debarking
  • Drying
  • Etching:  Electronics
  • Street Flushing & Cleaning
  • Washing:  Conveyor
  • Washing:  Parts

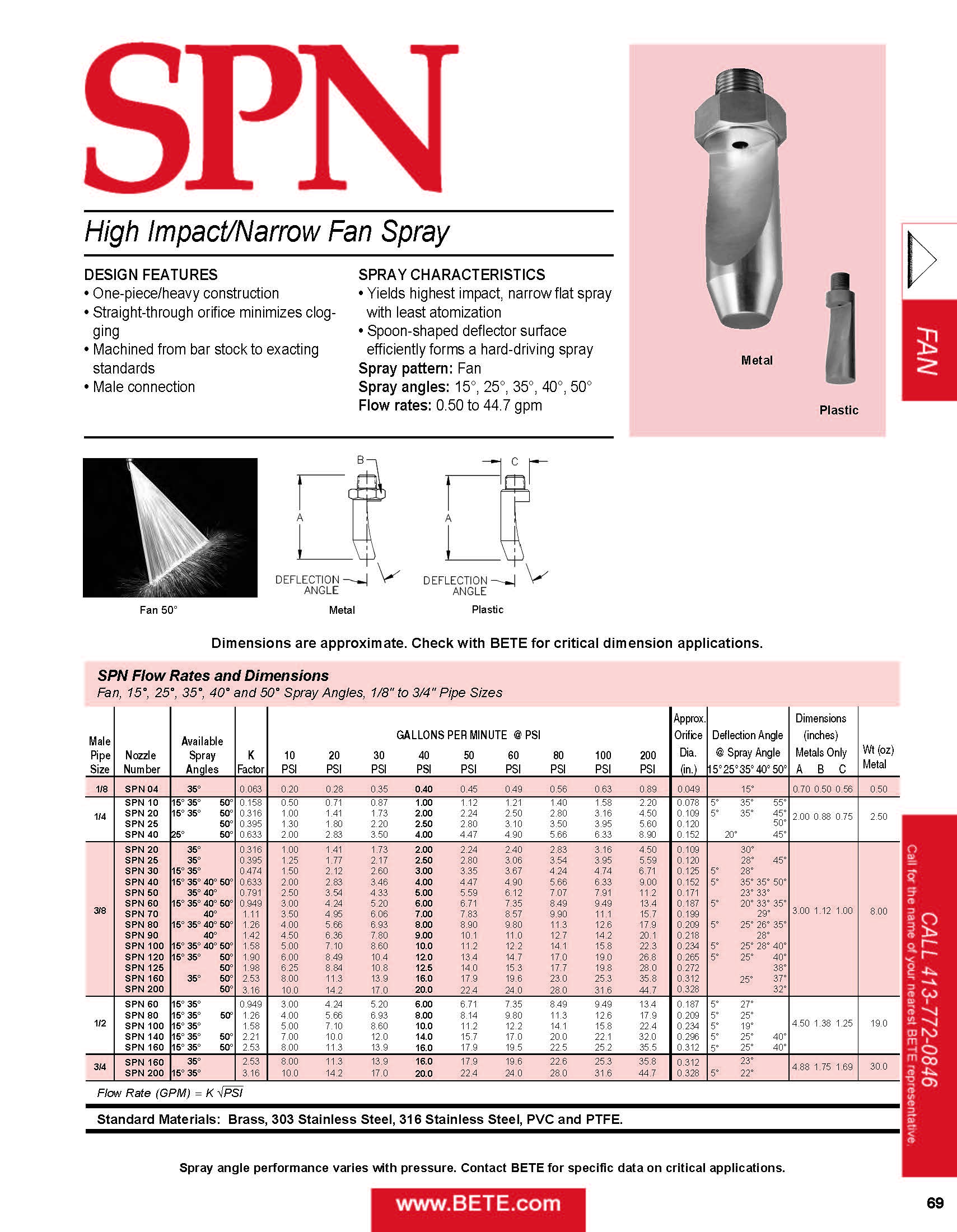

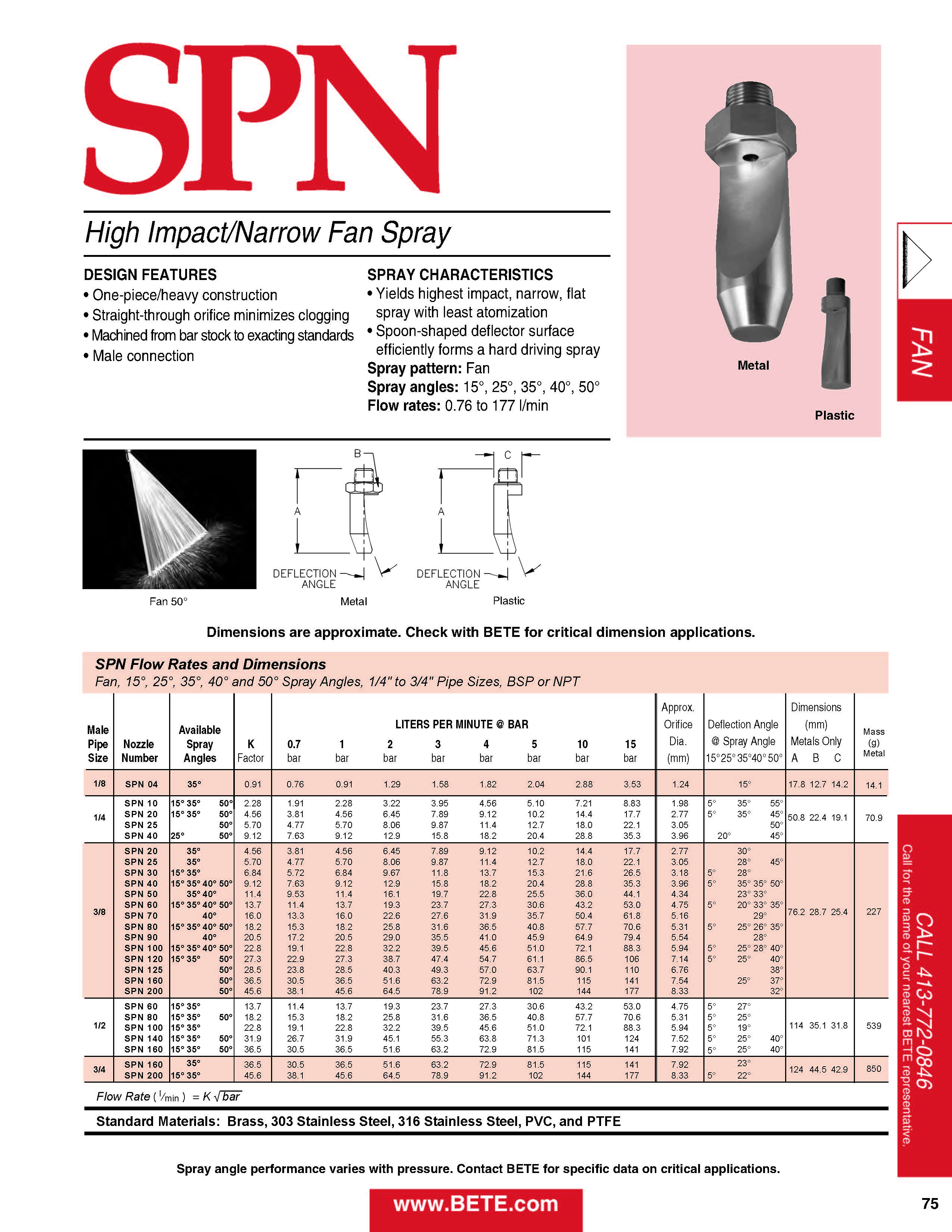

BETE SPN Spray Nozzle – Deflected Fan Spray Nozzle: BETE SPN 6050
