BETE PJ Impingement Misting and Fogging Nozzles

Very Fine Spray Hydraulic Atomizing Nozzles

Design Features of BETE PJ Spray Nozzles

  • High energy efficiency
  • One-piece, compact construction
  • No whirl vanes or internal parts
  • 1/8″ or 1/4″ male connection
  • 100-mesh screen, 20 micron paper filter or 70 micron polypropylene filter optional
  • Finest fog of any direct pressure nozzle

How Spray Pattern is Achieved

  • High pressure shears the liquid by forcing it through tiny openings. An impingement pin distributes the liquid as it leaves the nozzle, deflecting it on the chosen surface.

Spray Characteristics of BETE PJ Spray Nozzles

  • Finest fog of any direct pressure nozzle
  • Produces high percentage of droplets under 50 microns

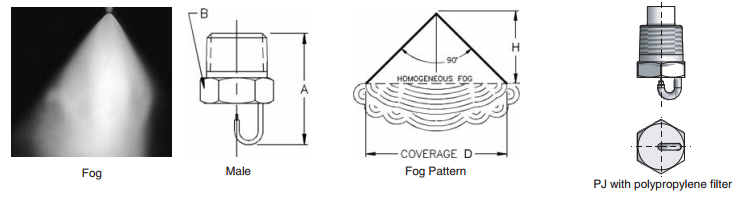

Spray Pattern

Available Spray Angle Flow Rate Range
90° 0.00672 to 2.43 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4
  • Connection Methods: Thread (NPT, BSP, Male)
Brass, 303, 316, 310, 321, 347, Nickel Alloy C-276

Applications for the BETE PJ Nozzles

  • Air Conditioning
  • Coating
  • Concrete Curing
  • Fire Protection: Halon Replacement
  • Fire Protection: Special
  • Fogging
  • Humidification
  • Misting
  • Moistening
  • Odor Control
  • Scrubbing: Conditioning
  • Mining


BETE PJ Nozzle Videos

Misting Nozzles: BETE PJ 80

Misting Nozzles: BETE P 120

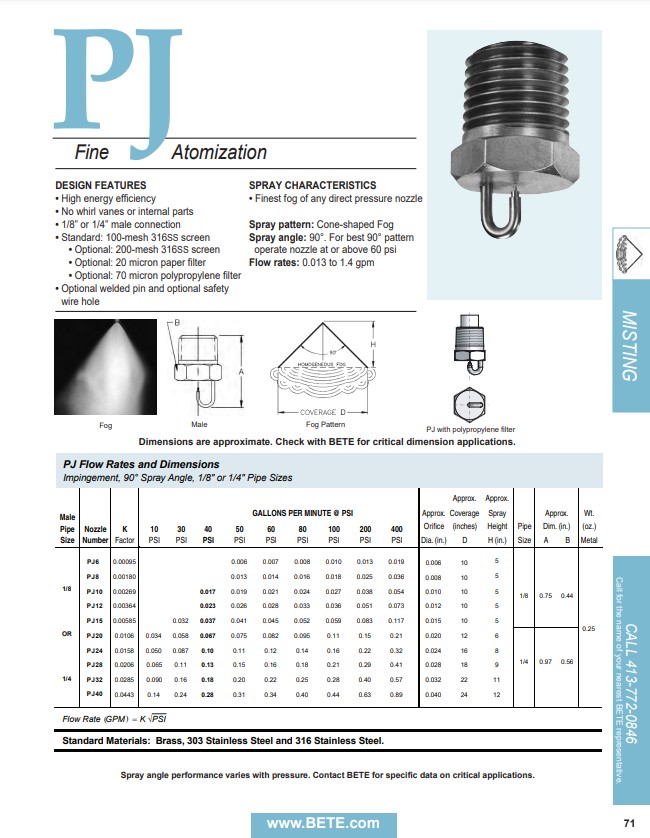

BETE PJ - Datasheet

BETE PJ - Datasheet

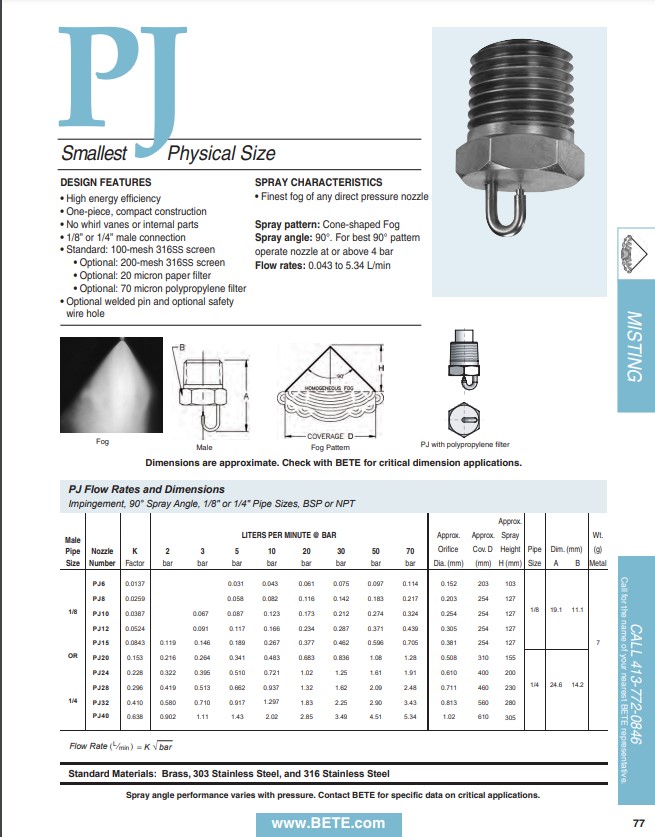

BETE PJ Datasheet - Metric

BETE PJ Datasheet - Metric
