BETE CW Hollow Cone Nozzles

BETE Hollow Cone Nozzles for Quick Change

  • Standard three-piece construction
  • Optional 50 – or 100- mesh strainer
  • Protective cover available
  • Male and female connections
  • Interchangeable spray tips

Spray Characteristics of BETE CW Hollow Cone Nozzles

  • Spray Patterns: Hollow Cone (H)
  • Spray Angles vary with pressure: 80° and 120°
  • Flow rates: 0.13 to 1.54 gpm (0.424 to 8.39 L/min)
  • Standard Materials: Brass, 303 Stainless Steel, and 316 Stainless Steel
  • Applications for the CW nozzle: Fire Protection
Available Spray Angles Flow Rate Range
80 - 120° 0.0937 to 2.14 gpm
Available Connection Types Materials
  • Pipe: 1/8, 1/4, 3/8
  • Connection Methods: Thread (NPT, BSP, Male, Female)
Brass, 303, 316

How Spray Pattern is Achieved for BETE CW Nozzles

  • A hollow cone nozzle sprays fluids in a ring-like pattern around a given radius and the spray exits on the same axis it enters in the axial design
  • For a full cone nozzle, atomization is achieved by the water being spun inside the nozzle and exiting an orifice
  • An insert is used to create the spray pattern
  • Produces medium to coarse droplet size
  • More uniform pattern than spiral nozzles

Resources

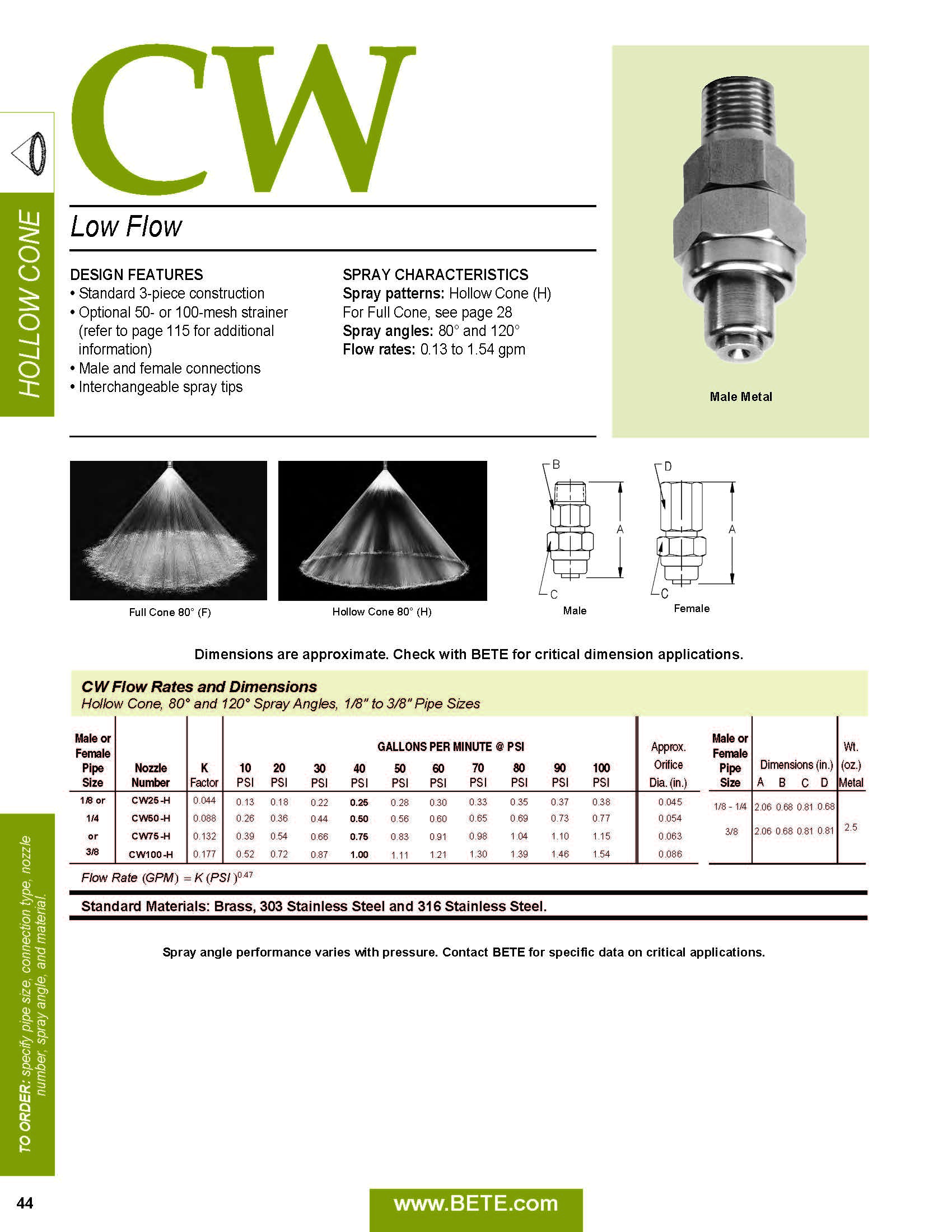

BETE CW Hollow Cone - Datasheet

BETE CW Hollow Cone - Datasheet

Download

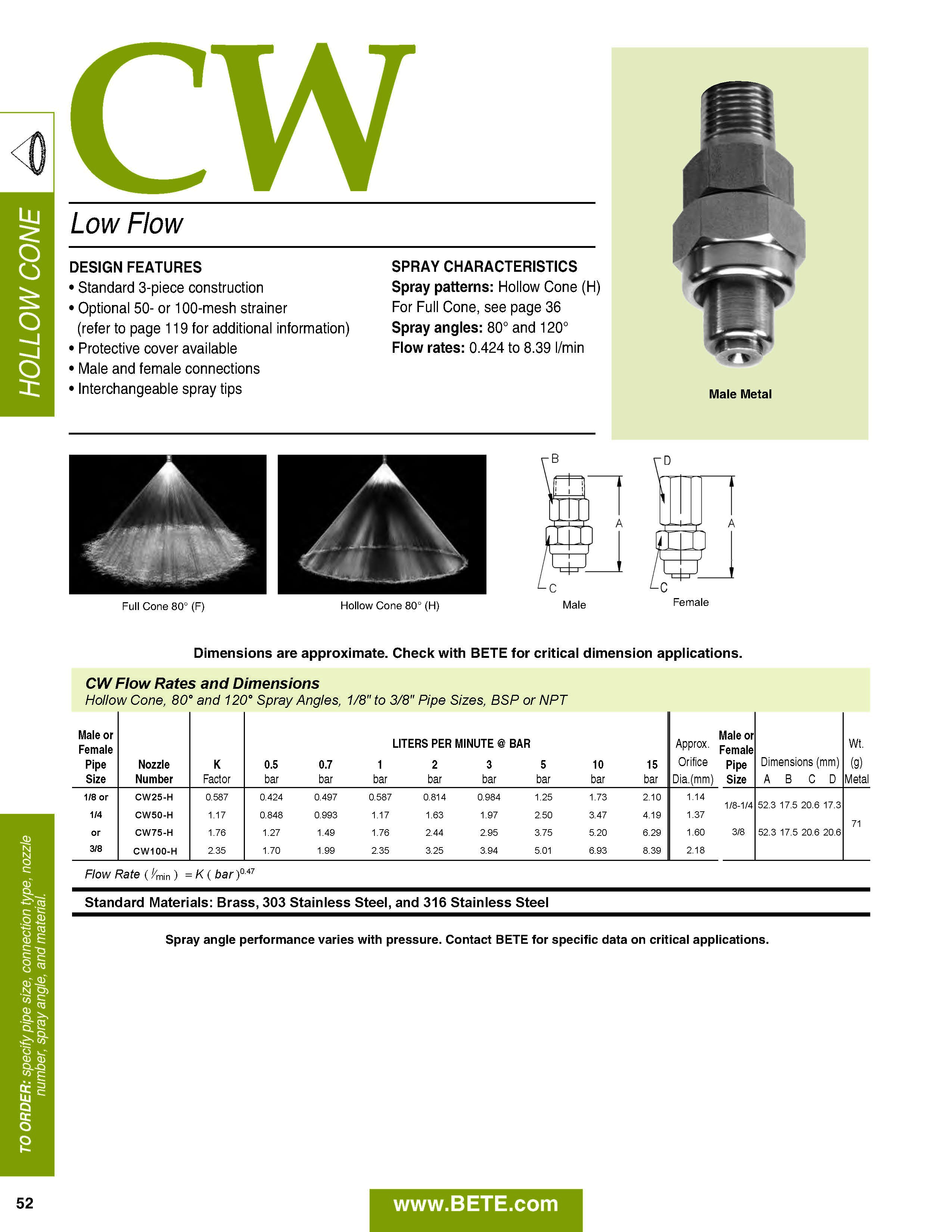

BETE CW Hollow Cone Datasheet - Metric

BETE CW Hollow Cone Datasheet - Metric

Download
