Energy-Efficient Axial Spray Nozzles for Cooling & Quenching
Introducing the BETE MPL MaxiPass Full Cone Nozzles, a standout choice for high-efficiency spraying in demanding conditions. These nozzles offer energy-efficient, axial spray performance, making them a top choice for cooling and quenching applications. Known for their ultimate clog-resistant design and exceptional reliability, BETE MPL MaxiPass Full Cone Nozzles are part of the renowned BETE spray nozzles family, specifically designed for optimizing spray performance. These axial spray nozzles, featuring a unique S-shaped vane design, offer the largest free passage available in a full cone nozzle, making them ideal for applications where efficiency and reliability are paramount.
BETE MaxiPass MPL Spray Nozzles Design Features
- Ultimate clog-resistant design with the largest free passage available in a full cone nozzle
- High-reliability spray performance under the most challenging conditions
- Vanes are made from 316SS for optimum wear and corrosion resistance
- Two unique S-shaped internal vanes, as opposed to x-vane style nozzles, allow the maximum free path of particles
- Male connections
- High energy efficiency
- Easily handles dirty, contaminated liquids

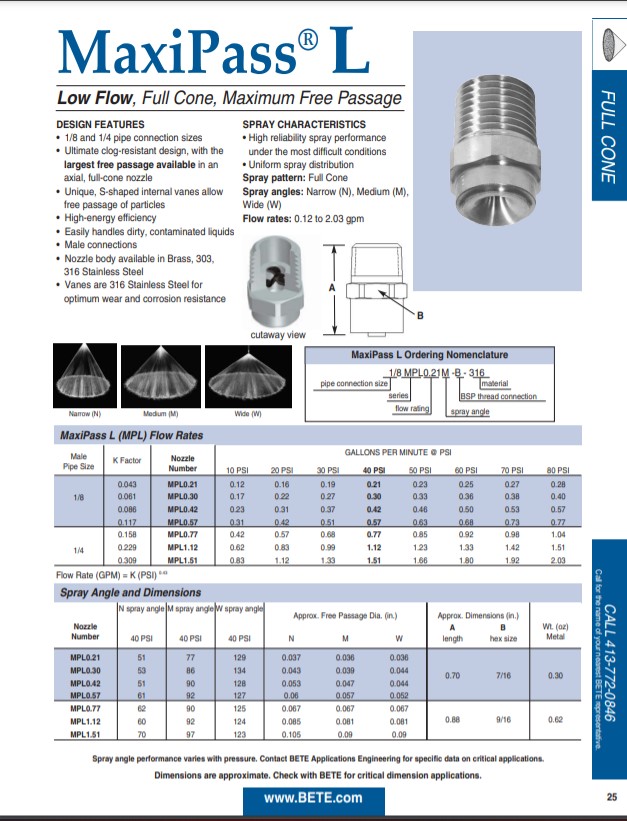

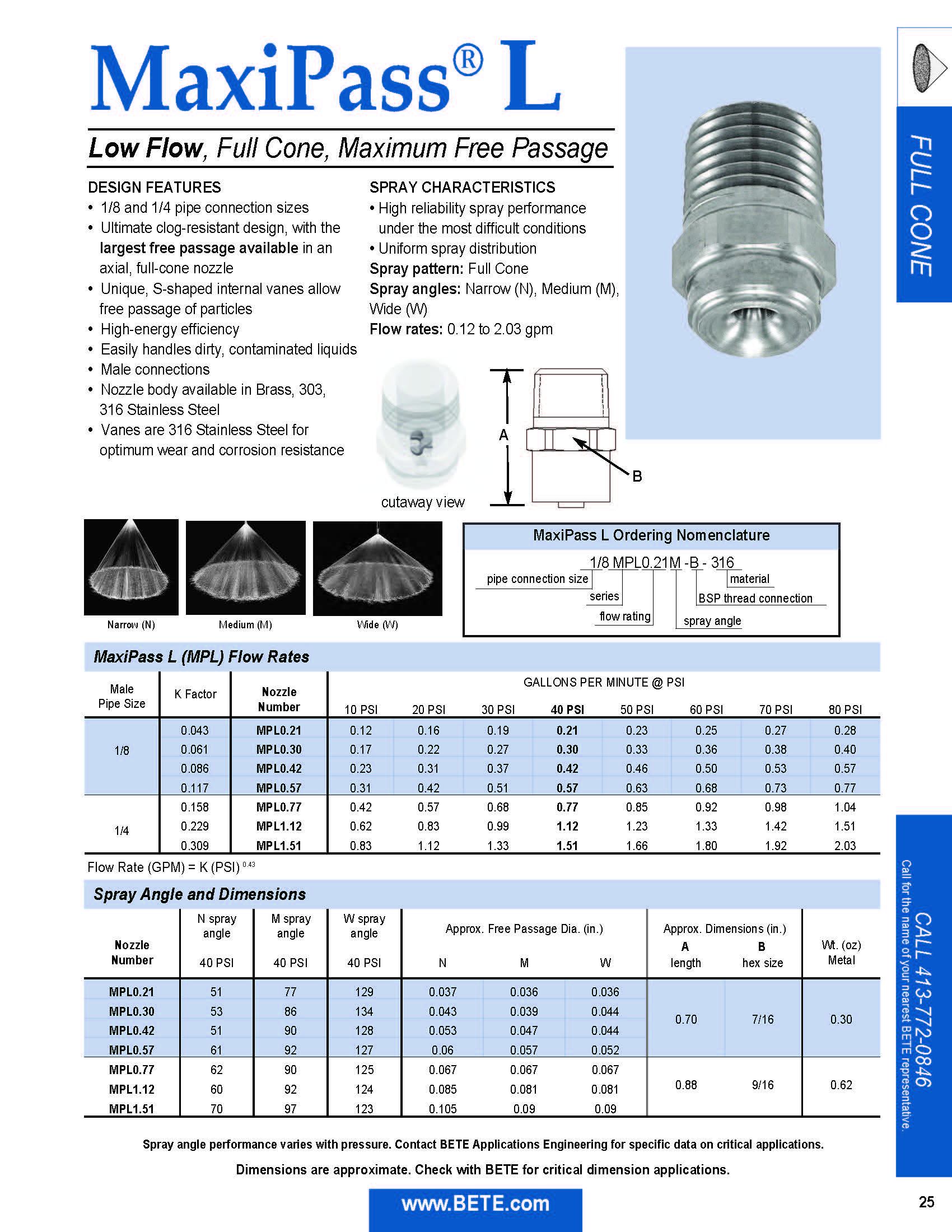

BETE MaxiPass MPL Full Cone Nozzle Cutaway
Spray Characteristics of BETE MaxiPass MPL Spray Nozzles
- High reliability spray performance under the most difficult conditions
- Spray pattern: Full Cone
- Design pressure: 40 psi; spray pattern data of the BETE MPL varies with pressure.
How Spray Pattern for BETE MaxiPass MPL Nozzles is Achieved
- Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice
- Produces medium to coarse droplet size
- More uniform pattern than spiral nozzles
| Available Spray Angles | Flow Rate Range |
| 51 - 134° | 0.0859 to 3.02 gpm |
| Available Connection Types | Materials |
|
Brass, 303, 316 |
