Conceptualized, Designed, Engineered and Manufactured CIP Systems
Alfa Laval’s MCIP series provides optimal cleaning performance by delivering the required pressure and flow for efficient tank cleaning. Each system is tailored for your specific needs, based on your tank cleaning application. Cleaning tanks begins with choosing the proper tank cleaning machine(s). Therefore designing a CIP system needs to follow the selection of the appropriate tank cleaning method, not the other way around. Providing the proper CIP system to power the Alfa Laval tank cleaning machine will guarantee an efficient and thorough cleaning process for your tank cleaning requirements.
Benefits:
- Affordable
- Portable
- Non-Intrusive to your Plant Infrastructure
- Designed around your Tank Cleaning Needs
- Efficient and Effective
- Validatable

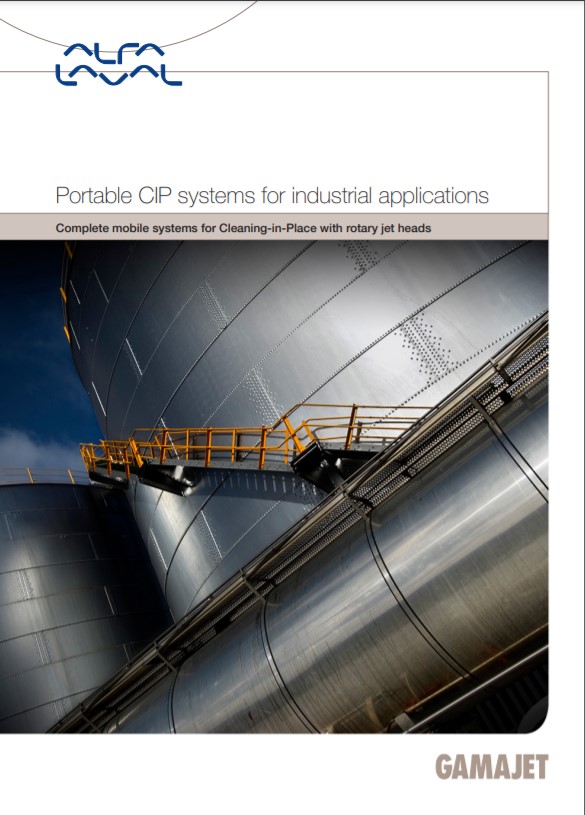

Econ – Systems for Industrial Applications:
Our small-sized vertical multistage pump powers:
- One Alfa Laval GJ 9 at 15-25 gpm and 180-200 PSI
- Two Alfa Laval GJ 9‘s at 15 gpm/ea and 180-200 PSI
- One Alfa Laval GJ PF at 30 gpm and 160-180 PSI
Pump Operating Conditions:
- 12-30+ gpm at 170-200 PSI
- Three phase 230/460 Volt
- TEFC standard
- 3500 RPM
- 3 and 5 HP based upon flow rate
- 1¼” ANSI flange connections
Control Panel:
- On/Off feature with a timer ranging from three seconds to 100 hours
- Dual wiring for three phase 230v or 460v
- Includes 25’ cord; plug not provided
Custom Stainless Steel Platform Truck:
- 46” L x 25” W x 36” H
- Non-marring 6” locking casters
Supply Hose:
- ¾” diameter x 50’ L Goodyear Verizon rated for 300 psi and 190° F
- S/S MNPT E/E

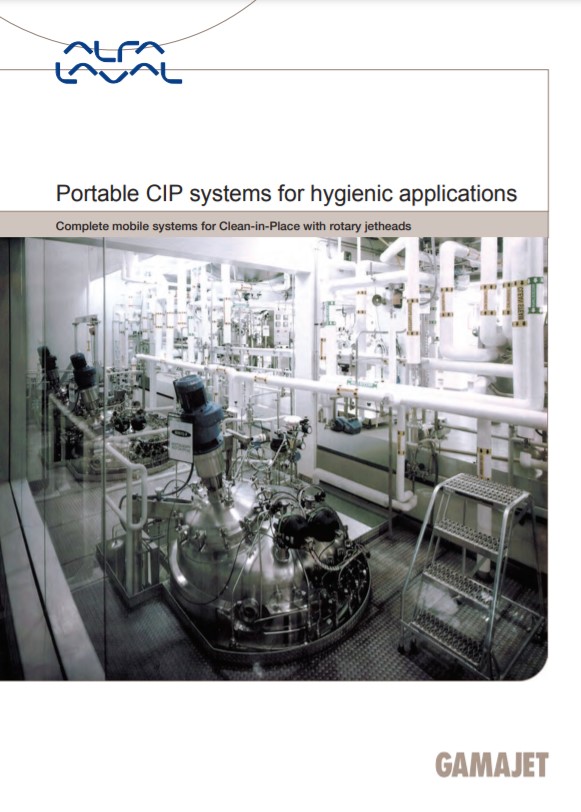

Sani – Systems for Hygienic Applications
Our Sanitary Centrifugal Pump Powers:
- One Alfa Laval GJ A6 or TJ20G at 15 gpm and 90-110 PSI
- Two Alfa Laval GJ A6‘s or TJ20G‘s at 15 gpm/ea and 90-110 PSI
- One Alfa Laval GJ PF FT at 30+ gpm and 90-110 PSI
Sanitary Centrifugal Pump Operating Conditions:
- 15-60+ gpm at 90-110 PSI
- Three Phase 230/460 Volt
- TEFC Standard
- 3500 RPM
- Tri-Clamp connections
Control Panel:
- On/Off feature with a timer ranging from three seconds to 100 hours Dual wiring for three phase 230v or 460v
- Includes 25’ cord; plug not provided
Custom Stainless Steel Platform Truck:
- 48” L x 25” W x 37” H
- Non-marring 6” locking casters
Supply Hose:
- 1″ diameter x 25’ long food grade hose rated for 150 psi and 190° F S/S TC E/E
