Superior Tank Cleaning for the Toughest Debris and Residues

Alfa Laval GJ 18 is engineered for tank truck washes and other tough industrial applications and provides high-impact cleaning for large industrial tanks.
The GJ 18 withstands demanding applications that require high temperatures and high concentrations of chemicals in the wash fluid due to its robust nature.

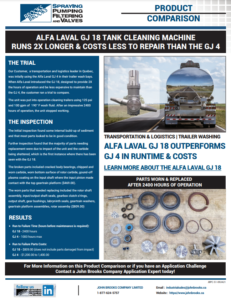

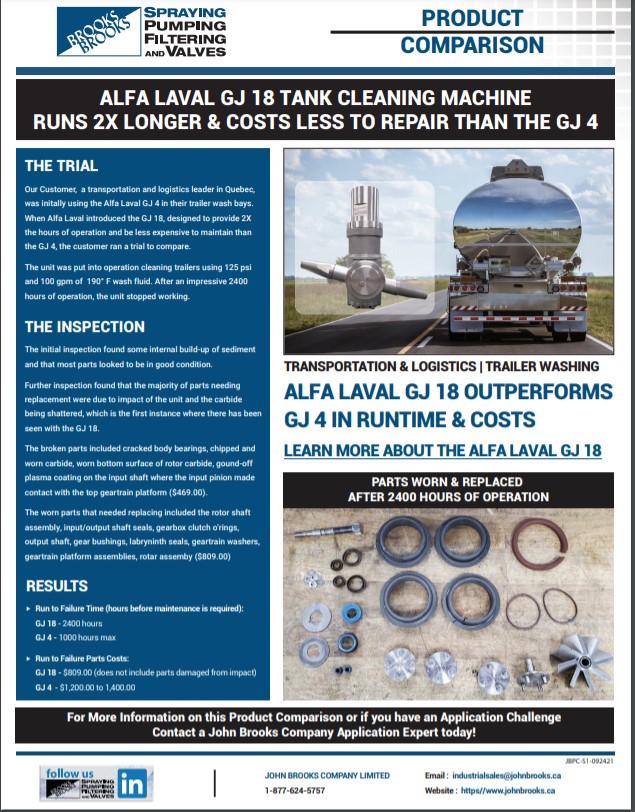

Read How the Alfa Laval GJ18 Tank Cleaning Machine Runs 2X longer and costs less to repair than the GJ4

GJ18vsGJ4-231x300


Features and Benefits:

  • Longer Uptime:  Existing tank cleaners last 800-1000 hours before maintenance is required. The GJ 18 will run twice as long before needing service.
  • Longer Product Life:  The GJ 18’s patented over-sized “cartridge style” gear train is proven to last at least five times the wear time versus other tank cleaners.
  • Lower Maintenance Costs:  Costs to replace minor kits in the GJ 18 are 70-75% less than for other tank cleaners. Major kit replacements will cost 35-40% less.
  • Simple to Install:  The pressure and flow of the GJ 18 match those of existing tank cleaners, so minimal adjustments are needed for installation.
  • Easy to Maintain:  The GJ 18 has fewer individual parts than existing tank cleaners, meaning repairs are typically limited to normal wear parts and no special tools are required for service.
  • Self Cleaning & Draining

Operating Range:

  • Pressure:  40-300 psi (3-20 bar)
  • Flow Rate:  30-320 gpm (115-1210 lpm)
  • Cleaning Radius:  100 ft.(30 m)
  • Wash Cycle Time:  8-30+ min.
  • Impact:  Up to 85 lbs at 25 ft. (39 kg at 7.5 m)

Clearance Dimensions:

  • Pin Drive:
    Dual: 12.8 in. (325 mm)
  • Clutch Drive:
    Dual: 7.0 in. (178 mm)

Overall Dimensions:

  • Height: 13.3 in. (338 mm)
  • Body Diameter: 4.2 in. (107 mm)
  • Weight: 26 lb (11.8 kg)

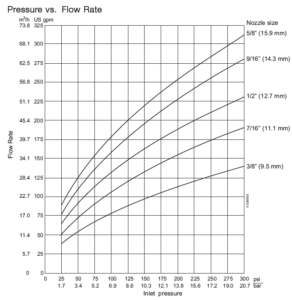

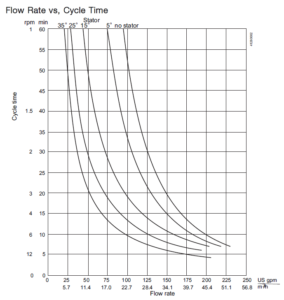

Alfa-Laval-GJ-18-Cleaning-Cycle-284x300 Alfa-Laval-GJ-18-Flow-Rate-292x300

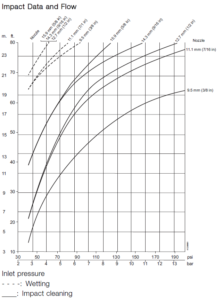

Alfa-Laval-GJ-18-Impact-Data-Flow-223x300

Resources

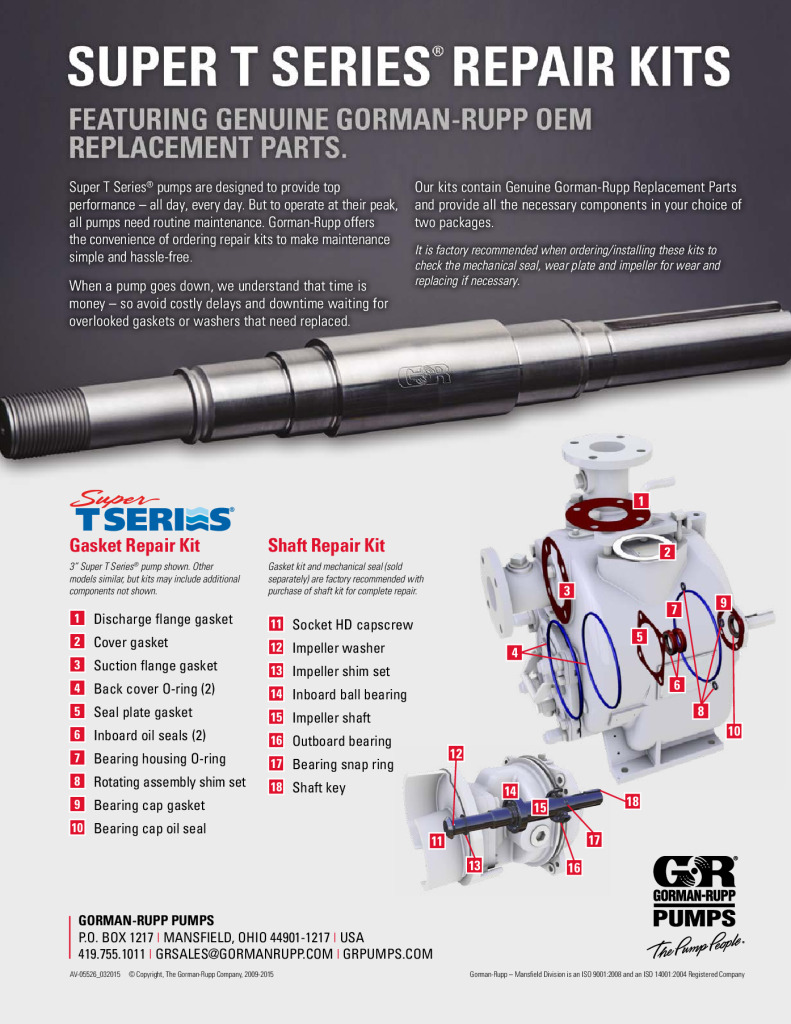

Gorman-Rupp Super T-Series Self-Priming Pumps Repair Kit

Gorman-Rupp Super T-Series Self-Priming Pumps Repair Kit

Download

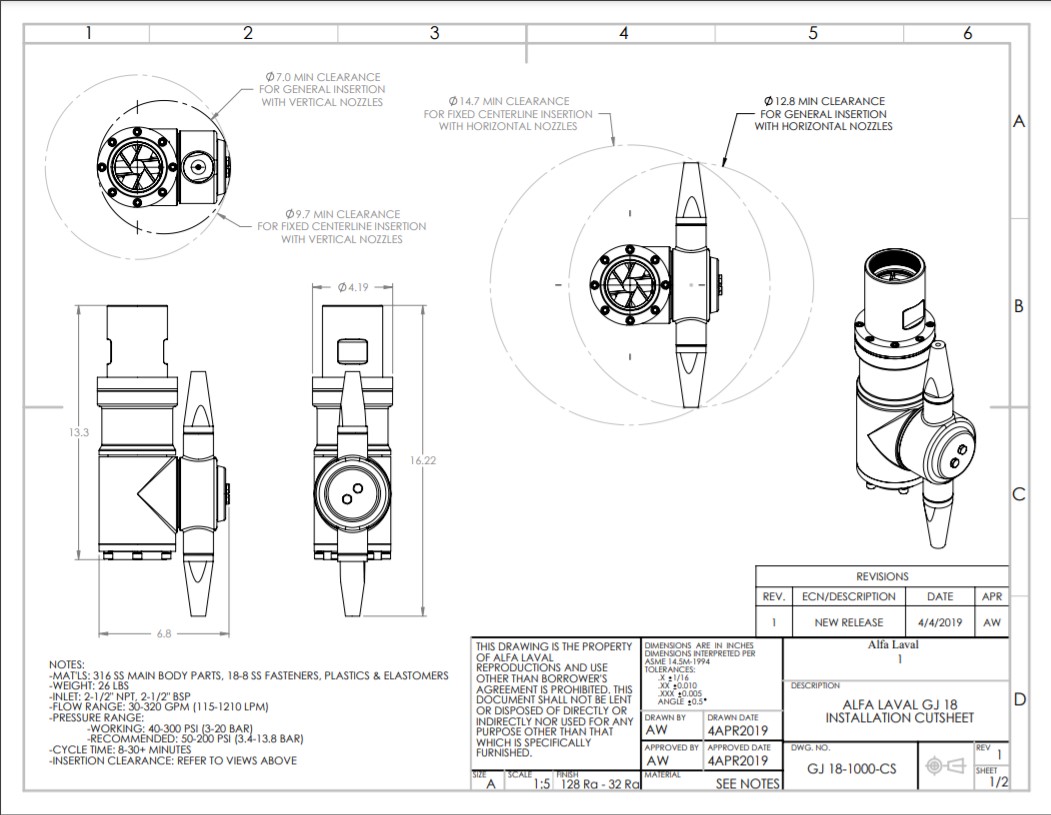

Alfa Laval GJ 18 Drawing

Alfa Laval GJ 18 Drawing

Download

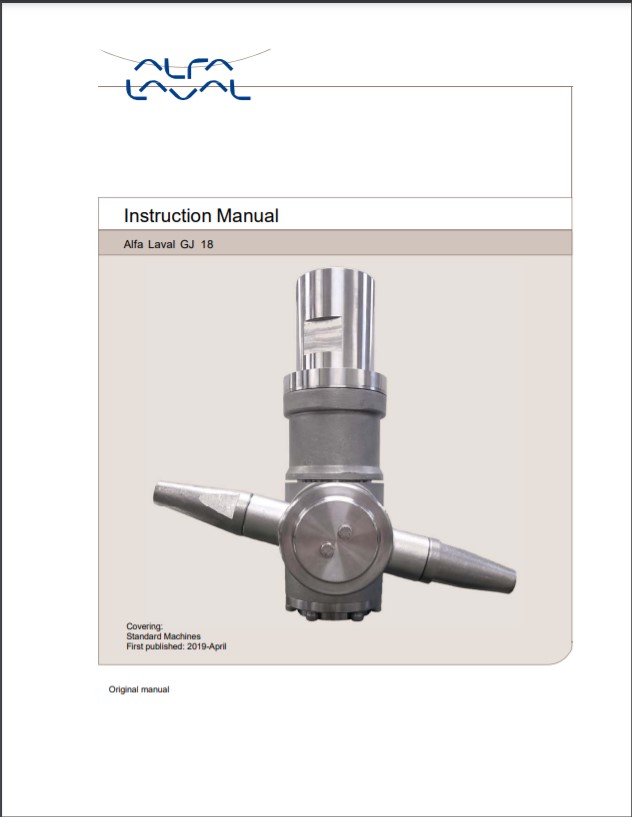

Alfa Laval GJ 18 Manual

Alfa Laval GJ 18 Manual

Download

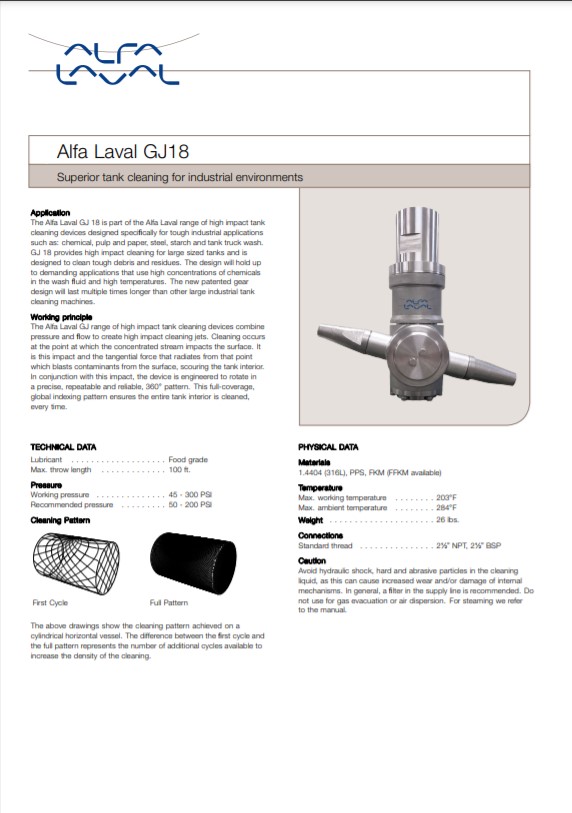

Alfa Laval GJ 18 Product Brochure

Alfa Laval GJ 18 Product Brochure

Download

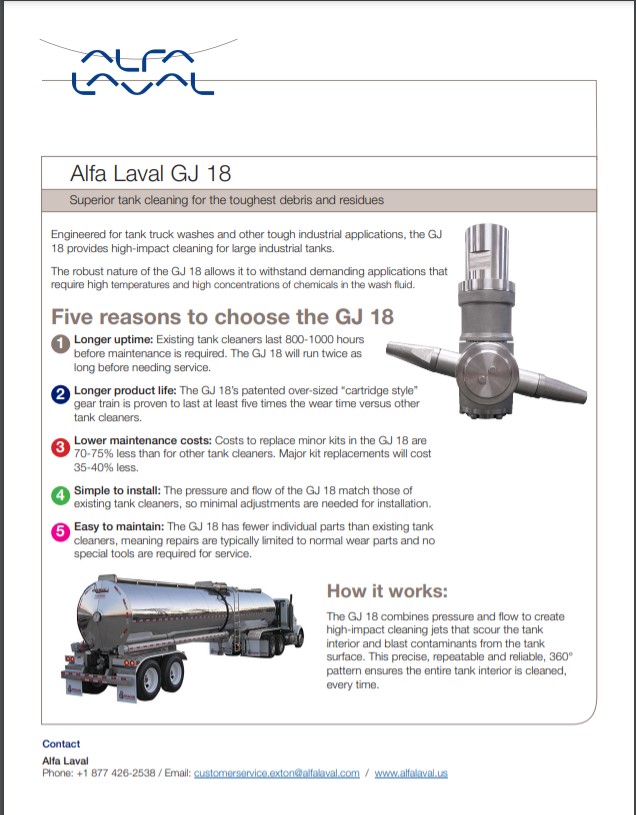

Alfa Laval GJ 18 Sales Flyer

Alfa Laval GJ 18 Sales Flyer

Download
GJ 18 Tank Cleaning Machine vs GJ 4

GJ 18 Tank Cleaning Machine vs GJ 4

Download
