Alfa Laval – Gamajet Tri-Pod Attachment

Alfa Laval – Gamajet Tri-Pod Attachment: Used for temporarily mounting a Gamajet in a fixed location, perfect for tanks with imperfect bottoms.

The Alfa Laval – Gamajet Tri-Pod Attachment as been developed for cleaning tanks where inlets and entry ways are not in an ideal location for optimal cleaning.

There are two types of cleaning solutions, permanently installed and portable.  Facilities which require cleaning at a high frequency tend to utilize a permanently installed Gamajet, whereas facilities that clean less regularly lean towards a portable solution which allows for the purchase of one unit, to clean a variety of tanks.

However, the design of a tank, rarely incorporates clean-ability, meaning inlets and entry ways are rarely in an ideal location for optimal cleaning. For portable applications, regular tank entry, or climbing to the top of a tank to suspend the Gamajet could become burdensome and counter-productive. As a result, Gamajet has come up with the Gamajet Tri-Pod Attachment.


Features of the Alfa Laval – Gamajet Tri-Pod Attachment

  • Adaptable Portable Tank Cleaning Solution – Used for tanks with sloped or conical bottoms or have build up residues/sludge on the bottom.
  • Used in a Variety of Applications: Wine, Brewing, Chemical, Petroleum, Pulp and Paper

Specifications of the Alfa Laval – Gamajet Tri-Pod Attachment:

  • Compatible Gamajet Machines: Gamajet IV, VIII, IX and PowerFLEX
  • Materials: 316L Stainless Steel; Nylon Feet
  • Length: 27″ (0.70 mm)
  • Width: 27″ (0.70 mm)
  • Height: 17″ (431 mm)
  • Weight: 12lbs (5.5 kg)
  • Inlet Connections: 2″ or 1 1/2″ NPT-Male

How the Alfa Laval – Gamajet Tri-Pod Attachment works:

The Gamajet gets threaded on to the top center NPT Male Inlet while your hose gets threaded on the bottom side NPT Male inlet. The Alfa Laval – Gamajet Tri-Pod Attachment is then simply placed through the manway, legs are separated and then the tripod is placed in the desired location for cleaning.

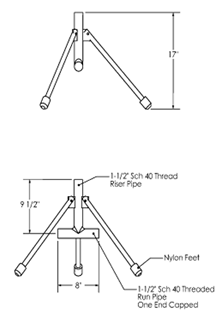

Gamajet Tri-pod

Alfa Laval - Gamajet Tri-Pod Attachment

Join our Mailing List

Resources

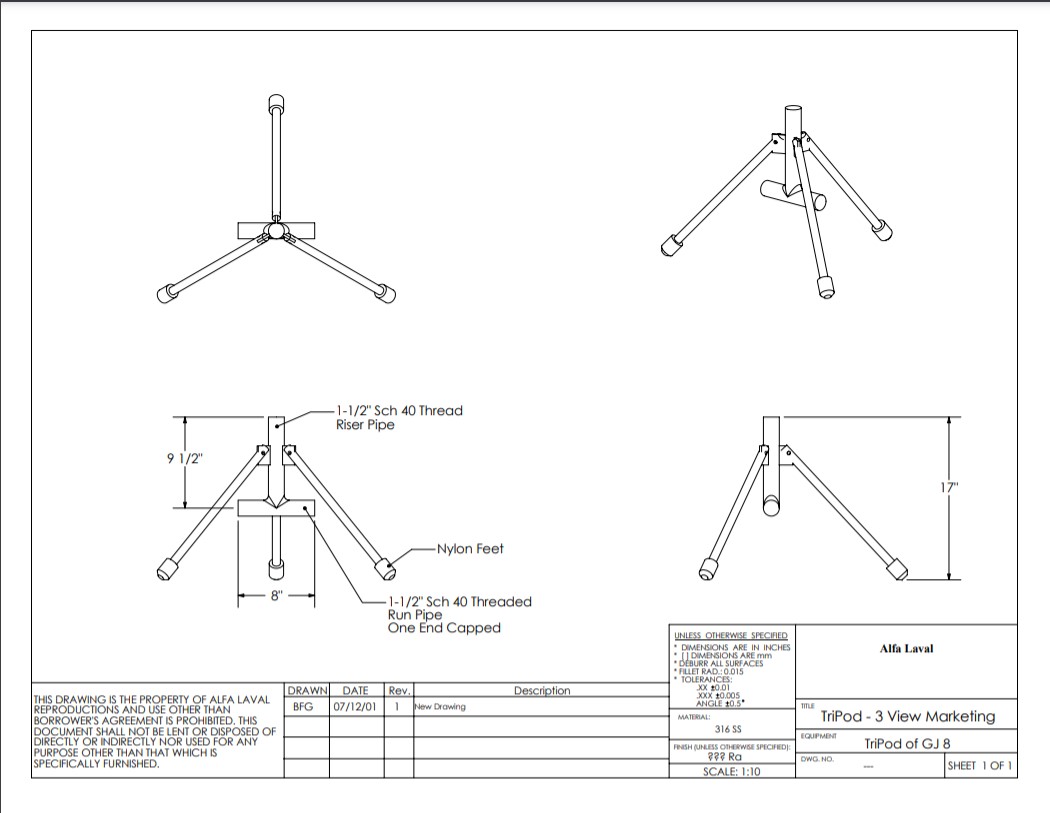

Alfa Laval - Gamajet Tri-Pod Attachment with the Gamajet 8

Download
Size: 21 KB

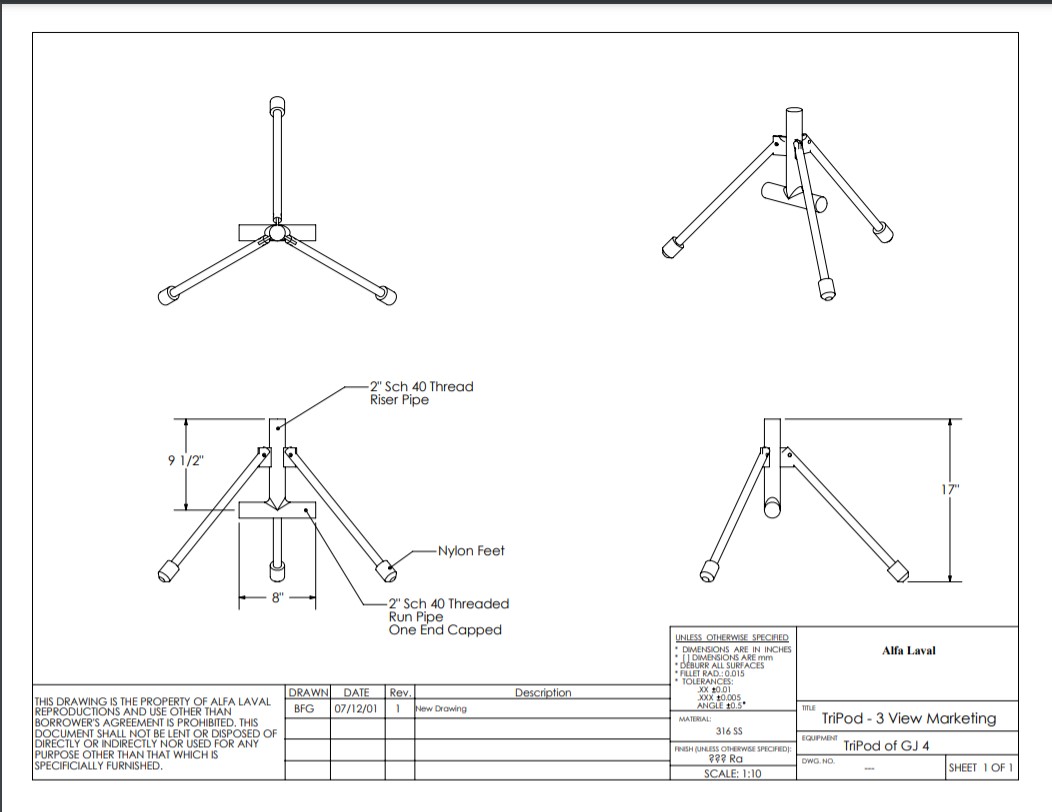

Alfa Laval - Gamajet Tri-Pod Attachment with the Gamajet 4

Download
Size: 20 KB
