3M NB Poly Felt Filter Bags

3M NB Poly Felt Filter Bags are made of Polypropylene & Polyester Felt. These bags are offered in Size #1 and #2 configurations in grades from 1 to 200 microns in various collar/media configurations.  3M NB Poly Felt Filter Bags important benefits include:

  • Inside-Outside Flow Configurations: Resulting in the capture of contaminants on the inside
  • Ease of Handling: Bags are Collapsible
  • Ability to Handle Viscous Fluids
  • Low Unit Cost

Specifications of 3M NB Poly Felt Filter Bags


Consistent Filtration


3M uses welded Side Seams to form the bag and secure the sealing ring. Because there are no sewn holes there is no particle by-pass through the seam. Media migration is also controlled through thermal treatment of the exterior surface, which prevents material fibers from migrating into the clean, filtered process media. We then use state-of-the-art procedures to properly weld the seams and affix the media to the collar and form a complete, cohesive filter with no holes from sewing.

Series NB Filter


Plastic or Metal Ring
Proper sealing of the bag in the filter housing is necessary for prevention of fluid bypass and subsequent contamination of the downstream fluid. All of 3M™ NB Polyethylene and Polyester Filter Bags are offered in both plastic and metal ring sealing collar versions that will properly seal onto most filter bag manufacturers’ housings.

For plastic collar versions, 3M welds the filter bag media to a specially designed plastic collar to provide proper sealing of the 3M NB series filter bags in most conventional bag housings. The plastic collar incorporates an ergonomically designed handle allowing for easy removal of the filter bag from the filter housing. Handle designs also allow for insertion of bag accessories (displacement balloons, magnets, etc.) For ease of identification and traceability, we engrave the handles with micron grade and manufacturing lot information.

Metal ring collar versions use a galvanized steel ring for sealing the filter bag in the housing. These versions are appropriate for use in most filter bag housings that will not accept the plastic collar version.

Made to Filter
3M manufactures each felt filter bag grade from high performance fibers based on extensive media performance testing. They provide good to excellent chemical resistance to mineral acids, organic acids, alkalis, organic solvents, and microorganisms. All 3M NB series filter bags are ISO 9001:2008 certified and do not include silicone, binders, or adhesives. All polypropylene grades and specific polyester grades use materials that are listed for food contact per 21 CFR.

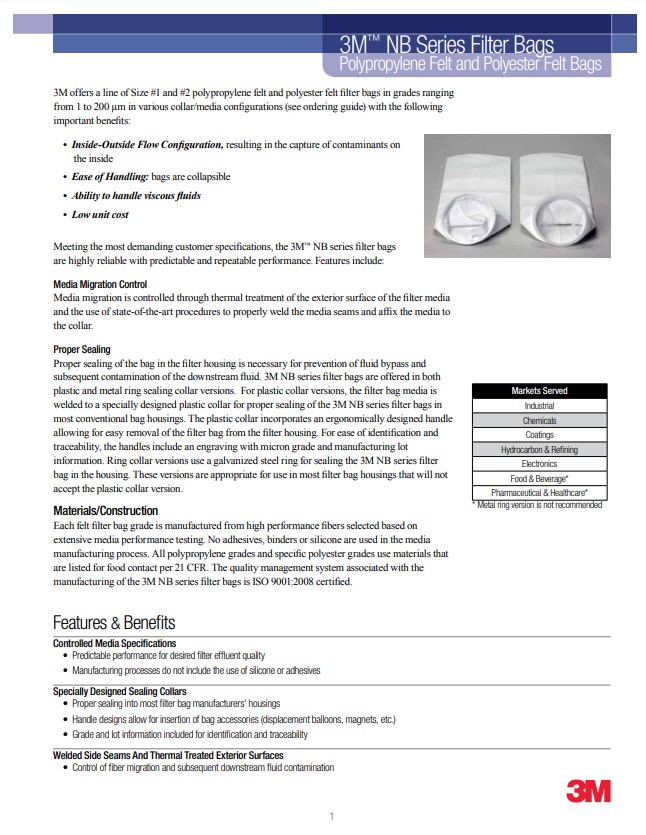

3M-NB-Poly-Felt-Filter-Bags
