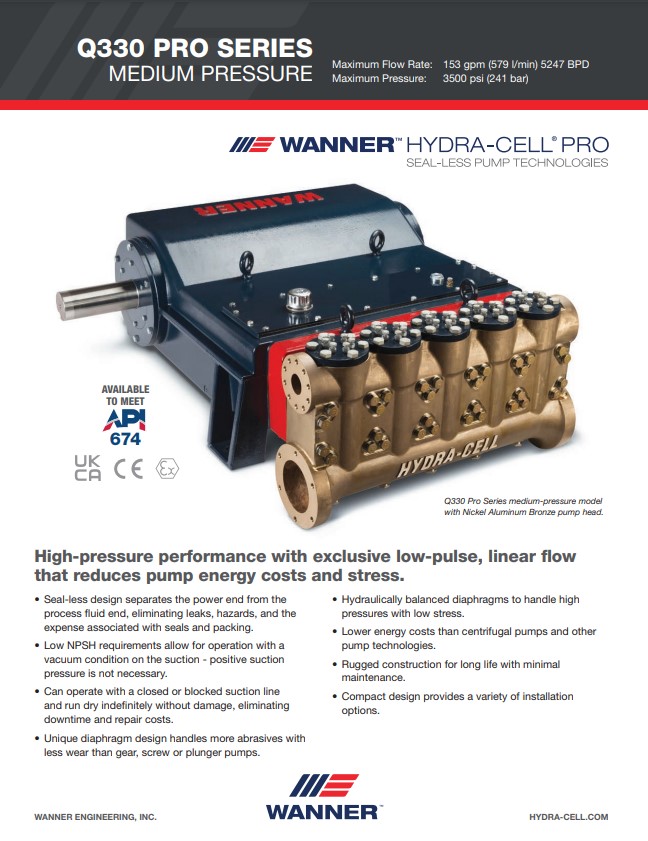

Hydra-Cell Q330 Series Pumps
Medium Pressure Models Q330K & Q330M
- Seal-less design separates the power end from the process fluid end, eliminating leaks, hazards, and the expense associated with seals and packing.
- Low NPSH requirements allow for operation with a vacuum condition on the suction - positive suction pressure is not necessary.
- Can operate with a closed or blocked suction line and run dry indefinitely without damage, eliminating downtime and repair costs.
- Unique diaphragm design handles more abrasives with less wear than gear, screw or plunger pumps.
- Hydraulically balanced diaphragms to handle high pressures with low stress.
- Lower energy costs than centrifugal pumps and other pump technologies.
- Rugged construction for long life with minimal maintenance.
| Maximum Flow Rate: | 153 gpm (579 l/min) 5247 BPD |
| Maximum Pressure: | 3500 psi (241 bar) |
Hydra-Cell Q330 Series Pump Specifications
________________________________________________________________________________________________________________________
| Model | Flow Capacities @ Pressure psi (bar) | rpm | gpm | l/min | BDP |
|---|---|---|---|---|---|
| Q330K | 3000 (207) | 400 | 153 | 579 | 5247 |
| Q330M | 3500 (241) | 400 | 136 | 514 | 4664 |
| Model | Delivery @ Pressure psi (bar) | gal/rev | liters/rev |
|---|---|---|---|
| Q330K | 500 (34) | 0.413 | 1.563 |
| 1500 (103) | 0.400 | 1.515 | |
| 3000 (207) | 0.383 | 1.450 | |
| Q330M | 500 (34) | 0.369 | 1.395 |
| 1750 (121) | 0.357 | 1.351 | |
| 3500 (241) | 0.342 | 1.293 |
| rpm | |
|---|---|
| Maximum: | 400 |
| Maximum API 674: | 310 |
| Minimum: | 40 (Consult factory for speeds less than 40 rpm.) |
| Maximum Discharge Pressure | ||
| Metallic Heads: | Q330K | 3000 psi (207 bar) |
| Q330M | 3500 psi (241 bar) | |
| Maximum Inlet Pressure | 500 psi (34 bar) | |
| Operating Temperature | ||
| Maximum: | 180 ̊F (82.2 ̊C) | |
| Minimum: | 40 ̊F (4.4 ̊C) | |
| Consult factory for temperatures outside this range | ||
| Maximum Solids Size | 800 microns | |
| Input Shaft | Right Side | |
| Inlet Port | Weld-On: 6 inch / SCH. 40 | |
| 6 inch NPT, 6 inch Class 300 RF ANSI | ||
| Discharge Port | Weld-On: 3 inch / SCH. XXH | |
| 3 inch NPT, 3 inch Class 2500 RTJ ANSI | ||
| Plunger Stroke Length | 5 inch (127 mm) | |
| Shaft Diameter | 4 inch (101.6 mm) | |
| Shaft Rotation | Uni-directional (see rotation arrows) | |
| Oil Capacity | 110 US quarts (104.1 liters) | |
| Weight | ||
| Metallic Heads: | 5000 lbs. (2268 kg) | |
| Fluid End Materials | ||
| Manifold: | Nickel Aluminum Bronze (NAB) | |
| Diaphragm/Elastomers: | FKM | |
| Buna-N | ||
| Diaphragm Follower Screw: | 316 Stainless Steel | |
| Valve Spring Retainer/Guide: | Hastelloy C / PVDF | |
| Check Valve Spring: | Elgiloy | |
| Hastelloy C | ||
| Valve Disc/Seat: | 17-4 Stainless Steel | |
| Nitronic 50 | ||
| Hastelloy C | ||
| Outlet Valve Retainer: | Austenitic Stainless Steel | |
| Plug-Outlet Valve Port: | 316 Stainless Steel | |
| Inlet Valve Retainer: | Austenitic Stainless Steel | |
| Power End Materials | ||
| Crankshaft: | Ductile Iron | |
| Connecting Rods: | Ductile Iron | |
| Crossheads: | Ductile Iron | |
| Crankcase: | Ductile Iron | |
| Bearings: | Spherical Roller Journal (outer mains) | |
| Steel Backed Tri-metal (crankpin) | ||
| Bronze (wristpin, center mains) |
________________________________________________________________________________________________________________________
Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression
Applications by Mining Market
- Borehole Stabilization (Injecting bentonite and other substances)
- Liquid Explosives (Charging liquid explosives into blast holes and rigs)
- Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
- Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
- Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
- Gland Seal Flushing (Protecting large slurry pumps from seal damage)
- Gas Extraction (Powering a Venturi jet pump to lift drillhole water and release gas to the surface)
