Hydra-Cell P200 Series Pumps Electronic Precision Metering

Versatile, Reliable Pumps for a Wide Range of Applications

  • Designed to handle a wide range of fluids from clear water to thick slurries
  • Electronic flow control increases accuracy and reliability
  • Multiple diaphragm design provides linear, virtually pulse-less flow
  • Smaller footprint saves valuable space
  • One pump covers a wide range of flows and pressures - reducing inventory requirements with fast, simple field conversion
  • Duplexing option doubles capacity and equipment savings
  • Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range
  • Rugged construction with a variety of affordable choices for liquid end, diaphragm and check valve materials
Maximum Flow Rate: 81.0 gph

Maximum Pressure:

1000 psi (69 bar) for Metallic Pump Heads
  350 psi (24 bar) for Non-metallic Pump Heads

Hydra-Cell Electronic Precision Metering Specifications

________________________________________________________________________________________________________________________

Diaphragms per Liquid End 3
Flow Control Electronic variable speed drive
Maximum Discharge Pressure
Metallic Heads: 1000 psi (69 bar)
Non-metallic Heads: PVDF- 350 psi (24 bar)
  Polypropylene- 250 psi (17 bar)
Maximum Inlet Pressure 250 psi (17 bar)
Maximum Operating Temperature
Metallic Heads: 250 ̊F (121 ̊C)*
Non-metallic Heads: 140 ̊F (60 ̊C)
Inlet Port 1/2 inch NPT or BSPT
Discharge Port 3/8 inch NPT or BSPT
Weight (less motor)
Metallic Heads: 41.8 lbs (19.0 kg)
Non-metallic Heads: 32.8 lbs (14.9 kg)
Dimensions (less motor)
Metallic Heads: 15.59” W x 11.68” D x 8.97” H
  (396.1 mm W x 296.7 mm D x 227.8 mm H)
Non-metallic Heads: 15.59” W x 12.06” D x 8.97” H
  (396.1 mm W x 306.3 mm D x 227.8 mm H)
* Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).

________________________________________________________________________________________________________________________

Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression

Applications by Mining Market

  • Borehole Stabilization (Injecting bentonite and other substances)
  • Liquid Explosives (Charging liquid explosives into blast holes and rigs)
  • Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
  • Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
  • Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
  • Gland Seal Flushing (Protecting large slurry pumps from seal damage)
  • Gas Extraction (Powering a Venturi jet pump to lift drill hole water and release gas to the surface)

Have a Fluid Handling Problem? We can help you find a Pumping Solution.

John Brooks Company caters to diverse industries, offering suitable pump solutions for nearly all fluid handling needs - including yours! Our success hinges on fostering a collaborative partnership with you, where we help you find a tailored solution to enhance your systems, boost productivity, and minimize operational expenses

Consult with a John Brooks Company Pump expert today to help you determine the most suitable pump type for your application needs.

Resources

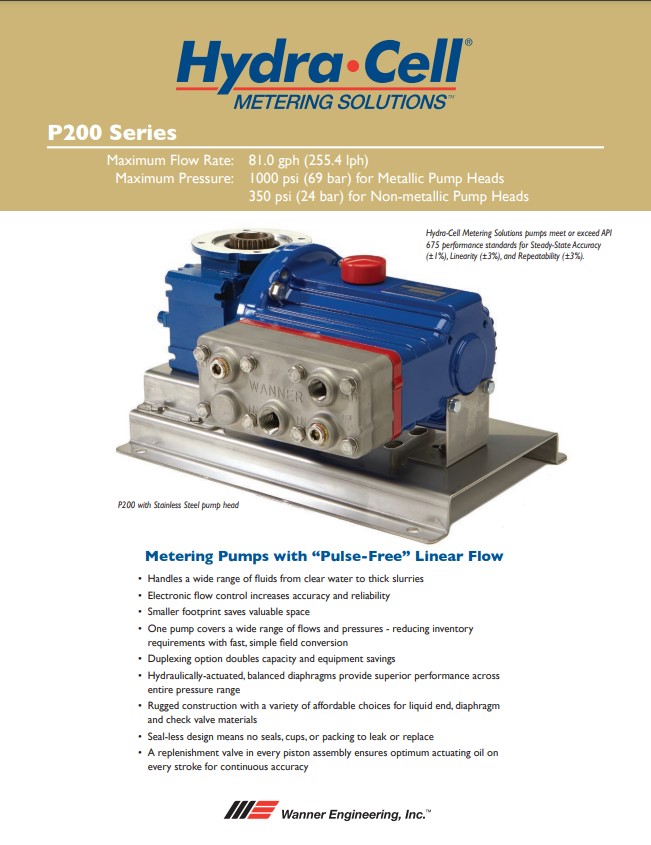

Hydra-Cell P200 Metering Pump Specifications

Hydra-Cell P200 Metering Pump Specifications

Download

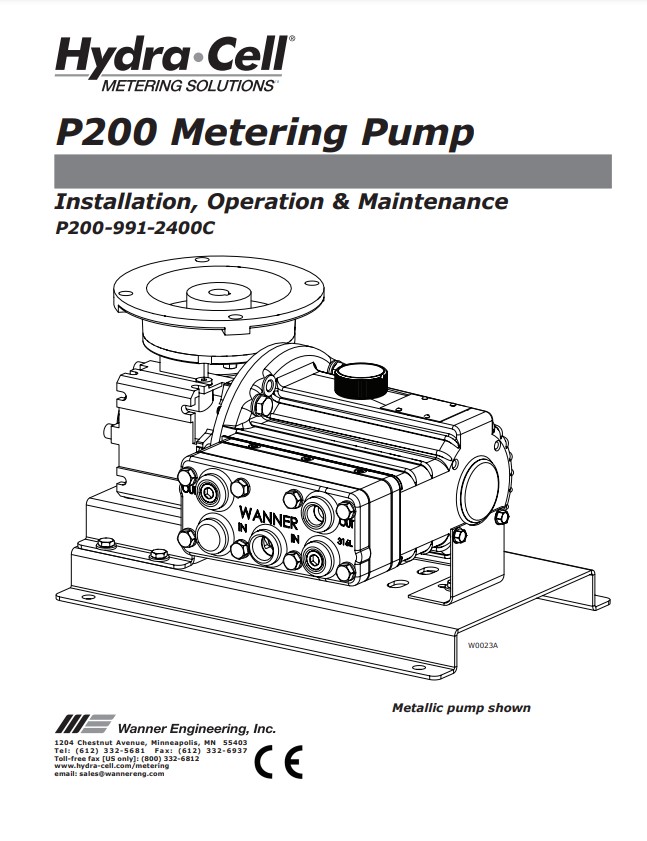

Hydra-Cell P200 Installation & Service Manual

Hydra-Cell P200 Installation & Service Manual

Download
