Hydra-Cell M03 Series / G03 Series (Metric) Diaphragm Pump Features
Versatile, Reliable Pumps for a Wide Range of Applications
- Pumps the full spectrum of low-to-high viscosity fluids.
- Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
- Simple, compact design reduces initial investment and lowers maintenance costs.
- Operational efficiencies reduce energy costs.
- Able to run dry without damage (or additional maintenance) to the pump in case of accident or operator error.
- Tolerates non-ideal operating conditions.
- Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace.
| Maximum Flow Rate: | 3.1 gpm (11.7 l/min) |
| Maximum Pressure: | 1200 psi (83 bar) for Metallic Pump Heads |
| 350 psi (24 bar) for Non-metallic Pump Heads |
Hydra-Cell M03 Series / G03 Series (Metric) Specifications
Hydra-Cell M03 Series (US)
________________________________________________________________________________________________________________________
| Model | rpm | gpm | l/min |
|---|---|---|---|
| M03-X | 1750 | 3.10 | 11.73 |
| M03-E | 1750 | 2.18 | 8.25 |
| M03-S | 1750 | 1.69 | 6.40 |
| M03-B | 1750 | 0.96 | 3.63 |
| M03-G | 1750 | 0.62 | 2.35 |
| Model | gal/rev | liters/rev |
|---|---|---|
| M03-E | 0.0012 | 0.0046 |
| M03-S | 0.0009 | 0.0036 |
| M03-B | 0.0005 | 0.0020 |
| M03-G | 0.0003 | 0.0013 |
| Model | gal/rev | liters/rev |
|---|---|---|
| M03-X | 0.0018 | 0.0067 |
| M03-E | 0.0013 | 0.0047 |
| M03-S | 0.0010 | 0.0037 |
| M03-B | 0.0005 | 0.0021 |
| M03-G | 0.0004 | 0.0013 |
| Maximum Discharge Pressure | |
| Metallic Heads: | M03-X to 1000 psi (69 bar) |
| M03-S, E, B to 1200 psi (83 bar) | |
| Non-metallic Heads: | 250 psi (17 bar) Polypropylene |
| 350 psi (24 bar) PVDF | |
| Maximum Inlet Pressure | 250 psi (17 bar) |
| Maximum Operating Temperature | |
| Metallic Heads: | 250 ̊F (121 ̊C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). |
| Non-metallic Heads: | 140 ̊F (60 ̊C) |
| Maximum Solids Size | 200 microns |
| Inlet Port | |
| Primary: | 1/2 inch NPT |
| Secondary: | 3/8 inch NPT (plugged from factory) |
| Discharge Port | 3/8 inch NPT |
| Shaft Diameter | M03: 5/8 inch (15.9 mm) hollow shaft |
| D03: 7/8 inch (22.2 mm) | |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Precision ball bearings |
| Oil Capacity | 1.0 US quart (0.95 liters) |
| Weight | |
| Metallic Heads: | 28 lbs. (12.7 kg) |
| Non-metallic Heads: | 19 lbs. (8.6 kg) |
Hydra-Cell G03 Series (Metric)
________________________________________________________________________________________________________________________
| Model | rpm | gpm | l/min |
|---|---|---|---|
| G03-X | 1450 | 2.45 | 9.3 |
| G03-E | 1450 | 1.80 | 6.8 |
| G03-S | 1450 | 1.48 | 5.6 |
| G03-B | 1450 | 0.92 | 3.5 |
| G03-G | 1450 | 0.40 | 1.5 |
| Model | rpm | gpm | l/min |
|---|---|---|---|
| G03-X | 1450 | 2.45 | 9.3 |
| G03-E | 1450 | 1.80 | 6.8 |
| G03-S | 1450 | 1.48 | 5.6 |
| G03-B | 1450 | 0.92 | 3.5 |
| G03-G | 1450 | 0.40 | 1.5 |
| Model | gal/rev | liters/rev |
|---|---|---|
| G03-E | 0.0012 | 0.0046 |
| G03-S | 0.0009 | 0.0036 |
| G03-B | 0.0005 | 0.0020 |
| G03-G | 0.0003 | 0.0013 |
| Model | gal/rev | liters/rev |
|---|---|---|
| G03-X | 0.0018 | 0.0067 |
| G03-E | 0.0013 | 0.0047 |
| G03-S | 0.0010 | 0.0037 |
| G03-B | 0.0005 | 0.0021 |
| G03-G | 0.0004 | 0.0013 |
| Maximum Discharge Pressure | |
| Metallic Heads: | G03-X to 69 bar (1000 psi) |
| G03-S, E, B to 83 bar (1200 psi) | |
| Non-metallic Heads: | 17 bar (250 psi) Polypropylene |
| 24 bar (350 psi) PVDF | |
| Maximum Inlet Pressure | 17 bar (250 psi) |
| Maximum Operating Temperature | |
| Metallic Heads: | 121 ̊C (250 ̊F) - Consult factory for correct component selection for temperatures from 71 ̊C (160 ̊F) to 121 ̊C (250 ̊F). |
| Non-metallic Heads: | 60 ̊C (140 ̊F) |
| Maximum Solids Size | 200 microns |
| Inlet Port | 1/2 inch BSPT |
| 1/2 inch NPT | |
| Discharge Port | 3/8 inch BSPT |
| 3/8 inch NPT | |
| Shaft Diameter | G13: 24 mm hollow shaft |
| G03: 22.2 mm (7/8 inch) | |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Precision ball bearings |
| Oil Capacity | 0.95 liters (1.0 US quart) |
| Weight | |
| Metallic Heads: | 12.7 kg (28 lbs.) |
| Non-metallic Heads: | 8.6 kg (19 lbs.) |
________________________________________________________________________________________________________________________
Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression
Applications by Mining Market
- Borehole Stabilization (Injecting bentonite and other substances)
- Liquid Explosives (Charging liquid explosives into blast holes and rigs)
- Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
- Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
- Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
- Gland Seal Flushing (Protecting large slurry pumps from seal damage)
- Gas Extraction (Powering a Venturi jet pump to lift drillhole water and release gas to the surface)
Have a Fluid Handling Problem? We can help you find a Pumping Solution.
John Brooks Company caters to diverse industries, offering suitable pump solutions for nearly all fluid handling needs - including yours! Our success hinges on fostering a collaborative partnership with you, where we help you find a tailored solution to enhance your systems, boost productivity, and minimize operational expenses
Consult with a John Brooks Company Pump expert today to help you determine the most suitable pump type for your application needs.
-G20%20Series%20(Metric)/installation-guidelines.jpg)

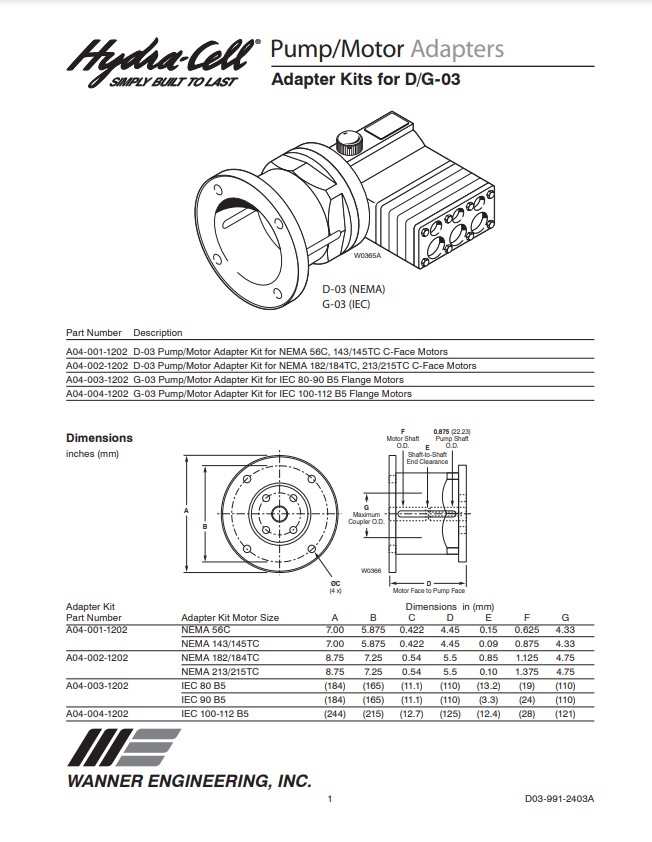

/D-G-03%20Adapter%20Kits.jpg)

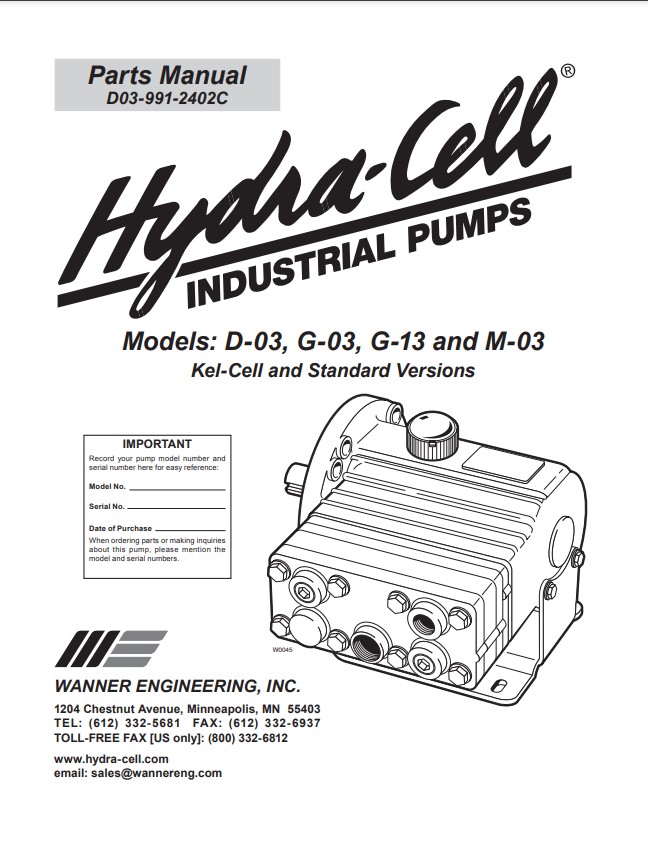

/M03-G03%20Parts%20Manual.jpg)

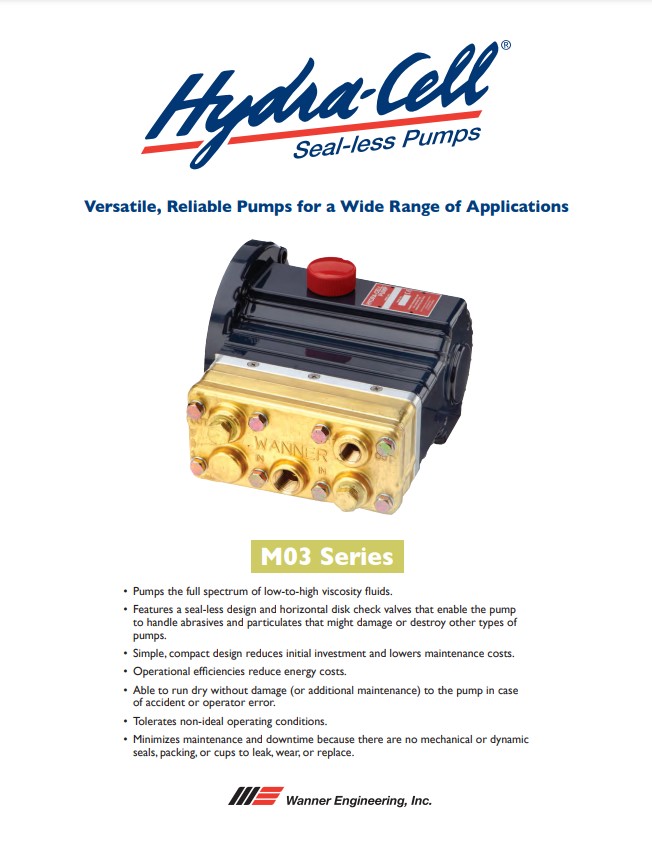

/m03-specs.jpg)

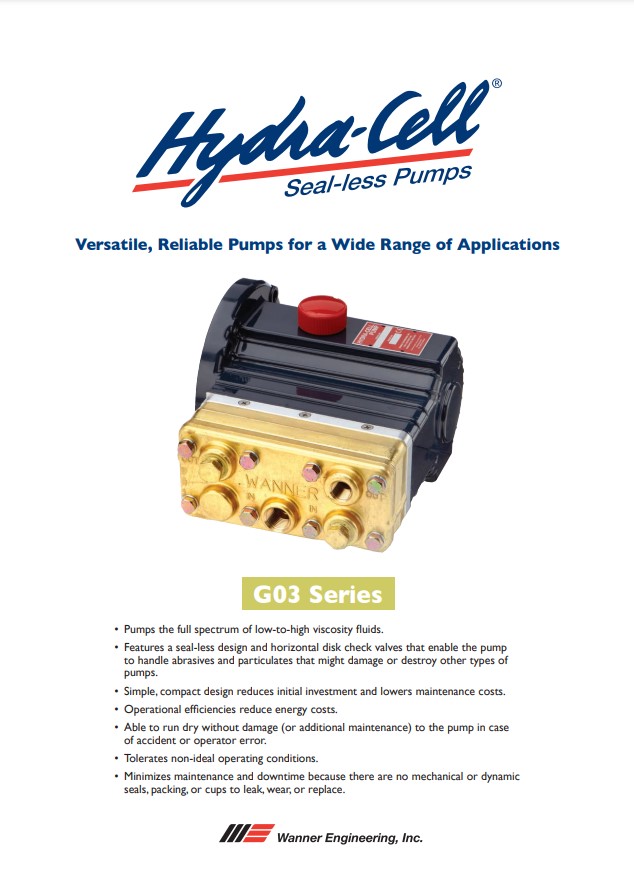

/g03-specs.jpg)

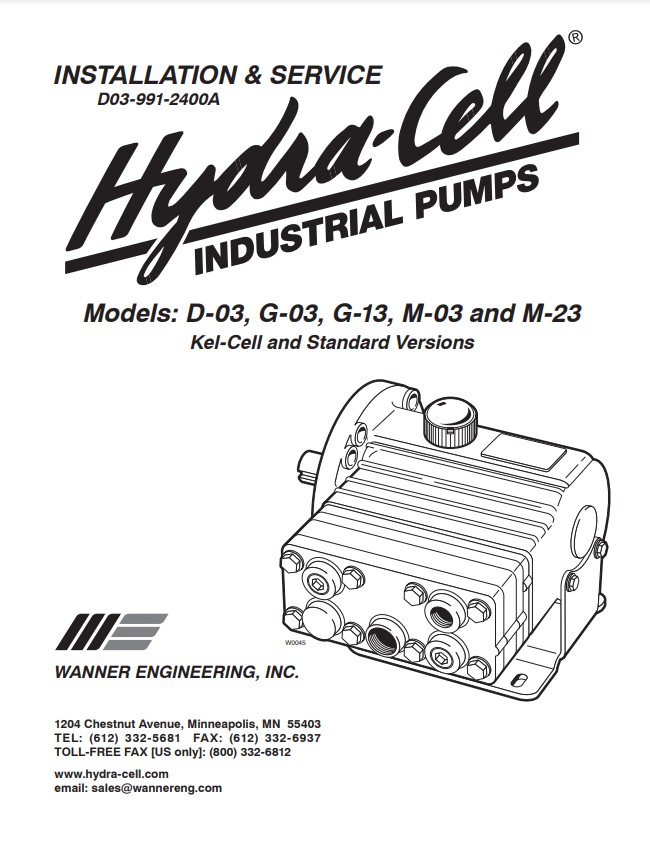

/m03-g03%20installation%20and%20service%20manual.jpg)
