Hydra-Cell H25 Series (US) / G25 Series (Metric) Diaphragm Pump Features
Versatile, Reliable Pumps for a Wide Range of Applications
- Pumps the full spectrum of low-to-high viscosity fluids.
- Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
- Simple, compact design reduces initial investment and lowers maintenance costs.
- Operational efficiencies reduce energy costs.
- Able to run dry without damage (or additional maintenance) to the pump in case
- of accident or operator error.
- Tolerates non-ideal operating conditions.
- Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace.
| Maximum Flow Rate: | 20.0 gpm (75.9 l/min) |
| Maximum Pressure: | 1000 psi (69 bar) for Metallic Pump Heads |
| 350 psi (24 bar) for Non-metallic Pump Heads |
Hydra-Cell H25 Series (US) / G25 Series (Metric) Pump Specifications

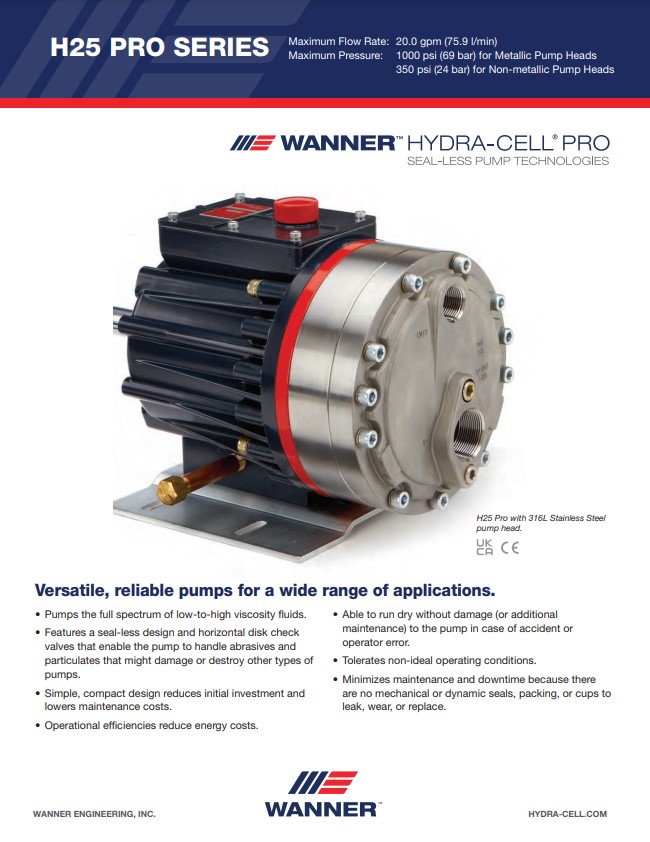

Hydra-Cell H25 Series (US)
________________________________________________________________________________________________________________________
| Model | Flow Capacities | rpm | gpm | l/min |
|---|---|---|---|---|
| H25-X | @1000 psi (69 bar) | 1050 | 20.0 | 75.7 |
| H25-E | @1000 psi (69 bar) | 1150 | 20.0 | 75.9 |
| H25-S | @1000 psi (69 bar) | 1150 | 16.2 | 61.5 |
| H25-I | @1000 psi (69 bar) | 1150 | 11.8 | 44.7 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| H25-X | @1000 psi (69 bar) | 0.0190 | 0.0721 |
| H25-E | @1000 psi (69 bar) | 0.0174 | 0.0660 |
| H25-S | @1000 psi (69 bar) | 0.0141 | 0.0535 |
| H25-I | @1000 psi (69 bar) | 0.0103 | 0.0389 |
| Maximum Discharge Pressure | |
| Metallic Heads: | 1000 psi (69 bar) |
| Non-metallic Heads: | 250 psi (17 bar) Polypropylene |
| 350 psi (24 bar) PVDF | |
| Maximum Inlet Pressure | 250 psi (17 bar) |
| Maximum Operating Temperature | |
| Metallic Heads: | 250˚F (121˚C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). |
| Non-metallic Heads: | 140˚F (60˚C) |
| Maximum Solids Size | 800 microns |
| Inlet Port | 1-1/2 inch NPT |
| 150lb ANSI RF flange | |
| Discharge Port | 1 inch NPT |
| 600lb ANSI RF flange | |
| Shaft Diameter | 1-1/8 inch (28.6 mm) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 3.3 US quarts (3.1 liters) |
| Weight | |
| Metallic Heads: | 125 lbs. (56.8 kg) |
| Non-metallic Heads: | 90 lbs. (40.9 kg) |

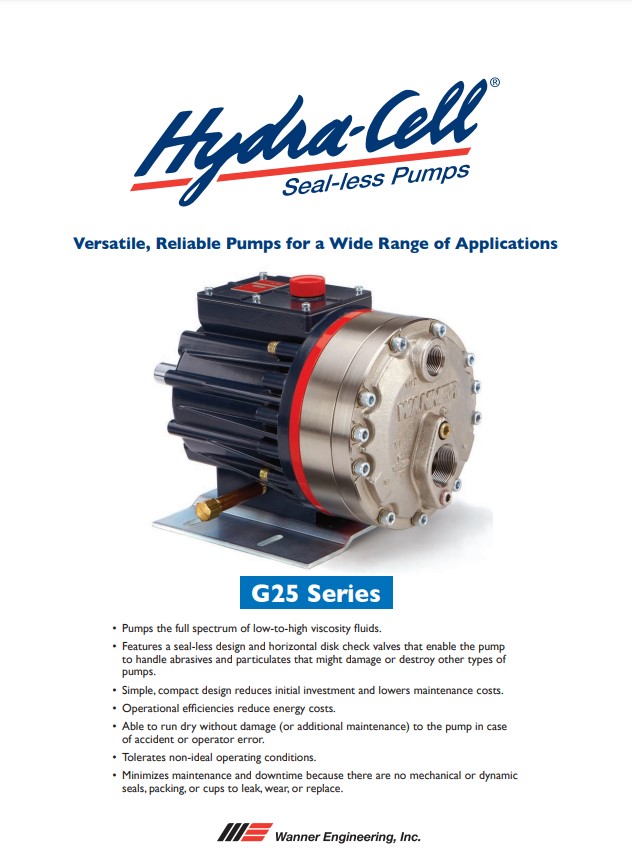

Hydra-Cell G25 Series (Metric)
________________________________________________________________________________________________________________________
| Model | rpm | gpm | I/min |
|---|---|---|---|
| G25-X | 960 | 18.2 | 69.0 |
| G25-E | 960 | 16.6 | 63.0 |
| G25-S | 960 | 13.2 | 50.0 |
| G25-I | 960 | 9.5 | 36.0 |
| Model | gal/rev | liters/rev |
|---|---|---|
| G25-X | 0.0190 | 0.0721 |
| G25-E | 0.0174 | 0.0660 |
| G25-S | 0.0141 | 0.0535 |
| G25-I | 0.0103 | 0.0389 |
| Maximum Discharge Pressure | |
|---|---|
| Metallic Heads: | 1000 psi (69 bar) |
| Non-metallic Heads: | 250 psi (17 bar) Polypropylene |
| 350 psi (24 bar) PVDF | |
| Maximum Inlet Pressure | 250 psi (17 bar) |
| Maximum Operating Temperature | |
| Metallic Heads: | 250 ̊F (121 ̊C) - Consult factory for correct |
| component selection for temperatures | |
| from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). | |
| Non-metallic Heads: | 140 ̊F (60 ̊C) |
| Maximum Solids Size | 800 microns |
| Inlet Port | 1-1/2 inch NPT |
| Discharge Port | 1 inch NPT |
| Shaft Diameter | 1-1/8 inch (28.6 mm) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 3.3 US quarts (3.1 liters) - See pages 94 and 95 |
| for oil selection and specification. | |
| Weight | |
| Metallic Heads: | 125 lbs. (56.8 kg) |
| Non-metallic Heads: | 90 lbs. (40.9 kg) |
________________________________________________________________________________________________________________________
Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression
Applications by Mining Market
- Borehole Stabilization (Injecting bentonite and other substances)
- Liquid Explosives (Charging liquid explosives into blast holes and rigs)
- Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
- Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
- Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
- Gland Seal Flushing (Protecting large slurry pumps from seal damage)
- Gas Extraction (Powering a Venturi jet pump to lift drillhole water and release gas to the surface)
