Wilden V2550 Compact Pumps – Velocity Series

Wilden V2550 Compact Pumps – 1/4″ (6mm) Bolted Plastic Pumps are air-operated double-diaphragm (AODD) pumps, designed with versatility. Featuring a unique detachable mounting foot, Wilden V2550 Compact Pumps from Velocity Series can easily be reoriented into a vertical or horizontal position with multiple inlet and discharge port options, a critical consideration for systems and skids.

  • Numerous mounting configurations to fit any application
  • 14.2′ (4.3 m) dry suction lift for better priming   View product
  • Startup pressures as low as 15 psi (1.03 bar)
  • Bore-seal design that eliminates leaks that result from torque decay
  • Interchangeable footprint with previous Wilden designs (P.025, P25)

Performance & Specifications :

AIR INLET: 1/4″ FNPT
CONNECTION TYPE: FNPT (Threaded)
MAX PRESSURE: 100 psi (6.9 bar)
LIQUID INLET: 1/4″ (6mm)
LIQUID DISCHARGE: 1/4″ (6mm)
MAX FLOW RATE: 5.7 gpm (21.6 lpm)
MAX DIAMETER SOLIDS: 1/32″ (0.8mm)
MAX SUCTION LIFT CAPABILITY: DRY – 14.2′ (4.3m) | WET – 20.4′ (6.2m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes): 0.01 gal (0.04 L)

Wetted Housings



Non-Wetted Housings

MATERIAL SHIP WEIGHT   DESCRIPTION MATERIAL
Polypropylene 4 lbs (2 kg) Air Valve Polypropylene
PVDF 4 lbs (2 kg) Air Chamber Polypropylene

Elastomer Options

Material Temperature Limits
PTFE 40°F to 220°F (4°C to 104°C)
Wil-Flex -40°F to 225°F (-40°C to 107°C)

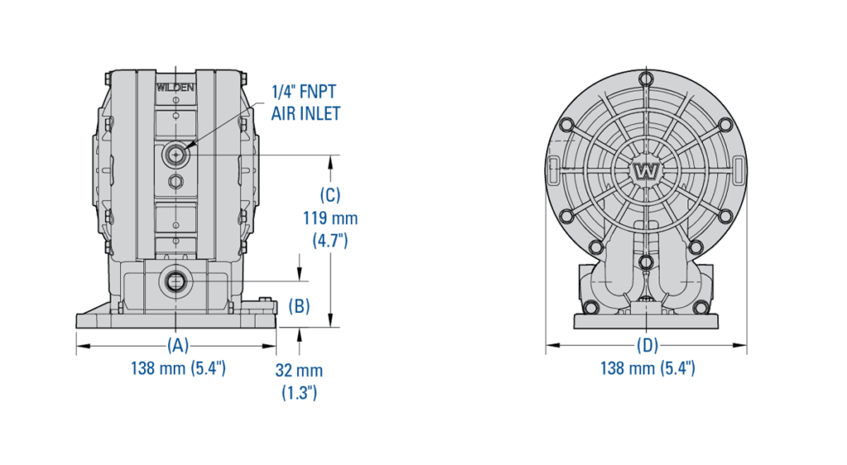

Dimensions

Dimensions-1-4-inch-Velocity-Series-Compact-Pump-1024x563

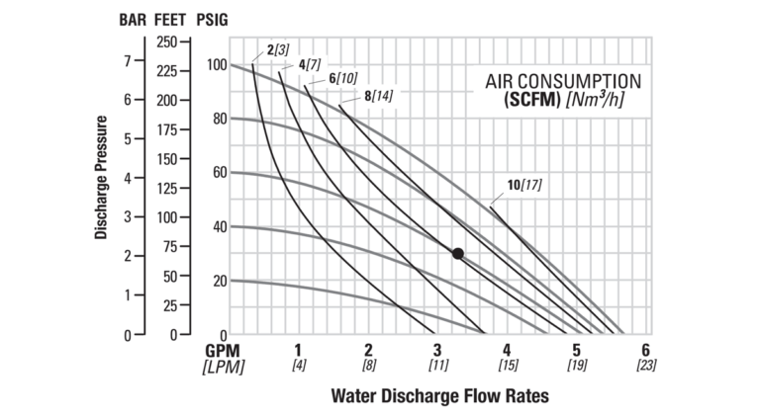

Flow Curve – TPE-Fitted

Flow-Curve-1-4-inch-Velocity-Series-Compact-Pump-768x422

Resources

EOM 1-4 inch Velocity Series Pump

EOM 1-4 inch Velocity Series Pump

Download
Spec Sheet 1-4 inch Velocity Series Compact Pumps

Spec Sheet 1-4 inch Velocity Series Compact Pumps

Download
